| Item | Dual Coil Latching Relay |
|---|---|
| Amps Rating | 5A |
| Base Shape | Octal |
| Base Type | Octal |
| Base Type - Plug In Relay | Octal |
| Body Depth | 2.07" |
| Body Depth - Relay | 1 9/25" |
| Body Height | 1 9/25" , 2.07" |
| Body Width | 1 9/25" |
| Body Width - Relay | 1 9/25" |
| Coil Resistance | 52 ohms |
| Coil Va Rating | 2.3-2.7 VA |
| Coil Voltage | 12V DC |
| Contact Form | DPDT |
| Contact Material | Silver |
| Contact Rating | 10A @ 250V AC/28V DC |
| Contact Rating (ac) | 2A @ 240V, 5A @ 240V |
| Contact Rating (dc) | 2.5A @ 24V, 3A @ 24V |
| Current Rating | 5A |
| Dc Contact Rating | 2.5A @ 24V, 3A @ 24V |
| Dielectric Strength | 1000V AC Between Contacts Of Same Polarity, 1000V AC Between Set/Reset Coils, 2000V AC Between Coil And Contact, 2000V AC Between Contacts Of Different Polarity |
| Electrical Connection | Tab |
| Electrical Connection Type | Tab |
| Electrical Operating Durability | 500000 |
| Environmental Protection | Enclosed |
| Flat Pin Width | Not Applicable |
| Frequency | 50/60 Hz |
|---|---|
| Horsepower @ 120v Ac | Not Rated |
| Hp @ 120v | Not Rated |
| Hp @ 240v | Not Rated |
| Insulation Resistance | 100 M ohms |
| Mechanical Operating Durability | 5000000 |
| Motor Rated | Yes |
| Mounting | Octal Plug In Socket |
| Number Of Pins | 11 |
| Number Of Pins - Relay | 11 |
| Number Of Pins/terminals | 11 |
| Overall Depth | 1.85" |
| Overall Height - Relay | 1.85" |
| Pin Shape | Flat |
| Power Consumption | 2.7 W |
| Power Consumption - Relay | 2.7 W |
| Push-to-test Method | Manual |
| Relay Mounting | Plug In |
| Relay Mounting Style | Socket |
| Resistance Properties | Shock-Resistant, Vibration-Resistant |
| Resistive Contact Amp Rating | 5A |
| Sealing | Enclosed |
| Series | MK Series |
| Socket Code | B |
| Status Indicator | Mechanical Flag |

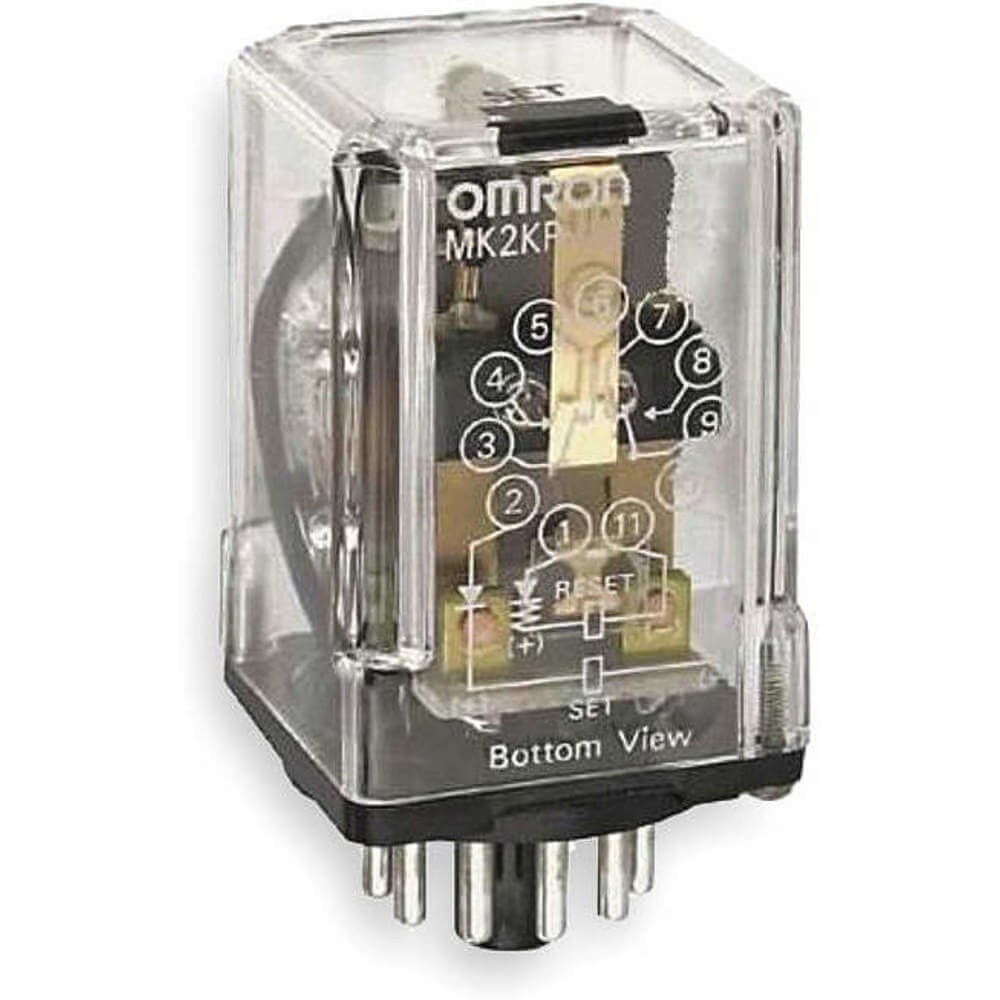

Omron MK2KP-UA-DC12 dual coil latching relay is ideal for electric panels demanding reliable relays for prevention against fault currents and overload. This dual-latching relay is used in industrial applications such as sequencing and controlling power for machinery or control panels.
| Height (cm) | 6.86 |
|---|---|
| Length (cm) | 3.56 |
| Width (cm) | 3.56 |
| HS Code | 8536490080 |
|---|---|
| Country Of Origin | JP |
| Weight (kg) | 0.0675 |
Yes, this latching relay uses two opposing coils, and after the coil is de-energised, a permanent magnet or an over-centre spring holds the contacts in place.
