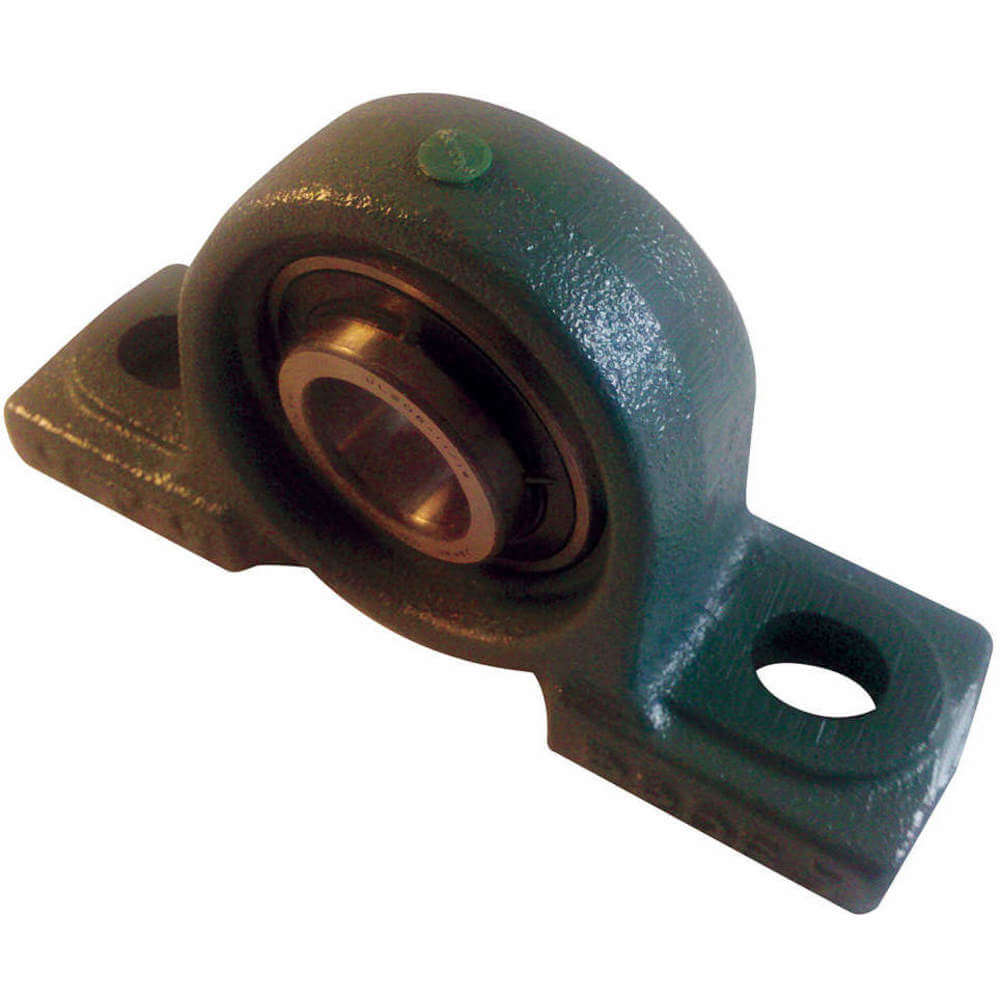

| Item | Mounted Ball Bearing |
|---|---|
| Base Height | 0.669" |
| Base Width | 1.889" |
| Bearing Housing Material Type | Cast Iron |
| Bearing Insert Material | Alloy Steel |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | Grade 52100 |
| Bolt Center To Center Length | 4 3/4" |
| Bolt Hole Size | 1/2" |
| Bolt Size | 1/2" |
| Bore Dia. | 1.187" |
| Bore Diameter | 1 3/16" |
| Bore Type | Cylindrical |
| Center Height | 1 11/16" |
| Closure | Double Sealed |
| Closure Type | Double Sealed |
| Color | Green |
| Dimension H | 1 11/16" |
| Dimension H1 | 21/32" |
| Dimension H2 | 3 9/32" |
| Dimension J | 4 3/4" |
| Dimension L | 6 1/2" |
| Dimension S | 5/8" |
| Dynamic Load Capacity | 4400 lbs. |
| Dynamic Radial Load Capacity | 4384 lbf. |
| Features | Light Duty |
| Finish | Painted |
| Grade | Grade 52100 |
| Housing Material | Cast Iron |
| Housing Material Finish | Painted |
| Inner Ring Width | 1 1/2" |
|---|---|
| Insert | Ball Bearing |
| Insert Finish | Chrome Plated |
| Insert Material | Steel |
| Insert Type | Radial Ball |
| Lock Type | Set Screw |
| Lubricant Material | Nlgi #3 Equivalent |
| Material | Steel |
| Maximum Speed | 4900 RPM |
| Maximum Temperature | 250°F |
| Minimum Temperature | -40°F |
| Mount Hole Center-to-center Length | 4 3/4" |
| Mount Hole Size | 0.669" x 0.787" |
| Mount Type | Bolt Through |
| Mounting Bolt Size | 1/2" |
| Mounting Hole Center | 4 3/4" |
| Mounting Surface To Shaft Center | 1 11/16" |
| Mounting Surface To Shaft Center Height | 1 11/16" |
| Number Of Bolts | 2 |
| Number Of Mounting Holes | 2 |
| Overall Height | 3.267" |
| Overall Length | 6.496" |
| Overall Width | 1 7/8" |
| Seal Material | Nitrile Rubber |
| Seal Type | Contact |
| Shaft Locking Type | Set Screws |
| Static Load Capacity | 2540 lbs. |
| Static Radial Load Capacity | 2540 lbf. |
| System Of Measurement | Inch |
| Type | Ball |
| Height (cm) | 8.3 |
|---|---|
| Length (cm) | 16.5 |
| Width (cm) | 4.76 |
| HS Code | 8483204040 |
|---|---|
| Country Of Origin | JP |
| Weight (kg) | 1.3725 |
| Style | Model | Overall Width | Closure | Overall Length | Overall Height | Mount Hole Center-to-center Length | Mounting Bolt Size | Bore Dia. | Finish | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | UCP201-008D1 | 1 1/2" | Open | 5" | 2 11/25" | 3 47/64" | M10 | 1/2" | Black Oxide | $113.33 | |
| A | UCP202-010D1 | 1 1/2" | Open | 5" | 2 11/25" | 3 47/64" | M10 | 5/8" | Black Oxide | $113.33 | |
| A | UCP204-012D1 | 1 1/2" | Double Sealed | 5" | 2.559" | 3 47/64" | M10 | 3/4" | Black Oxide | $119.86 | |
| A | UCP205-014D1 | 1 1/2" | Open | 5.511" | 2.795" | 4 1/8" | M10 | 7/8" | Black Oxide | $129.39 | |
| A | UCP205-100D1 | 1 1/2" | Double Sealed | 5.511" | 2.795" | 4 1/8" | M10 | 1" | Black Oxide | $129.39 | |
| A | UCP206-102D1 | 1 7/8" | Double Sealed | 6.496" | 3.267" | 4 3/4" | 1/2" | 1 1/8" | Black Oxide | $153.90 | |
| A | UCP206-104D1 | 1 7/8" | Double Sealed | 6.496" | 3.267" | 4 3/4" | 1/2" | - | Black Oxide | $153.90 |
