| Item | Mounted Ball Bearing |
|---|---|
| Application | Agriculture, Automotive, Cosmetic/Pharmaceutical, Food Processing, Industrial Machinery, Machine Tools, Material Handling, Refinery/Petrochemical |
| Back Side To Center Width | 0.984" |
| Bearing Insert Material | Alloy Steel |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | Grade 52100 |
| Bolt Hole Size | 0.562" |
| Bolt Size | 5/8" |
| Bore Dia. | 2" |
| Bore Type | Cylindrical |
| Closure | Double Sealed |
| Color | Green |
| Dimension A | 1.688" |
| Dimension B | 2.219" |
| Dimension H | 8.812" |
| Dimension J | 7 1/4" |
| Dimension L | 5 1/8" |
| Dimension N | 3/4" |
| Dynamic Load Capacity | 9780 lbf. |
| Expansion Type | Fixed |
| Finish | Black Oxide |
| Flange Thickness | 23/32" |
| Grade | Grade 52100 |
| Housing Material | Cast Iron |
| Housing Material Finish | Painted |
| Housing Type | Rhombus |
| Included Bearing | UC211-200D1 |
| Includes | (2) Set Screws |
| Inner Ring Width | 6 mm |
| Insert | Ball Bearing |
|---|---|
| Insert Finish | Chrome Plated |
| Insert Material | Steel |
| Insert Type | Ball |
| Lock Type | Set Screw |
| Lubricant Material | Nlgi #3 Equivalent |
| Lubrication Openings | One Zirc Fitting |
| Material | Steel |
| Maximum Speed | 2900 RPM |
| Maximum Temperature | 250°F |
| Minimum Temperature | -40°F |
| Mount Hole Center-to-center Length | 7 1/4" |
| Mount Hole Size | 0.748" |
| Mounting Bolt Size | 5/8" |
| Mounting Hole Center | 7 1/4" |
| Number Of Bolts | 2 |
| Number Of Mount Holes | 2 |
| Overall Height | 5 1/8" |
| Overall Length | 8 13/16" |
| Overall Width | 2 19/64" |
| Rolling Element Rows | 1 |
| Seal Material | Nitrile Rubber |
| Seal Type | Contact |
| Shaft Locking Type | Set Screws |
| Static Load Capacity | 6570 lbs. |
| Static Radial Load Capacity | 6565 lbf. |
| Temp. Range | -20°F to +250°F |
| Type | Ball |
| Height (cm) | 13.02 |
|---|---|
| Length (cm) | 22.38 |
| Width (cm) | 5.83 |
| HS Code | 8483204040 |
|---|---|
| Country Of Origin | JP |
| Weight (kg) | 3.4556 |
| Style | Model | Overall Length | Overall Width | Overall Height | Flange Thickness | Mount Hole Center-to-center Length | Mounting Bolt Size | Bore Dia. | Finish | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

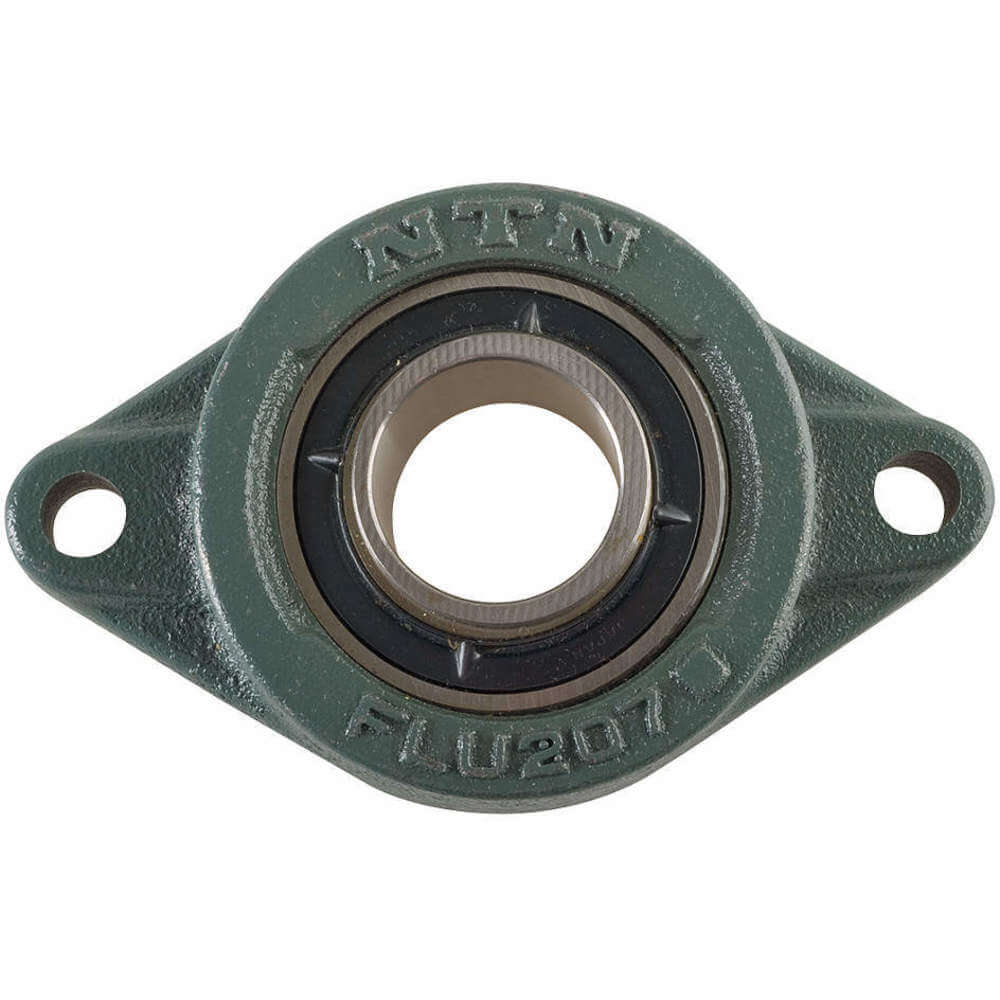

| A | UCFL201-008D1 | 4 7/16" | 1 5/16" | 2 3/8" | 7/16" | 3 35/64" | 7/16" | 1/2" | Painted | $110.76 | |
| A | UCFL202-010D1 | 4 7/16" | 1 5/16" | 2 3/8" | 7/16" | 3 35/64" | 7/16" | 5/8" | Black Oxide | $95.33 | |
| A | UCFL204-012D1 | 4 7/16" | 1 5/16" | 2 3/8" | 7/16" | 3 35/64" | 7/16" | - | Black Oxide | $115.71 | |
| A | UCFL205-014D1 | 5 1/8" | 1 13/32" | 2 11/16" | 21/64" | 3 57/64" | 5/8" | 7/8" | Black Oxide | $129.39 | |
| A | UCFL205-015D1 | 5 1/8" | 1 13/32" | 2 11/16" | 21/64" | 3 57/64" | 5/8" | 0.938" | Black Oxide | $129.39 | |
| A | UCFL205-100D1 | 5 1/8" | 1 13/32" | 2 11/16" | 21/64" | 3 57/64" | 5/8" | 1" | Black Oxide | $129.39 | |
| A | UCFL206-102D1 | 5 13/16" | 1 37/64" | 3 5/32" | 21/64" | 4 39/64" | 5/8" | 1 1/8" | Black Oxide | $153.90 |
