| Item | Agricultural Disc Bearing |
|---|---|
| Abec Tolerance | 1 |
| Bearing Material | Steel |
| Bearing Type | Agricultural |
| Bore Dia. | 1.53" |
| Bore Tolerance | +/-0.005" |
| Cage Material | Nylon |
| Dynamic Load Capacity | 7,350 lb. |
| Flange Size | Not Applicable |
| Lubrication | Shell Alvania #3 |
|---|---|
| Max. Rpm | 520 |
| Outside Dia. | 5" |
| Outside Dia. Tolerance | +0/-0.0005" |
| Seal Material | NBR |
| Shield Material | Rust-resistant Metal |
| Static Load Capacity | 4,600 lb. |
| Temp. Range | -13 Degrees to 250 Degrees F |
| Width | 1.687" |
| Height (cm) | 12.7 |
|---|---|
| Length (cm) | 12.7 |
| Width (cm) | 4.28 |
| HS Code | 8482105048 |
|---|---|
| Country Of Origin | JP |
| Weight (kg) | 1.107 |
| Style | Model | Cage Material | Closure | Ball Material | Bore Dia. | Outside Dia. | Outer Ring Width | Max. Speed | Dynamic Load Capacity | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | CDS211TTR23 | Nylon | Double Sealed | Steel | 1.78" | 4.438" | - | 450 RPM | 9750 lbs. | $477.51 | |
| B | DC208TT | Steel | Double Sealed | Steel | 1 1/8" | 3.149" | - | 560 RPM | 6550 lbs. | $277.34 | |

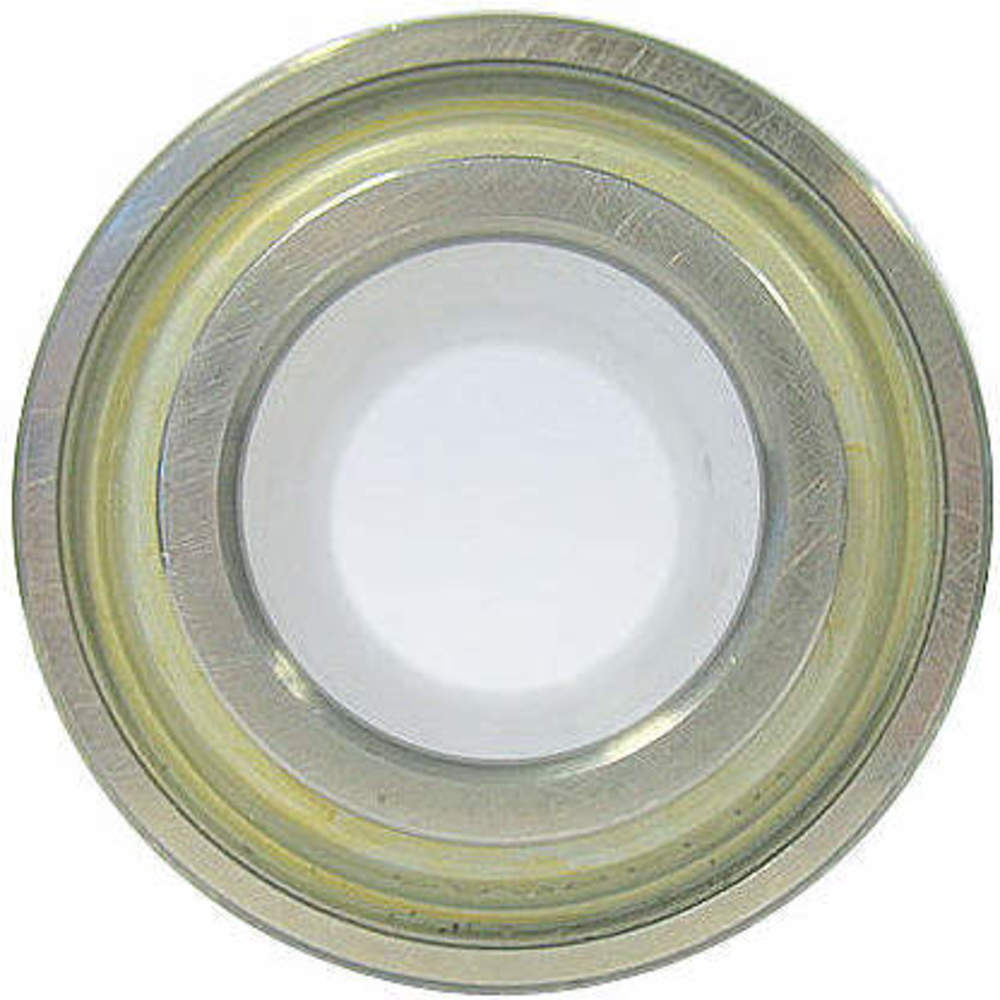

| C | DC208TT10 | Steel | Double Sealed | Steel | 1 1/2" | 3.149" | - | 560 RPM | 6550 lbs. | $196.80 | |
| B | DC208TT5 | Steel | Double Sealed | Steel | 1 1/8" | 3.149" | - | 560 RPM | 6550 lbs. | $153.16 | |
| B | DC208TT6 | Steel | Double Sealed | Steel | - | 3.149" | - | 560 RPM | 6550 lbs. | $220.59 | |
| B | DC208TT8 | Steel | Double Sealed | Steel | 1 1/8" | 3.149" | - | 560 RPM | 6550 lbs. | $182.50 | |
| B | DC208TTR17 | Steel | Double Sealed | Steel | 1 1/8" | 3 3/8" | - | 560 RPM | 6550 lbs. | $212.06 |
