| Item | Linear Round Flange Mount Bearing |
|---|---|
| Barrel Dia. | 1.562" |
| Bearing Type | Ball |
| Bore Dia. | 3/4" |
| Color | Silver |
| Dynamic Load Capacity | 862N |
| Finish | Anodized |
| Flange Dia. | 0.312" |
| Flange Diameter | 2.188" |
| Flange Shape | Round |
| Flange Thickness | 0.313" |
| Housing Style | Single |
| Inside Diameter | 3/4" |
| Material | Resin |
| Maximum Operating Temperature | 176°F |
| Minimum Operating Temperature | -4°F |
|---|---|
| Mounting Hole | 0.219" |
| Mounting Hole Center | 1.718" |
| Mounting Hole Dia. | 0.218" |
| Mounting Hole Diameter | 0.2187" |
| Outside Diameter | 1 1/4" |
| Overall Height | 2 3/16" |
| Overall Length | 1 5/8" |
| Overall Width | 1 1/4" |
| Seal | Seals Included |
| Series | SWF Series |
| Shaft Dia. | 3/4" |
| Static Load Capacity | 1370N |
| Steady State Speed | 5 FPS |
| Type | Closed |
| Height (cm) | 5.08 |
|---|---|
| Length (cm) | 5.72 |
| Width (cm) | 5.72 |
| HS Code | 8483304040 |
|---|---|
| Country Of Origin | JP |
| Weight (kg) | 0.198 |
| Style | Model | Type | Dynamic Load Capacity | Static Load Capacity | Material | Housing Style | Overall Length | Overall Width | Color | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | SWF10GUU | Closed | 774N | 1180N | Resin | Single | - | 1 1/8" | Silver | $55.19 | |
| A | SWF16GUU | Closed | 980N | 1570N | Resin | Single | 2 1/4" | 1.562" | Silver | $109.20 | |
| A | SWF20GUU | Closed | 1570N | 2740N | Resin | Single | 2 5/8" | 2" | Silver | $138.11 | |
| A | SWF24GUU | Closed | 2180N | 4020N | Resin | Single | 3" | 2 3/8" | Silver | $228.33 | |

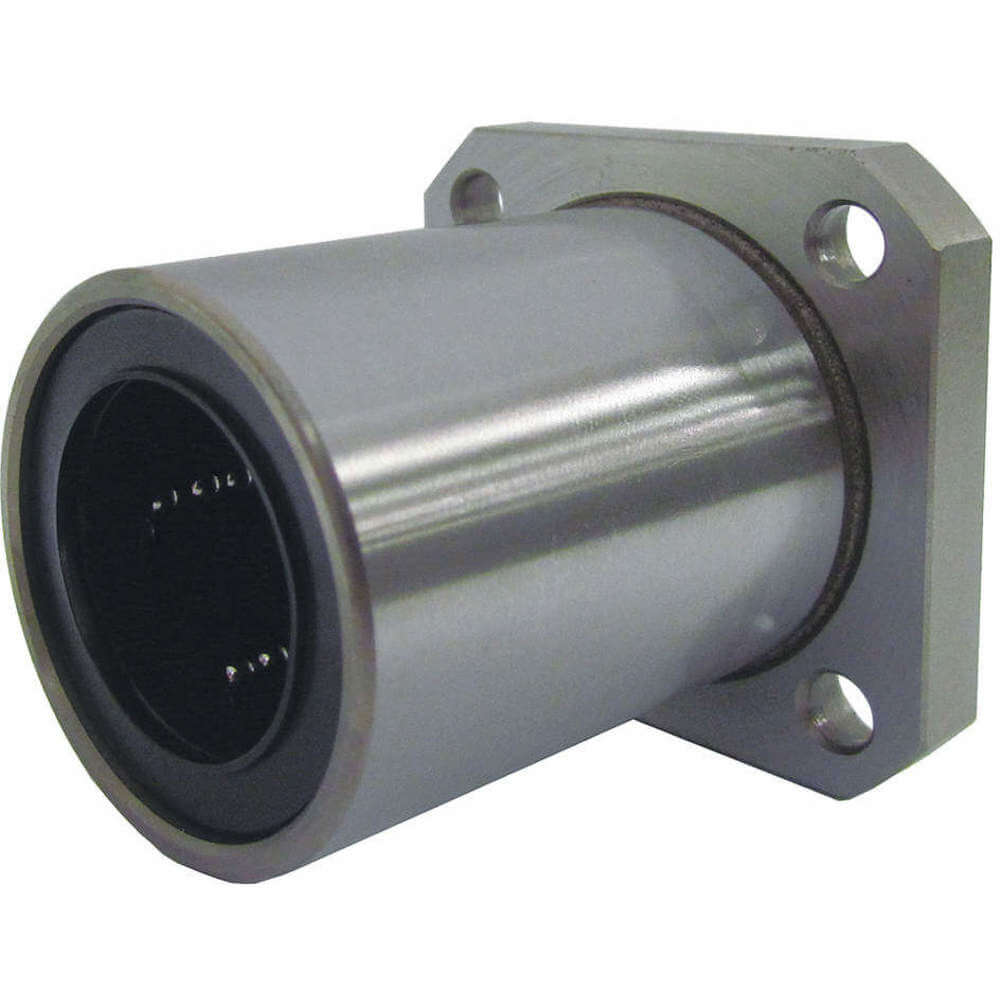

| B | SWK4GUU | Closed | 206N | 265N | Resin | Single | 3/4" | 1/2" | Black, Silver | $46.11 | |
| B | SWK6GUU | Closed | 225N | 314N | Resin | Single | 7/8" | 5/8" | Black, Silver | $49.96 | |
| B | SWK8GUU | Closed | 510N | 784N | Resin | Single | 1 1/4" | 7/8" | Black, Silver | $56.46 |
