MORSE DRUM

MORSE DRUM 201/20-1-50 Portable Drum Roller, 16 RPM, 1 Phase, 50Hz, TEFC Motor

Item: AF6FCJ
Model: 201/20-1-50
Check Availability
In Stock.

Get it by Wednesday, Feb 11

£9.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates

We deliver to your doorstep under DAP terms. Customs clearance is for your account

$2,406.25 /unit (ex. VAT)
Add To Cart
Request Quote

Unlock 30-day payment terms

Business customers can apply for Net 30
No fees, No interest, Fast approval.

Apply Now

Payment

Delivery

Specifications

Item Portable Drum Roller
Amps 7.2/3.6A
Amps Drawn 3.6A
Capacity Dry 300 lbs.
Capacity Liquids 500 lbs.
Cord Length 8"
Drum Dia. 6" to 28"
Drum Height 0" to 40"
Drum Material Plastic, Steel
Drum Rpm 16 RPM , 16 RPM, RPM Is Based On 22.5" (57.15 cm) Diameter Drum
Drum Size 0 gal. to 55 gal.
Dryload Capacity 300 lbs.
Explosion Proof No
Frequency 50 Hz
Group 40
Hp 1/2 hp
Liquid Capacity 500 lbs.
Loaded Height 40"
Max. Operating Temp. 140°F
Motor Enclosure Design Totally Enclosed Fan Cooled
Overall Depth 34 3/4"
Overall Height 19 1/4"
Overall Width 21"
Phase 1
Plug Type Three Prong
Speed Type Fixed
Style TEFC
Tilt Style Tipping Lever
Type Portable
Voltage 220V
Wheel Configuration Two Swivel Casters And Two Axle Mounted-Wheels
Wheel Dia. 3"
Wheel Material Polyolefin

Product Details

    • The Morse 201/20-1-50 portable drum roller for mixing the contents of a closed drum in chemicals, oil & gas, pharmaceutical / biotechnology industries or any application that requires uniform or homogenous mixing of liquid or dry drum contents.
    • The drum roller saves time, labour and money by reducing losses due to transferring or using special vessels for homogenising the contents.
    • This user specific model requires 1-phase, 110 / 220V, 50Hz motor and is great for use in small spaces and can be used with a variety of drum types and sizes from a 19-litre pail / bucket to a 205-litre drum made of either steel or plastic.

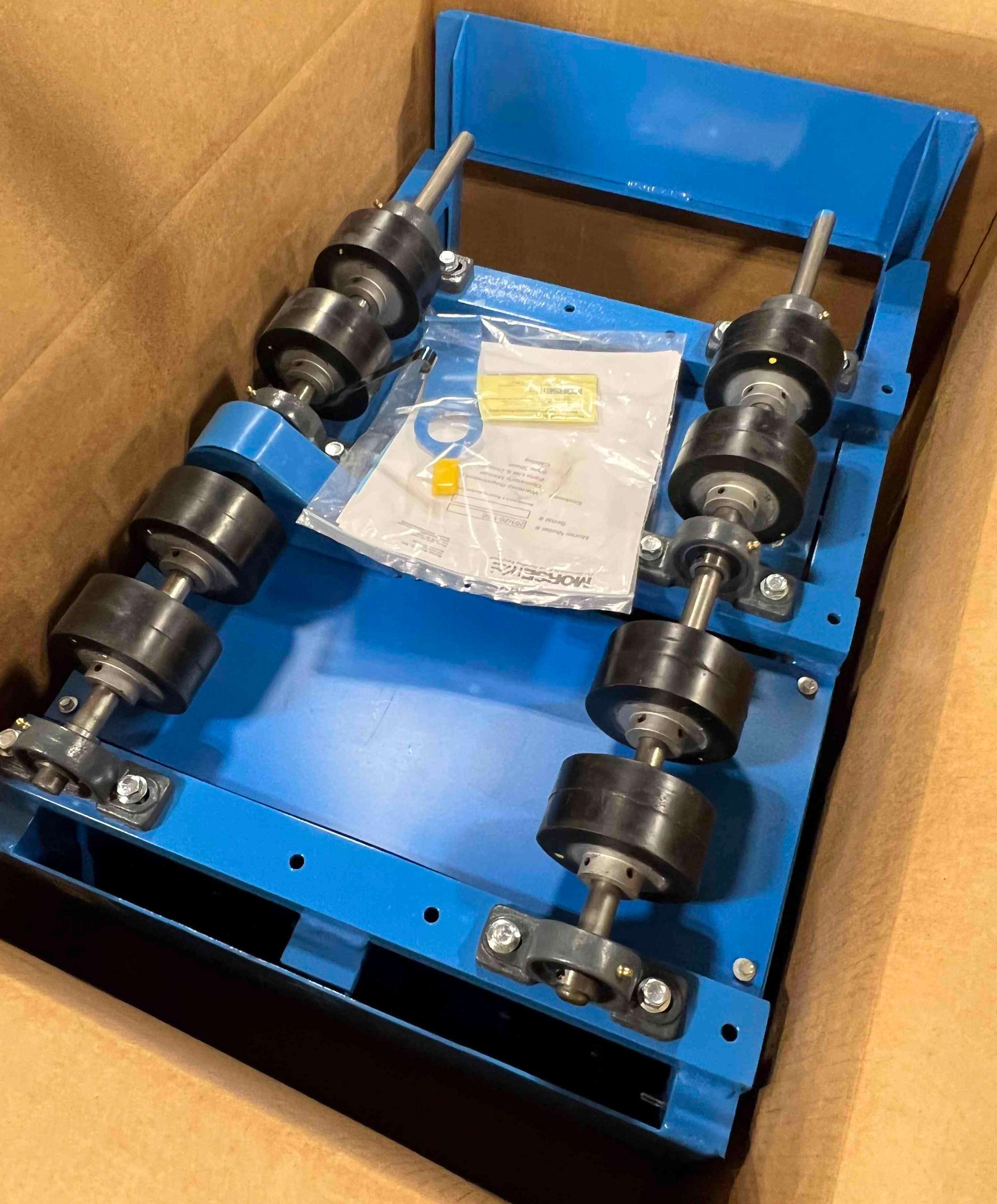

    • Integrated with 2 polyolefin wheels, 2 swivel casters & a built-in tipping bar to provide leverage for vertical loading & unloading and 4 drive & 4 idler wheels for rolling drums.
    • The unit rolls drums at a fixed speed of 16 RPM and can accept drums with a maximum diameter of 71 cm and maximum height of 96 cm.
    • The drum roller is rated for a maximum drum weight of 227 kg and also supports slightly heavier drums of up to 250 kg to be rolled, using additional wheels to help distribute the additional weight.
    • The portable drum roller operates in three-steps: 1) Load the drum in a vertical position onto the base plate of the drum roller. 2) Lower the top rim hook to the top, inner drum rim to secure the drum against the drum roller. 3) Release the kickstand and use the tipping lever (retractable) to tilt the drum roller from an upright to a horizontal rolling position. NOTE: Heavy drums must have a minimum height of 76 cm for the rim hook to lock the drum into position.
    • A seperate control / switch / plug combo is supplied with this model that can be installed on the unit by a qualified electrician, as controls are not included with this model. Portable drum rollers should be installed with a guard enclosure, using safety interlock (sold separately) that switches off the drum roller when the enclosure gate is opened, ensuring safety of workers.

Shipping Information

Height (cm) 66.04
Length (cm) 91.44
Width (cm) 60.96
HS Code 8479820080
Country Of Origin US
Weight (kg) 89.1
