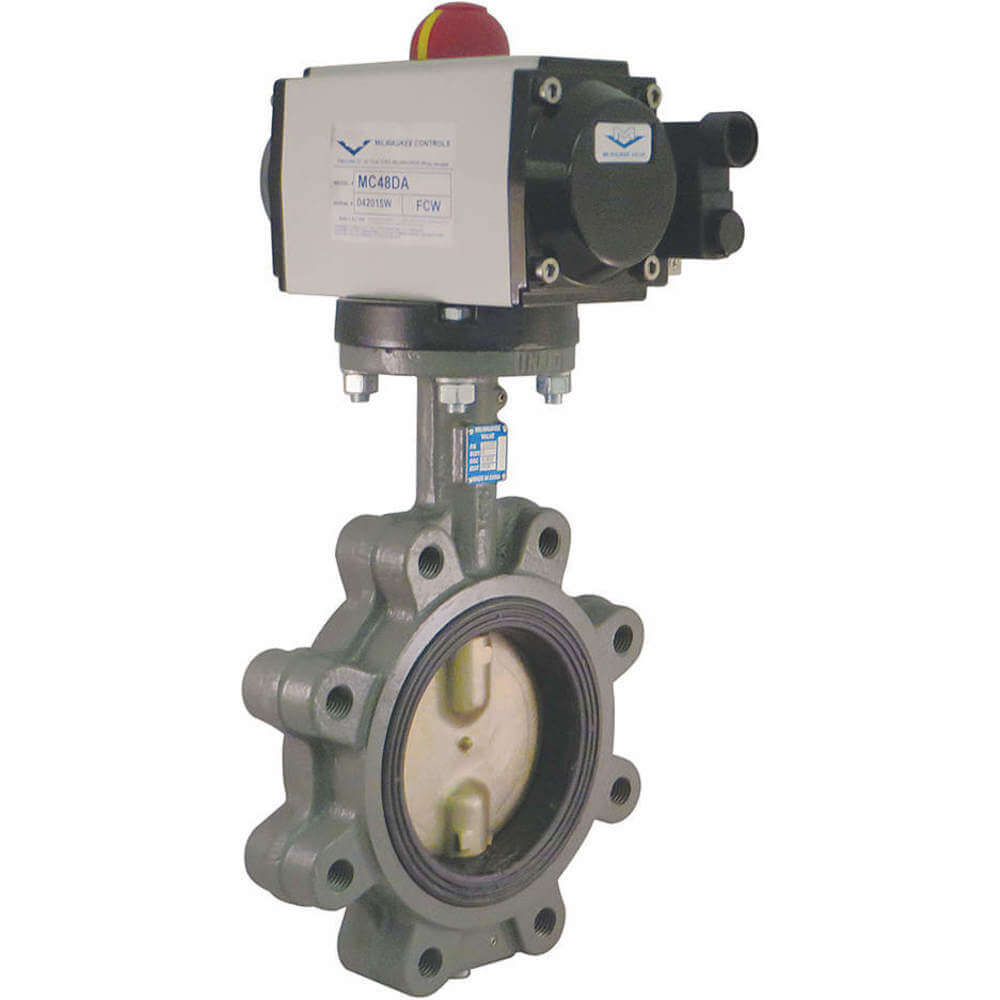

| Item | Pneumatically Butterfly Valve |
|---|---|
| 3-a Compliance | Not Rated |
| Action Type | Double Acting |
| Actuator Air Pressure - Maximum | 80 psi |
| Actuator Features | Auxiliary Limit Switch |
| Actuator Operation | Air To Air |
| Actuator Series | MC3C Series |
| Air Inlet Pressure | 80 psi |
| Body Material | Cast Iron |
| Bolt Circle Dia. | 6" |
| Bolt Holes | 4 |
| Connection Type | Lug |
| Disc Alignment | Concentric |
| Disc Material | Aluminum Bronze Alloy |
| Fail Safe Position | Fail Closed |
| Flow Coefficient | 457 |
| For Media | Water |
| Liner Material | EPDM |
|---|---|
| Lug Diameter | 5/8" |
| Max. Pressure (cwp) | 200 psi |
| Max. Water Pressure | 150 psi |
| Media Temp. Range | 0°F to 250°F |
| Nema Enclosure Rating | NEMA 4, NEMA 4X |
| Nsf Certifications For Food And Drinking Water | NSF 61 |
| Number Of Bolt Holes | 4 |
| O-ring Material | EPDM |
| Pilot Solenoid Voltage | Not Included |
| Pipe Size | 3" |
| Seat Material | EPDM |
| Vacuum Service Rating | Not Rated |
| Valve Deactivated State | normally Closed (NC) |
| Valve Series | C Series |
| standard | ABS, ISO 14001:2015, ISO 9001:2015 |
| Height (cm) | 27.43 |
|---|---|
| Length (cm) | 52.32 |
| Width (cm) | 24.89 |
| HS Code | 8481809035 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 7.7355 |
| Style | Model | Body Material | Seat Material | Pipe Size | Max. Water Pressure | Number Of Bolt Holes | Action Type | Bolt Circle Dia. | Air Inlet Pressure | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

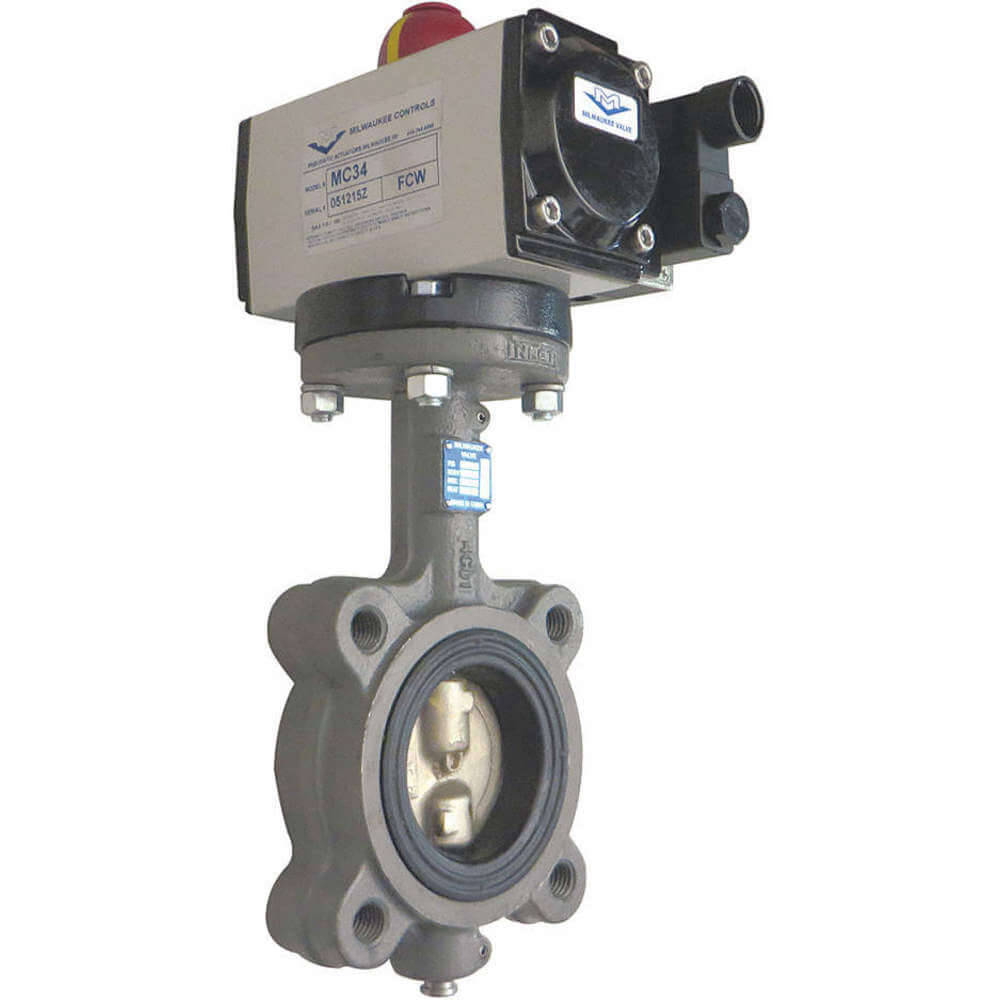

| A | GLA23E D 2 | Cast Iron | EPDM | 2" | 150 psi | 4 | Double Acting | 4 3/4" | 80 psi | $847.56 | |
| A | GLA23E D212 | Cast Iron | EPDM | 2 1/2" | 150 psi | 4 | Double Acting | 5 1/2" | 80 psi | $889.40 | |
| B | GLA23E D 4 | Cast Iron | EPDM | 4" | 150 psi | 8 | Double Acting | 7 1/2" | 80 psi | $1,079.38 | |
| B | GLA23E D 5 | Cast Iron | EPDM | 5" | 150 psi | 8 | Double Acting | 8 1/2" | 80 psi | $1,459.65 | |
| B | GLA23E D 6 | Cast Iron | EPDM | 6" | 150 psi | 8 | Double Acting | 9 1/2" | 80 psi | $1,580.59 | |
| B | GLA23E D 8 | Cast Iron | EPDM | 8" | 150 psi | 8 | Double Acting | 11 3/4" | 80 psi | $2,752.32 | |
| A | GLB23E D 2 | Cast Iron | EPDM | 2" | 150 psi | 4 | Spring Return | 4 3/4" | 80 psi | $1,040.80 |
