| Item | Fuse Holder |
|---|---|
| Ac Voltage Rating | 600V |
| Ac/dc | AC/DC |
| Amp Range | 31-60A |
| Amps | 60A |
| Body Material | Polyamide |
| Body/insulating Material | Polyamide |
| Connector Type | Pressure Plate |
| Fits Fuse Type | Class J |
| For Fuse Size | 2 3/8" x 1 1/16" |
| Frame Type | US6J |
| Frequency | 50/60 Hz |
| Fuse Block Design | Finger-Safe |
| Fuse Block Style | Nonrejection |
| Fuse Class | Class J |
| Fuse Installation Method | Clip In |
| Fuse Ul Class | Class J |
| Height | 88.9 mm |
| Indication System | Yes |
| Indication System Type | LED |
|---|---|
| Installation Mounting | DIN Rail |
| Length | 121.9 mm |
| Max. Fuse Rating | 60A |
| Mounting Style | DIN Rail |
| Number Of Poles | 1 |
| Product Group | Fuse Holders |
| Rated Voltage Ac Ul | 600V |
| Rated Voltage Dc Ul | 600V |
| Rohs Compliant | Yes |
| Short Circuit Current Rating (sccr) | 200 kA |
| Torque Rating | 5.084 N-m |
| Visual Indication | Indicating |
| Voltage | 600V |
| Voltage Rating | 600V AC/DC |
| Voltage Type | AC |
| Width | 39.9 mm |
| Wire Range | 14 AWG to 2 AWG |
| Wiring Range | #2 AWG to 14 AWG |
| Height (cm) | 8.89 |
|---|---|
| Length (cm) | 12.19 |
| Width (cm) | 3.99 |
| Country Of Origin | CN |
|---|---|
| Weight (kg) | 0.27 |
| Style | Model | Amps | Max. Fuse Rating | Height | Number Of Poles | Ac Voltage Rating | Frame Type | Amp Range | Visual Indication | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

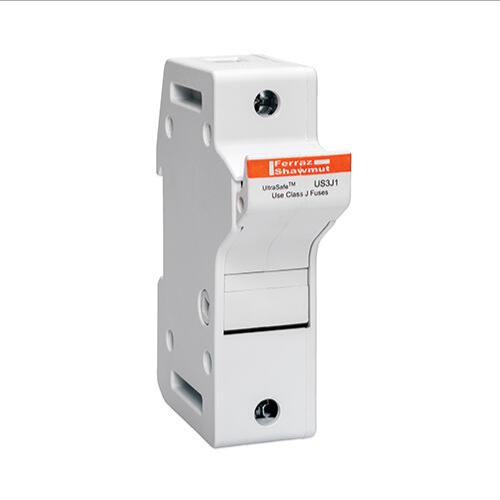

| A | US3J1 | 30A | 30A | 80 mm | 1 | 600V | US3J | 0-30A | Non Indicating | $107.73 | |
| B | US3J1I | 30A | 30A | 80 mm | 1 | 600V | US3J | 0-30A | Indicating | $88.69 | |
| C | US3J2I | 30A | 30A | 80 mm | 2 | 600V | US3J | 0-30A | Indicating | $133.44 | |
| D | US3J3 | 30A | 30A | 80 mm | 3 | 600V | US3J | 0-30A | Non Indicating | $229.00 | |
| C | US3J3I | 30A | 30A | 80 mm | 3 | 600V | US3J | 0-30A | Indicating | $207.98 | |

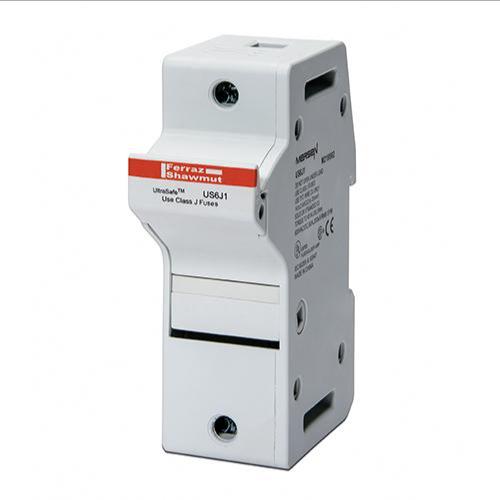

| E | US6J1 | 60A | 60A | 88.9 mm | 1 | 600V | US6J | 31-60A | Non Indicating | $83.25 | |

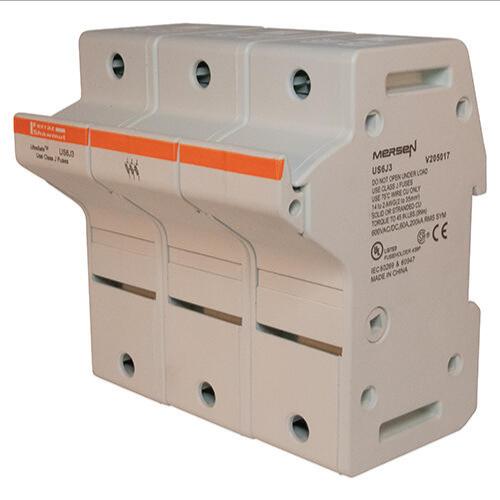

| F | US6J3 | 60A | 60A | 88.9 mm | 3 | 600V | US6J | 31-60A | Non Indicating | $251.63 |
