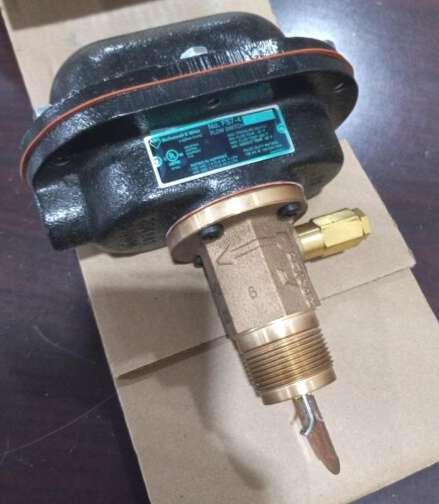

| Item | Flow Switch |
|---|---|
| Application | Large Pipe Applications Including Heating And Hydronic Systems, Air Conditioning, Refrigeration And Process Work, Water Tight, Dust Tight Applications |
| Connection | 1 1/4" NPT |
| Connection Size | 1 1/4" |
| Connection Type | NPT |
| Contact Rating (ac) | 22.2A @ 240V (Locked Rotor), 3.7A @ 240V (Full Load), 44.4A @ 120V (Locked Rotor), 7.4A @ 120V (Full Load) |
| Enclosure Rating | NEMA 4X |
| Flow Rate Range | 4.8 GPM |
| Flow-switch Type | Paddle |
| For Pipe Size | 1 1/4", 16" |
| Hazardous Location Rating | Class I, Div 1 And 2, Group C, D, Class II, Div 1 And 2, Group E, F, G |
| Housing Material | Brass |
| Housing/body Material | Brass |
| Max. Ambient Temp. | 300°F |
| Max. Flow Rate | 4.8 GPM |
|---|---|
| Max. Media Temp. | 300°F |
| Max. Pressure | 300 psi |
| Media Temp. Range | -65°F to +300°F |
| Min. Ambient Temp. | -65°F |
| Min. Flow Rate | 4.8 GPM |
| Min. Media Temp. | -65°F |
| Series | FS7 Series |
| Set Point Configuration | Adjustable |
| Switch Enclosure | NEMA 4X |
| Switch Type | SPDT |
| Voltage | 120/240V AC |
| Wetted Material | Brass, Bronze, PTFE, Stainless Steel |
| Height (cm) | 29.46 |
|---|---|
| Length (cm) | 19.56 |
| Width (cm) | 13.97 |
| HS Code | 9026106000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 5.6025 |
| Style | Model | Switch Enclosure | Min. Ambient Temp. | Max. Pressure | Media Temp. Range | Enclosure Rating | Housing Material | Switch Type | Connection Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | FS7-4S | NEMA 1 | 32°F | 1000 psi | 32°F to 300°F | NEMA 1 | Brass | SPDT | 1 1/4" | $1,871.70 | |
| B | FS7-4SW | NEMA 4X | -65°F | 1000 psi | -65°F to +300°F | NEMA 4X | Brass | SPDT | 1 1/4" | $1,975.31 | |
| C | FS7-4E | NEMA 7/9 | 32°F | 300 psi | 32°F to 300°F | NEMA 7, 9 | Brass | SPDT | 1 1/4" | $1,483.39 |
