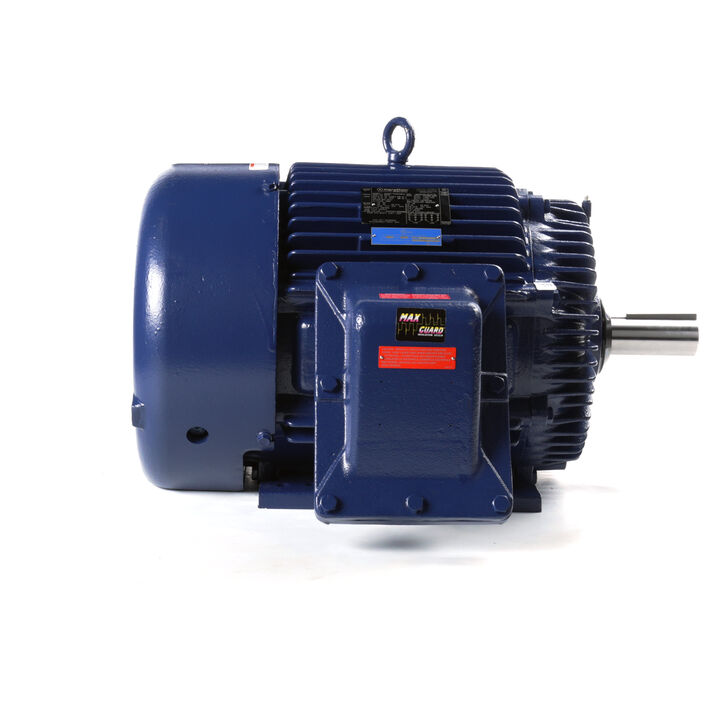

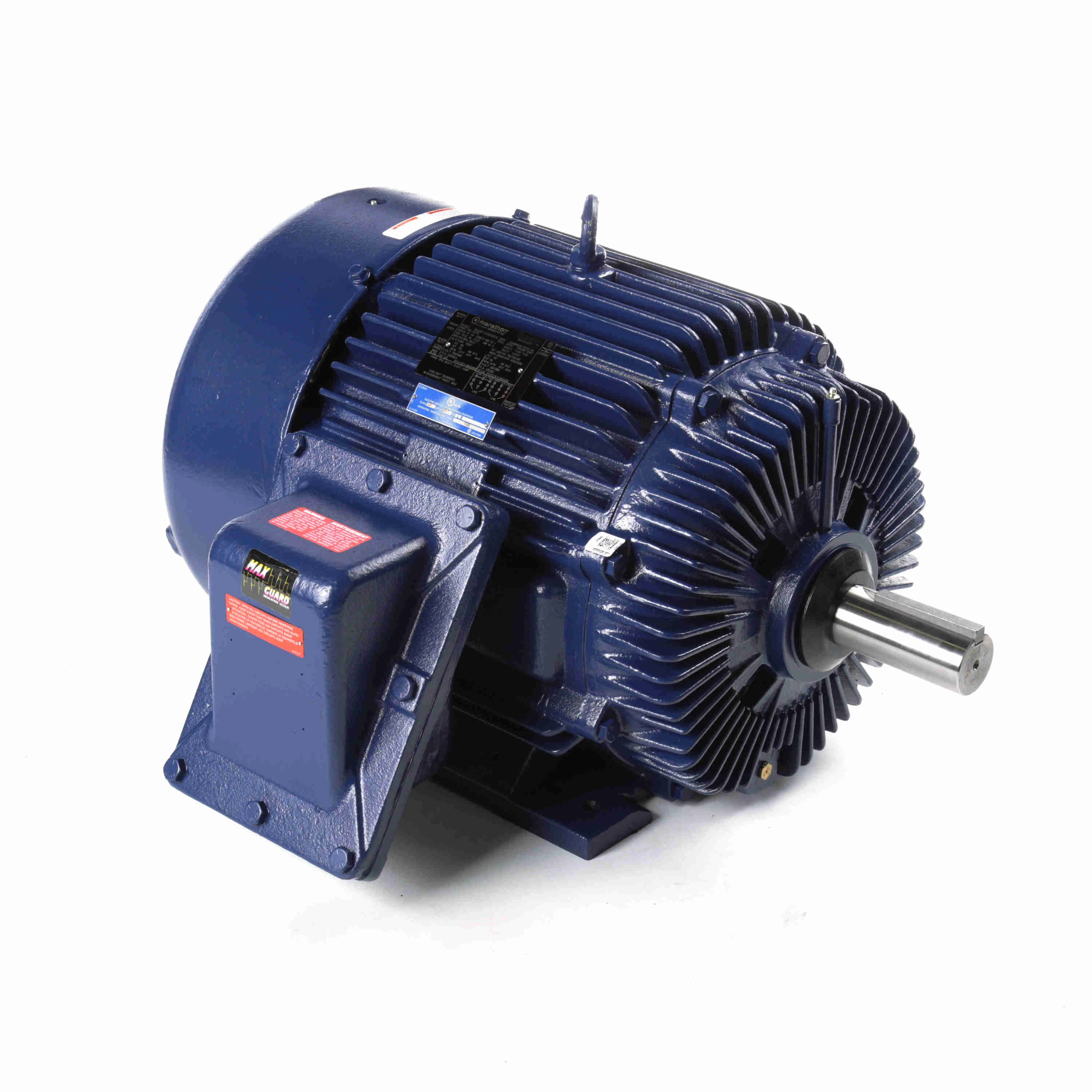

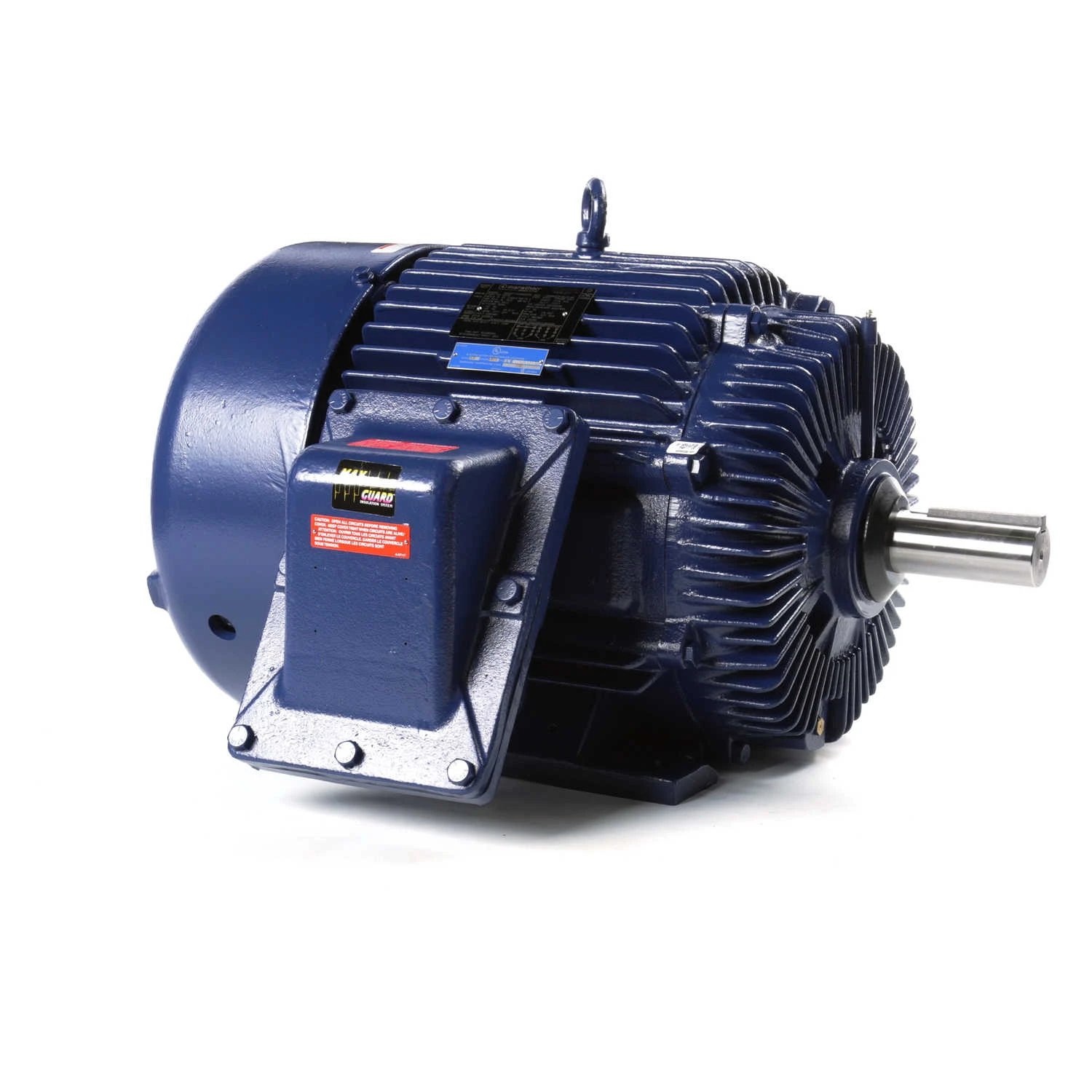

| Item | Hazardous Location Motor |
|---|---|
| Ambient Temp. | 40°C |
| Bearings | Ball |
| Cc Number | CC003A |
| Conduit Box Location | Exterior |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency Group | Premium |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Frame | 326T |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 123/61.5A |
| Green Certification Or Other Recognition | NEMA Premium Rated |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Hazardous Location Class | 1 C, D / 2 F, G |
| Hazardous Location Division | Division 1 |
| Hp | 50 hp |
| Includes | (11) Leads In Conduit Box |
| Insulation Class | Class F |
| Lead Length | 8" |
| Length Less Shaft | 24 7/8" |
| Manufacturers Warranty Length | 3 yrs. |
| Max. Ambient Temp. | 104°F |
| Motor Application | Hazardous Location |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
|---|---|
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | T Stat |
| Motor Type | Three Phase |
| Mounting Type | Foot Mounted |
| Nameplate Rpm | 1777 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| Number Of Speeds | 1 |
| Overall Length | 30 3/8" |
| Phase | 3 |
| Service Factor | 1.15 |
| Shaft Dia. | 2 1/8" |
| Shaft Length | 5 1/2" |
| Temp. Code | T3B |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Warranty | 3 yrs. |
| Height (cm) | 62.97 |
|---|---|
| Length (cm) | 96.22 |
| Width (cm) | 80.98 |
| HS Code | 8501528040 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 355.95 |
| Style | Model | Hp | Nameplate Rpm | Hazardous Location Class | Frame | Motor Thermal Protection | Temp. Code | Shaft Dia. | Enclosure Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 364TTGS16536 | 60 hp | 1780 RPM | 1 C, D / 2 F, G | 364T | T Stat | T3B | 2 3/8" | Totally Enclosed Fan Cooled | $15,163.94 | |
| B | 365TTGS16540 | 75 hp | 1782 RPM | 1 C, D / 2 F, G | 365T | T Stat | T3B | 2 3/8" | Totally Enclosed Fan Cooled | $18,595.41 | |
| C | 143TTGN6526 | 1 hp | 1765 RPM | 1 D / 2 F, G | 143T | Thermostat | T3B | 7/8" | - | $1,266.26 | |
| D | 145TTGN6526 | 1 1/2 hp | 1755 RPM | 1 D / 2 F, G | 145T | Thermostat | T3B | 7/8" | - | $1,549.64 | |
| E | 145TTGN6527 | 2 hp | 1755 RPM | 1 D / 2 F, G | 145T | T Stat | T3B | 7/8" | - | $1,250.90 | |
| F | 286TTGN16577 | 20 hp | 1175 RPM | 1 C, D / 2 F, G | 286T | T Stat | T3B | 1 7/8" | Totally Enclosed Fan Cooled | $7,750.06 | |
| G | 364TTGS16577 | 40 hp | 1185 RPM | 1 C, D / 2 F, G | 364T | T Stat | T3B | 2 3/8" | Totally Enclosed Fan Cooled | $16,456.06 |
