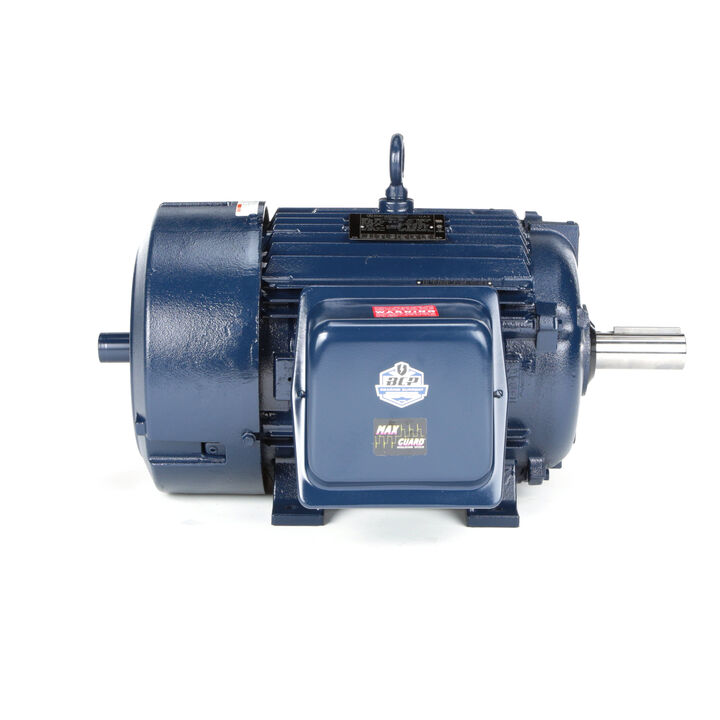

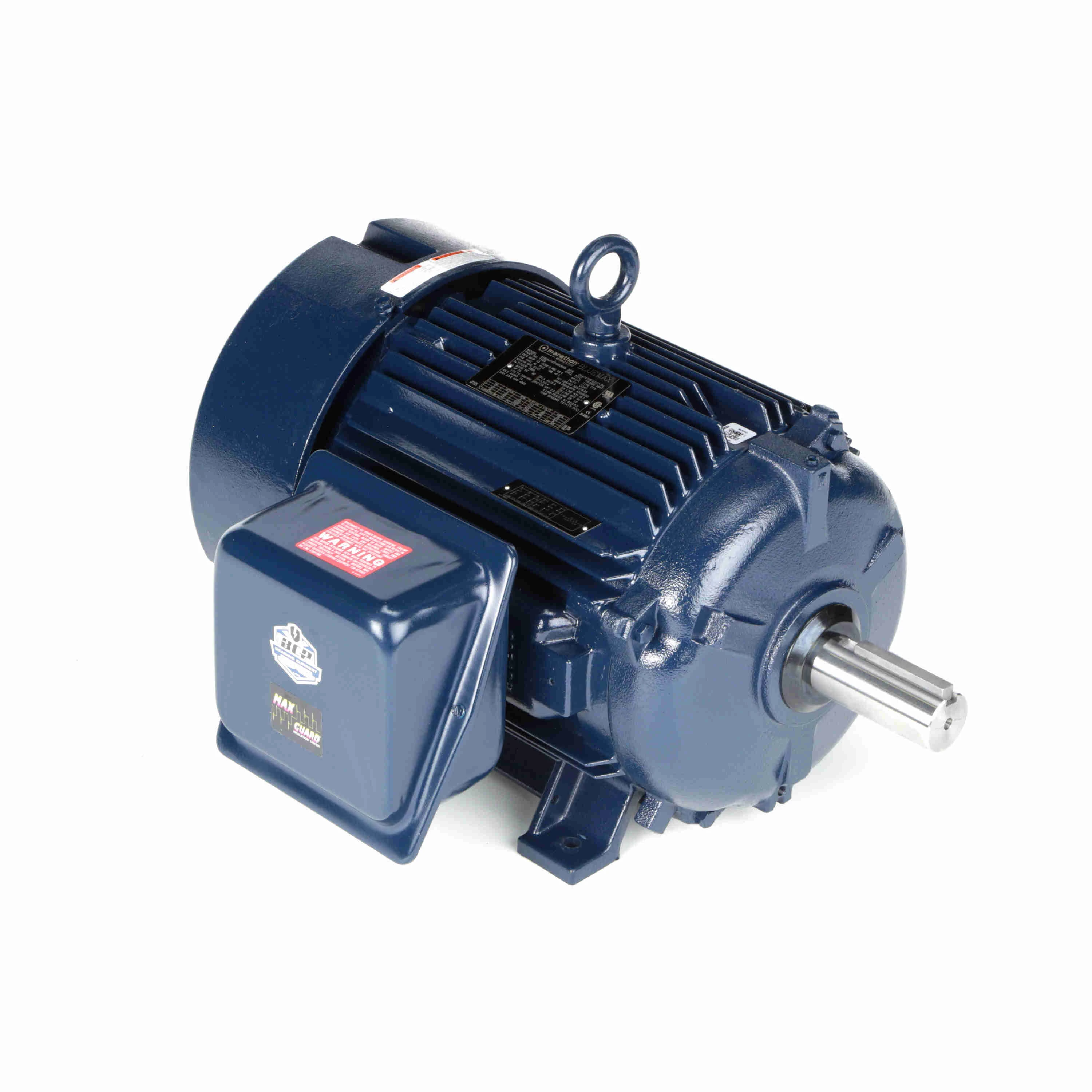

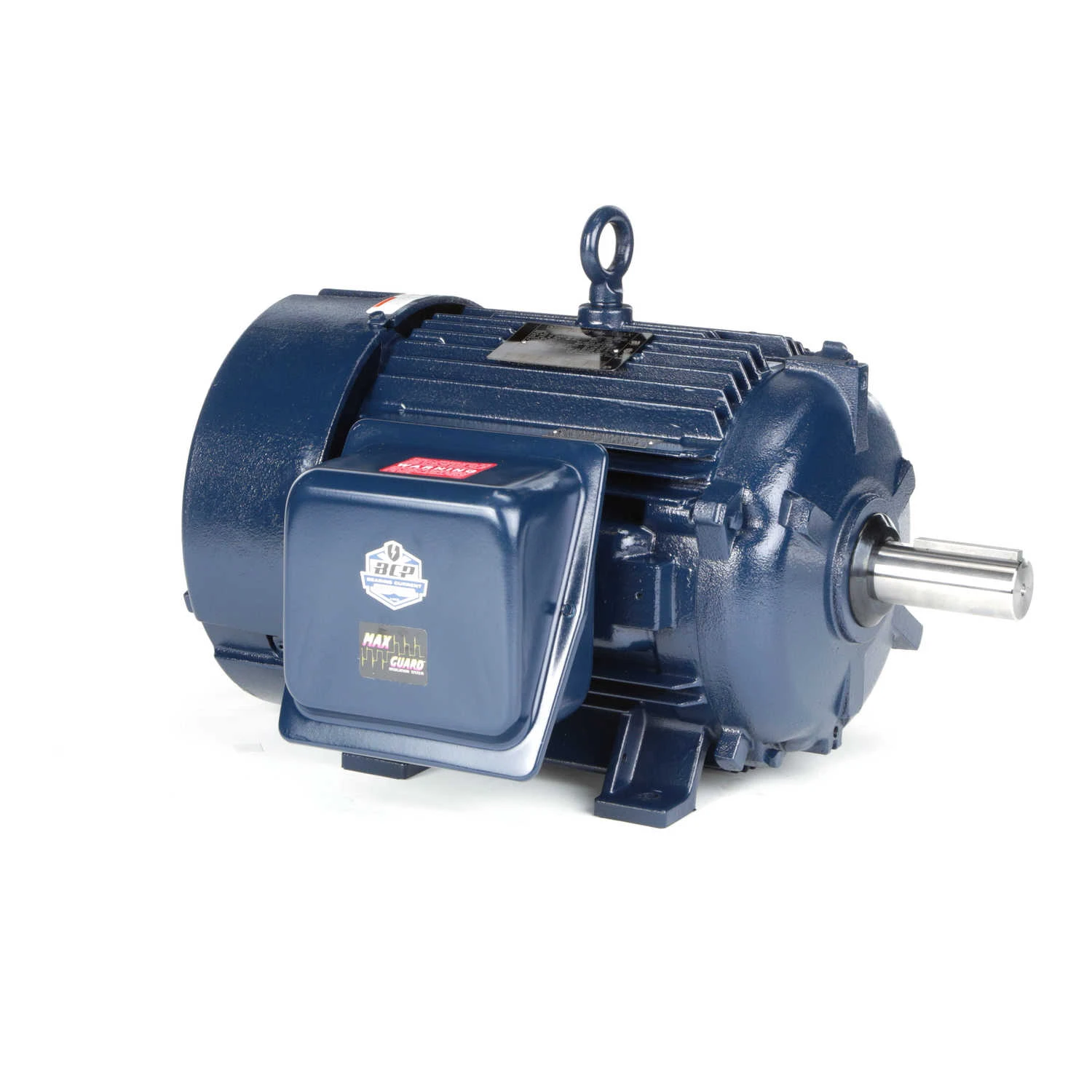

| Item | Vector Motor |
|---|---|
| Ambient Temp. | 40°C |
| Application | Crane |
| Base | Rigid |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Bearings | Ball |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1, F2 |
| Constant Torque | 2000:1 |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 91.7% |
| Efficiency Group | Epact |
| Encoder Acceptable | Yes |
| Encoder Shaft | 1" x 1.75" |
| Encoder Shaft Dimension | 1" x 1 3/4" |
| Encoder Shaft Dimensions | 1" x 1.75" |
| Finish | Enamel |
| Frame | 284T |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 63/31.5A |
| Hp | 25 hp |
| Insulation Class | Class H |
| Insulation Feature | Class F |
| Manufacturers Warranty Length | 3 yrs. |
| Max. Ambient Temp. | 104°F |
| Max. Operating Frequency | 90 Hz |
| Max. Rpm | 1800 RPM |
| Motor Application | Crane |
| Motor Bearings | Ball |
|---|---|
| Motor Design | 3-Phase |
| Motor Efficiency Group | Energy Efficient |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Thermal Protection | T Stat |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1765 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| Nominal Efficiency | 91.7% |
| Number Of Speeds | 1 |
| Overall Length | 28 9/16" |
| Phase | 3 |
| Service Factor | 1 |
| Shaft Dia. | 1 7/8" |
| Shaft Length | 4 13/16" |
| Speed Range | 2000:1 |
| Speed Ratio | 2000:1 |
| Standards | Ce, Csa, Ul Recognized |
| Thermal Protection | Thermostat |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Warranty | 3 yrs. |
| Height (cm) | 53.7 |
|---|---|
| Length (cm) | 88.9 |
| Width (cm) | 66.04 |
| HS Code | 8501528040 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 176.85 |
| Style | Model | Voltage | Frame | Hp | Full Load Amps | Efficiency Group | Nominal Efficiency | Motor Thermal Protection | Nameplate Rpm | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 143THTN8028 | 230/460V AC | 143TC | 1 hp | 3/1.5A | Premium | 85.5% | T Stat | - | $1,925.50 | |
| B | 145THTN8029 | 230/460V AC | 143TC | 2 hp | 3/1.5A | Premium | 85.5% | T Stat | 1756 RPM | $1,885.62 | |
| C | 145THTN8037 | 230/460V AC | 143TC | 1 hp | 3/1.5A | Premium | 82.5% | Thermostat | 1756 RPM | $1,913.91 | |
| D | 184THTS8028 | 230/460V AC | 182TC | 3 hp | 8/4A | Premium | 88.5% | T Stat | 1760 RPM | $2,428.22 | |
| E | 284THFPA8038 | 230/460V AC | 284TC | 25 hp | 63/31.5A | Epact | 91.7% | T Stat | 1765 RPM | $8,541.55 | |
| F | 284THFPA8086 | 230/460V AC | 284TC | 25 hp | 63/31.5A | Epact | - | - | - | $12,325.49 | |
| G | 286THFNA8028 | 230/460V AC | 286T | 30 hp | 77/38.5A | Epact | 93% | T Stat | 1776 RPM | $7,285.35 |
