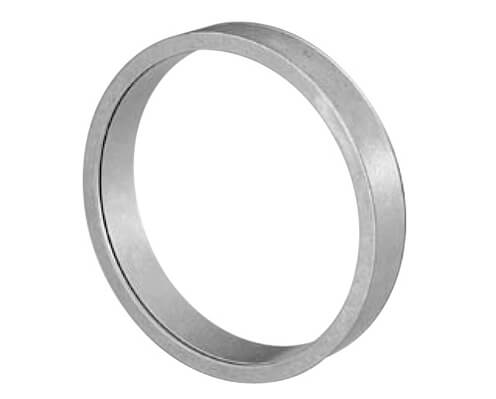

| Item | Keyless Rigid Coupling |
|---|---|
| Application | External Shaft Locking Device |
| Collar Material | Silver, Metallic |
| Contact Length (dimension L) | 0.906" |
| Coupling Size | Sld900 |
| Dimension D | 2.677" |
| Disc Outside Diameter (dimension D) | 4.528" |
| Gap Width At Relaxed State (dimension E) | 0.138" |
| Locking Screw Size (dimension T) | M6 |
| Locking Screws Size | M8 |
| Max. Diametrical Clearance (dimension C) | 0.001" |
| Max. Transmissible Torque (at Low End Of Shaft Diameter Range) | 1475 lbs.-ft. |
| Max. Transmissible Torque (min To Max Shaft Diameter) | 1475 lbs.-ft. to 2286 lbs.-ft. |
| Maximum Transmissible Torque (at Low End Of Shaft Diameter Range) | 1475 lbs.-ft. |
| No. Of Locking Screws | 10 |
|---|---|
| Screw Material | Steel |
| Screw Tightening Torque | 9 lbs.-ft. |
| Screw Type | Hex Head Bolt |
| Shaft Diameter (dimension Ds) | 1.969" |
| Shaft Locking Device Outside Diameter (dimension D) | 4.528" |
| Shaft Size | 68 mm |
| Style | Self Centering |
| Thrust Rings Width At Relaxed State (dimension B) | 1.181" |
| Tolerance Of Hub Outside Diameter (t3) | -0.0018" to 0" |
| Total Thrust Rings Width At Relaxed State (dimension L) | 1.339" |
| Type | External |
| Volume | 39.52392 cu. in. |
| Height (cm) | 6 |
|---|---|
| Length (cm) | 5.1 |
| Width (cm) | 5.1 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 1.3905 |
| Style | Model | Type | Style | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|
| A | 69790498021 | External | Self Centering | $696.86 | |
| A | 69790498023 | External | Self Centering | $1,084.29 | |
| A | 69790498007 | External | Self Centering | $181.80 | RFQ
|
| A | 69790498024 | External | Self Centering | $1,601.43 | |
| B | 69790498032 | External | Self Centering | $6,698.57 | |
| A | 69790498011 | External | Self Centering | $235.93 | |
| A | 69790498012 | External | Self Centering | $251.31 |
