| Item | CJ Series Spider |
|---|---|
| Angular Displacement | 1° |
| Angular Misalignment | 0.9° to 1.3° |
| Axial Misalignment | 0.039" to 252" |
| Color | Yellow |
| Coupling Type | Elastomeric Insert |
| Cubic Inches | 7.045 cu. in. |
| Dimension S | 1.57" |
| Displacement | 0.07" |
| Distance Between Spider And Hub Face (dimension Cl) | 3/25" |
| Hp Rating @ 1200 Rpm | 32 hp |
| Hp Rating @ 1800 Rpm | 45 hp |
| Inside Dia. | 1 1/2" |
| Material | Polyurethane |
| Max. Axial Displacement | 0.07" |
| Max. Axial Misalignment | 0.039" to 252" |
| Max. Parallel Misalignment | 0.008" to 0.027" |
|---|---|
| Max. Radial Displacement | 0.011" |
| Max. Radial Displacement (Δ Kr) | 0.011" |
| Max. Temp. Range (f) | -50°F to +248°F |
| Normal Temp. Range | -40°F to +212°F |
| Outside Dia. | 3.15" |
| Parallel Misalignment | 0.008" to 0.027" |
| Set Screw Style Coupling Location Size | 0.59" |
| Set Screw Thread Size | 5/16"-18 |
| Size | 38 |
| Style | Open |
| Temp. Range | -50°F to +248°F |
| Thickness | 0.71" |
| Type | CJ |
| Wind-up Angle At Max. Torque | 5° |
| Wind-up Angle At Nominal Torque | 3.2° |
| Height (cm) | 1.8 |
|---|---|
| Length (cm) | 8 |
| Width (cm) | 8 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 0.045 |
| Style | Model | Outside Dia. | Color | Style | Distance Between Spider And Hub Face (dimension Cl) | Angular Displacement | Wind-up Angle At Max. Torque | Wind-up Angle At Nominal Torque | Normal Temp. Range | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

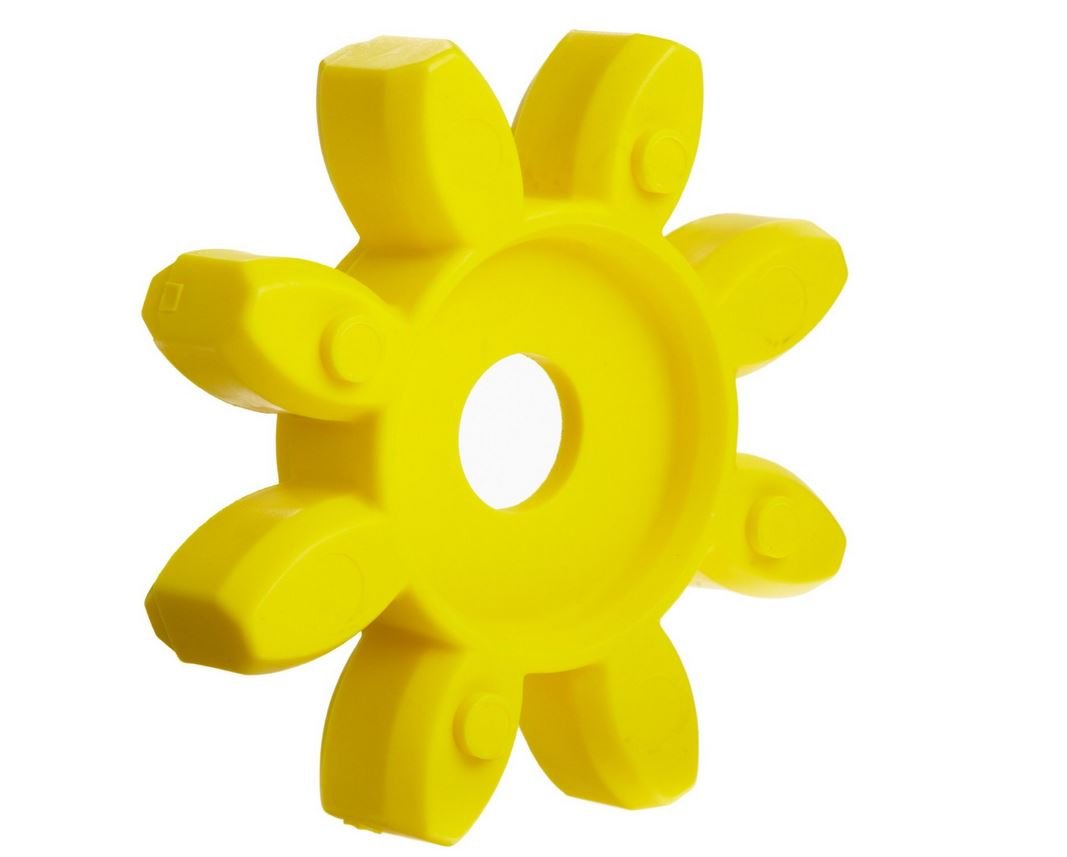

| A | 68514461457 | 8.86" | Yellow | Open | 6/25" | 1.2° | 5° | 3.2° | -40°F to +212°F | $743.27 | |
| B | 68514462079 | 10 1/25" | Red | Open | 0.26" | 1.3° | 5° | 3.2° | -40°F to +212°F | $955.64 | |
| C | 68514461446 | 1.18" | Yellow | Open | 0.06" | 1.2° | 10° | 6.4° | -40°F to +212°F | $8.43 | |
| B | 68514462067 | 1.18" | Red | Open | 0.06" | 1.2° | 10° | 6.4° | -40°F to +212°F | $7.80 | |

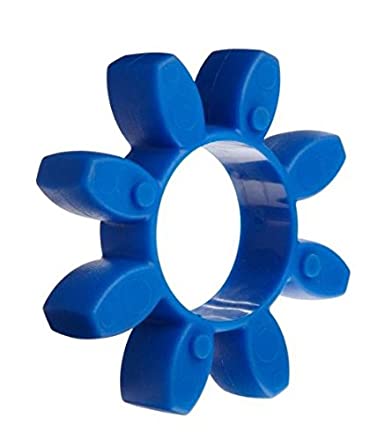

| D | 68514461461 | 1.57" | Blue | Open | 2/25" | 1.2° | 5° | 3.2° | -40°F to +212°F | $11.39 | |
| D | 68514461462 | 2 4/25" | Blue | Open | 2/25" | 0.9° | 5° | 3.2° | -40°F to +212°F | $12.75 | |
| E | 68514472258 | 2 14/25" | Green | Open | 0.1" | 0.9° | 3.6° | 2.5° | -30°F to +230°F | $42.36 |
