LINCOLN

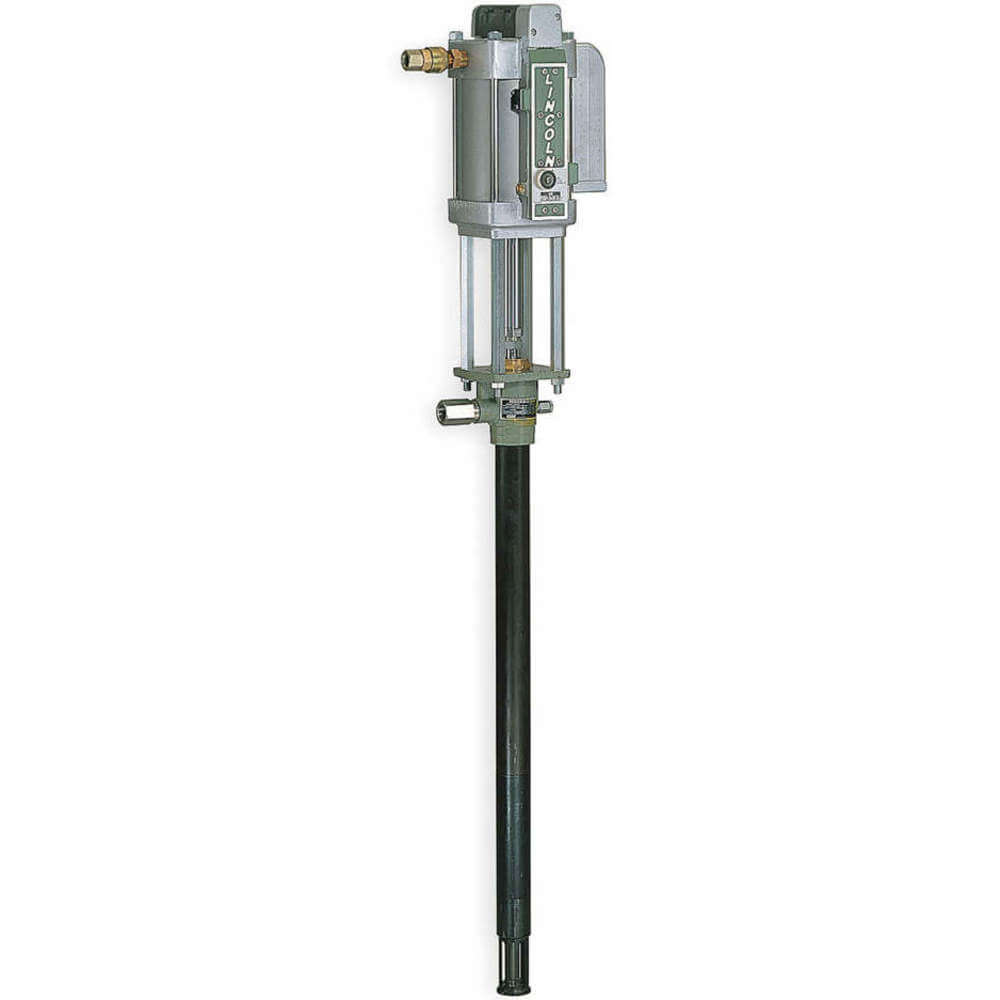

LINCOLN 2004 Grease Pump 400 Lb./55 Gallon Drum 75 1

Item: AF2NNG
Model: 2004
Cross Ref: 6WB25
Check Availability
In Stock.

Get it by Tuesday, Feb 17

£9.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates

We deliver to your doorstep under DAP terms. Customs clearance is for your account

$7,845.91
10% off
$7,061.32 /unit (ex. VAT)
Add To Cart
Request Quote

Unlock 30-day payment terms

Business customers can apply for Net 30
No fees, No interest, Fast approval.

Apply Now

Payment

Delivery

Specifications

Item Grease Pump
Air Motor Size 4 1/4"
Container Size Included 55 gal. Drum
Fits Container 55 gal. Drum
Grease Type Grease, High Viscosity Fluids
Max. Outlet Pressure 7500 psi
Max. Pressure 7500 psi
Power Source Air
Ratio 75:1
Volume Per Minute 157 cu. in.

Product Details

Lincoln 2004 grease pump allows safe and efficient transfer of medium-to-high viscosity grease from a storage container to a reservoir or from a container directly to machinery. It is used in applications like hydraulic evacuators and sinter and beverage bottling plants.

Shipping Information

Height (cm) 17.78
Length (cm) 114.3
Width (cm) 25.4
HS Code 8413200000
Country Of Origin US
Weight (kg) 18

Features

  • It features a high-volume output air motor that has an extra-long stroke (up to 6 inches) for powerful, uniform delivery of both up and down strokes to pump highly-viscous grease.
  • It has steel construction to withstand pulsation & extreme pressure and has large air passages to allow unrestricted venting.
  • This pump features a modular design that allows easy assembly and disassembly from barrels.
  • It comes equipped with a shovel foot that adds mechanical priming to normal suction, ensuring positive prime with the most viscous lubricants.
  • It features a sturdy plunger and bushing made of sapphire-hard nitriding steel to provide extended service life and wear resistance.
  • It fits in containers having a load capacity of 400 lb (50 gallons).

Frequently Asked Questions

What is the advantage of rubber sealing in this pump?

The grease pump comes with a thick rubber seal to keep contaminants out and protect internal components from damage.

How to prime this Lincoln 2004 grease pump?

  • To prime the pump, open the output line (material valve) and slowly open the air supply valve until the pump starts.
  • Allow the pump to cycle very slowly until all air is pushed out of the lines and material fills up the pump and lines.
  • Close the output line (material shut-off valve) and let the pump stall against pressure.

What is the function of Lincoln's automatic shut-off system?

Lincoln's automatic shut-off system prevents overflow spillage of grease, especially in hazardous locations, that may cause injury or potential costly fines.
