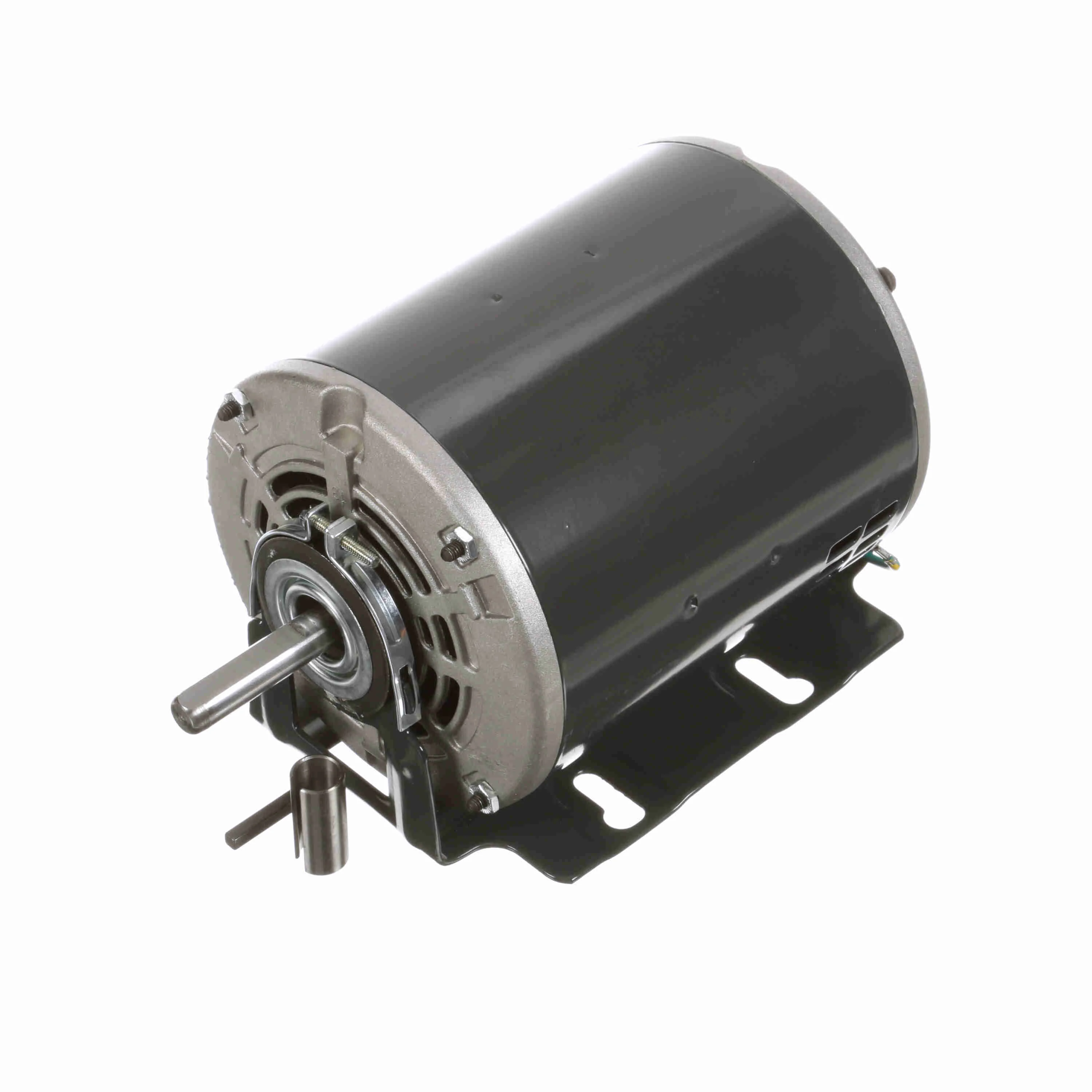

| Item | General Purpose Motor |
|---|---|
| Ambient Temp. | 40°C |
| Amps | 13.2A |
| Assembly/box Mounting | F1 Only |
| Bearing Size | Not Available |
| Code | P |
| Curvepoint | Locked Rotor |
| Design Code | No Design Code |
| Drive End Bearing Size | 203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 60% |
| Efficiency @ 100% | 59.5% |
| Electrical Type | Split Phase |
| Enclosure Type | ODP |
| Frame | 48Z |
| Frame Length | 5 3/4" |
| Frame Material | Rolled Steel |
| Frame Size | 48Z |
| Frame Suffix | Z |
| Frequency | 60 Hz |
| Full Load Amps | 5A |
| Hazardous Location | Not Available |
| Height | 6.62" |
| Hp | 1/4 hp |
| Insulation Class | Class B |
| Ip Code | IP22 |
| Kw | 0.19 kW |
| Length | 13 1/4" |
| Load | 1.15 |
| Lubrication | Standard |
| Motor Enclosure Design | Dripproof |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Selective Counter Clockwise |
|---|---|
| Motor Type | Split Phase |
| Mounting Type | Resilient Base |
| Nameplate Rpm | 1800 RPM |
| Nema Design | P |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 203 |
| Opp. Drive End Bearing Type | Ball |
| Outline | A-SS403617LE-575 |
| Output Kw | 0.19 kW |
| Overall Length | 9 18/25" |
| Packaging | B |
| Paint | Standard |
| Phase | 1 |
| Power Factor | 53.5 |
| Resistance Main | 0 ohms |
| Rotation Type | Selective CCW |
| Rpm | 1725 RPM |
| Service Factor | 1.35 |
| Service Factor Amps | 5.6A |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 22/25" |
| Shaft Type | Single Special Extension |
| Speed Range | Not Available |
| Starting Method | Across The Line |
| Synchronous Rpm | 1800 RPM |
| Thermal Protection | Automatic |
| Torque | 17.3 lbs.-ft. |
| Type | SD |
| Voltage | 115V |
| Winding | SE48459 |
| Height (cm) | 16.81 |
|---|---|
| Length (cm) | 33.66 |
| Width (cm) | 17.63 |
| Country Of Origin | MX |
|---|---|
| Weight (kg) | 5.85 |
