| Item | Severe Duty Motor |
|---|---|
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Cc Number | CC003A |
| Duty Cycle | Continuous |
| Enclosure Type | Totally Enclosed Non Ventilated |
| Frame | 145T |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 2.3A |
| Hazardous Location Class | 1 A, B, C, D |
| Hazardous Location Division | DIVISION 2 |
| Hp | 1 1/2 hp |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Length Less Shaft | 8 7/8" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Frame Material | Cast Iron |
|---|---|
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Nameplate Rpm | 1755 RPM |
| Nominal Efficiency | 86.5% |
| Number | CC003A |
| Number Of Speeds | 1 |
| Overall Length | 11 7/16" |
| Phase | 3 |
| Rpm Group | 1701-1800 RPM |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 9/16" |
| Standards | Ce, Csa, Ul Recognized |
| Usable @ 208v | No |
| Voltage | 460V AC |
| Warranty | 1 yr. |
| Height (cm) | 23.83 |
|---|---|
| Length (cm) | 40.18 |
| Width (cm) | 31.9 |
| Country Of Origin | MX |
|---|---|
| Weight (kg) | 29.25 |
| Style | Model | Voltage | Hp | Frame | Motor Design | Nameplate Rpm | Shaft Length | Full Load Amps | Overall Length | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

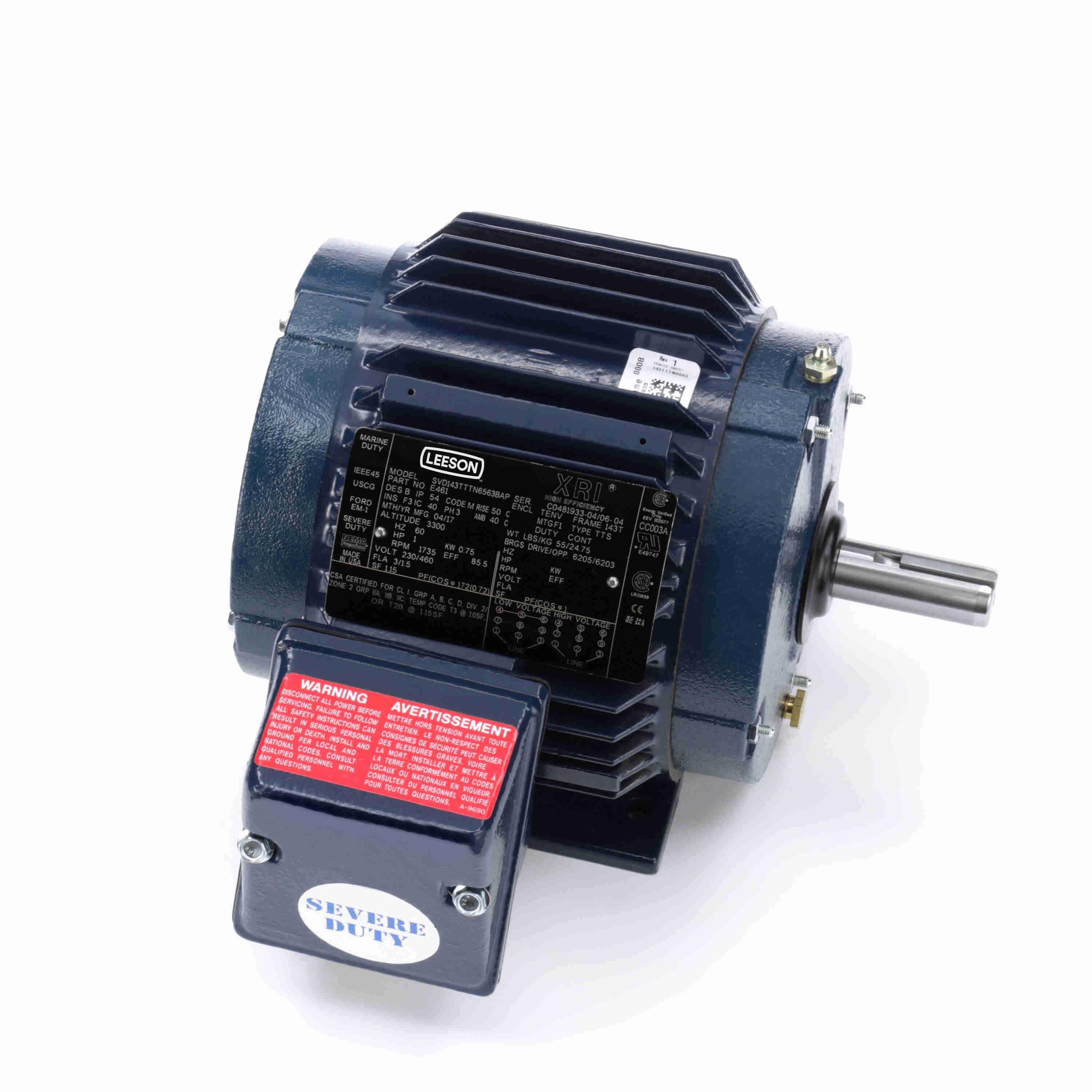

| A | 143TTTN6563 | 230/460V AC | 1 hp | 143T | 3 Phase | 1735 RPM | 2 9/16" | 3/1.5A | 10 7/16" | $826.87 | |
| B | 145TTTN16629 | 460V AC | 2 hp | 145T | 3 Phase | 1740 RPM | 2 9/16" | 3A | 11 7/16" | $1,177.82 | |

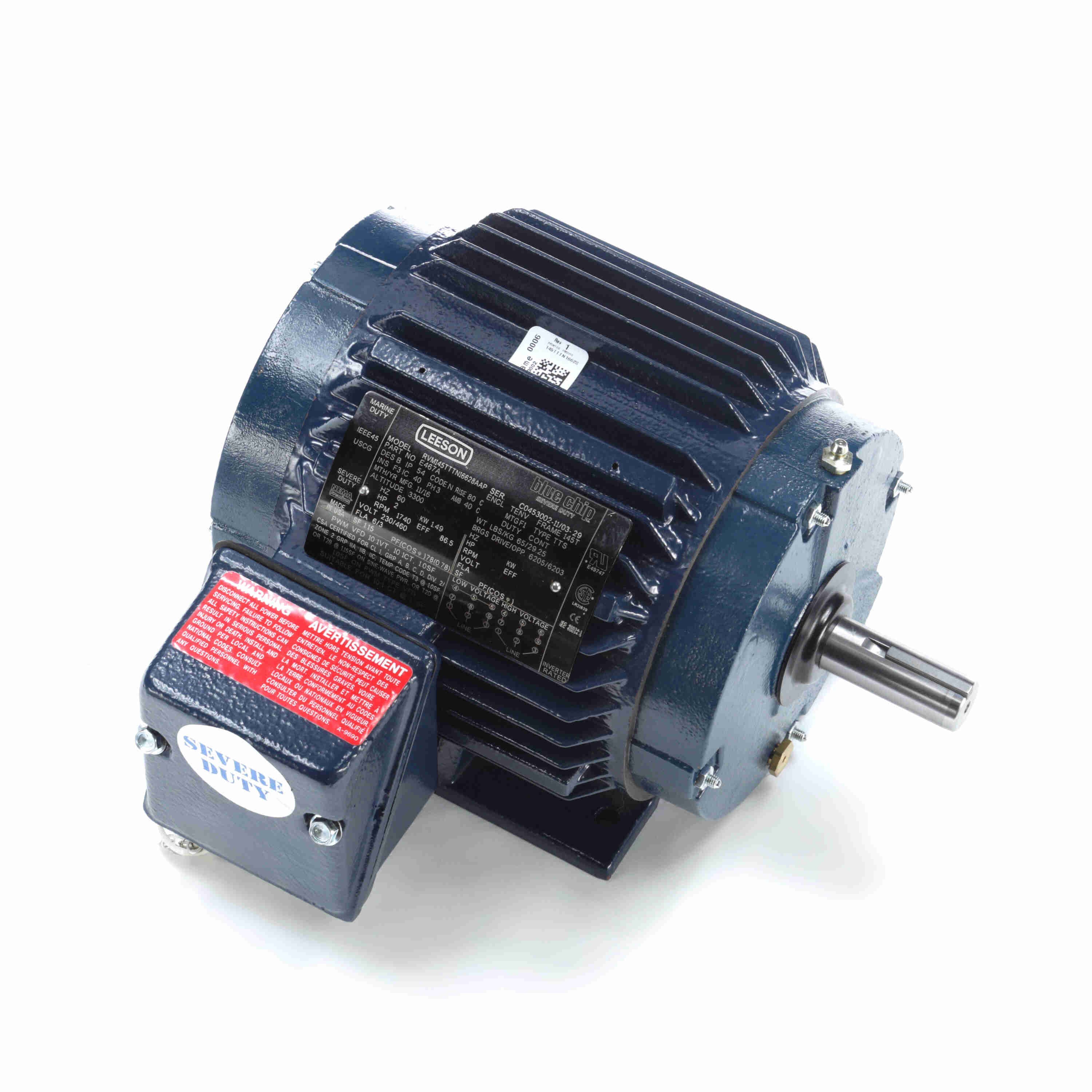

| C | 145TTTN16628 | 230/460V AC | 2 hp | 145T | 3 Phase | - | 2 1/4" | 3/6A | - | $937.87 |
