| Item | Vector Motor |
|---|---|
| Ambient Temp. | 40°C |
| Application | Crane |
| Base Type | Removable |
| Bearing Type | Ball |
| Color | Black |
| Conduit Box Location | Exterior |
| Conduit Box Position | F3 |
| Constant Torque | 1000:1 |
| Design | A |
| Duty Cycle | Continuous |
| Efficiency | 82.5% |
| Efficiency Group | Standard |
| Encoder Acceptable | No |
| Frame | 145TC |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 5.8/2.9A |
| Full Load Torque | 6 lbs.-ft. |
| Hp | 2 hp |
| Insulation Class | Class H |
| Insulation Feature | Patented Max Guard |
| Length Less Shaft | 12.812" |
| Max. Ambient Temp. | 40°C |
| Max. Operating Frequency | 120 Hz |
| Max. Rpm | 4000 RPM |
| Max. Speed | 4000 RPM |
| Motor Bearings | Ball |
|---|---|
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | No |
| Motor Type | Three Phase |
| Mounting Type | Face, Base |
| Nameplate Rpm | 1740 RPM |
| Nema Design | A |
| Nominal Efficiency | 82.5% |
| Number Of Speeds | 1 |
| Overall Length | 14 15/16" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/8" |
| Speed Range | 1000:1 |
| Speed Ratio | 20:1 |
| Thermal Protection | None |
| Torque | 6 lbs.-ft. |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Warranty | 3 yrs. |
| Height (cm) | 24.76 |
|---|---|
| Length (cm) | 49.05 |
| Width (cm) | 28.42 |
| HS Code | 8501524000 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 22.5 |
| Style | Model | Voltage | Hp | Nameplate Rpm | Motor Mounting Type | Full Load Amps | Frame | Nominal Efficiency | Max. Speed | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

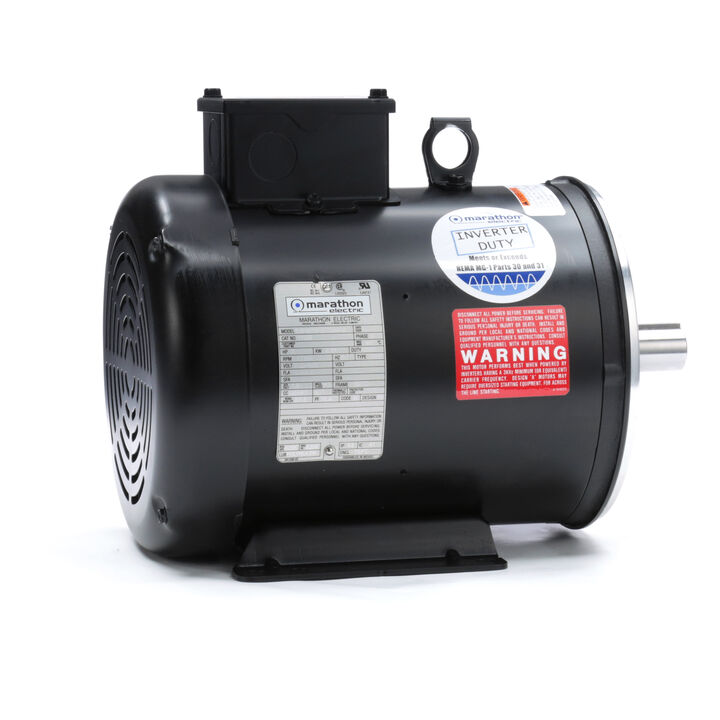

| A | 182THFW7729 | 230/460V AC | 3 hp | 1765 RPM | Rigid Base | 8.4/4.2A | 182TC | 87.5% | - | $1,738.46 | |

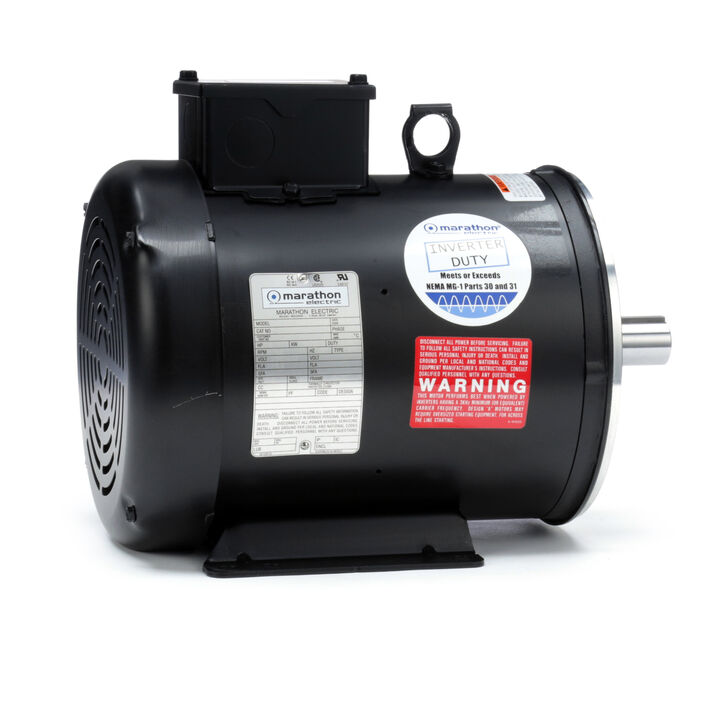

| B | 184THFW7726 | 230/460V AC | 5 hp | 1760 RPM | Rigid Base | 13/6.5A | 184TC | 87.5% | - | $2,226.50 | |

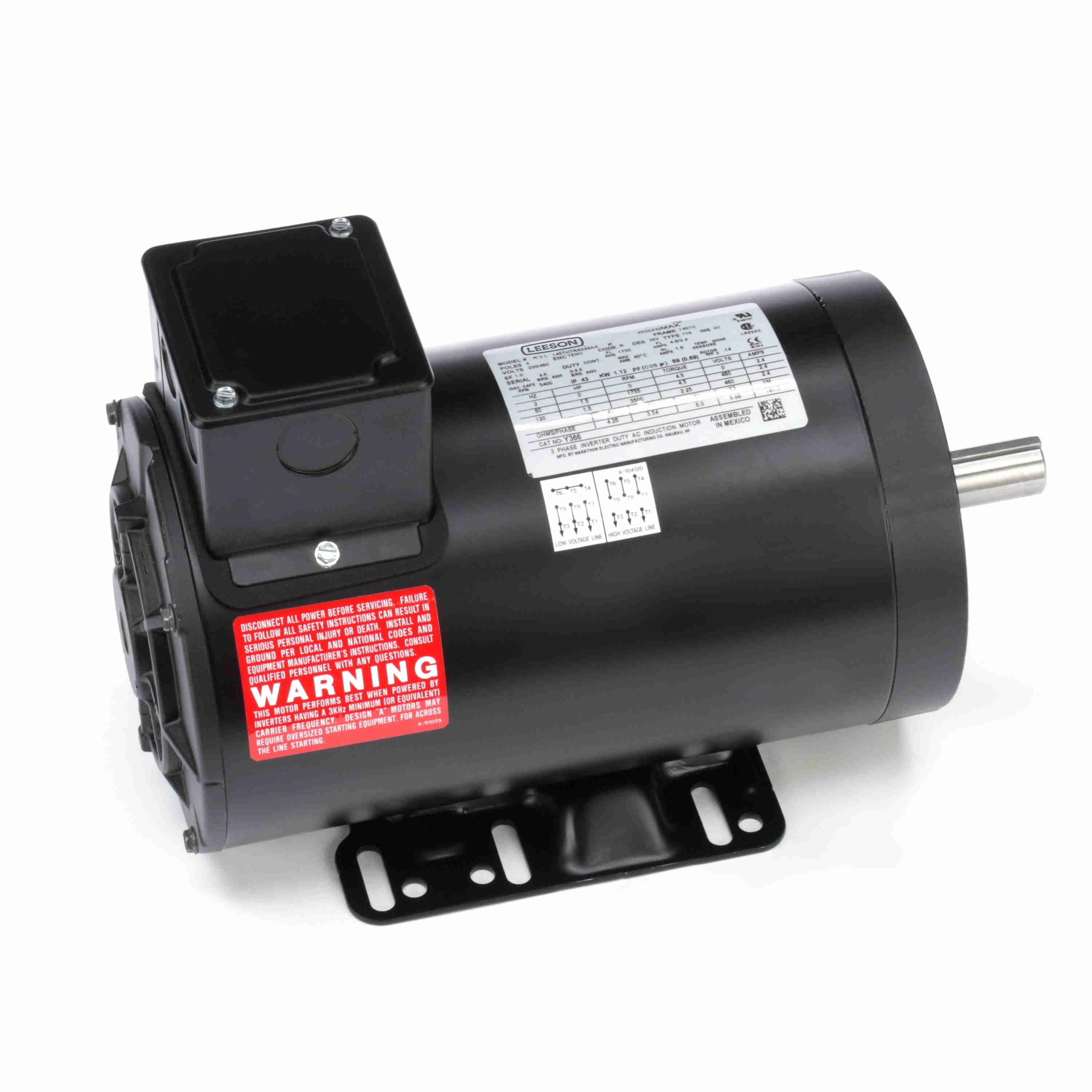

| C | 145THTR5329 | 230/460V AC | 1 1/2 hp | 1755 RPM | Rigid Base | 4.8/2.4A | 145TC | - | 5400 RPM | $918.88 | |

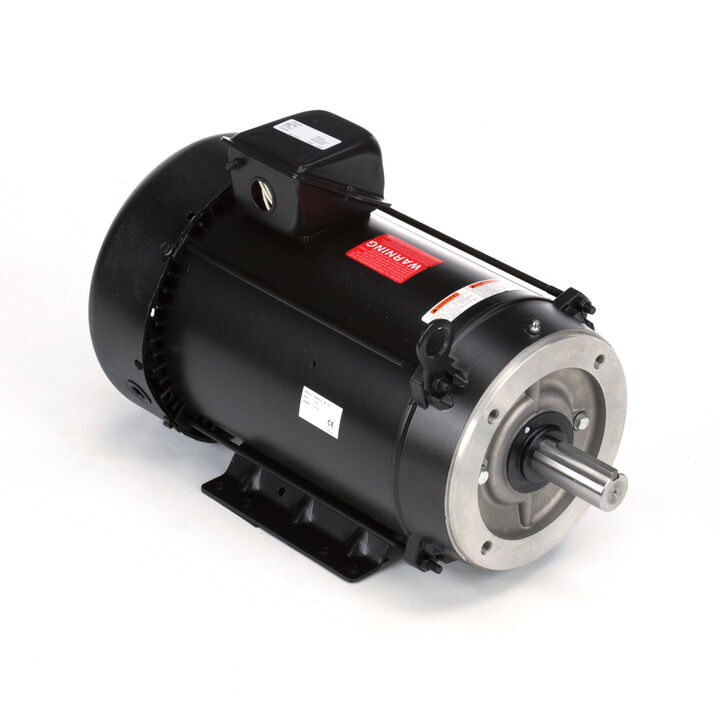

| D | 213THFW7726 | 230/460V AC | 7 1/2 hp | 1770 RPM | Rigid Base | 21.4/10.7A | 213TC | 89.5% | - | $2,846.09 | |

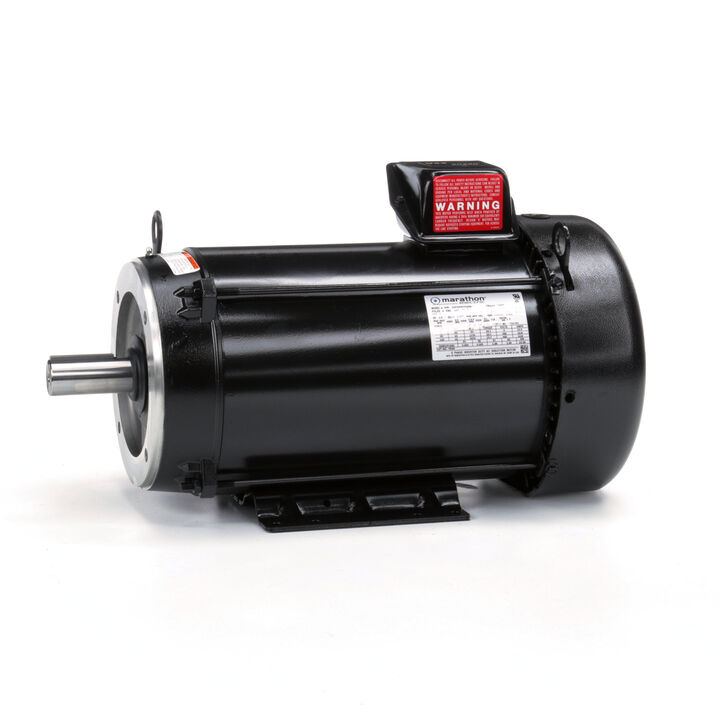

| E | 215THFW7726 | 230/460V AC | 10 hp | 1770 RPM | Rigid Base | 27.6/13.8A | - | 91% | - | $3,642.57 | |
| F | 056H17F2021 | 230/460V AC | 1 hp | 1725 RPM | Rigid Base | 3.2/1.6A | 56C | 78.5% | 5400 RPM | $748.51 | |
| G | 056H17T2017 | 230/460V AC | 1/2 hp | 1725 RPM | Rigid Base | 1.8/0.9A | 56C | 74% | 5400 RPM | $753.84 |
