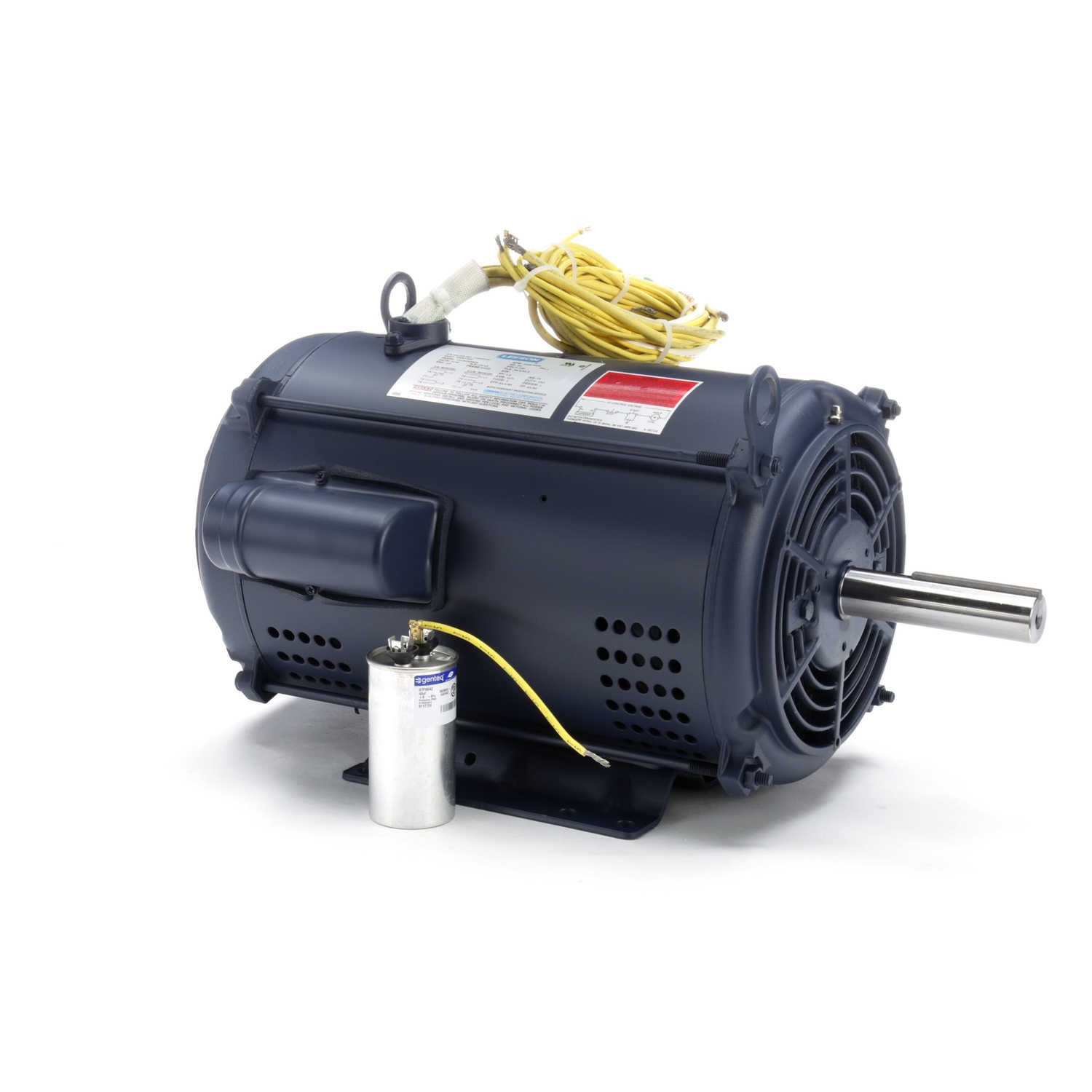

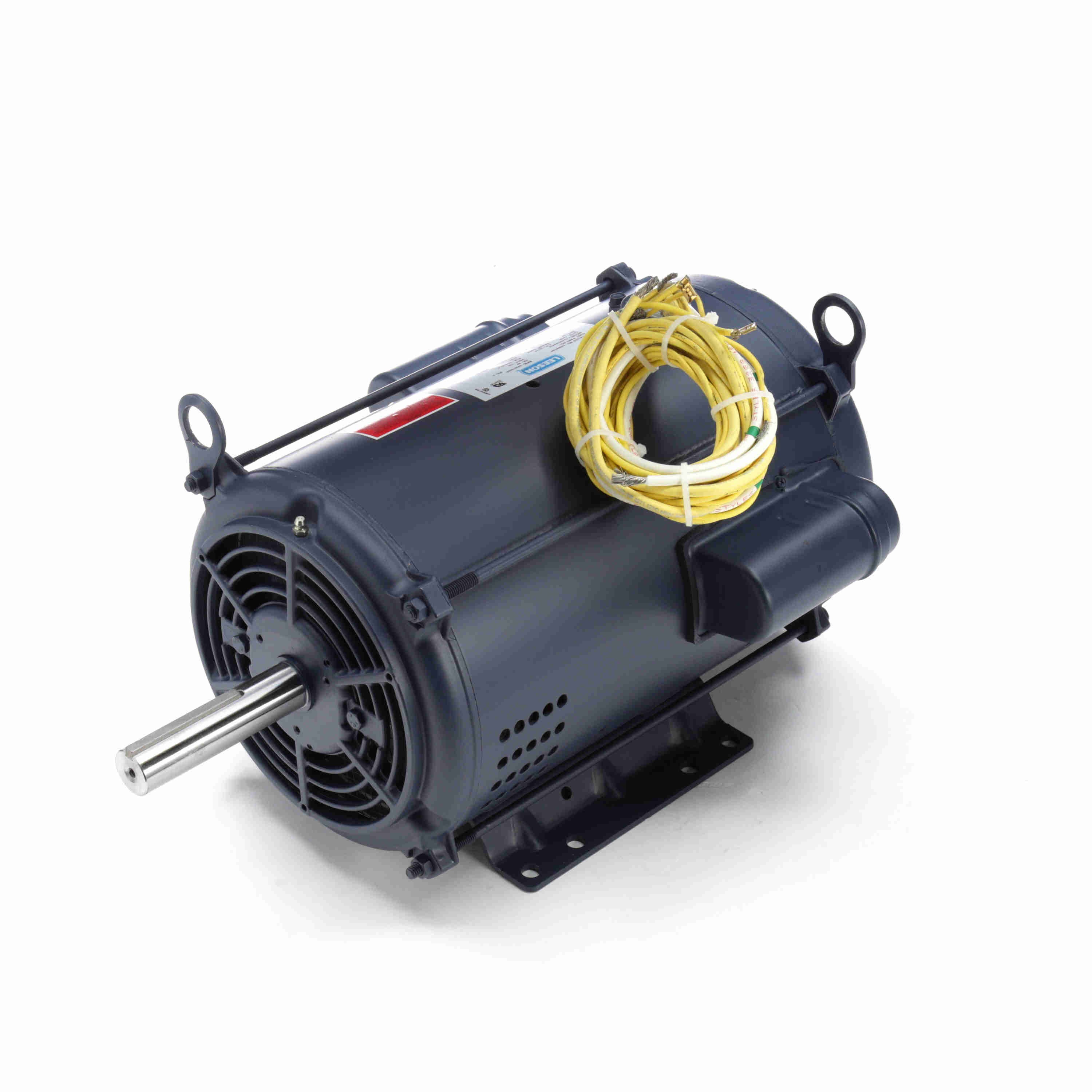

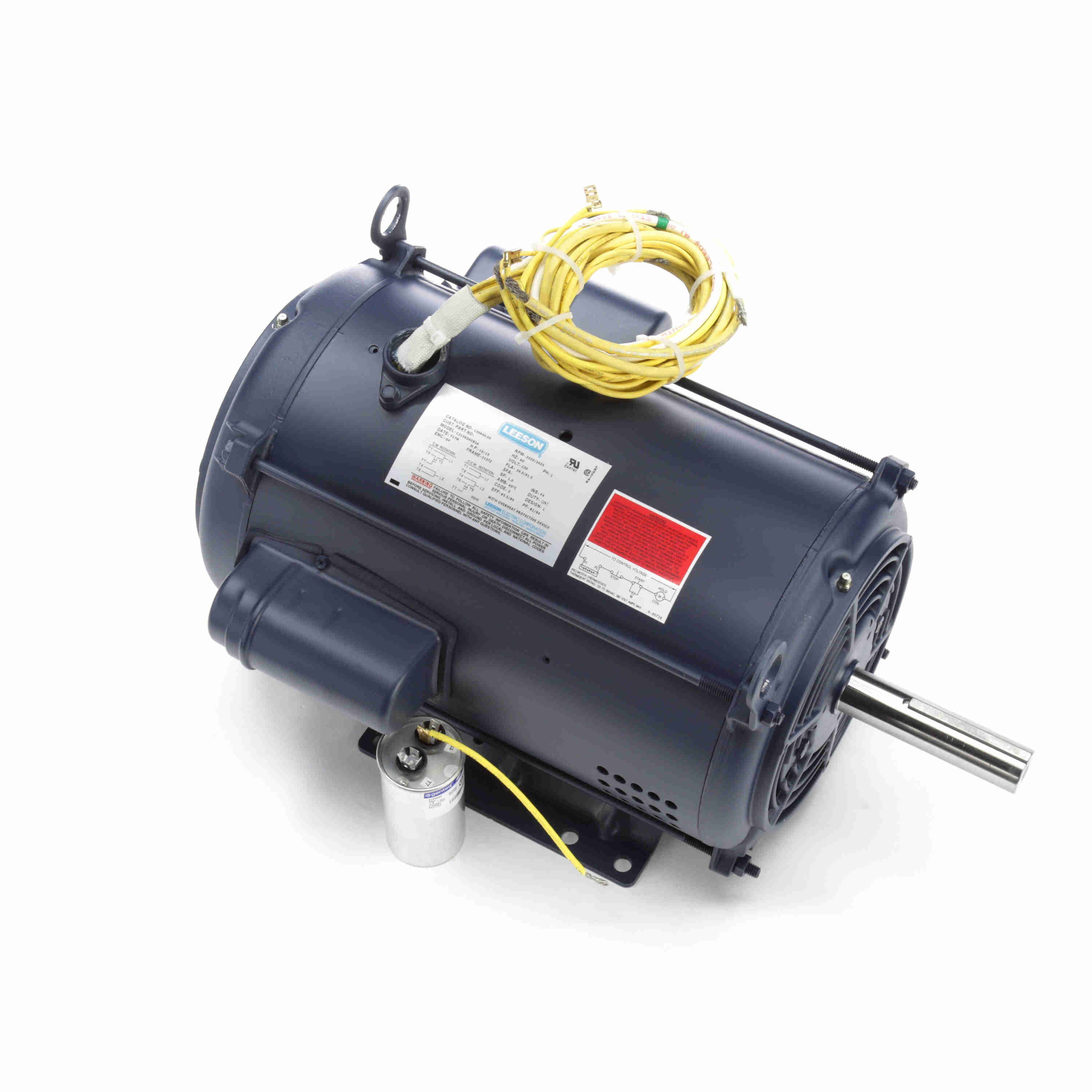

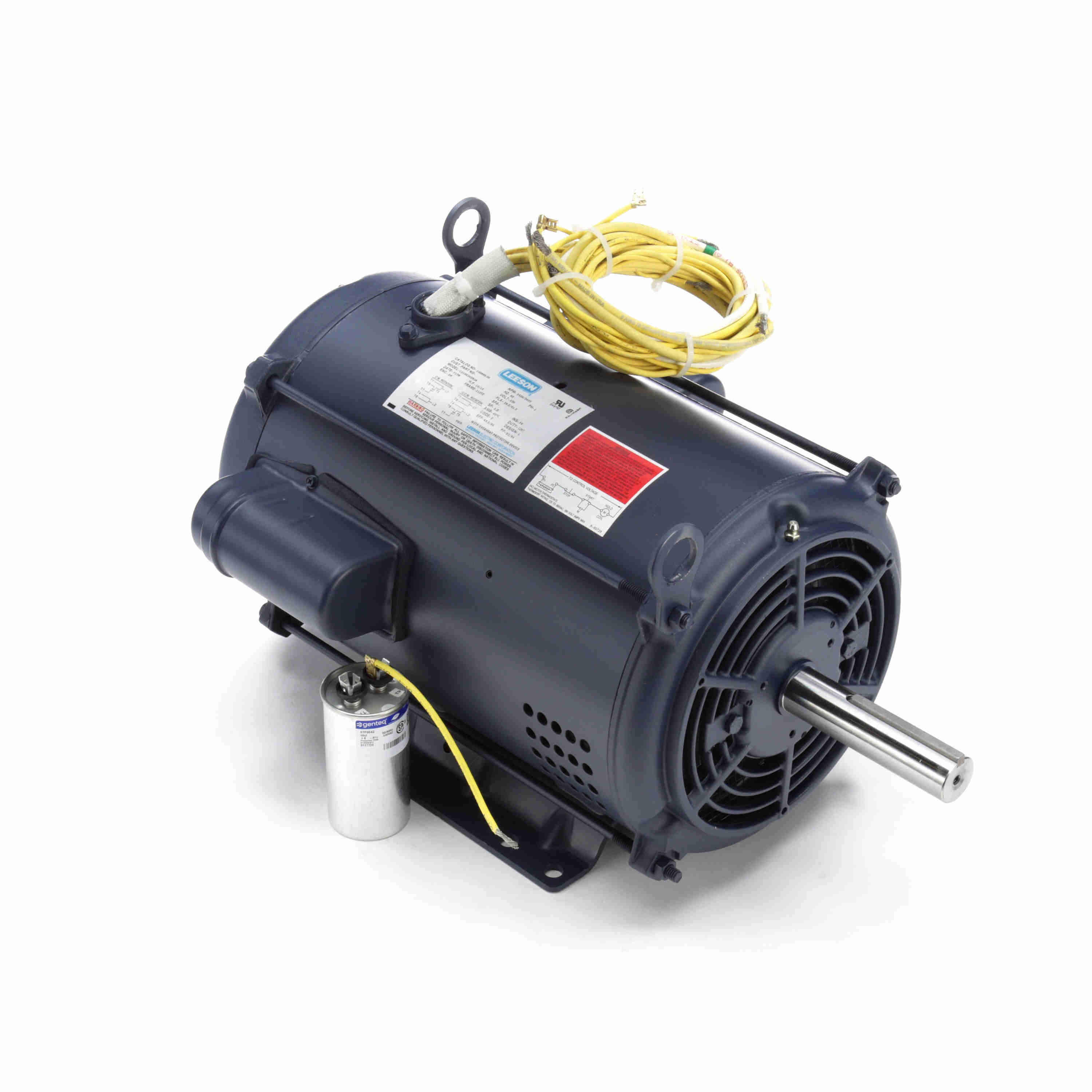

| Item | Farm Duty Motor |
|---|---|
| Code | E |
| Drive End Bearing Size | 307 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 85.5% |
| Enclosure Type | ODP |
| Frame | 215TZ |
| Frame Material | Rolled Steel |
| Frame Type | 215TZ |
| Frequency | 60 Hz |
| Full Load Amps | 39.5/61.5A |
| Hp | 10 hp |
| Insulation Class | Class F |
| Kw | 7.5 kW |
| Motor Enclosure Design | Dripproof |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Squirrel Cage Induction Run |
|---|---|
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3600 RPM |
| Nema Design | L |
| No. Of Poles | 2 |
| Opp. Drive End Bearing Size | 206 |
| Opp. Drive End Bearing Type | Ball |
| Output Power | 7.5 kW |
| Packaging | B |
| Phase | 1 |
| Rpm | 3400-3600 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1 1/8" |
| Shaft Length | 4 1/2" |
| Thermal Protection | Thermostat |
| Type | KD |
| Voltage | 230V |
| Height (cm) | 35.56 |
|---|---|
| Length (cm) | 57.15 |
| Width (cm) | 42.7 |
| Country Of Origin | MX |
|---|---|
| Weight (kg) | 72.9 |
