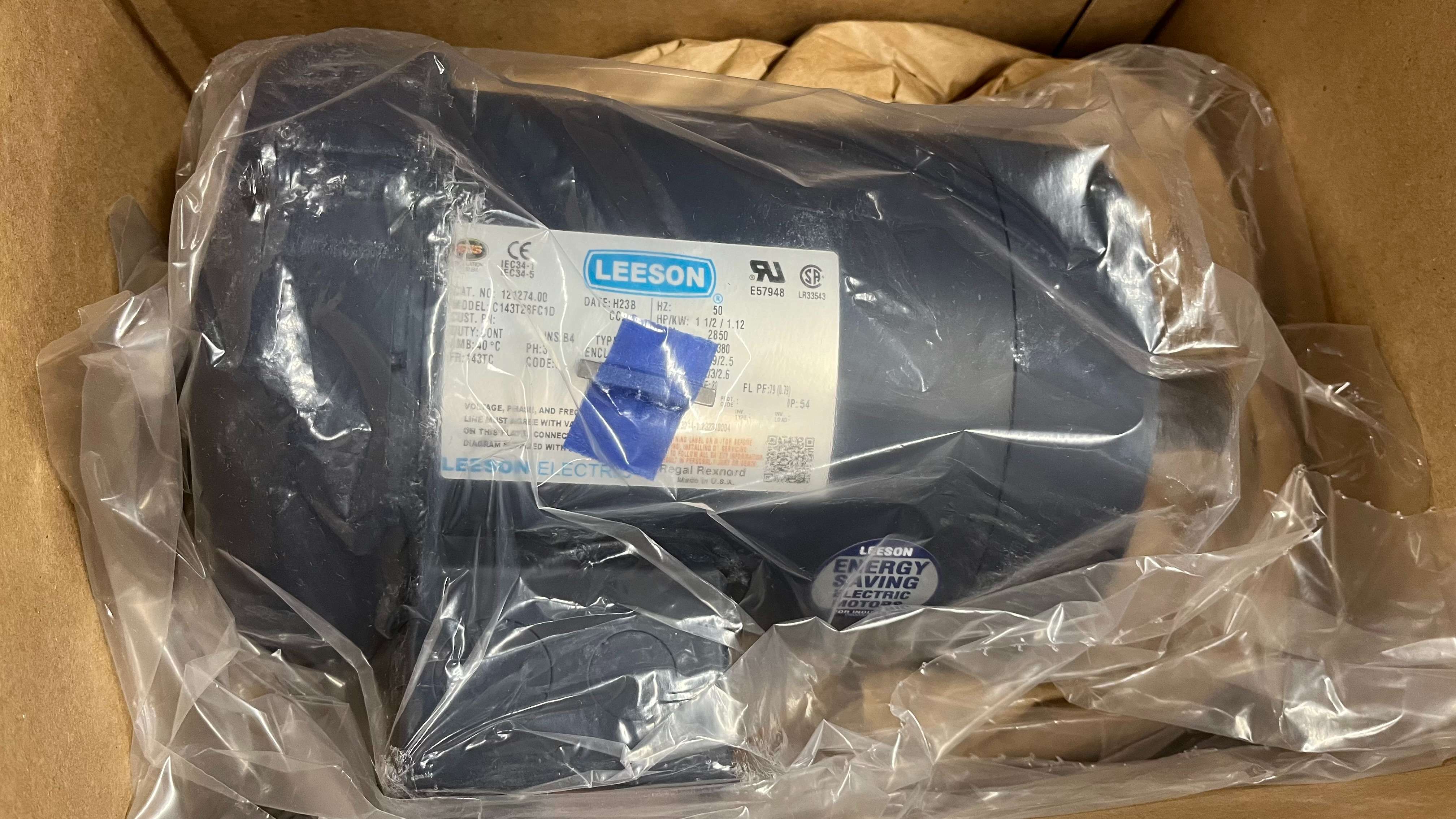

| Item | 50 Hz Motor |
|---|---|
| Amps | 5/2.9/2.5A |
| Bearing Type | Ball |
| Conduit Box Position | F1 |
| Design Code | No Design Code |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 80% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tefc |
| Frame | 143TC |
| Frame Length | 6" |
| Frame Material | Rolled Steel |
| Frame Type | 143TC |
| Frequency | 50 Hz |
| Full Load Amps | 5/2.9/2.5A |
| Full Load Amps @ 50hz | 5/2.9/2.5A |
| Full Load Efficiency | 80% |
| Height | 10 22/25" |
| Hp | 1 1/2 hp |
| Hp @ 50hz | 1 1/2 hp |
| Hz | 50 Hz |
| Ins. Class | Class B |
| Insulation Class | Class B |
| Ip Code | IP54 |
| Kva Code | L |
| Kw | 1.1 kW |
| Length | 14 11/25" |
| Length Less Shaft | 9 3/4" |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
|---|---|
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Mounting Type | Face |
| Nameplate Rpm | 2850 RPM |
| Nema Design | B |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 80% |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 11 15/16" |
| Phase | 3 |
| Power Factor | 79 |
| Resistance Main | 11.8 ohms |
| Rpm | 2850 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Shaft Type | T |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Type | Three Phase |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 220/380V |
| Width | 10 11/25" |
| Motor Thermal Protection | None |
| Standards | CE CERTIFIED, CSA CERTIFIED, UL LISTED |
| Height (cm) | 27.64 |
|---|---|
| Length (cm) | 36.68 |
| Width (cm) | 26.52 |
| HS Code | 8501524000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 16.2 |
| Style | Model | Voltage | Hp | Nameplate Rpm | Frame | Thermal Protection | Service Factor | Overall Length | No. Of Poles | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 102694.00 | 220/380/440V | 1/2 hp | 1425 RPM | 56C | No Protection | 1.15 | 10 3/16" | 4 | $624.03 | |

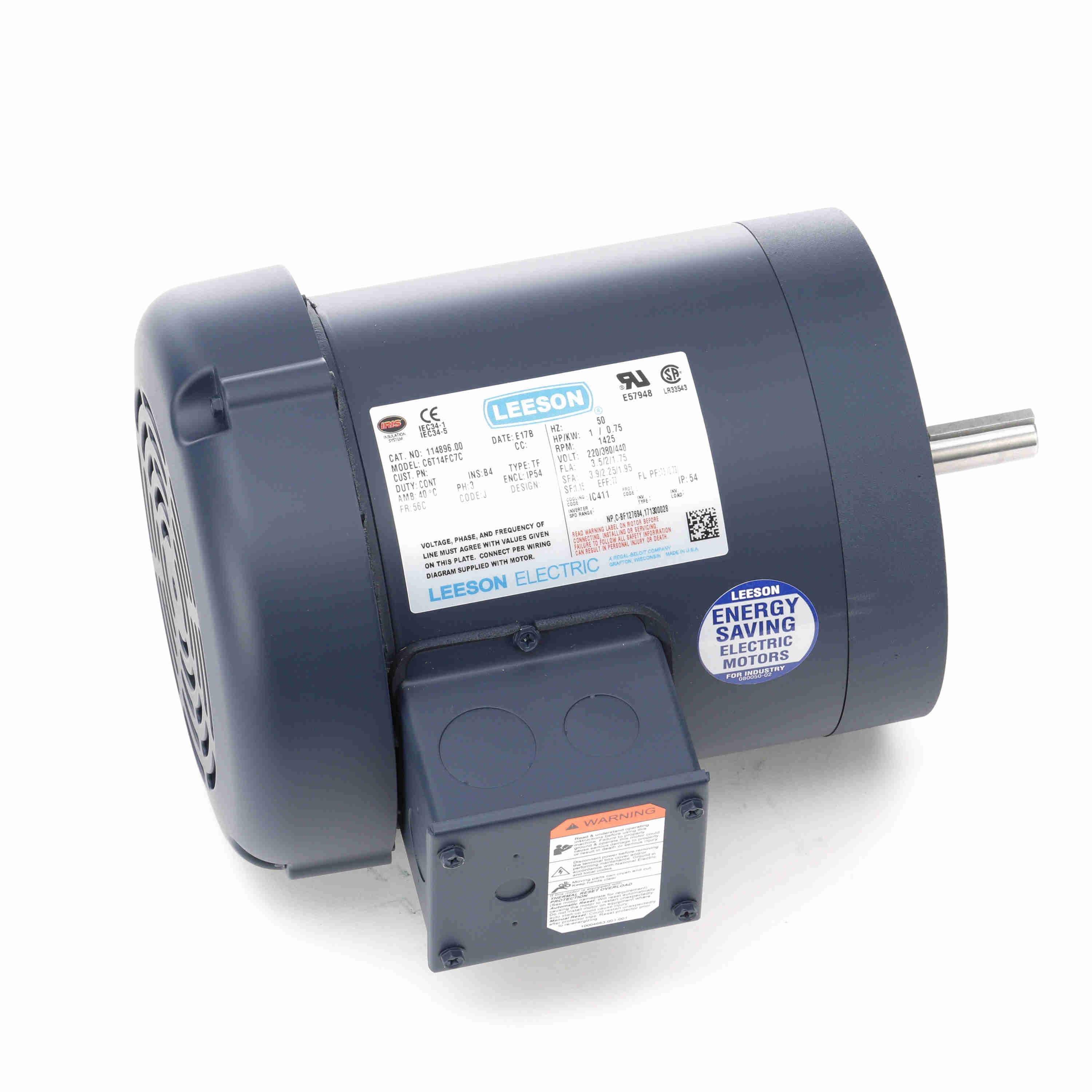

| B | 114896.00 | 220/380/440V | 1 hp | 1425 RPM | 56C | No Protection | 1.15 | 11" | 4 | $699.79 | |

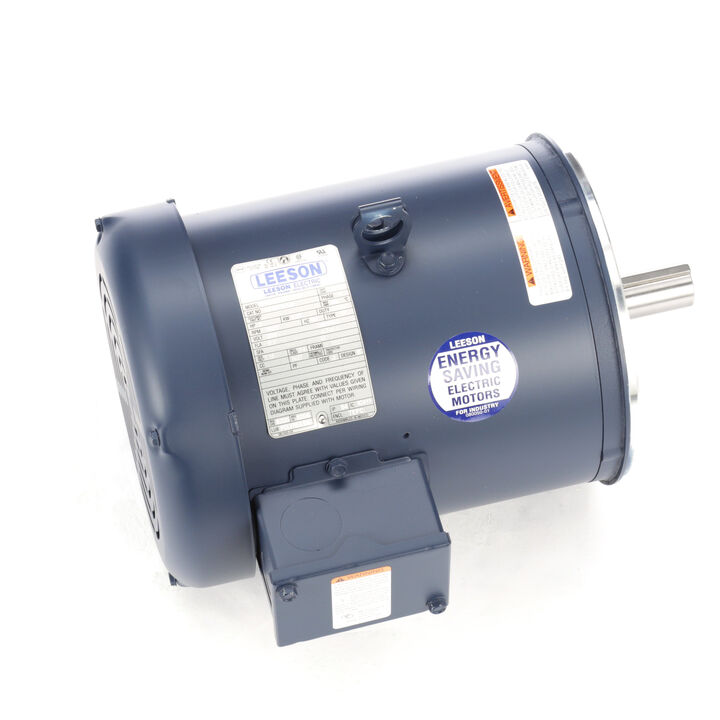

| C | 131506.00 | 220/380/440V | 3 hp | 1425 RPM | 182TC | None | 1.15 | 14" | 4 | $1,595.79 | |

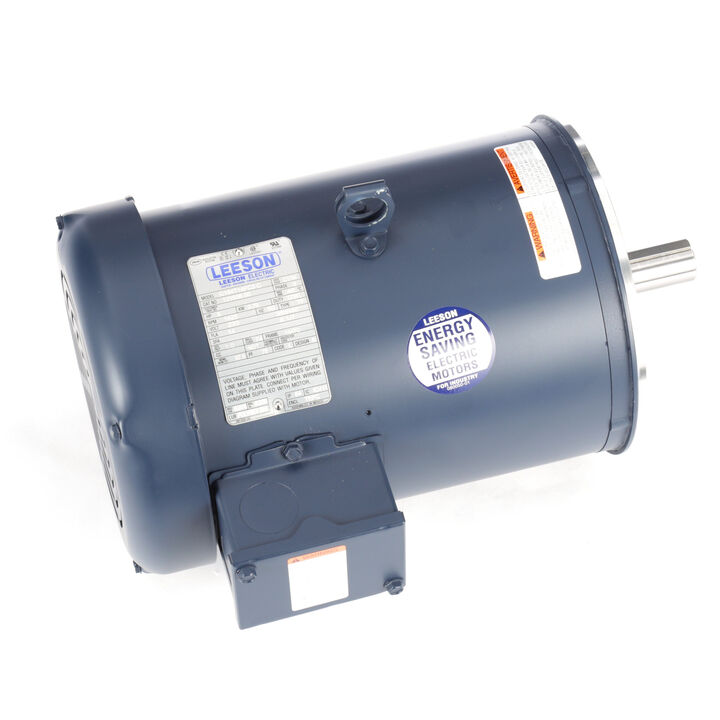

| D | 131508.00 | 220/380/440V | 5 hp | 1425 RPM | 184TC | None | 1 | 15 1/2" | 4 | $820.89 |
