| Item | General Purpose Motor |
|---|---|
| Ambient Temp. | 104°F |
| Amps | 20.8A |
| Application | Air Compressor |
| Bearing Type | Ball |
| Code | E |
| Design | E, L |
| Design Code | L |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 82.5% |
| Electrical Type | Capacitor Start, Capacitor Run |
| Enclosure Type | ODP |
| Frame | 145T |
| Frame Length | 8" |
| Frame Material | Rolled Steel |
| Frame Type | 145T |
| Frequency | 60 Hz |
| Full Load Amps | 20.8A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 5 hp |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Ip Code | IP22 |
| Kva Code | E |
| Kw | 3.7 kW |
| Length | 14 11/25" |
| Length Less Shaft | 10 13/16" |
| Lubrication | Polyrex EM |
| Max. Ambient Temp. | 104°F |
| Max. Rpm | 3450 RPM |
| Motor Application | Air Compressor Motors |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
|---|---|
| Motor Enclosure Design | Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1 |
| Motor Shaft Design | T |
| Motor Shaft Rotation | Selective Clockwise |
| Motor Thermal Protection | Manual |
| Motor Type | Capacitor Start/Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3450 RPM |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 82.5% |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 3.7 kW |
| Overall Length | 13 3/16" |
| Packaging | B |
| Phase | 1 |
| Power Factor | 95 |
| Resistance Main | 0.52 ohms |
| Rpm | 3400-3600 RPM |
| Rpm Range | 3001-3600 RPM |
| Service Factor | 1 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Shaft Type | T |
| Standards | Csa, Ul Listed |
| Starting Method | Across The Line |
| Thermal Protection | Manual |
| Type | KD |
| Voltage | 230V |
| Width | 10 11/25" |
| Height (cm) | 27.64 |
|---|---|
| Length (cm) | 36.68 |
| Width (cm) | 26.52 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 22.05 |
| Style | Model | Voltage | Nameplate Rpm | Hp | Full Load Amps | Motor Type | Service Factor | Frame | Ambient Temp. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 110222.00 | 230V | 3600 RPM | 3 hp | 15A | Capacitor Start | 1.15 | 56Y | 40°C | $686.59 | |
| B | 110232.00 | 115-230V | 3600 RPM | 2 hp | 11/22A | Capacitor Start | 1 | 56 | 40°C | $612.80 | |
| C | 111275.00 | 230V | 3600 RPM | 5 hp | 20.8A | Capacitor Start | 1 | 56Y | 40°C | $772.76 | |
| D | 120004.00 | 115/208-230V | 1800 RPM | 1 1/2 hp | 17.2/8.6A | Capacitor Start | 1.15 | G145T | 40°C | $924.83 | |
| E | 131515.00 | 115/208-230V | 1800 RPM | 2 hp | 24.5/13-12.4A | Squirrel Cage Induction Run | 1.15 | 182T | 40°C | $740.71 | |
| F | 131534.00 | 115/208-230V | 1800 RPM | 3 hp | 33.8/16.9A | Capacitor Start | 1.15 | 184T | 40°C | $850.60 | |

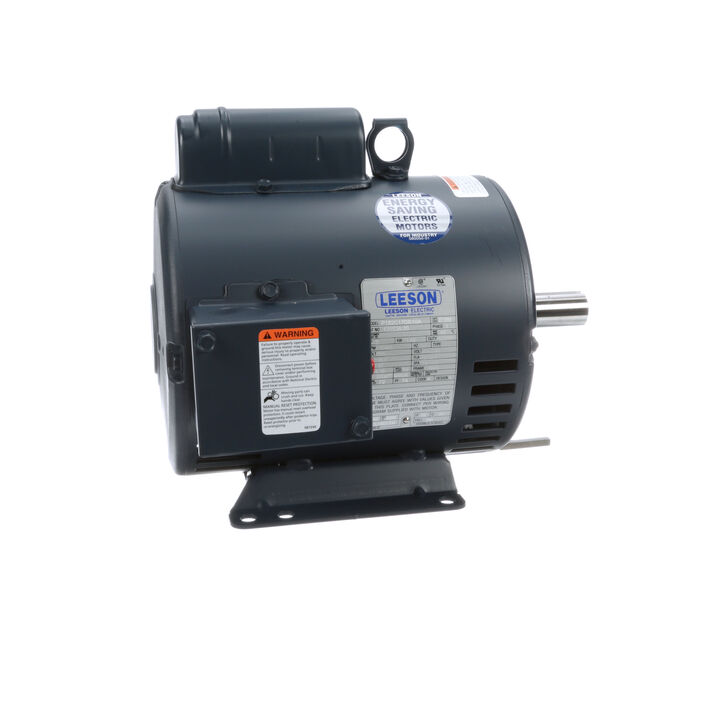

| G | 131536.00 | 115V | 1800 RPM | 2 hp | 24.5/13-12.4A | Capacitor Start/Run | 1.15 | 182T | 40°C | $816.96 |
