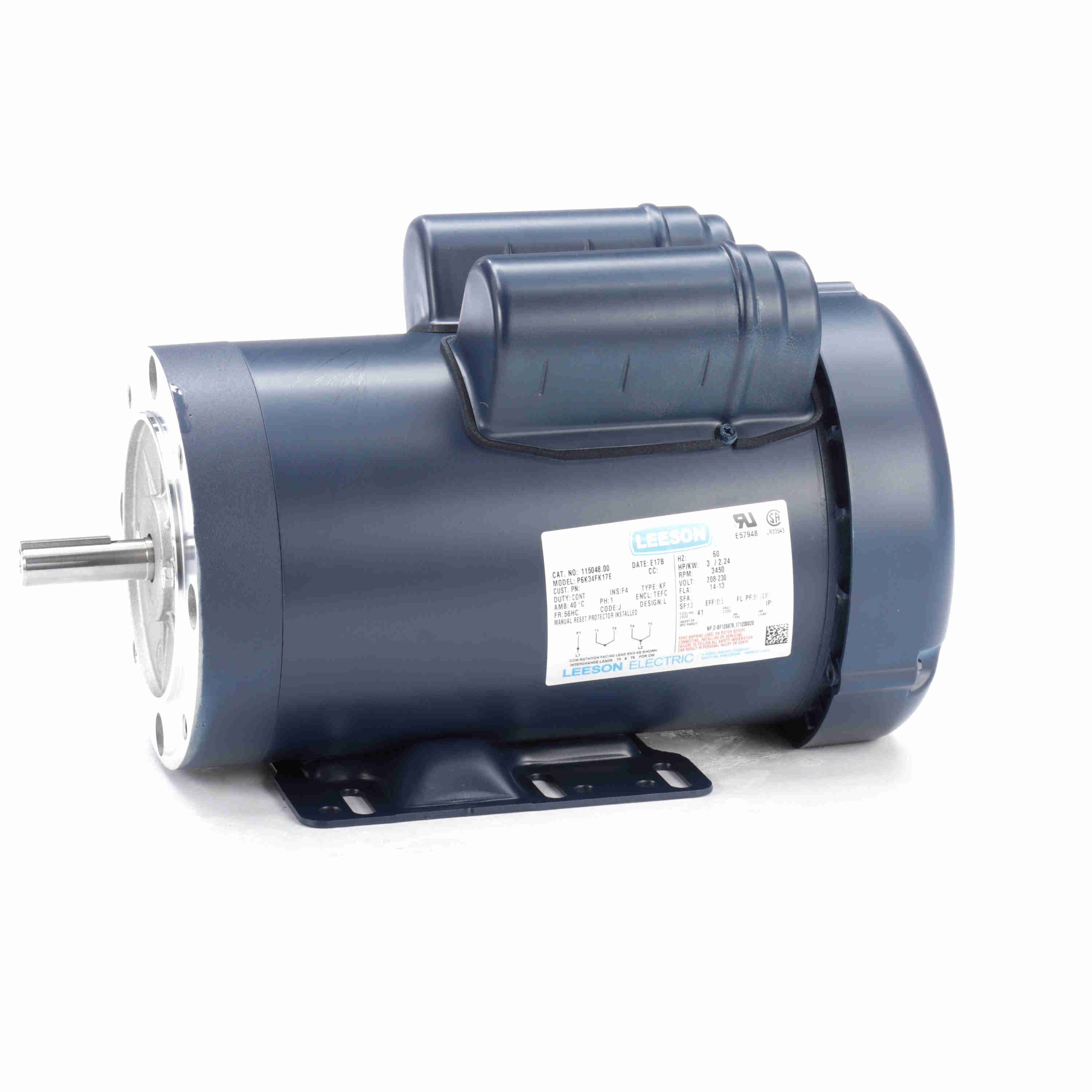

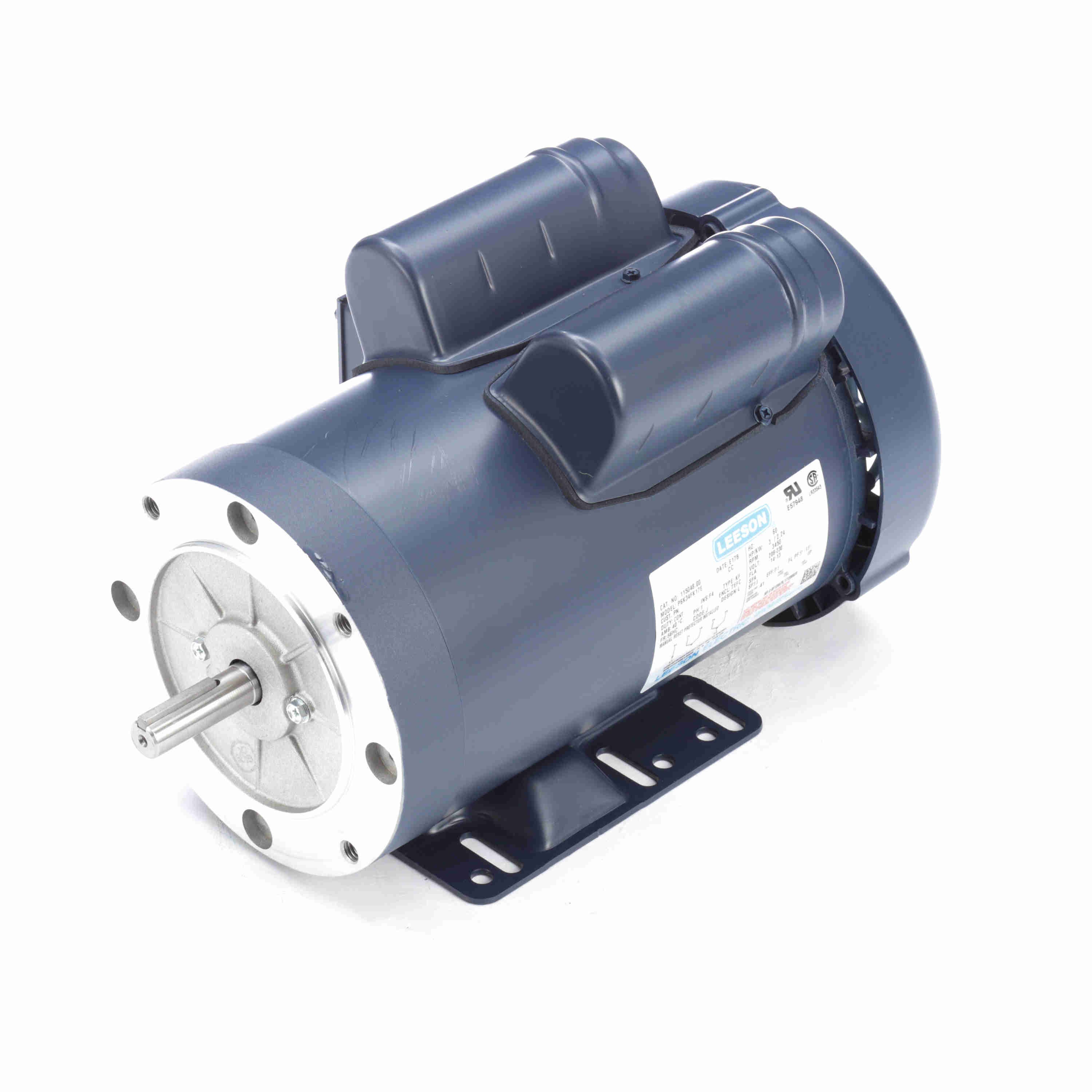

| Item | General Purpose Motor |
|---|---|
| Ambient Temp. | 104°F |
| Amps | 13A |
| Base Type | Rigid Base |
| Bearing Protection | Double Shield |
| Bearing Type | Ball |
| Body Dia. | 7.7" |
| Bolt Circle Dia. | 5 5/8" |
| Code | J |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Cord Length | 6" |
| Design Code | L |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 81.5% |
| Electrical Type | Capacitor Start, Capacitor Run |
| Enclosure Type | Tefc |
| Finish | Enamel |
| Frame | 56HC |
| Frame Length | 8 1/2" |
| Frame Material | Rolled Steel |
| Frame Type | 56HC |
| Frequency | 60 Hz |
| Full Load Amps | 13-14A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 3 hp |
| Hz | 60 Hz |
| Includes | Key |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Inverter Rated | No |
| Inverter Rating | No |
| Ip Code | IP43 |
| Kva Code | J |
| Kw | 2.2 kW |
| Lead Length | 6" |
| Length | 19 1/2" |
| Length Less Shaft | 12" |
| Lubrication | Polyrex EM |
| Manufacturers Warranty Length | 18 Months |
| Max. Ambient Temp. | 104°F |
| Max. Rpm | 3450 RPM |
| Motor Application | General Application |
| Motor Bearings | Ball |
|---|---|
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face, Base |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Manual |
| Motor Type | Capacitor Start |
| Nameplate Rpm | 3450 RPM |
| Nema Design | L |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| No. Of Wires | 5 |
| Nominal Efficiency | 81.5% |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 2.24 kW |
| Overall Height | 8 1/2" |
| Overall Length | 14" |
| Packaging | B |
| Part Winding Start Capable | No |
| Phase | 1 |
| Power Factor | 91 |
| Regreasable Bearings | Permanently Lubricated Bearings |
| Resistance Main | 0.52 ohms |
| Rpm | 3400-3600 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Material Grade | Carbon Steel , Grade 1144 , Stressproof |
| Shaft Type | NEMA 56 |
| Standards | Csa, Ul Recognized |
| Starter Required | No |
| Starting Method | Across The Line |
| Thermal Protection | Manual |
| Type | KF |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230V |
| Warranty | 1.5 yrs. |
| Width | 10 11/25" |
| Height (cm) | 27.64 |
|---|---|
| Length (cm) | 49.53 |
| Width (cm) | 26.52 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 22.05 |
