| Item | 50 Hz Motor |
|---|---|
| Amps | 11.8/5.9A |
| Application | General Application |
| Bearing Type | Ball |
| Conduit Box Position | F1 |
| Design Code | No Design Code |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 68% |
| Electrical Type | Capacitor Start, Induction Run |
| Enclosure Type | Tefc |
| Frame | 56C |
| Frame Length | 6 1/2" |
| Frame Material | Rolled Steel |
| Frame Type | 56C |
| Frequency | 50 Hz |
| Full Load Amps | 11.8/5.9A |
| Full Load Amps @ 50hz | 11.8/5.9A |
| Full Load Efficiency | 68% |
| Height | 10 22/25" |
| Hp | 3/4 hp |
| Hp @ 50hz | 3/4 hp |
| Hz | 50 Hz |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Ip Code | IP54 |
| Kva Code | J |
| Kw | 0.56 kW |
| Length | 14 11/25" |
| Length Less Shaft | 10 1/4" |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
|---|---|
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Thermal Protection | Manual |
| Motor Type | Capacitor Start |
| Mounting Type | Face |
| Nameplate Rpm | 1425 RPM |
| Nema Design | None |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 68% |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 12" |
| Phase | 1 |
| Power Factor | 66 |
| Rpm | 1425 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Starting Method | Across The Line |
| Thermal Protection | Manual |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 110/220V |
| Width | 10 11/25" |
| Standards | CE CERTIFIED, CSA CERTIFIED, UL LISTED |
| Height (cm) | 27.64 |
|---|---|
| Length (cm) | 36.68 |
| Width (cm) | 26.52 |
| HS Code | 8501404040 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 15.3 |
| Style | Model | Hp | Nameplate Rpm | Motor Type | Frame | Thermal Protection | Service Factor | Power Factor | Overall Length | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 113921.00 | 33/100 hp | 1425 RPM | Capacitor Start | 56C | Manual | 1 | 60.5 | 11" | $1,114.15 | |

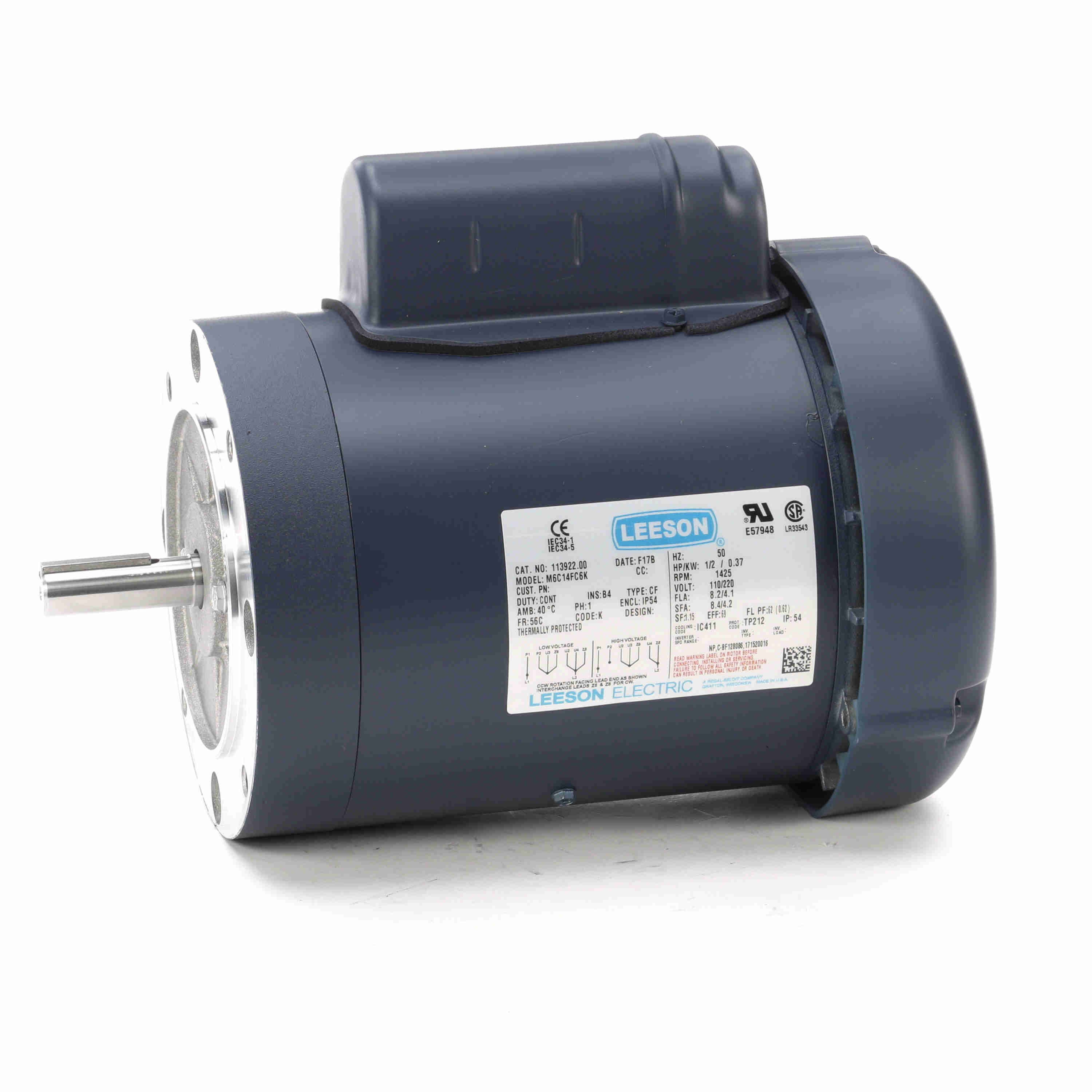

| B | 113922.00 | 1/2 hp | 1425 RPM | Capacitor Start | 56C | Manual | 1.15 | 62 | 11 1/2" | $677.99 | |

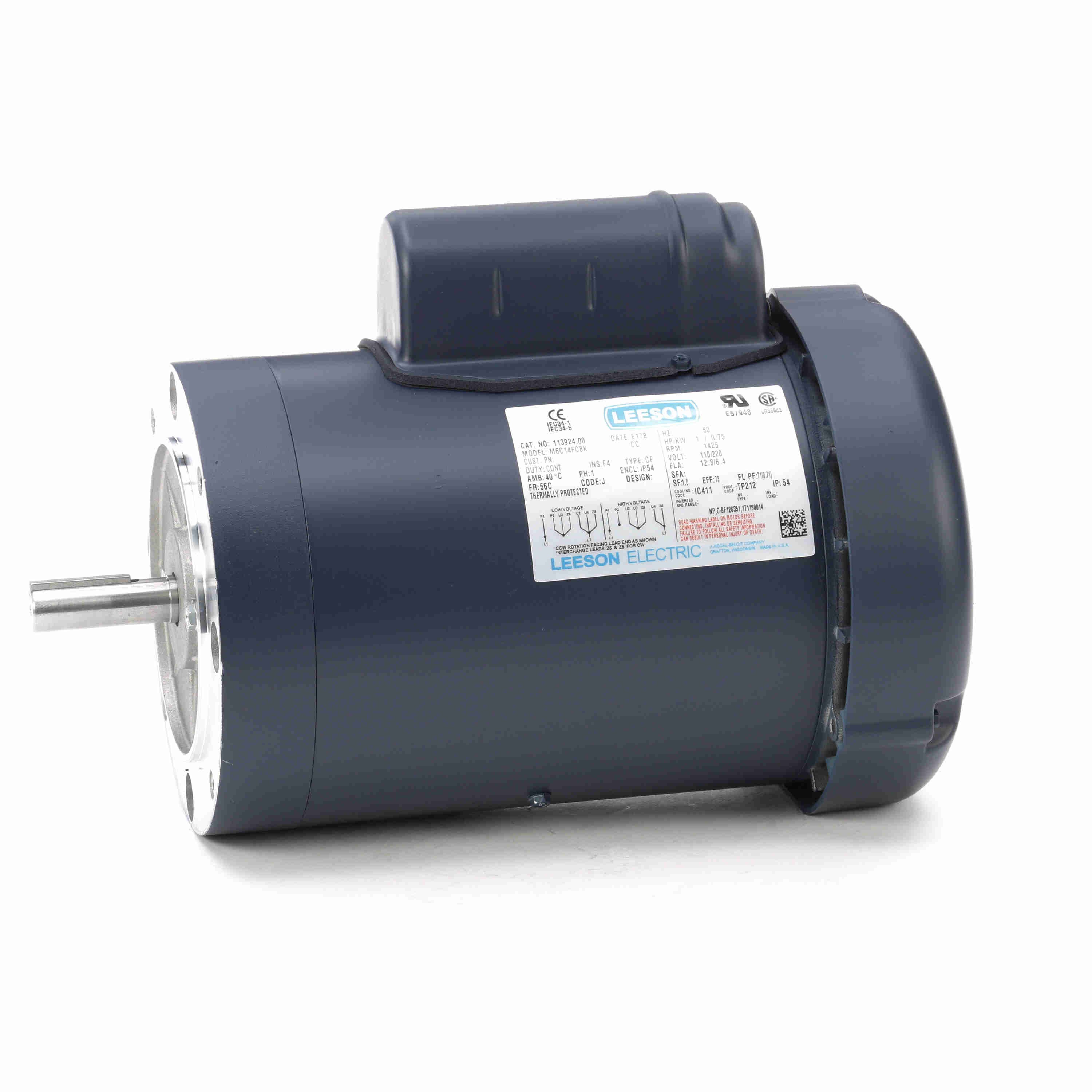

| C | 113924.00 | 1 hp | 1425 RPM | Capacitor Start | 56C | Manual | 1 | 71 | 12 1/2" | $815.87 | |
| D | 113925.00 | 1 1/2 hp | 1425 RPM | Capacitor Start | 56C | Manual | 1 | 78 | 13 1/2" | $1,616.85 | |
| E | 120990.00 | 2 hp | 2850 RPM | Capacitor Start/Run | 145TC | No Protection | 1.15 | 92 | 13 15/16" | $1,205.94 |
