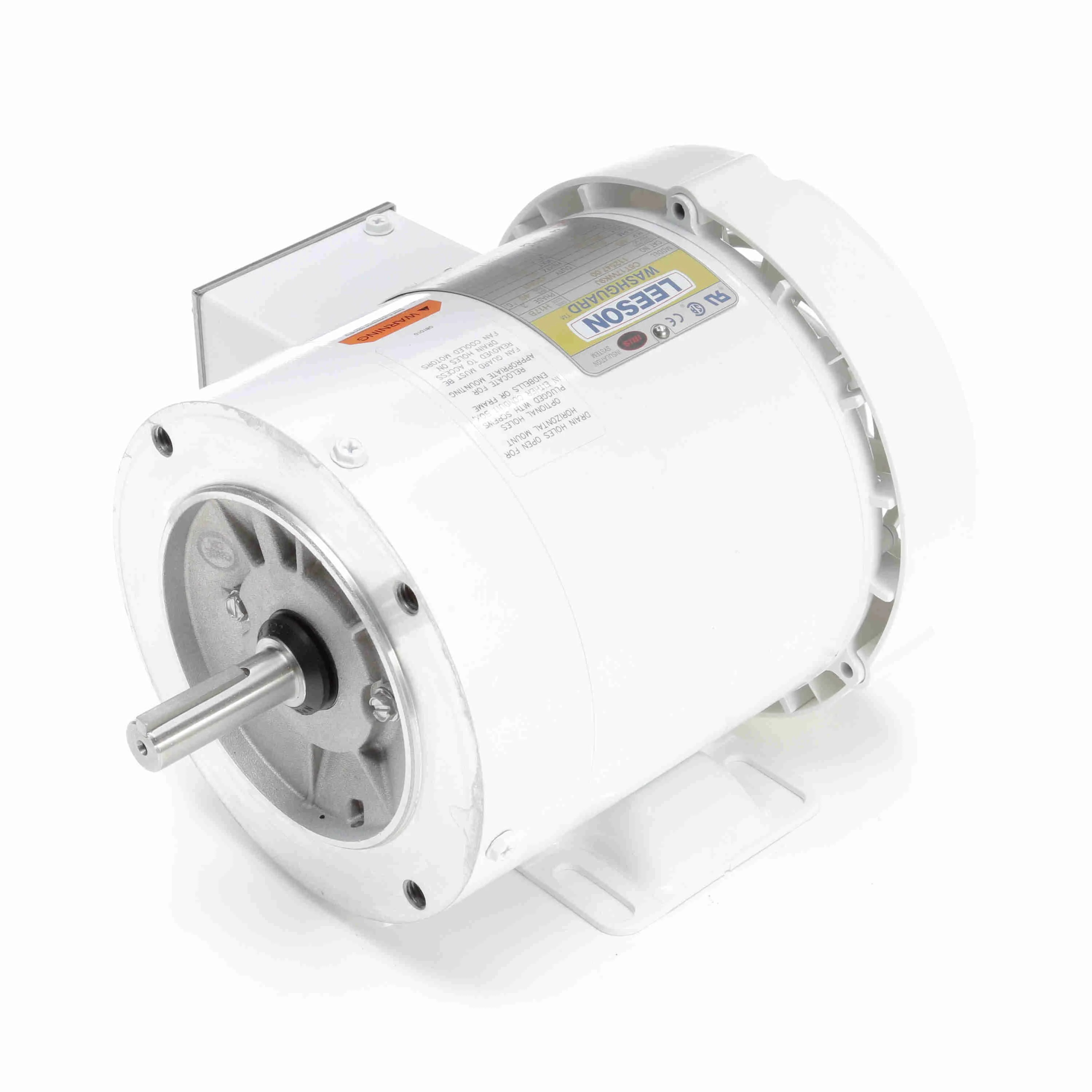

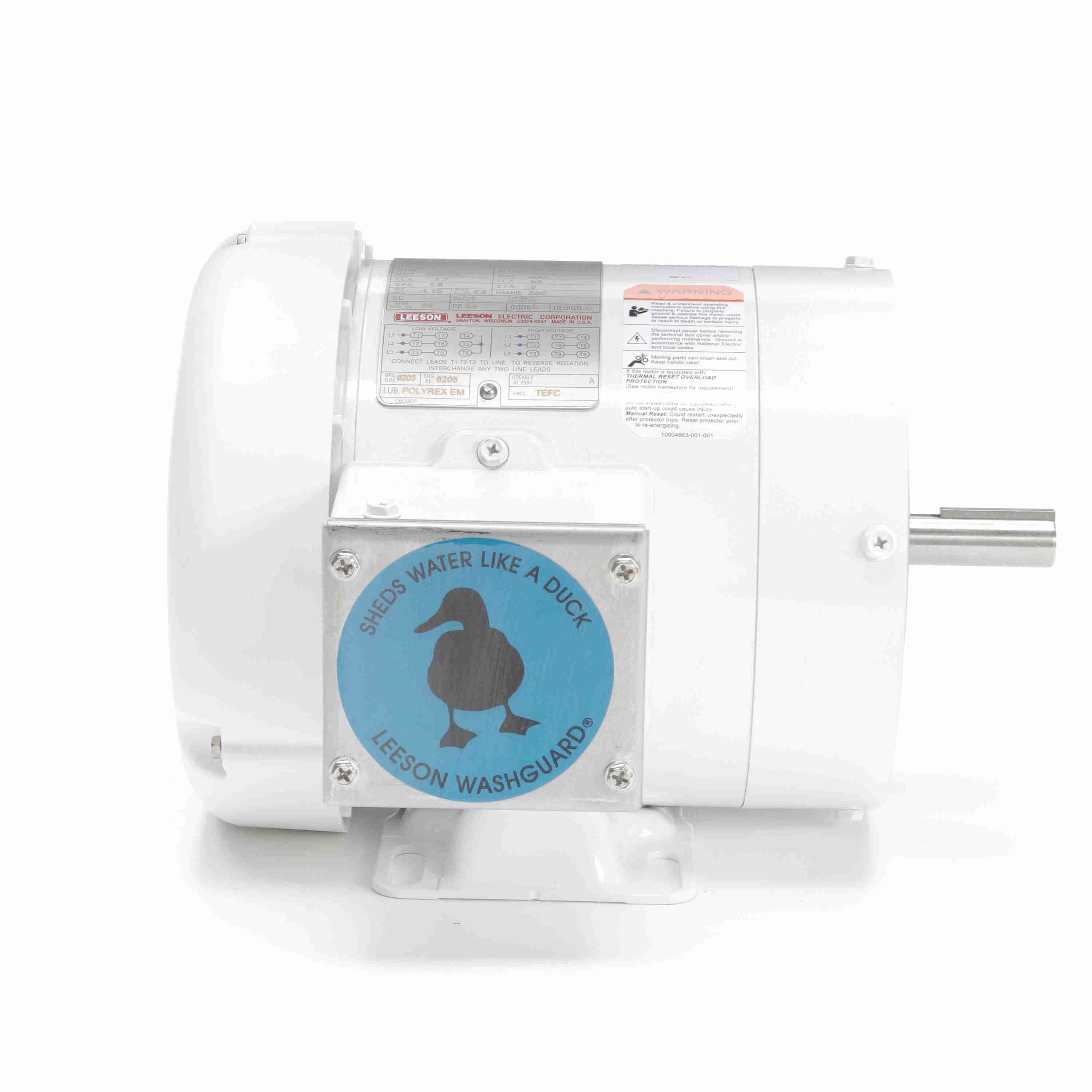

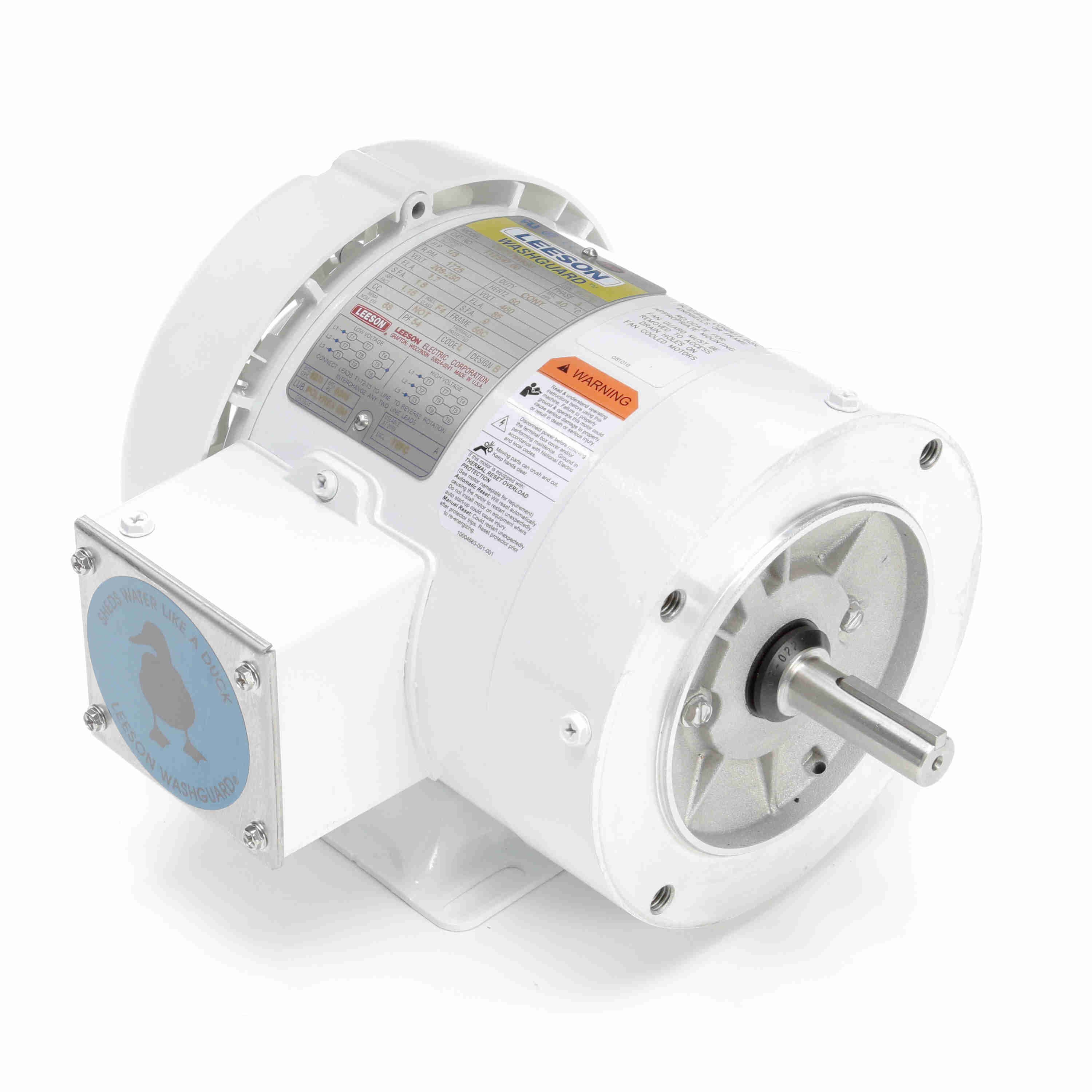

| Item | Washdown Motor |
|---|---|
| Ambient Temp. | 104°F |
| Amps | 1.7/0.85A |
| Application | Washdown |
| Bearing Protection | Shaft Shield |
| Bearing Type | Ball |
| Body Dia. | 7.3" |
| Bolt Circle Dia. | 5 7/8" |
| Code | L |
| Conduit Box Location | Exterior |
| Design | B |
| Design Code | B |
| Drain Plug | (1) Drain Plugs In Conduit Box, (1) Drain Plugs In Each End Bell |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 68% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tefc |
| Finish | Unfinished |
| Frame | 56C |
| Frame Length | 4 1/2" |
| Frame Material | Rolled Steel |
| Frame Type | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 1.5-1.7/0.85A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 33/100 hp |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Ip Code | IP43 |
| Kva Code | L |
| Kw | 0.25 kW |
| Length | 14 11/25" |
| Length Less Shaft | 8 7/16" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 104°F |
| Max. Rpm | 1725 RPM |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
|---|---|
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face, Base |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.2 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Thermal Protection | Manual |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1725 RPM |
| Nema Design | B |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 68% |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 10 3/8" |
| Packaging | B |
| Phase | 3 |
| Power | 0.246 kW |
| Power Factor | 54 |
| Product Type | Washdown Motor |
| Removable Base | No |
| Rotation | Reversible |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Material | Stainless Steel |
| Shaft Type | NEMA 56 |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Type | TF |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V |
| Width | 10 11/25" |
| standard | CE, CSA CERTIFIED, UL RECOGNIZED, USDA |
| Height (cm) | 27.64 |
|---|---|
| Length (cm) | 36.68 |
| Width (cm) | 26.52 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 11.25 |
| Style | Model | Voltage | Hp | Finish | Nameplate Rpm | Frame | Full Load Amps | Motor Mounting Type | Ambient Temp. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 112429.00 | 208-230/460V | 1/2 hp | Epoxy Coated | 1800 RPM | 56C | 1.9-2/1A | - | 40°C | $675.93 | |
| B | 112430.00 | 208-230/460V | 3/4 hp | Epoxy Coated | 1800 RPM | 56C | 2.8-2.7/1.4A | - | 40°C | $1,707.29 | |
| C | 113586.00 | 208-230/460V | 1/2 hp | Epoxy Coated | 1725 RPM | 56C | 1.8A | Face, Base | 104°F | $1,056.36 | |
| D | 113587.00 | 208-230/460V | 3/4 hp | Epoxy Coated | 1725 RPM | 56C | 1.2A | Face, Base | 104°F | $780.23 | |
| E | 113590.00 | 230/460V | 1 hp | Epoxy Coated | 3450 RPM | 56C | 1.3A | Face, Base | 104°F | $1,058.42 | |
| F | 113591.00 | 230/460V | 1 1/2 hp | Epoxy Coated | 3450 RPM | - | 1.9A | Rigid Base | 104°F | $1,356.40 | |
| G | 115743.00 | 208-230/460V | 1/2 hp | Epoxy Coated | 1140 RPM | 56C | 2.3/1.2A | Face, Base | 104°F | $1,342.49 |
