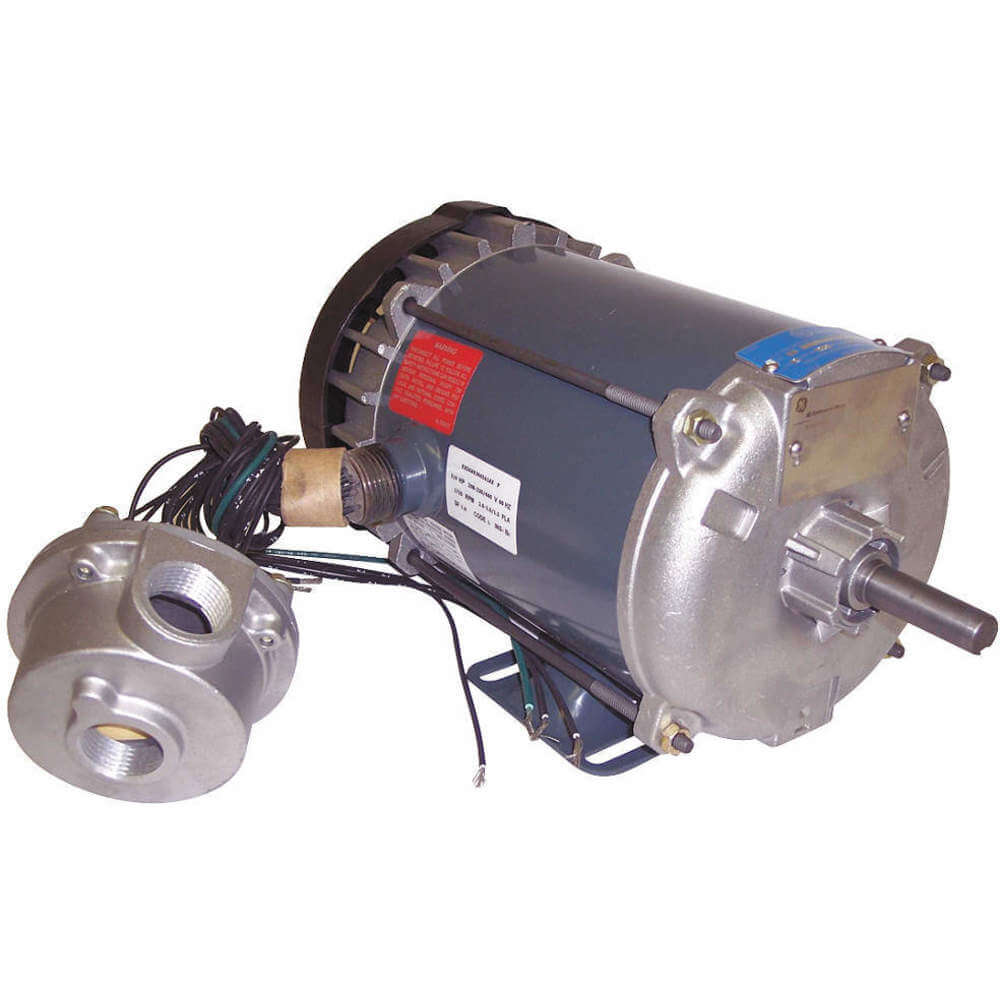

| Item | Hazardous Location Motor |
|---|---|
| Ambient Temp. | 40°C |
| Conduit Box Location | Exterior |
| Duty Cycle | Continuous |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 3/1.5A |
| Hazardous Location Class | 1 C, D / 2 E, F, G |
| Hp | 3/4 hp |
| Includes | Conduit Box (Unmounted), Leads Through 1" NPT Nipple |
| Insulation Class | Class B |
| Lead Length | 6" |
| Length Less Shaft | 12 1/16" |
| Max. Ambient Temp. | 104°F |
| Motor Application | Hazardous Location |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
|---|---|
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Auto |
| Motor Type | Three Phase |
| Nameplate Rpm | 1725 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| Nominal Efficiency | 86.5% |
| Overall Length | 13 15/16" |
| Phase | 3 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Temp. Code | T3B |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Standards | CSA CERTIFIED (LR47504), UL LISTED (E12044) |
| Height (cm) | 18.67 |
|---|---|
| Length (cm) | 35.41 |
| Width (cm) | 20.83 |
| HS Code | 8501514040 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 13.05 |
