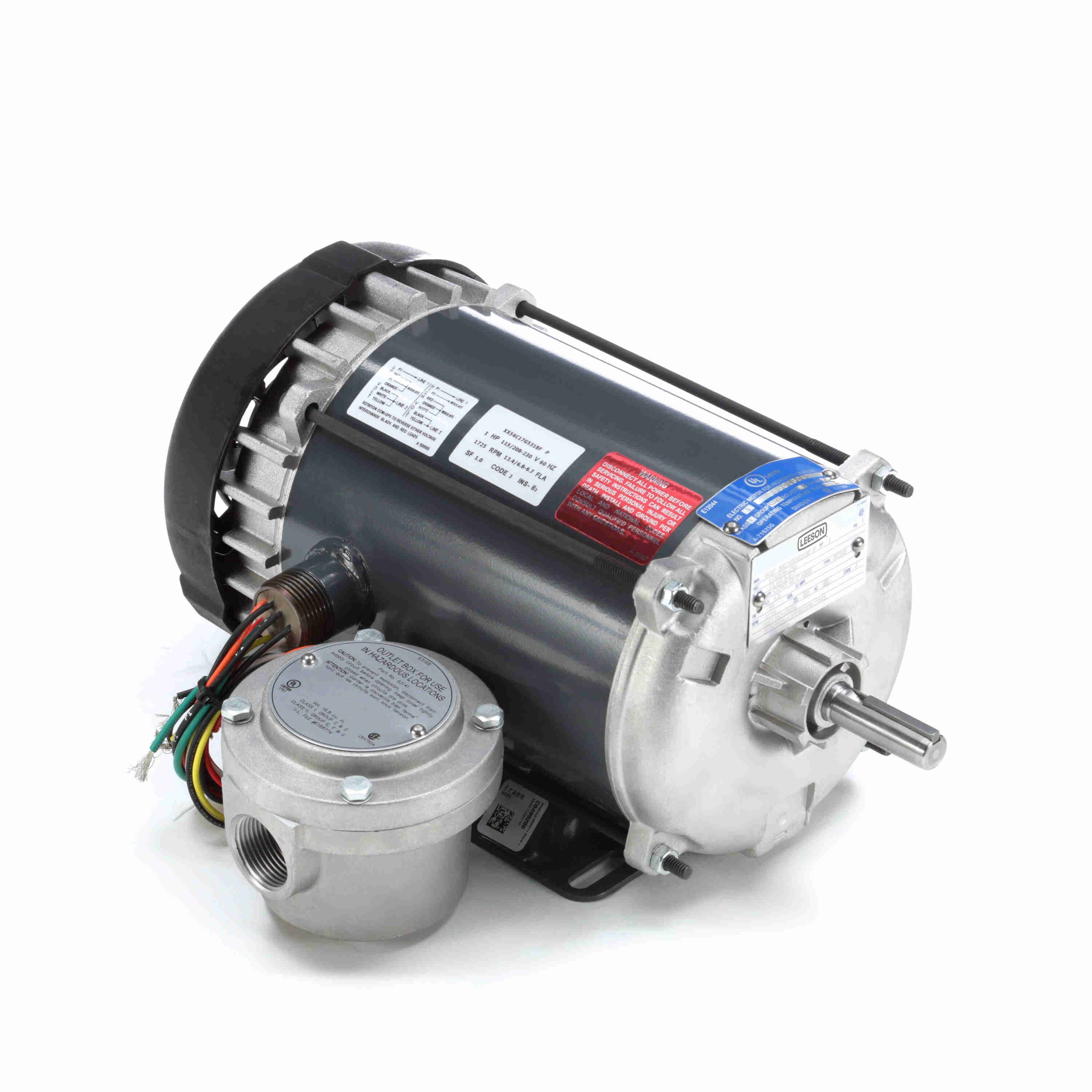

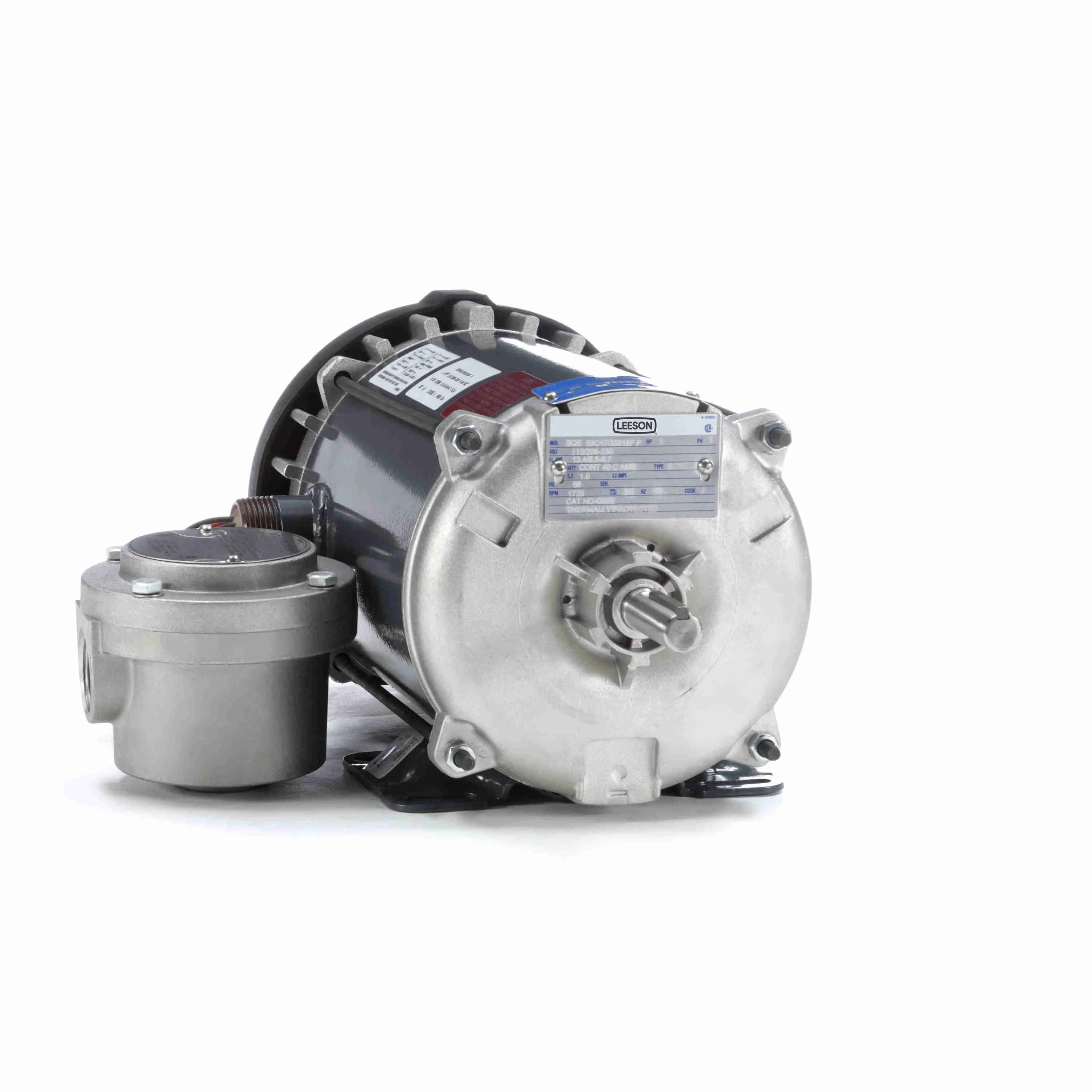

| Item | Hazardous Location Motor |
|---|---|
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Conduit Box Location | Exterior |
| Duty Cycle | Continuous |
| Efficiency Group | Standard |
| Enclosure Type | Hazardous Location |
| Frame | 56 |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 13.4/6.8-6.7A |
| Hazardous Location Class | 1 C, D / 2 F, G |
| Hazardous Location Division | Division 1 |
| Hp | 1 hp |
| Includes | Explosion Proof Conduit Box |
| Insulation Class | Class B |
| Lead Length | 8" |
| Length Less Shaft | 12 7/16" |
| Max. Ambient Temp. | 104°F |
| Motor Application | Hazardous Location |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
|---|---|
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1725 RPM |
| Nema Design | No Design Code |
| Nominal Efficiency | 72% |
| Number Of Speeds | 1 |
| Overall Length | 14 7/16" |
| Phase | 1 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2" |
| Temp. Code | T3B |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V |
| Height (cm) | 20.62 |
|---|---|
| Length (cm) | 41.61 |
| Width (cm) | 26.67 |
| HS Code | 8501406040 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 15.3 |
| Style | Model | Hp | Rpm Range | Nameplate Rpm | Motor Thermal Protection | Frame Material | Overall Length | Nominal Efficiency | Full Load Amps | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 056B11G5301 | 1/2 hp | 1101-1200 RPM | 1140 RPM | Automatic | Rolled Steel | 14 15/16" | 64% | 9.6/4.8-4.7A | $1,299.54 | |
| B | 056C11G5306 | 1/4 hp | 1101-1200 RPM | 1140 RPM | Auto | Rolled Steel | 13 15/16" | 47.5% | 6.8/3.4-3.1A | $1,049.49 | |
| C | 056C11G5307 | 1/3 hp | 1101-1200 RPM | 1140 RPM | Auto | Rolled Steel | 13 15/16" | 52.5% | 7.8/3.9-3.6A | $1,126.19 | |
| D | 056C17E5314 | 1/4 hp | 1701-1800 RPM | 1725 RPM | Automatic | Rolled Steel | 12" | 65% | 4.8/2.3-2.4A | $783.21 | |
| E | 056C17G5315 | 1/3 hp | 1701-1800 RPM | 1725 RPM | Automatic | Steel | 13 7/16" | 55% | 6.6/3.3-3.1A | $894.21 | |
| F | 056C17G5317 | 3/4 hp | 1701-1800 RPM | 1725 RPM | Automatic | Steel | 14 7/16" | 70% | 11/5.5-5.4A | $1,099.37 |
