| Item | HVAC Motor |
|---|---|
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 70% |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 10.4/5.2A |
| Hp | 3/4 hp |
| Insulation Class | Class B |
| Length Less Shaft | 10" |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1 |
|---|---|
| Motor Shaft Rotation | CW/CCW |
| Motor Type | Capacitor Start |
| Mounting Type | Cradle Base |
| Nameplate Rpm | 1725 RPM |
| Nominal Efficiency | 70% |
| Number Of Speeds | 1 |
| Overall Length | 12" |
| Phase | 1 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2" |
| Standards | Ce, Csa, Ul Recognized |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115/230V AC |
| Motor Thermal Protection | None |
| Height (cm) | 22.22 |
|---|---|
| Length (cm) | 34.92 |
| Width (cm) | 20.02 |
| HS Code | 8501404040 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 11.25 |
| Style | Model | Voltage | Hp | Shaft Length | Motor Design | Frame | Thermal Protection | Shaft Dia. | Motor Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

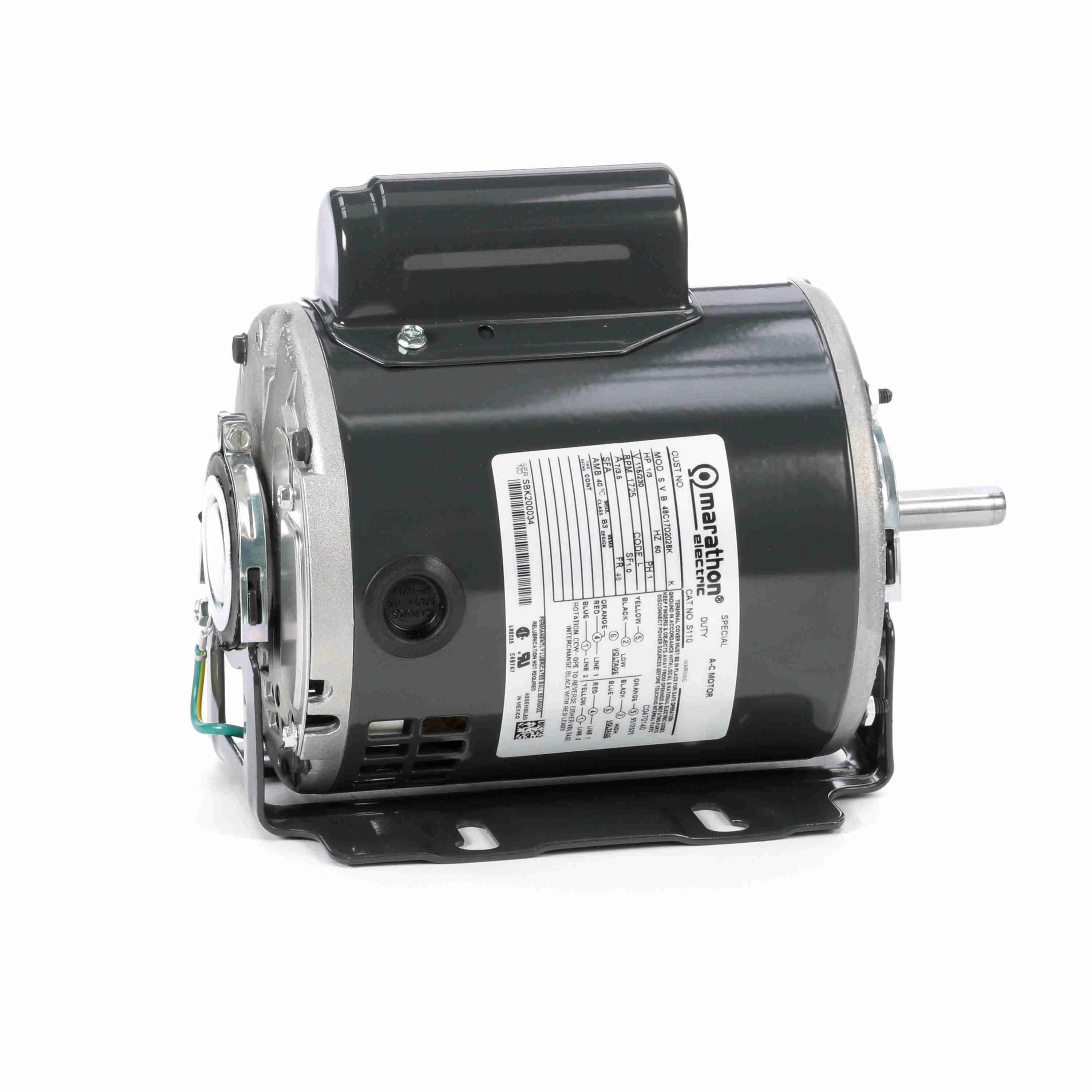

| A | 048C17D2028 | 115/230V AC | 1/3 hp | 1 9/16" | Capacitor Start | 48 | None | 1/2" | Capacitor Start | $304.93 | |

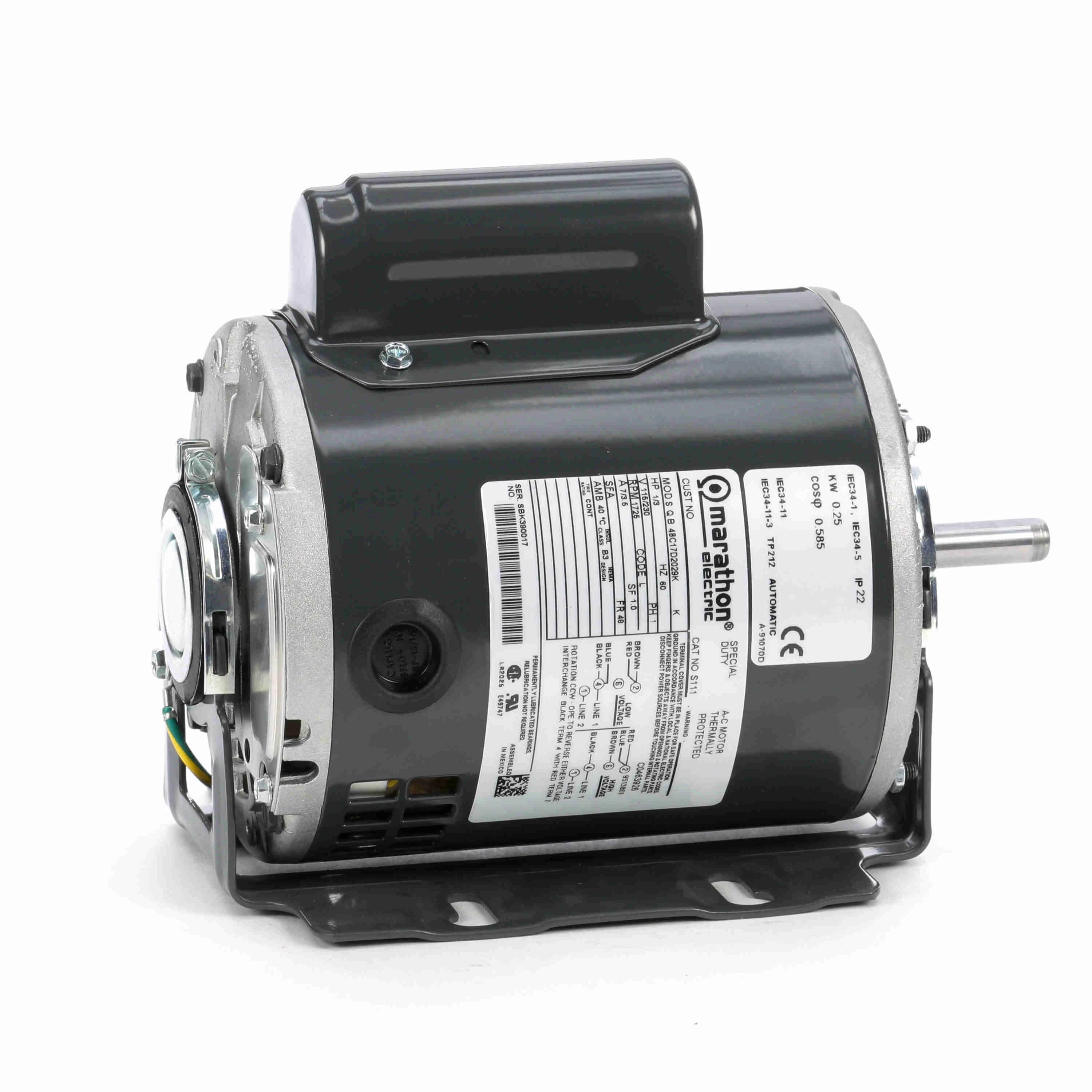

| B | 048C17D2029 | 115/230V AC | 1/3 hp | 1 9/16" | - | - | Automatic | 1/2" | Capacitor Start | $394.54 | |

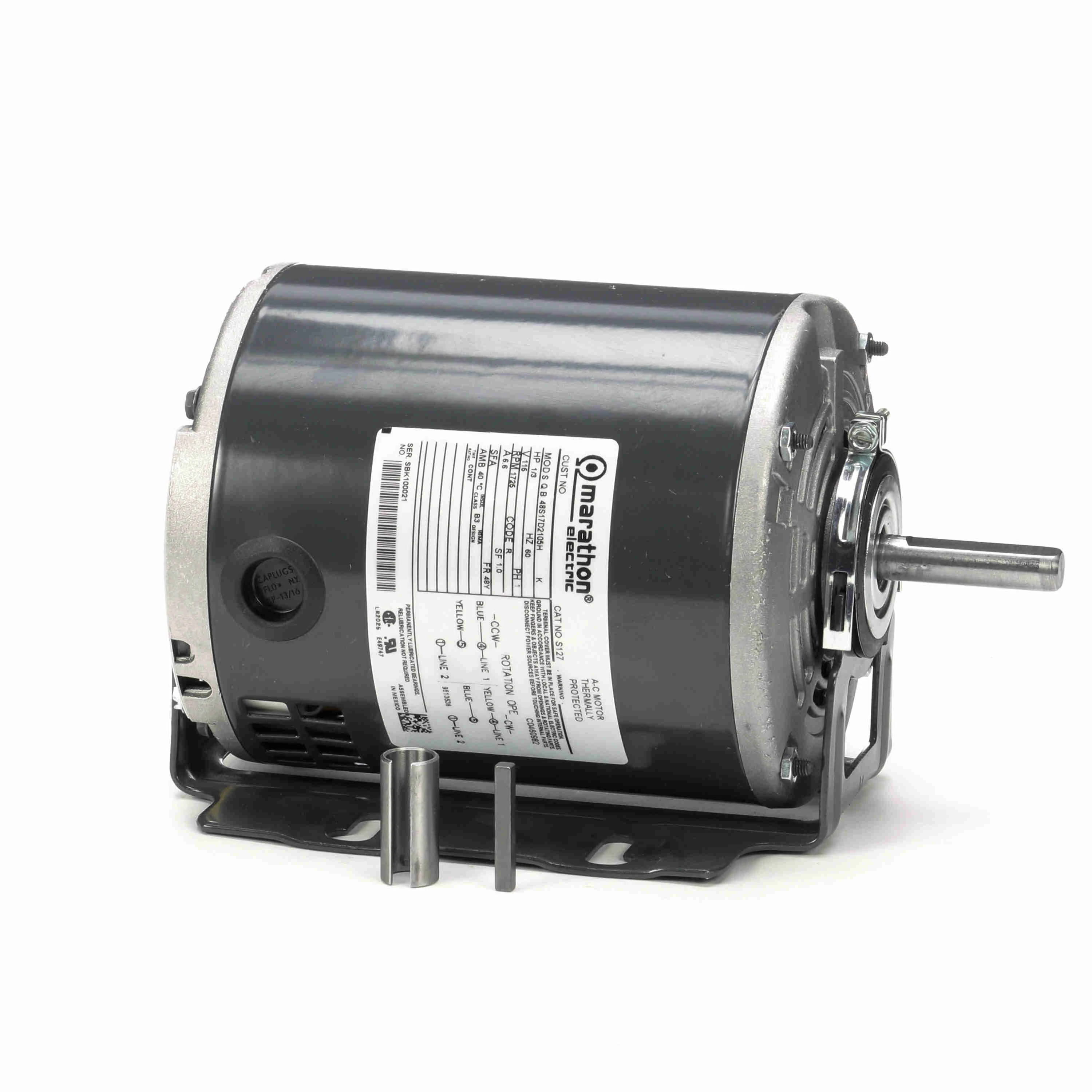

| C | 048S17D2105 | 115V AC | 1/3 hp | 1 7/8" | Split-Phase | 48Y | Automatic | 1/2" | Split Phase | $266.27 | |
| D | 048S17D2106 | 115V AC | 1/2 hp | 1 7/8" | Split-Phase | 48Z | Automatic | 1/2" | Split Phase | $293.71 | |

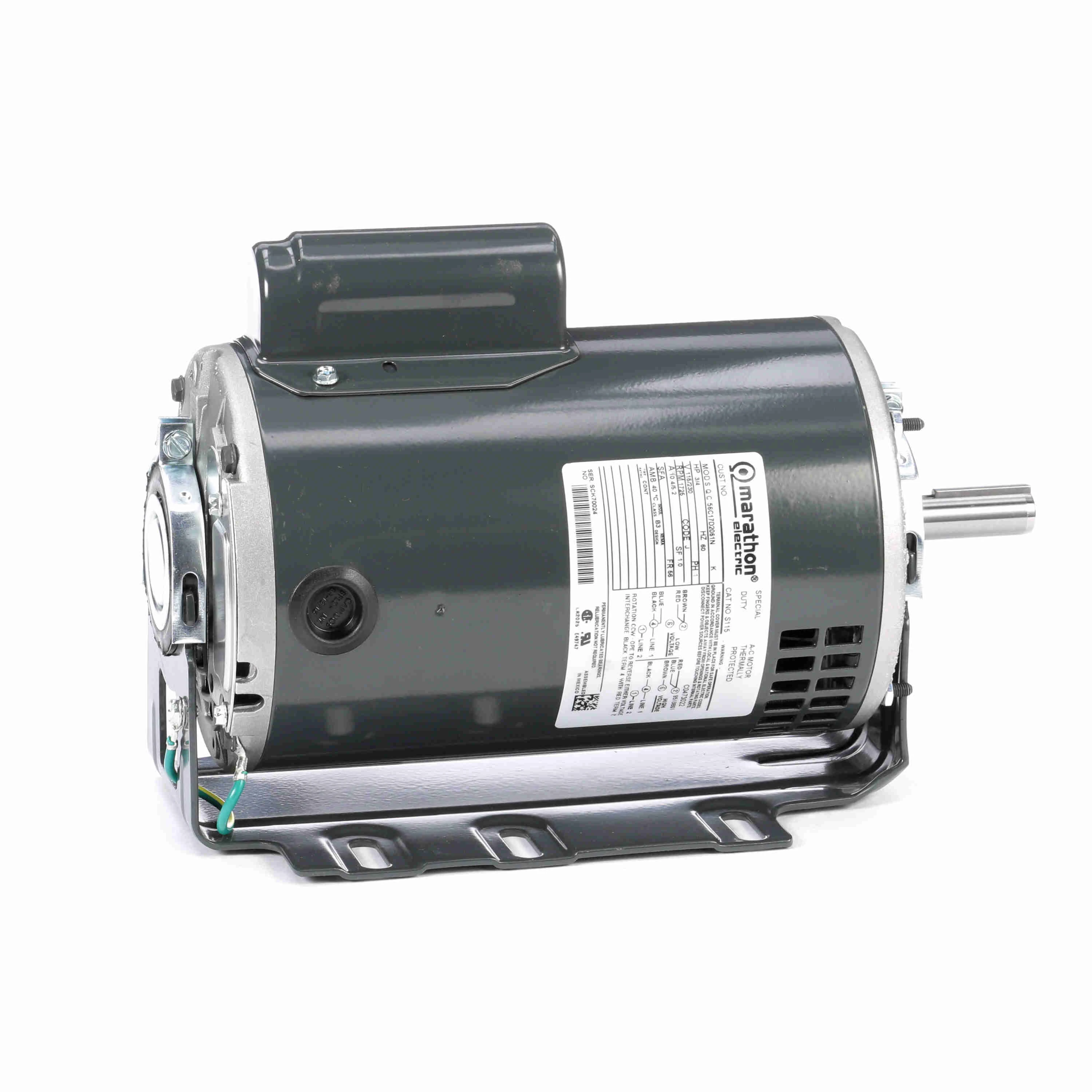

| E | 056C17D2061 | 115/230V AC | 3/4 hp | 2" | Capacitor Start | 56 | Automatic | 5/8" | Capacitor Start | $463.33 | |
| F | 056C17D2097 | 115/230V AC | 1/2 hp | 1 7/8" | Capacitor Start | 56 | None | 5/8" | Capacitor Start | $375.40 | |

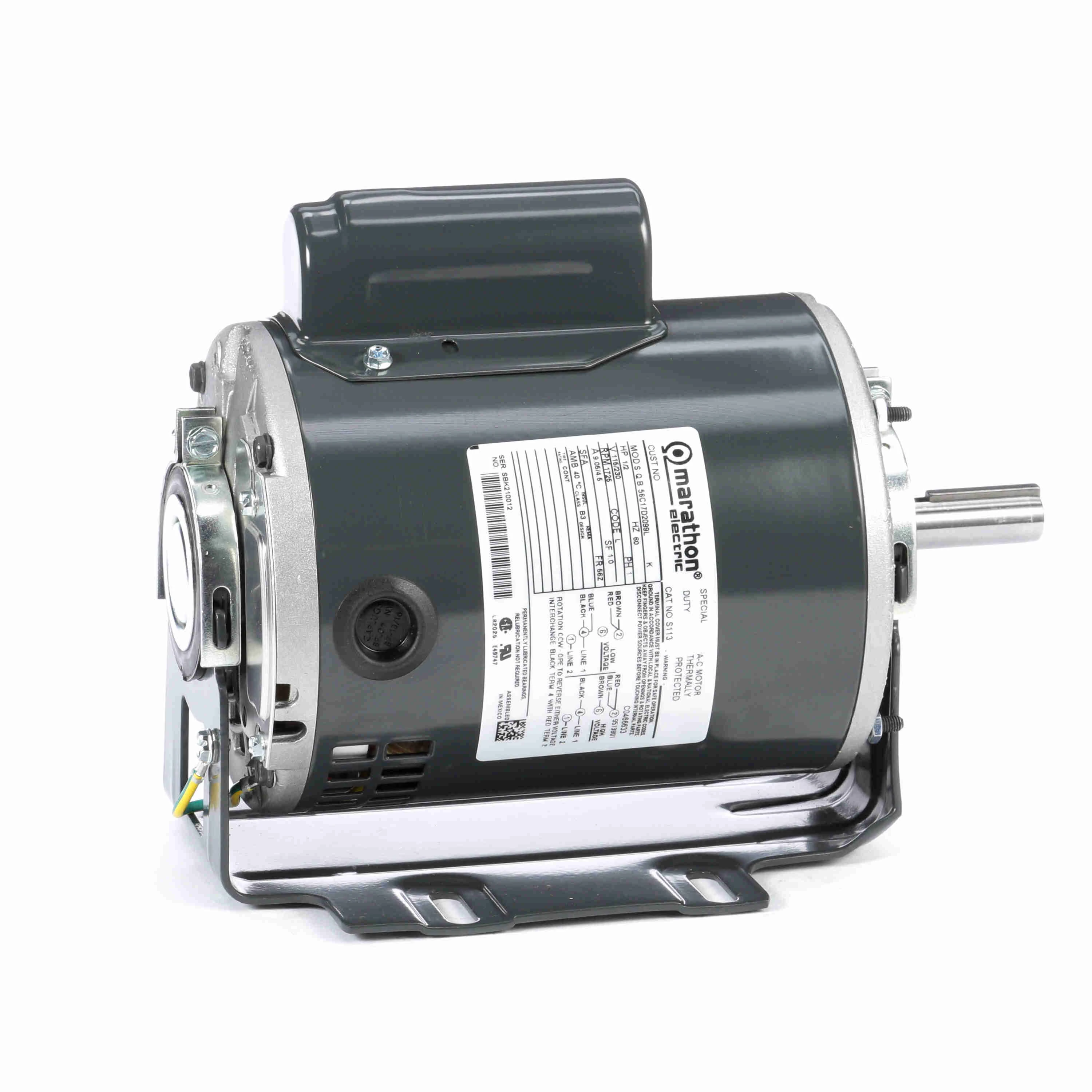

| G | 056C17D2099 | 115/230V AC | 1/2 hp | 2" | Capacitor Start | 56Z | Automatic | 5/8" | Capacitor Start | $388.49 |
