| Item | HVAC Motor |
|---|---|
| Ambient Temp. | 40°C |
| Assembly | F1 Only |
| Bearing Type | Ball |
| Body Dia. | 5 11/16" |
| Bolt Circle Dia. | 1" |
| Capacitor Required | 2MDV9 |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Efficiency | Not Applicable |
| Enclosure Type | Open Air Over |
| Extended Thru-bolts | Yes |
| Features | Shaft Slinger, Thru Bolt, Weather Resistant Reversing Plug |
| Frame | 48Y |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 2.5A |
| Hp | 3/4 hp |
| Insulation Class | Class B |
| Lead Length | 30" |
| Length Less Shaft | 6 3/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Air Over |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal, Vertical Shaft Up |
|---|---|
| Motor Mounting Type | Stud |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Condenser Fan |
| Motor Thermal Protection | Automatic |
| Motor Type | Permanent Split Capacitor |
| Mounting Type | Extended Studs, Footless |
| Nameplate Rpm | 1075 RPM |
| Nema Design | No Design Code |
| Nominal Efficiency | 65.5% |
| Number Of Speeds | 1 |
| Number Of Studs | 4 |
| Output Watts | 560 W |
| Overall Length | 12 7/16" |
| Power | 0.56 kW |
| Removable Base | No |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 6" |
| Shaft Orientation | Horizontal |
| Stud Size | #8-32 |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 460V AC |
| Standards | CSA CERTIFIED, UL RECOGNIZED |
| Height (cm) | 17.63 |
|---|---|
| Length (cm) | 33.66 |
| Width (cm) | 17.78 |
| HS Code | 8501404040 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 8.55 |
| Style | Model | Voltage | Hp | Motor Mounting Type | Frame | Motor Thermal Protection | Max. Ambient Temp. | Shaft Length | Nameplate Rpm | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 048A11O678 | 208-230V AC | 3/4 hp | Extended Studs, Footless | 48Y | - | - | - | - | $106.01 | |

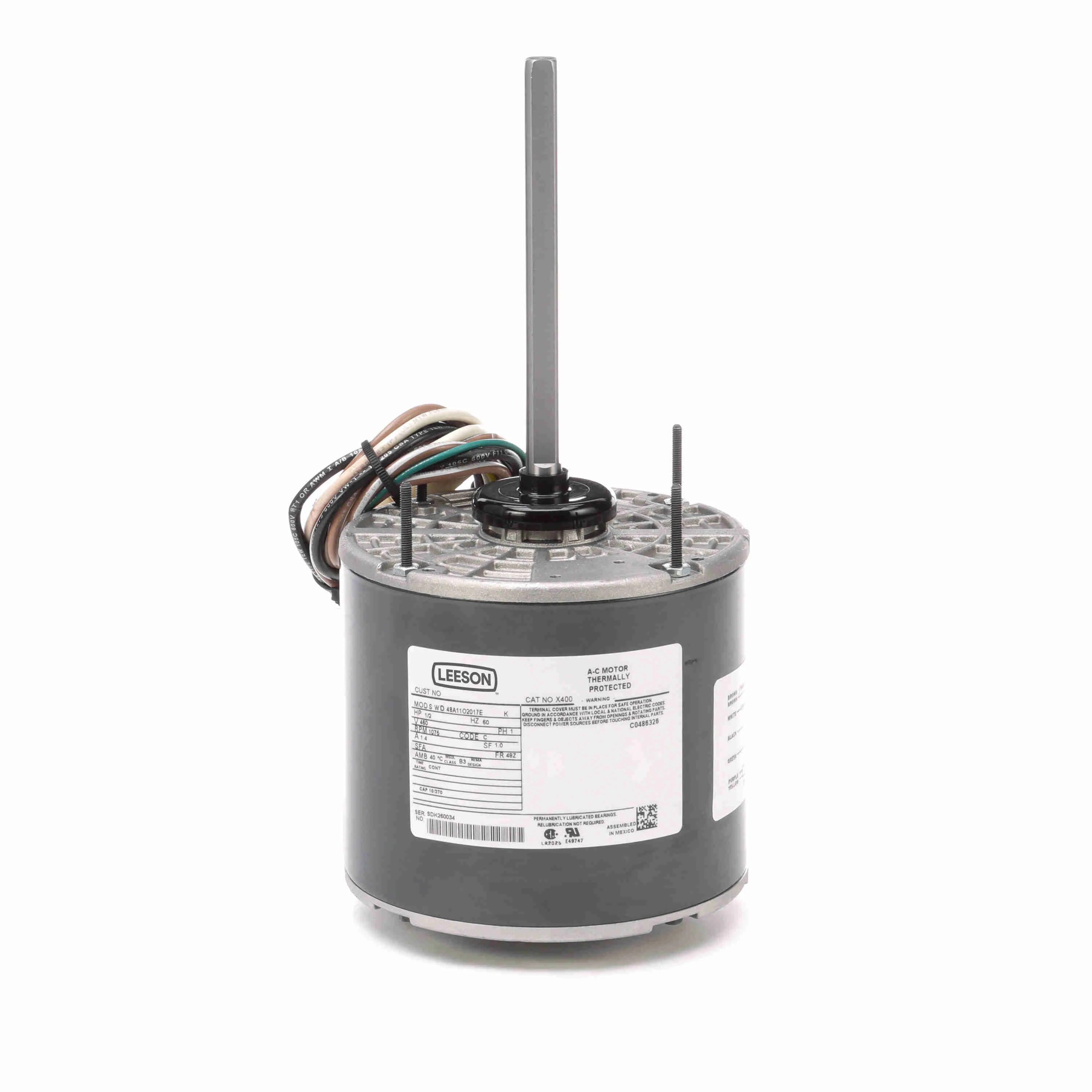

| B | 048A11O2017 | 460V AC | 1/2 hp | Stud | 48Z | Auto | 40°C | 6" | 1075 RPM | $370.82 | |
| C | 5KCP49ZN9617T | 200-230/460V AC | 1 hp | Face | 56Z | Automatic | 65°C | 4" | 1075 RPM | $838.10 | |

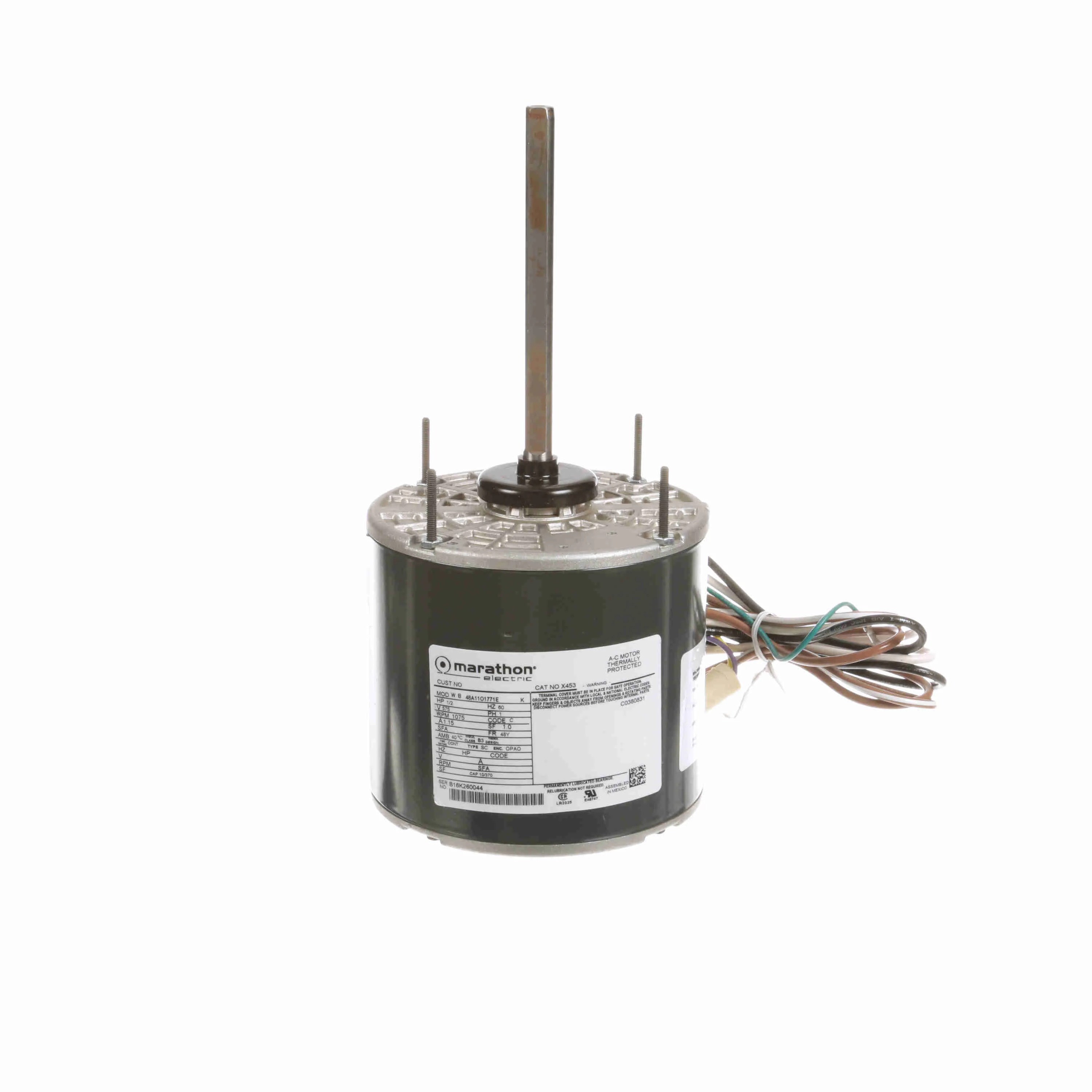

| D | 048A11O1771 | 575V AC | 1/2 hp | Stud | 48Y | Automatic | 40°C | 6" | 1075 RPM | $100.53 | |
| E | 048A11O2054 | 460V AC | 1/3 hp | Stud | 48Y | Auto | 40°C | 6" | - | $87.31 | |
| F | 048A17O172 | 460V AC | 1/2 hp | Stud | 48Y | Auto | 40°C | 6" | - | $519.16 | |

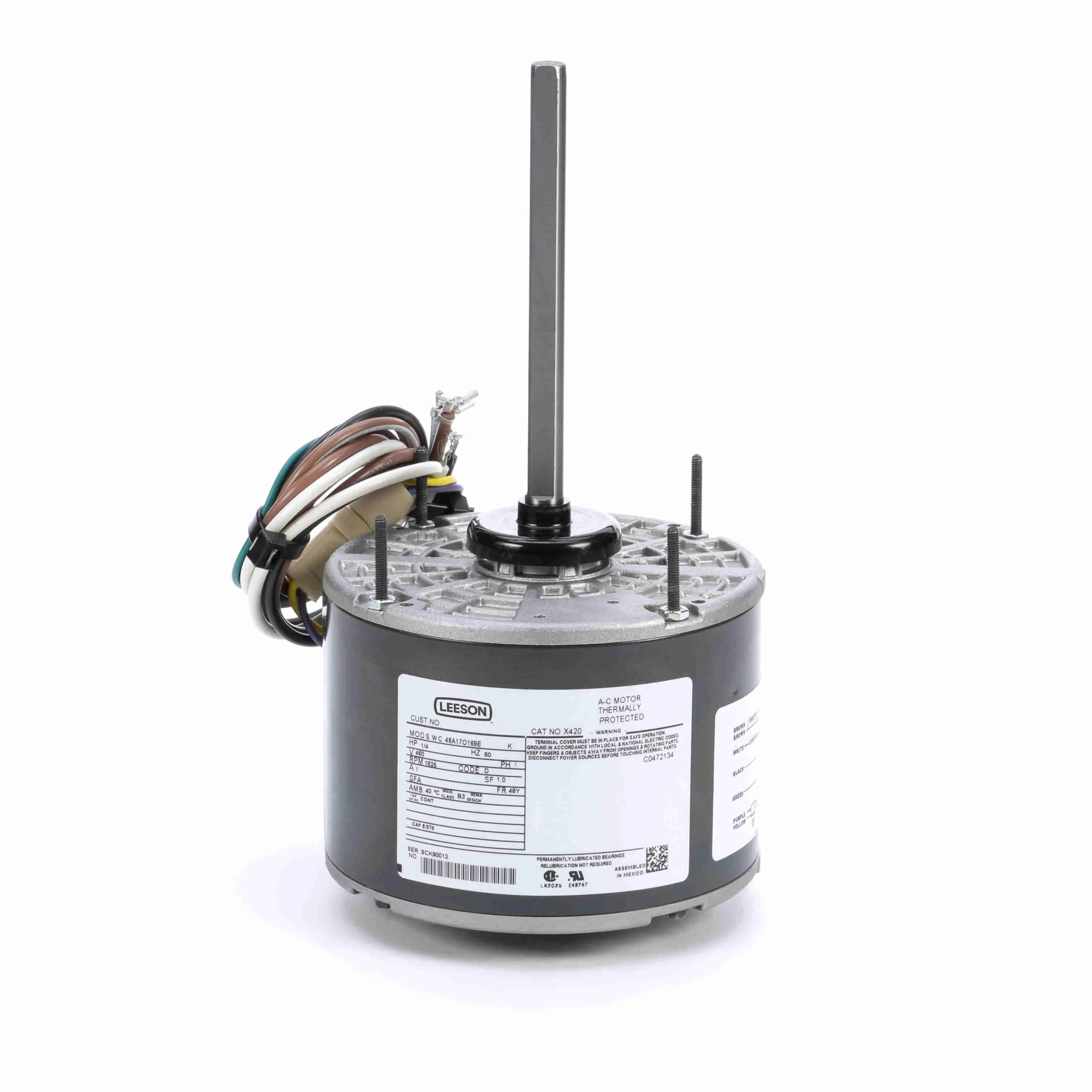

| G | 048A17O169 | 460V AC | 1/4 hp | Stud | 48Y | Automatic | 40°C | 6" | 1625 RPM | $368.12 |
