| Item | Pivot Hinge |
|---|---|
| Bearing Type | Ball |
| Door Leaf Height | 5" |
| Door Leaf Thickness | 0.375" |
| Door Leaf Width | 2 1/16" |
| Finish | Oxidized Satin Bronze Plated, Oil Rubbed |
| Frame Leaf Height | 3/4" |
| Frame Leaf Thickness | 1/4" |
| Frame Leaf Width | 1 1/8" |
| Hardware | Included |
| Holes | With |
| Holes Per Leaf | 5 |
|---|---|
| Includes Hardware | Hardware Included |
| Ligature Resistant | No |
| Load Capacity | 125 lbs. |
| Material | Cast Aluminum |
| Mounting | Surface |
| Number Of Wires | 0 |
| Orientation | Left Hand |
| Overall Height | 5" |
| Range Of Motion | 180° |
| Range Of Motion - Maximum | 180° |
| Height (cm) | 4.57 |
|---|---|
| Length (cm) | 13.97 |
| Width (cm) | 8.13 |
| Country Of Origin | TW |
|---|---|
| Weight (kg) | 0.3465 |
| Style | Model | Material | Holes Per Leaf | Frame Leaf Thickness | Orientation | Door Leaf Height | Door Leaf Thickness | Mounting | Load Capacity | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

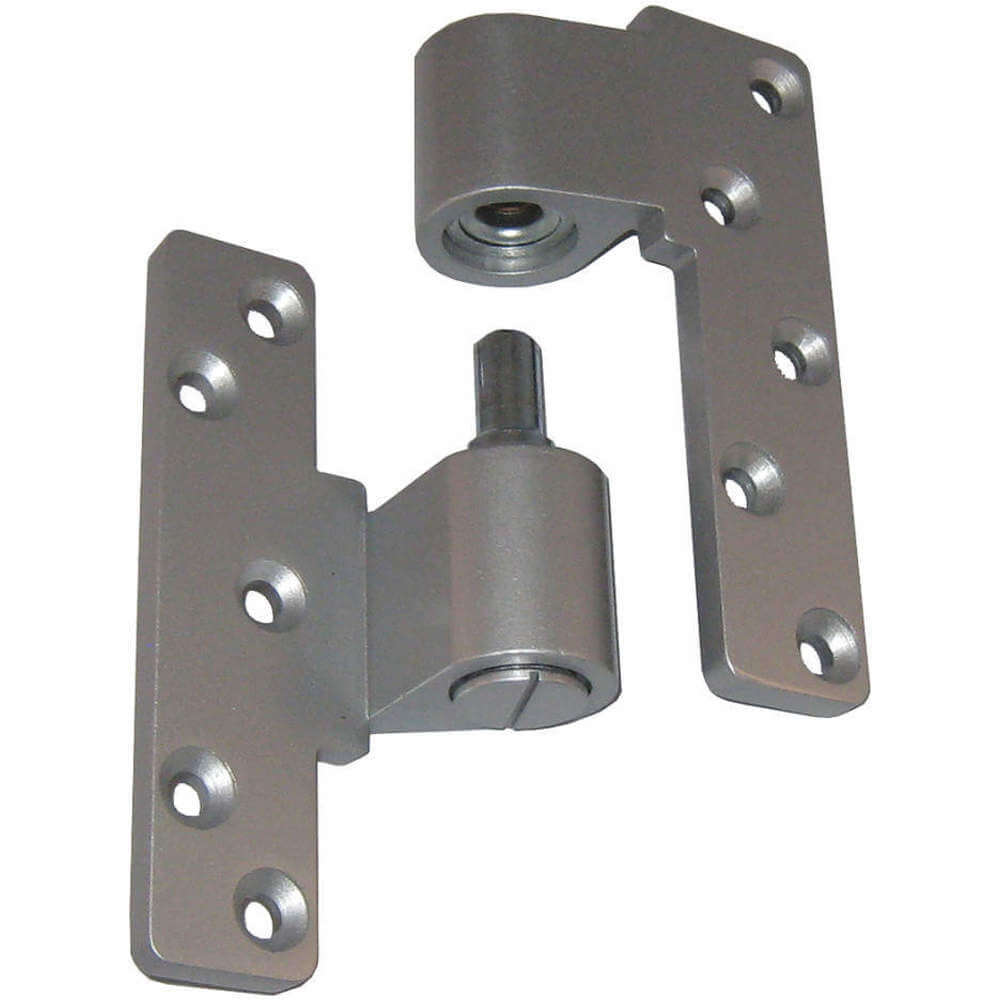

| A | IP-10-LH-AL | Cast Aluminum | 5 | 1/4" | Left Hand | 5" | 0.375" | Surface | 125 lbs. | $66.01 | |

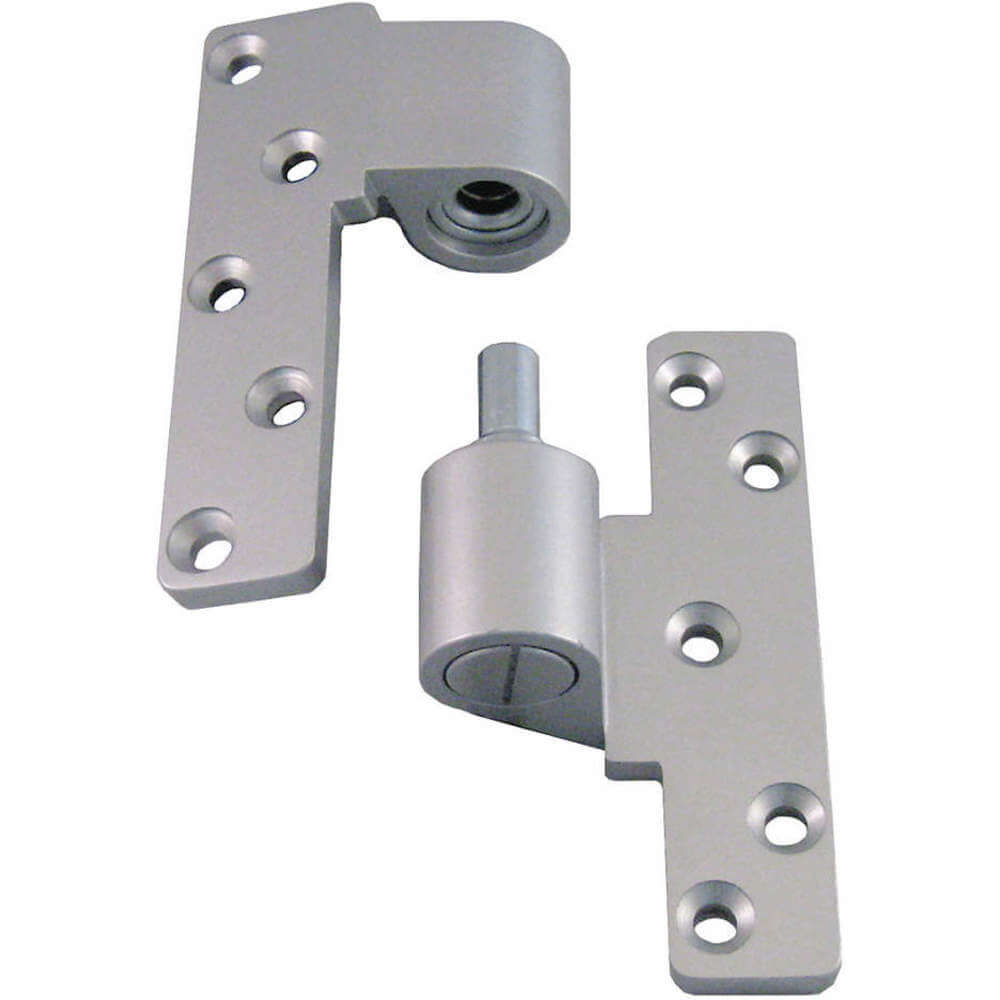

| B | IP-10-RH-AL | Cast Aluminum | 5 | 1/4" | Right Hand | 5" | 0.375" | Surface | 125 lbs. | $65.77 | |

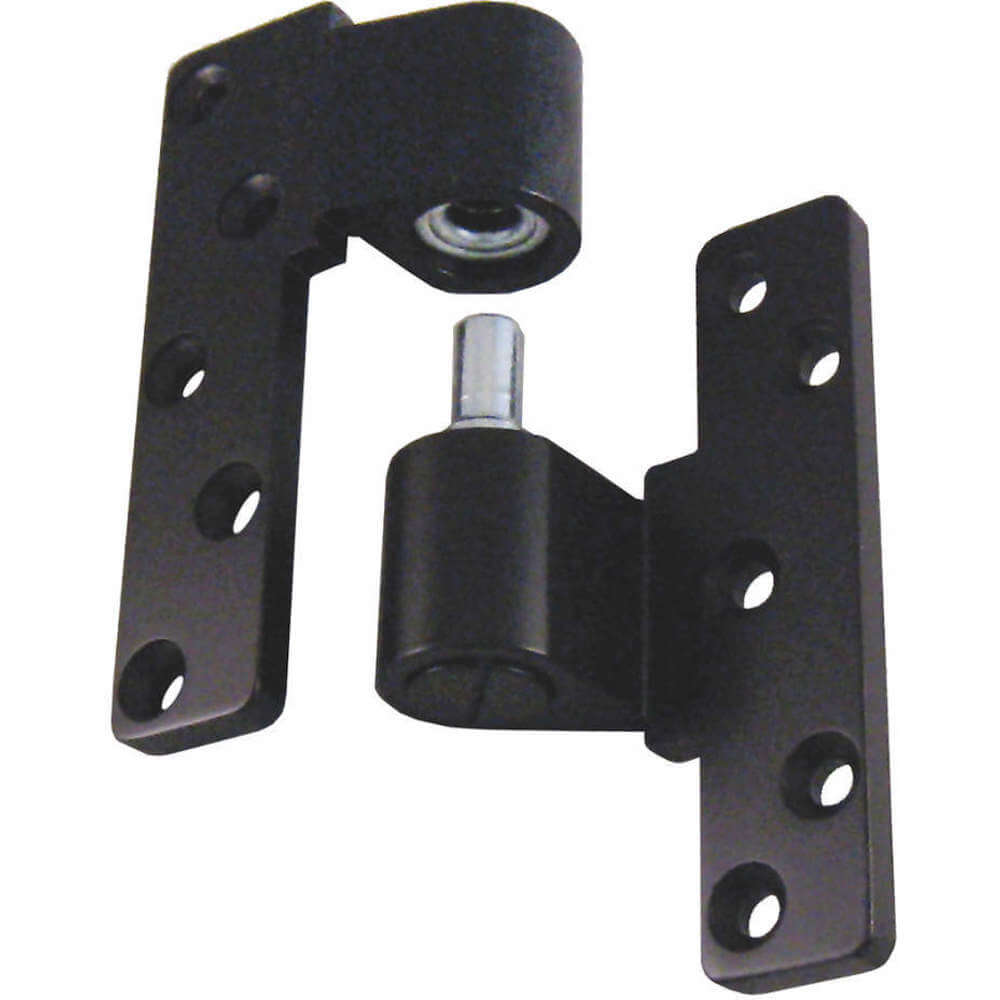

| C | IP-10-RH-DU | Cast Aluminum | 5 | 1/4" | Right Hand | 5" | 0.375" | Surface | 125 lbs. | $65.77 | |
| D | IP-22-RH-AL INTERMEDIATE PIVOT | Cast Aluminum | 3 | 0.323" | Right Hand | 3/4" | 0.323" | Surface | 125 lbs. | $39.04 | |
| E | IP-22-RH-DU INTERMEDIATE PIVOT | Cast Aluminum | 3 | 0.323" | Right Hand | 3/4" | 0.323" | Surface | 125 lbs. | $39.04 | |

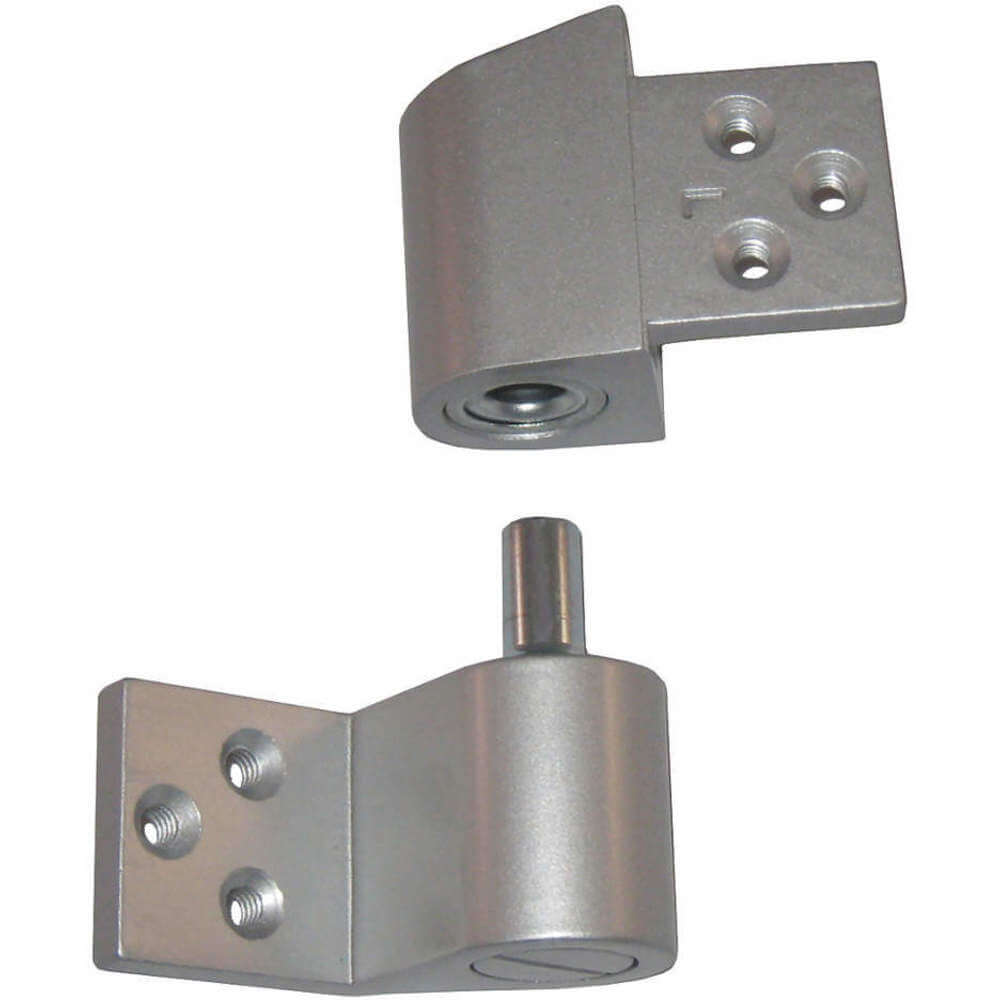

| F | IP-22-LH-AL INTERMEDIATE PIVOT | Aluminum | 3 | - | Left Hand | 3/4" | - | Surface | 125 lbs. | $39.04 | |

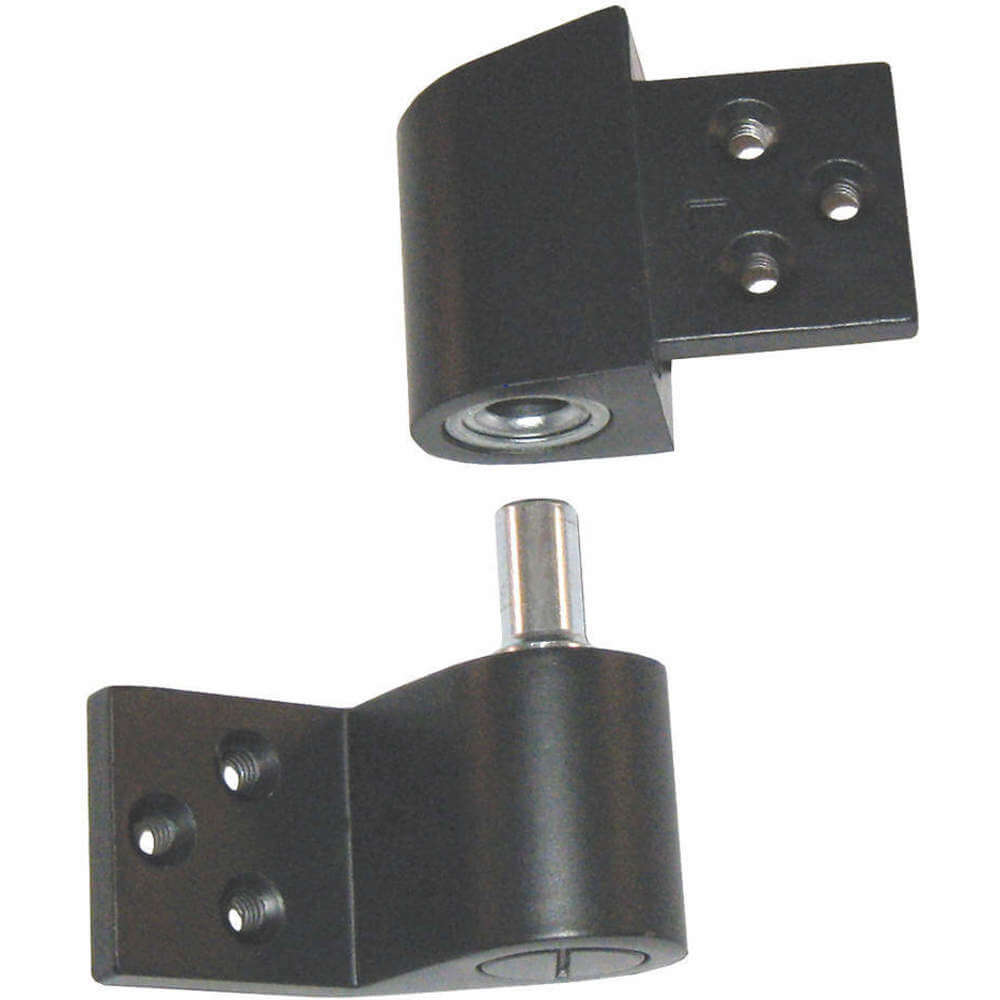

| G | IP-22-LH-DU INTERMEDIATE PIVOT | Cast Aluminum | 3 | 0.323" | Left Hand | 3/4" | 0.323" | Surface | 125 lbs. | $39.04 |
