| Item | Pneumatic Valve Actuator |
|---|---|
| Air Connection Size | 1/8" |
| Air Connection Type | Barbed Hose |
| Application | Control Of Hot/Chilled Water |
| Control Pressure - Maximum | 25 psi |
| Diaphragm Material | Synthetic Rubber |
| Effective Diaphragm Area | 8 sq. in. |
| Height | 3.688" |
| Housing Material | Die Cast Aluminum |
| Includes Mounting Kit | Valve Mounting Kit Not Included |
| Includes Positioner | Positioner Included |
| Length | 3 3/4" |
| Manufacturer Series | V-3000 |
| Max. Air Pressure | 25 psi |
| Nominal Spring Range | 3 psi to 13 psi |
|---|---|
| Operating Pressure | 0 psi to 25 psi |
| Operating Temperature - Maximum | 150°F |
| Operating Temperature - Minimum | -20°F |
| Overall Depth | 3 11/16" |
| Overall Length | 3 7/16" |
| Overall Width | 4 13/32" |
| Return Action | Spring Return |
| Specific Valve Action | Spring Return Up |
| Spring Range Maximum | 13 psi |
| Spring Range Minimum | 3 psi |
| Stroke | 3/4" |
| Width | 4.406" |
| Height (cm) | 9.37 |
|---|---|
| Length (cm) | 9.52 |
| Width (cm) | 11.19 |
| HS Code | 8412390080 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 0.405 |
| Style | Model | Stroke | Height | Nominal Spring Range | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|
| A | V-3000-1 | 5/16" | 4 1/4" | 3 psi to 13 psi | $243.83 | |

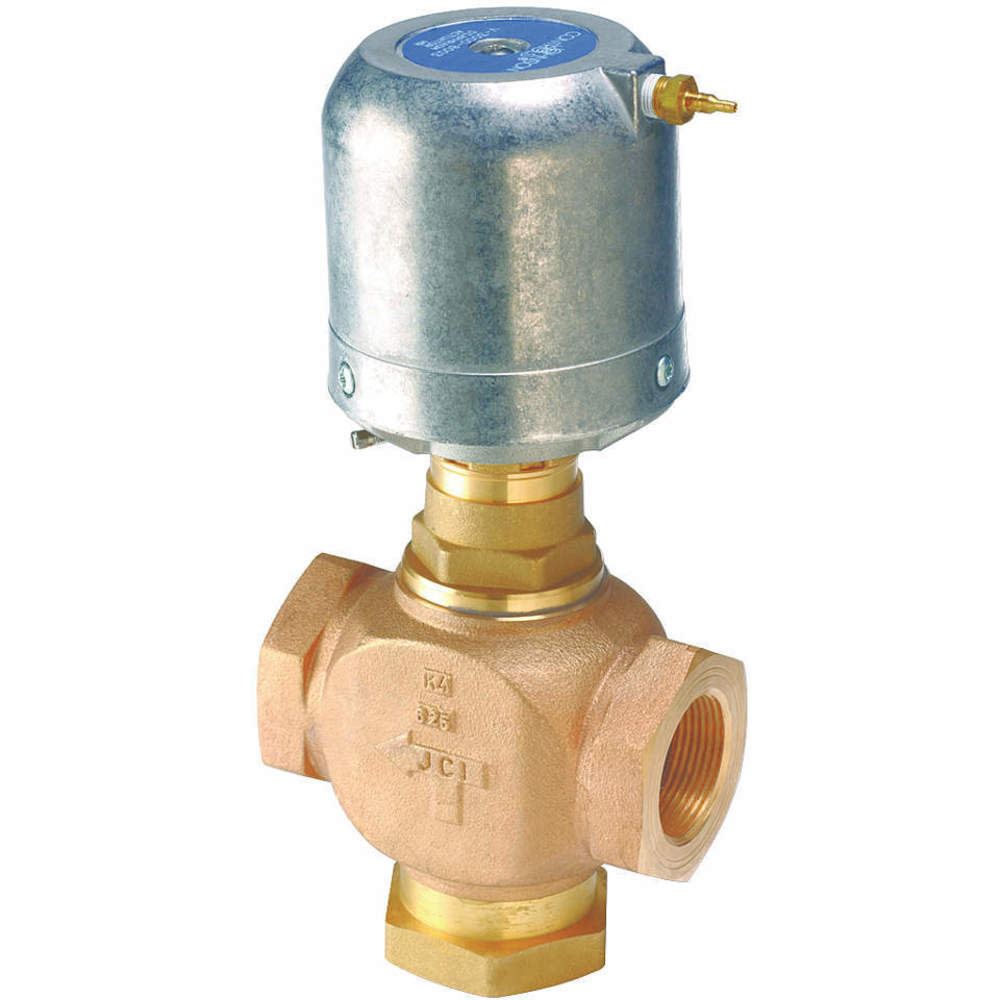

| B | V-3000-8003 | 3/4" | 3 1/2" | 3 psi to 13 psi | $190.91 | |

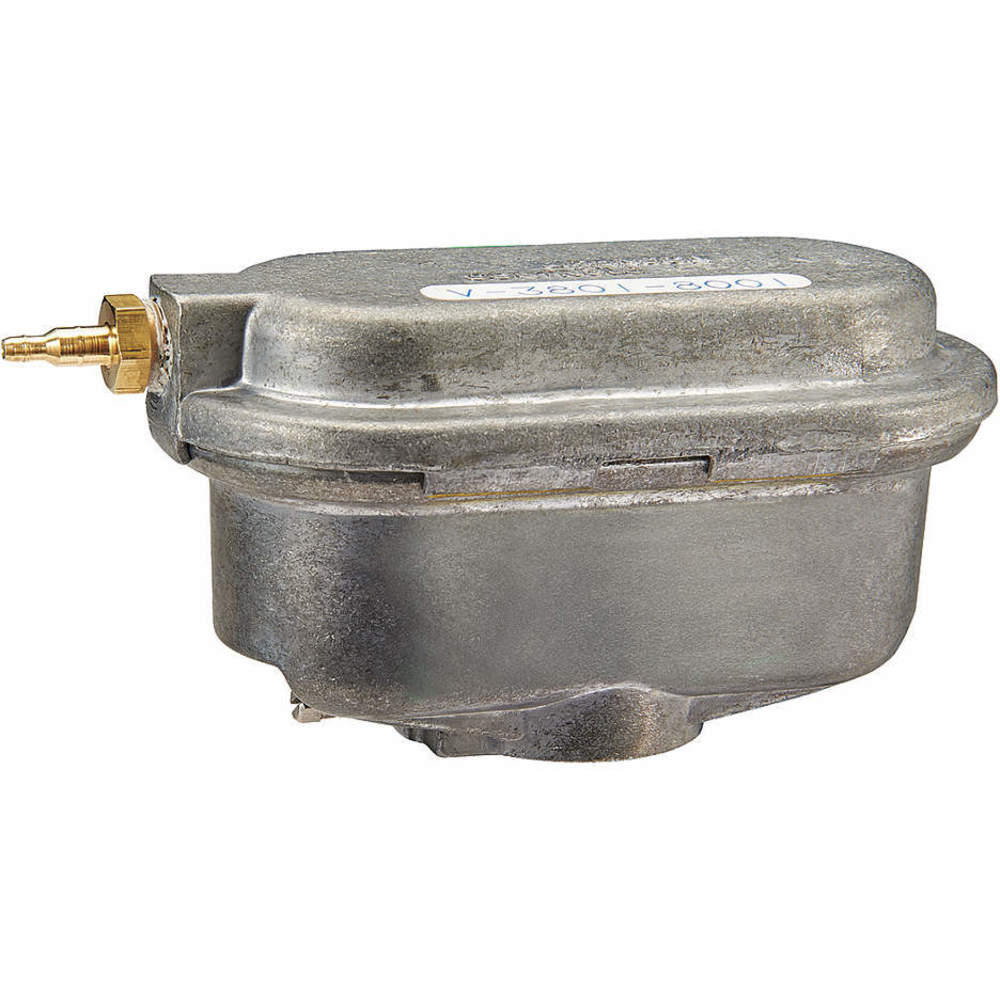

| C | V-3801-8001 | 3/4" | 2 3/8" | 3 psi to 13 psi | $147.47 | |

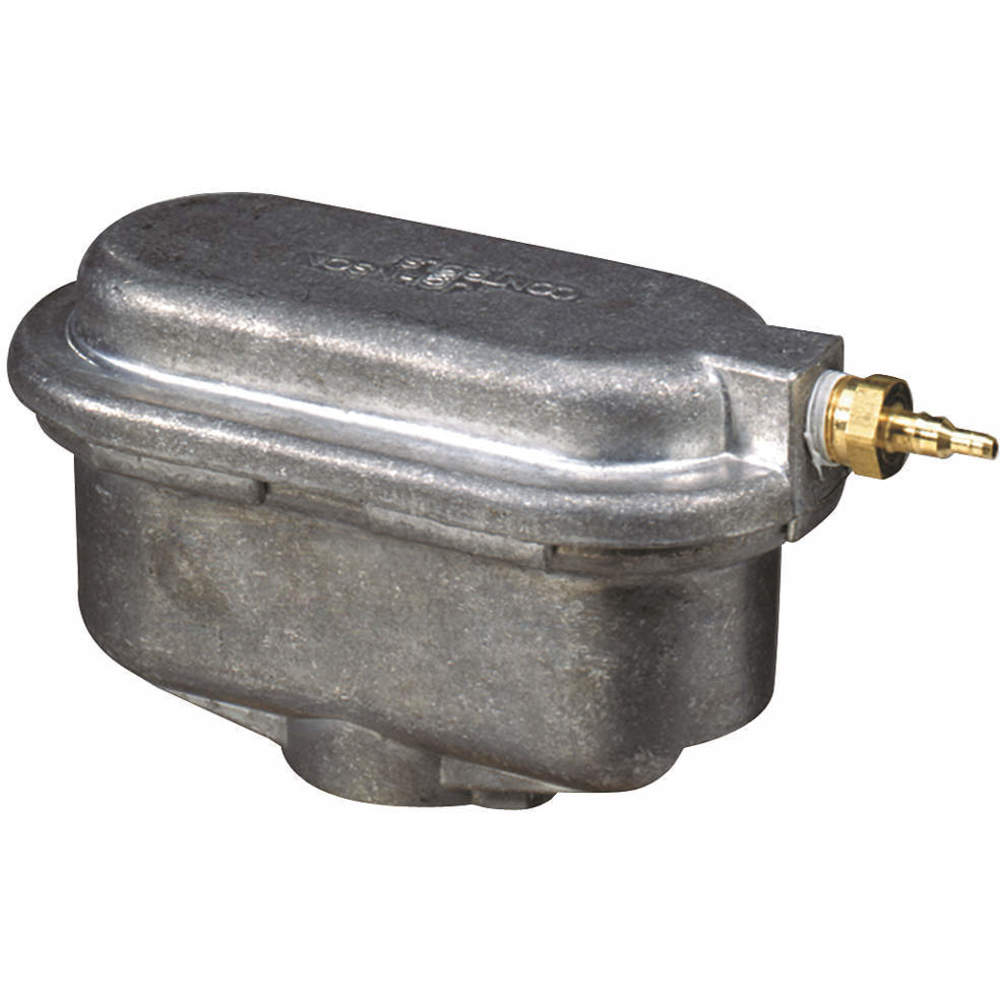

| D | V-3802-1 | 3/4" | 2.437" | 3 psi to 13 psi | $207.19 |
