| Item | Pressure Transducer |
|---|---|
| Accuracy | -1% to +1% |
| Burst Pressure | 5x |
| Compatible With | All Media Compatible With 17-4Ph Stainless Steel, Including Ammonia |
| Electrical Connections | Packard Connector |
| Explosion/fire Proof | No |
| Features | 1% Total Error Band, Environmentally Protected Electronics, Long Operating Life, Single-Piece Machined Port |
| Fitting Material | Stainless Steel |
| For Use With Media Type | Ammonia, Carbon Dioxide, Condensate, Fluids, Gas, Glycol, Refrigerants, Water |
| Full-scale Accuracy | -1% to +1% |
| Housing Material | Stainless Steel |
| Intrinsically Safe | No |
| Loop Resistance | Minimum Between Transducer Body And Any Wire: 100 Megohm @ 500 V DC |
| Manufacturers Warranty Length | 3 yrs. |
| Material | Stainless Steel |
| Max. Pressure | 200 psi |
| Maximum Loop Resistance | 100 Mega Ohms @ 500V Dc |
| Maximum Operating Temperature | 185°F |
| Maximum Pressure | 100 psi |
| Minimum Operating Temperature | -40°F |
| Minimum Pressure | 0 psi |
| Nema Rating | 9 - Class 1, Division 2, Groups A, B, C, And D |
| Number Of Wires | 3 |
|---|---|
| Operating Temp. | -40°F to +185°F |
| Operating Temp. Range | -40°F to +185°F |
| Output | 0.5-4.5V DC |
| Output Voltage | 0.5-4.5V DC |
| Overall Length | 3.19" |
| Overall Width | 7/8" |
| Overpressure | 2 x Range |
| Power Required | 5V DC |
| Pressure Range | 0 psi to 100 psi |
| Pressure Units | Psig/Bar |
| Process Connection | 1/8" Male NPT |
| Process Connection Gender | Male |
| Process Connection Size | 1/8" |
| Process Connection Size - Transmitter | 1/8" |
| Process Connection Type | NPT |
| Range | 0 psig to 100 psig |
| Range Units | Psig |
| Safety Rating | Class I Div. 2 |
| Series | P499 Series |
| Storage Temperature Range | -40°F to +257°F |
| Wetted Materials | Stainless Steel |
| Height (cm) | 5.08 |
|---|---|
| Length (cm) | 8.1 |
| Width (cm) | 2.22 |
| HS Code | 9026204000 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 0.0675 |
| Style | Model | Output | Pressure Range | Process Connection | Power Required | Electrical Connection | Housing Material | Wetted Materials | Operating Temp. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | P499RAP-105C | 0.5-4.5V DC | 0 psi to 500 psi | 1/8" Male NPT | 5V DC | Packard Connector | Stainless Steel | Stainless Steel | -40°F to +185°F | $343.70 | |

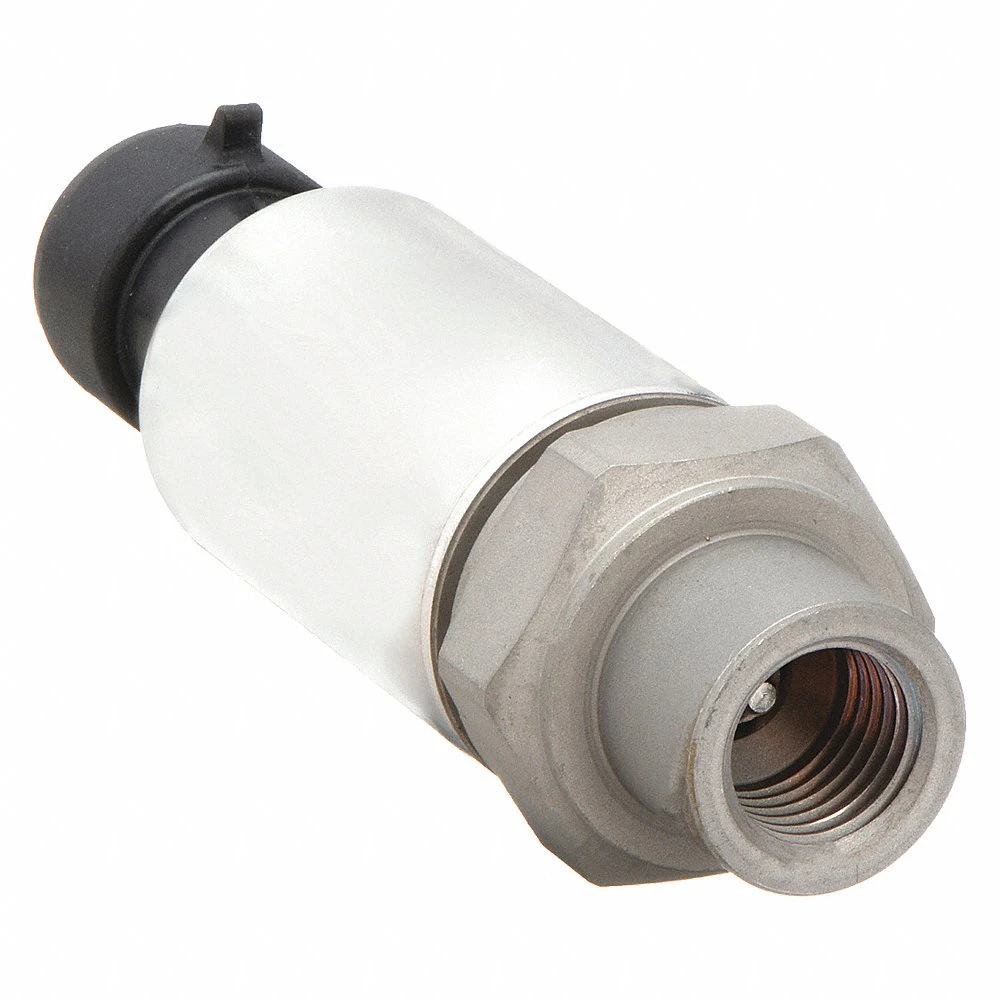

| B | P499RCP-101C | 0.5-4.5V DC | 0 psi to 100 psi | 1/4" Male SAE 45° Flare | 5V DC | Packard Connector | Stainless Steel | Stainless Steel | -40°F to +185°F | $421.13 | |
| B | P499ACP-107C | 4-20 mA | 0 psi to 750 psi | 1/4" Male SAE 45° Flare | 9-30V DC | - | Stainless Steel | Stainless Steel | -40°F to +185°F | $330.93 | |
| B | P499RAP-107C | 0.5-4.5V DC | 0 psi to 750 psi | 1/8" Male NPT | 5V DC | - | Stainless Steel | Stainless Steel | -40°F to +185°F | $295.53 | |
| B | P499RCP-105C | 0.5-4.5V DC | 0 psi to 500 psi | 1/4" Male SAE 45° Flare | 5V DC | 3-Pin Packard Connector | Stainless Steel | Stainless Steel | -40°F to +185°F | $421.13 | |
| - | P499RCP-107 | - | - | - | - | - | - | - | - | $302.79 | |

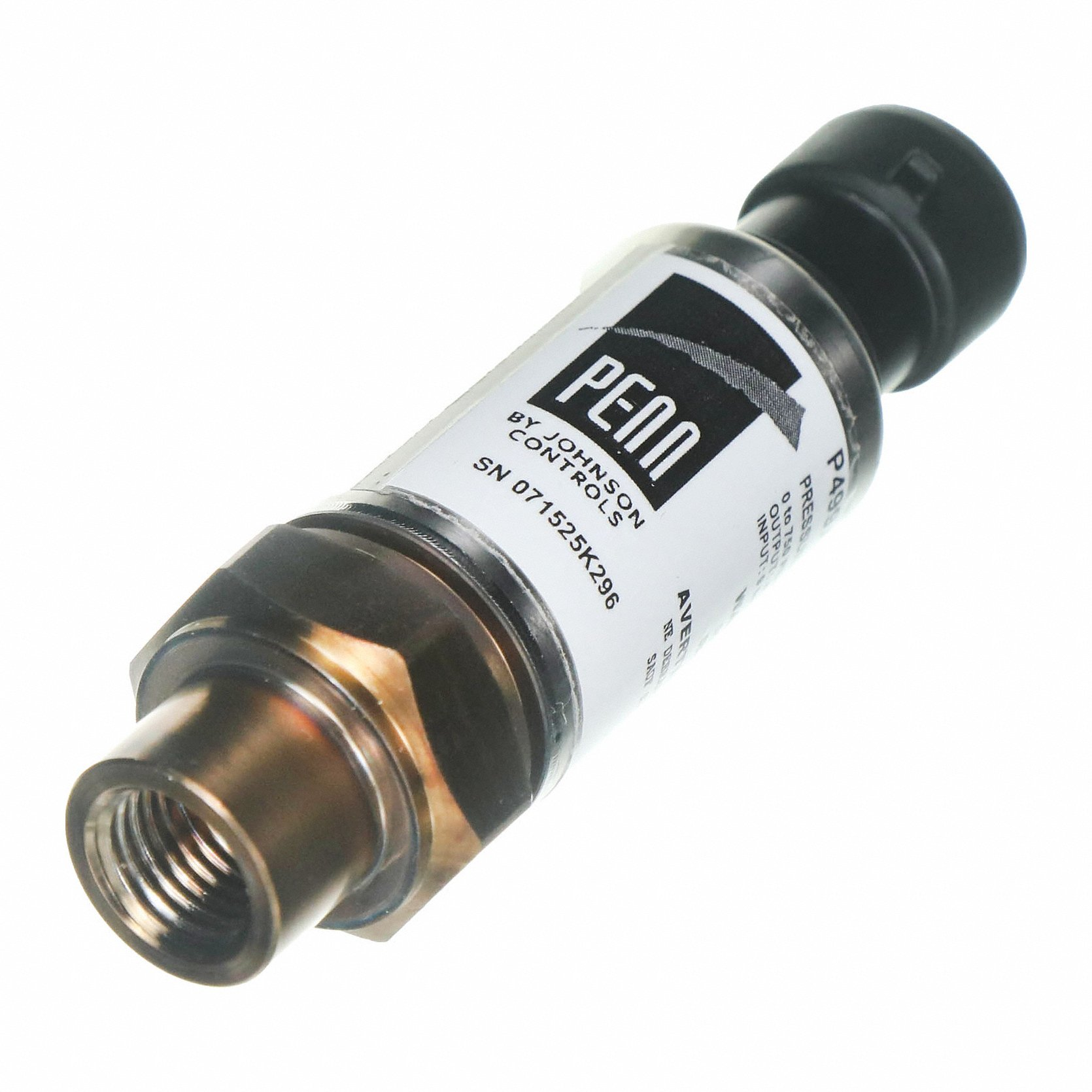

| A | P499ACP-107 | - | - | - | - | - | - | - | - | $308.66 |
