| Item | Zone Valve |
|---|---|
| Actuator Control Pressure - Maximum | Not Applicable |
| Actuator Control Signal | On, Off |
| Actuator Input Voltage | Not Applicable |
| Actuator Return Action | Spring Return |
| Actuator Type | Not Applicable |
| Body Material | Brass |
| Body Pattern | Two-Way |
| Cartridge Material | Not Applicable |
| Close-off Pressure | 17 psi |
| Compatible With Series | J Series |
| Configuration | Straight-Thru |
| Cv Flow Rate | 8 |
| Depth | 1 3/4" |
| Fluid Service | Steam, Water, Water Glycol Solution to 50% |
| Fluid Temperature - Maximum | 250°F |
| Fluid Temperature - Minimum | 32°F |
| For Use With | J Series Actuators |
| Frame Material | Brass |
| Gasket Material | Viton |
|---|---|
| Height | 1 7/8" |
| Includes | Valve Only |
| Includes Actuator | Actuator Not Included |
| Installation Orientation | Horizontal |
| Max. Temp. | 250°F |
| Min. Actuator Control Pressure | Not Applicable |
| Overall Depth | 1 3/4" |
| Overall Height | 1 7/8" |
| Overall Length | 3 3/8" |
| Port Connection Gender | Female |
| Port Connection Size | 1" |
| Port Connection Type | NPT |
| Safe Working Steam Pressure | 15 psi |
| Safe Working Steam Psi | 15 psi |
| Safe Working Water Psi | 300 psi |
| Stem Material | Brass |
| Union Connection Size | Not Applicable |
| Width | 3 3/8" |
| Height (cm) | 4.76 |
|---|---|
| Length (cm) | 4.44 |
| Width (cm) | 8.57 |
| HS Code | 8481809050 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.5805 |
| Style | Model | Height | Coefficient Of Volume | Max. Temp. | High Pressure Closeoff | Depth | Safe Working Steam Pressure | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|

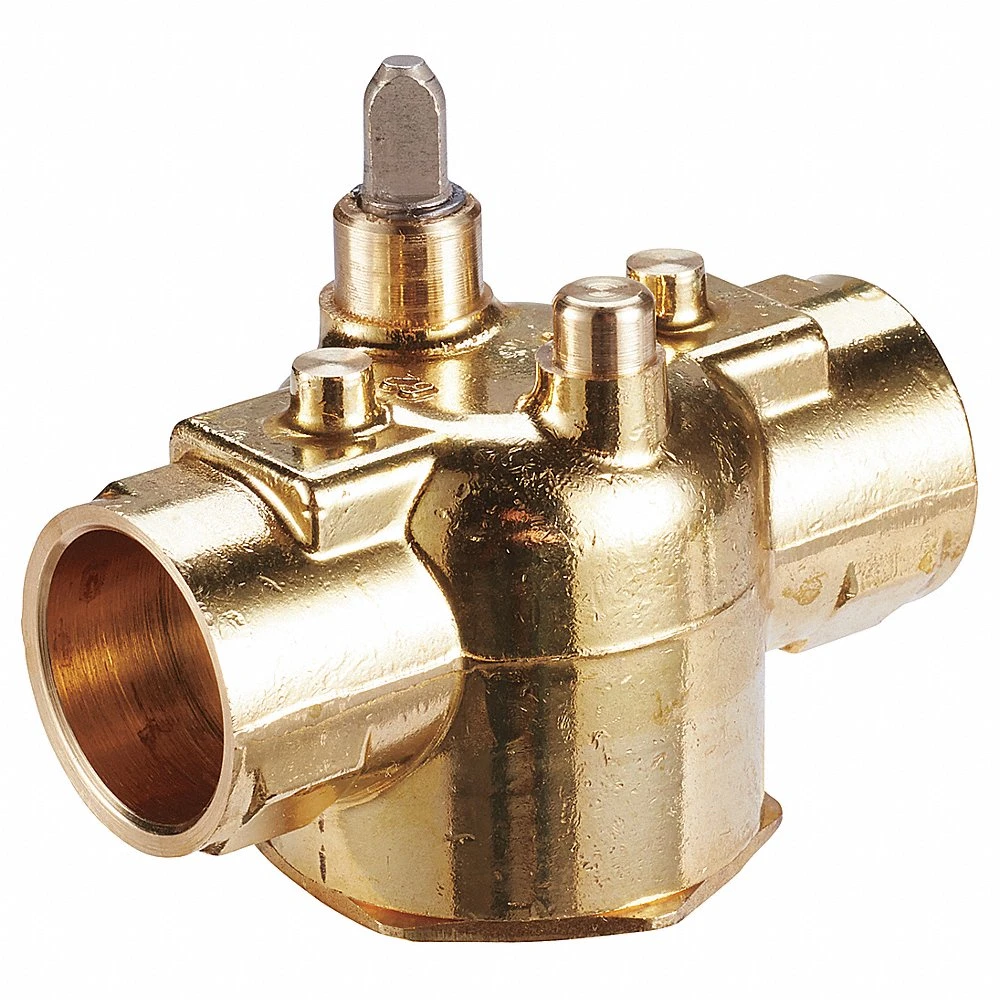

| A | JM2212 | 1 7/8" | - | 200°F | - | 1 3/4" | - | $106.03 | |
| A | JM2222 | 1 7/8" | - | 200°F | - | 1 3/4" | - | $126.96 | |
| A | JM2223 | 1 7/8" | - | 200°F | - | 1 3/4" | - | $113.80 | |

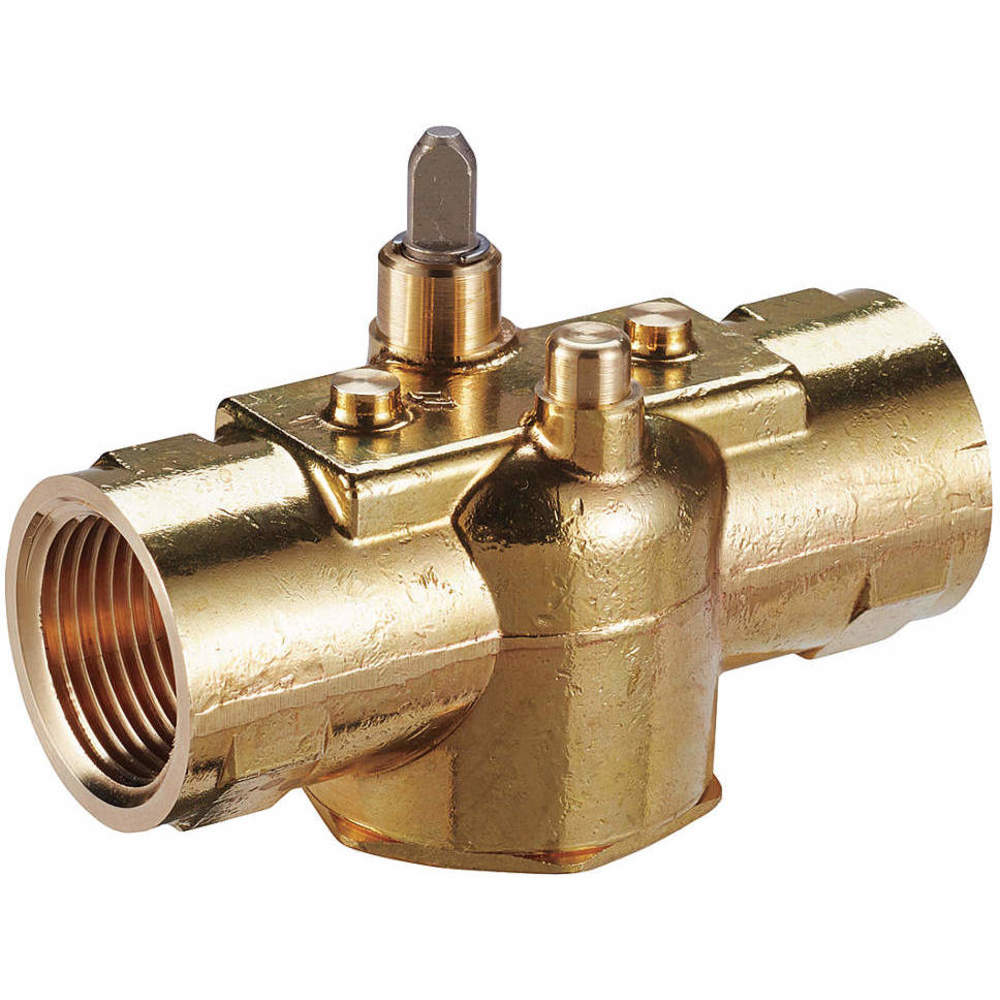

| B | JM2322 | 1 7/8" | - | 200°F | - | 1 3/4" | - | $174.04 | |
| B | JM2327 | 1 7/8" | 7.5 | 200°F | - | 1 3/4" | - | $174.04 | |

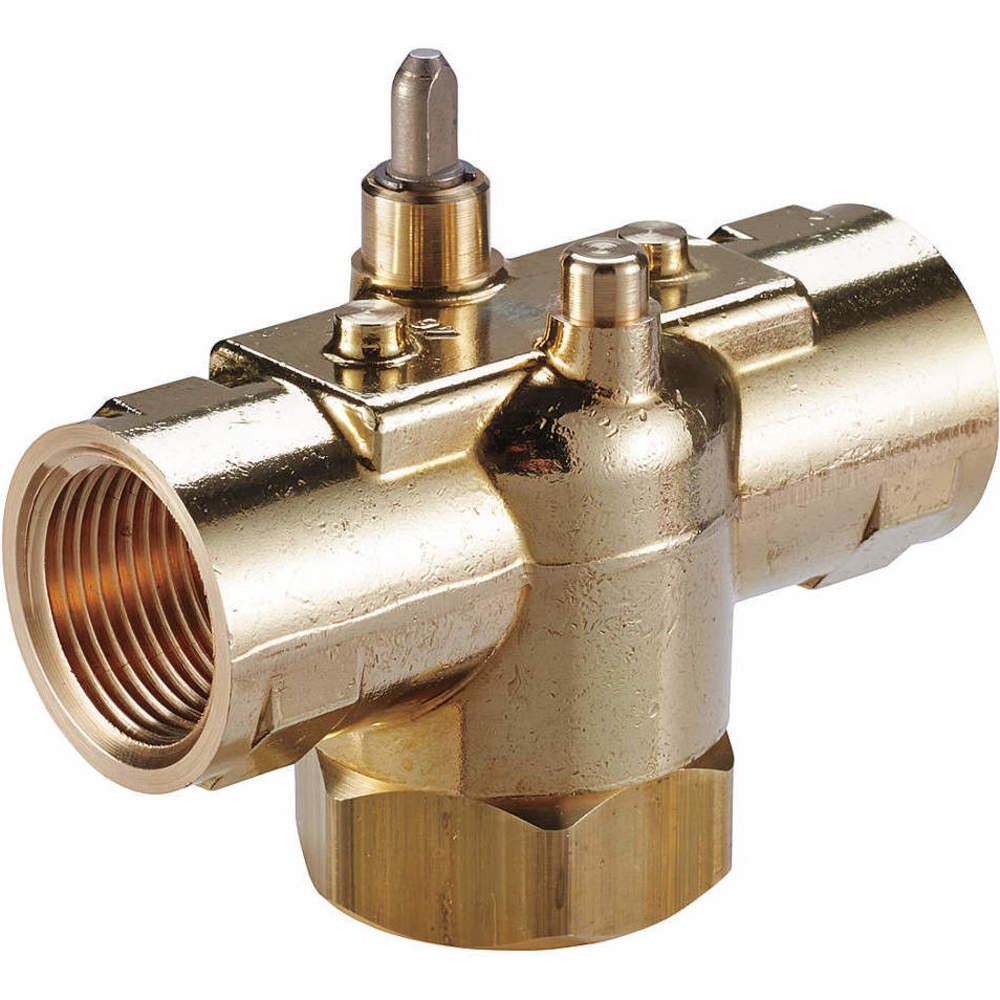

| C | JM3221 | 2 5/8" | - | 200°F | - | 1 3/4" | - | $154.19 | |
| C | JM3222 | 2 5/8" | - | 200°F | - | 1 3/4" | - | $142.84 |
