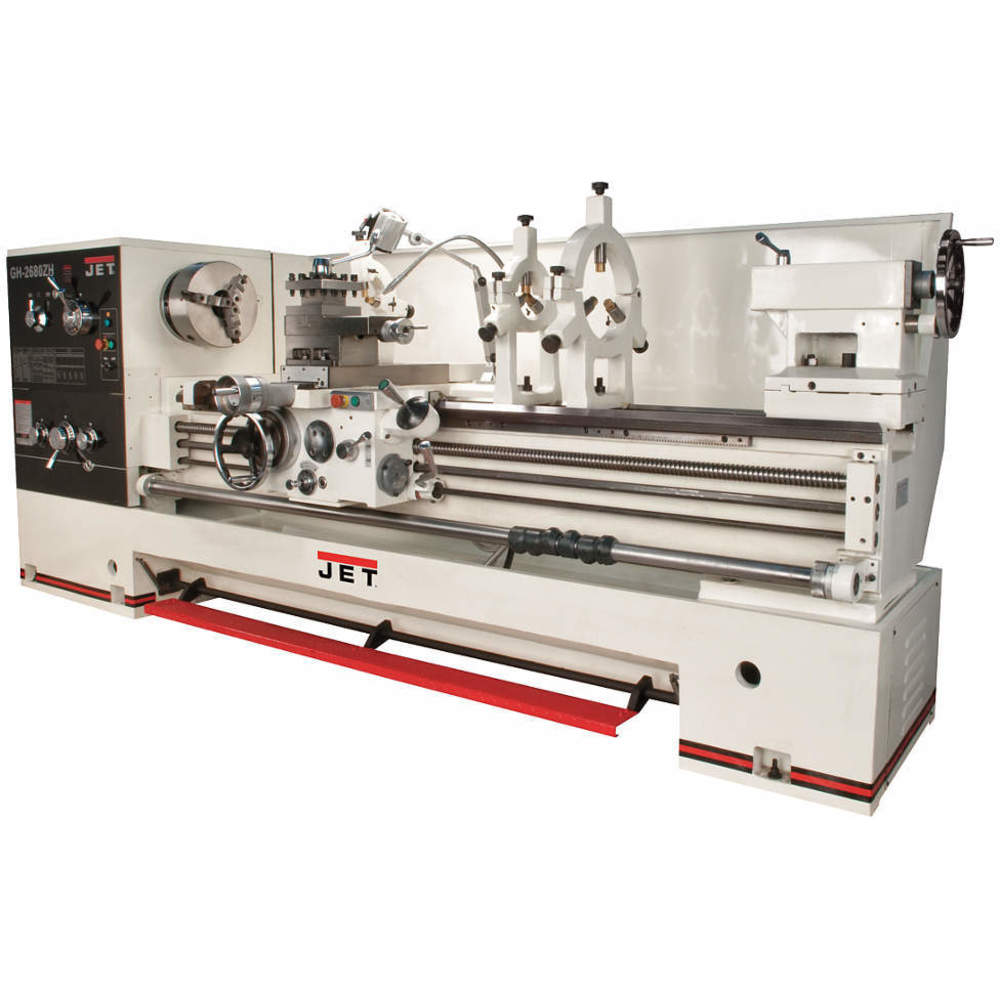

| Item | Lathe |
|---|---|
| Bed Width | 16" |
| Carriage Travel | 72 1/2" |
| Carriage Travel - Maximum | 72 1/2" |
| Compound Slide Travel | 5 1/2" |
| Compound Slide Travel - Maximum | 5 1/2" |
| Cross Feed - Maximum | 0.0404 in./rev. |
| Cross Feed - Minimum | 0.01 in./rev. |
| Cross Feed Rates | 65 |
| Cross Slide Travel - Maximum | 14 1/16" |
| Current | 12.6/25.4A |
| Digital Readout Included | Newall Dp700 |
| Distance Between Centers | 80" |
| Drive | Geared Head |
| Frequency | 60 Hz |
| Gap Length | 8" |
| Horsepower | 10 hp |
| Includes | (2) Steady Rests (Mounted On Lathe), (3) Jaw Scroll Chuck, 12-25/32" (Mounted On Lathe)-A, (4) Change Gears-63T, 69T, 78T, 90T-F, (4) Tool Holder-C, Drive Plate-B, Faceplate, 24-25/32" (With 6 Dogs)-D, Follow Rest (Mounted On Lathe), Round Nut Spanner, 170 To 210 mm-E |
| Includes Digital Readout | Digital Readout Included |
| Includes Stand | Stand Included |
| Input Voltage (nominal) | 220/440V AC |
| Lathe Head Drive | Gear Drive |
| Length Of Gap | 8 , 8" |
| Longitudinal Feed - Maximum | 0.0937 in./rev. |
| Longitudinal Feed - Minimum | 0.0023 in./rev. |
| Max. Tool Size | 1 1/4" x 1 1/4" |
| Metric Thread - Maximum | 14 mm |
| Metric Thread - Minimum | 1 mm |
| Motor Hp | 10 hp |
| Motor Voltage | 230/460V |
| No. Of Inch Threads | 48 |
| No. Of Longitudinal And Cross Feed Rates | 65 |
| No. Of Metric Threads | 22 |
| No. Of Motor Phase | 3 |
| No. Of Spindle Speeds | 12 |
| Number Of Inch Threads | 48 |
| Number Of Metric Threads | 22 |
| Number Of Spindle Speeds | 12 |
| Overall Depth | 138" |
|---|---|
| Overall Dimensions | 138" x 43" x 57" |
| Overall Height | 57" |
| Overall Length | 136" |
| Overall Width | 43" |
| Phase | 3.0 |
| Range Of Cross Feeds | 0.010 to 0.0404 |
| Range Of Inch Threads | 2 to 30 |
| Range Of Longitudinal Feeds | 0.0023 to 0.0937 |
| Range Of Metric Threads | 1-14 |
| Range Of Spindle Speeds | 36-1600 RPM |
| Series | GH-2680ZH Series |
| Size | 26" x 80" |
| Sound Level | 88 dBA |
| Spindle Bore | 4 1/8" |
| Spindle Bore Size | 4 1/8" |
| Spindle Mount | D1-8 |
| Spindle Nose Taper | D1-8 Camlock |
| Spindle Speed | 36-1600 RPM |
| Spindle Speed - Maximum | 1600 RPM |
| Spindle Speed - Minimum | 36 RPM |
| Spindle Taper With Sleeve | MT-5 |
| Steady Rest Capacity | 25/32", 4 29/32", 3 15/16", 9 7/16" |
| Style | Engine Large Spindle Bore |
| Swing In Gap | 34" |
| Swing Over Bed | 26" |
| Swing Over Cross Slide | 16 1/2" |
| Swing Over Gap | 34" |
| Swing Through Gap | 34" |
| Tailstock Spindle Travel | 6" |
| Tailstock Taper | MT5 |
| Tailstock Travel | 6" |
| Taper In Tailstock Spindle | MT-5 |
| Thread Range | 1 mm to 14 mm |
| Threads Per Inch - Maximum | 30 |
| Threads Per Inch - Minimum | 2 |
| Voltage | 230/460V AC |
| Width Of Bed | 16" |
| Height (cm) | 144.78 |
|---|---|
| Length (cm) | 2.54 |
| Width (cm) | 109.22 |
| HS Code | 8458190030 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 4162.95 |
| Style | Model | Distance Between Centers | Overall Length | Phase | Overall Dimensions | Swing Over Bed | Spindle Bore | Tailstock Taper | Number Of Inch Threads | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | JT9-321862 | 80" | 178" | Three | - | 26" | 4 1/8" | MT5 | 48 | $78,103.94 | |
| A | JT9-321891 | 120" | 178" | 3.0 | 178" x 43" x 57" | 26" | 4 1/8" | MT5 | 48 | $74,442.24 | |
| A | JT9-321894 | 120" | 138" | Three | - | 26" | 4 1/8" | MT5 | 48 | $83,090.60 |
