| Item | Hand Tap |
|---|---|
| 55% Thread Drill Size | 5.7 mm |
| 65% Thread Drill Size | 7/32" |
| 75% Thread Drill Size | 5.45 mm |
| Class Of Fit | Class 2B |
| Finish | Uncoated |
| Material | High Speed Steel |
| Measurement System | Fractional Inch |
| Number Of Flutes | 4 |
| Overall Length | 2 1/2" |
| Pitch Diameter Limits | H2 |
| Pitch Type | 28 |
| Shank Dia. | 1/4" |
| Shank Type - Machining | Straight |
| Size | 1/4" |
| Spiral Direction | Neutral |
| Standards | Uscti |
|---|---|
| Tap Chamfer | Plug |
| Tap Finish | Bright |
| Tap Length Standard | Uscti |
| Tap Material | Carbon Steel |
| Tap Shank Standard | Uscti |
| Tap Style | Straight Flute (Hand) |
| Tap Type | Plug |
| Thread Direction | Right Hand |
| Thread Length | 1" |
| Thread Limit | H2 |
| Thread Limit/class Of Fit | H2, 2B |
| Thread Size | 1/4"-28 |
| Thread Standard | Unf |
| Thread Type | UNF |
| Threads Per Inch | 28 |
| Height (cm) | 0.76 |
|---|---|
| Length (cm) | 6.35 |
| Width (cm) | 0.76 |
| HS Code | 8207406000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.0023 |
| Style | Model | Number Of Flutes | Thread Size | Overall Length | Thread Length | Thread Limit | 75% Thread Drill Size | Shank Dia. | Thread Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

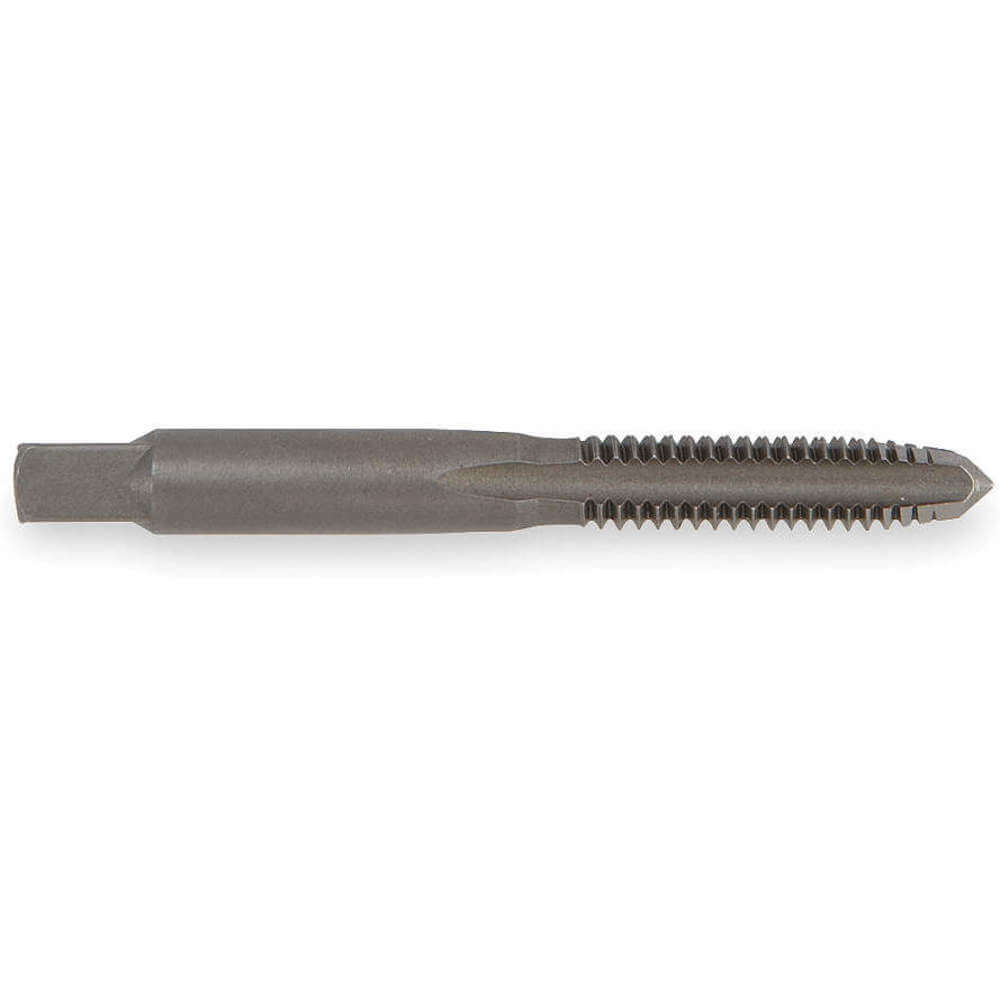

| A | 1112ZR | 3 | #4-40 | 1 7/8" | 9/16" | H2 | 2.2 mm | 9/64" | UNC | $12.23 | |
| A | 1118 | 3 | #6-32 | 2" | 11/16" | H2 | #36 | 9/64" | UNC | $6.97 | |
| A | 1124 | 4 | #8-32 | 2 1/8" | 3/4" | H2 | 3.4 mm | 5/32" | UNC | $11.89 | |

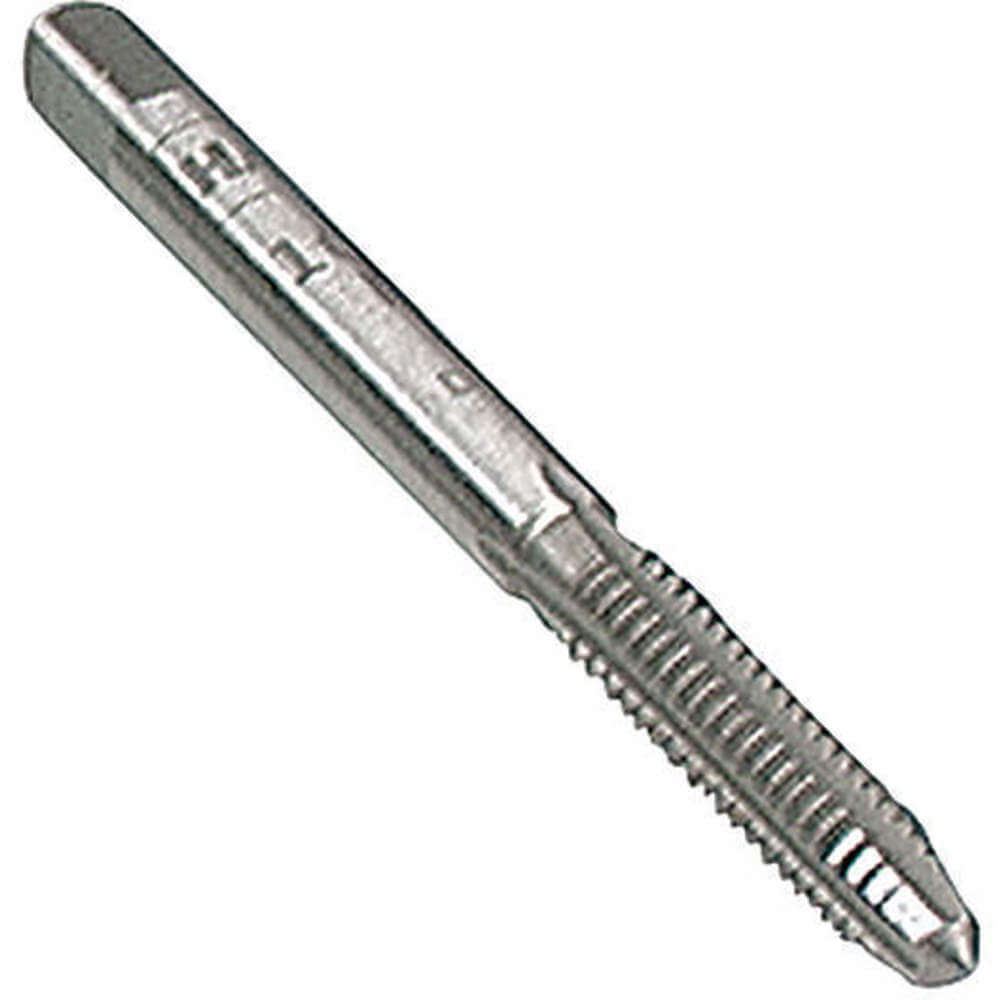

| B | 1128ZR | 4 | #10-24 | 2 3/8" | 7/8" | H2 | #24 | 3/16" | UNC | $14.09 | |
| A | 1131 | 4 | #10-32 | 2 3/8" | 7/8" | H2 | #21 | 3/16" | UNF | $12.81 | |
| A | 1132 | 4 | #12-24 | 2 3/8" | 15/16" | H2 | 4.45 mm | 7/32" | UNC | $14.27 | |
| A | 1420 | 4 | 1/4"-20 | 2 1/2" | 1" | H2 | #7 | 1/4" | UNC | $13.13 |
