| Item | Receptacle |
|---|---|
| Afci | No |
| Amps | 20A |
| Application Environment | Heavy Use Hospital Grade |
| Color | Ivory |
| Connection Orientation | Straight |
| Connectivity | Back And Side Wired Screw Terminals |
| Cover Type | No Cover |
| Current Rating | 20A |
| Duty | Extra Heavy |
| Face Plate Height | 2.7" |
| Gfci | No |
| Grade | Hospital Grade Fed. Spec. |
| Grounding | Grounded |
| Height | 1.19" |
| Housing Color | Ivory |
| Includes | Grounding Clip, Mounting Hardware, Wall Plate Or Weatherproof Cover |
| Includes Mounting Hardware | Yes |
| Ip Rating | IP20 |
| Length | 3 7/25" |
| Material | Thermoplastic |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting | Screw Mounting |
| Mounting Type | Flush |
| Nema Rating | NEMA 5-20R |
|---|---|
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Gangs | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Outlet Type | Duplex |
| Phase | 1 |
| Polarized | Yes |
| Prod. Description | Specification Grade |
| Receptacle Type | Duplex |
| Resistance Property | General Purpose |
| Standards | Csa Certified C22.2 No. 42 File 285, Federal Specification W-C-596, Nema Wd-6, Ul 498 File E2186 |
| Surge Protection | No |
| Ul 94 Flammability Rating | V-0 |
| Voltage | 125V |
| Voltage Rating | 125V AC |
| Wattage | 2500 W |
| Weather Resistant | No |
| Width | 1.65" |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
| Wire Connection Types | Screw Terminals |
| Wire Size | 12 AWG to 10 AWG |
| Wiring Method | Back And Side |
| Height (cm) | 3.02 |
|---|---|
| Length (cm) | 8.33 |
| Width (cm) | 4.19 |
| HS Code | 8536698000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.1125 |
| Style | Model | Current Rating | Voltage Rating | Housing Color | Grade | Wire Size | Color | Nema Rating | Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | HBL8200 | 15A | 125V AC | Brown | Hospital Grade Fed. Spec. | 14 AWG to 10 AWG | Brown | NEMA 5-15R | Thermoplastic | $66.94 | |
| B | HBL8300 | - | - | - | - | 12 AWG to 10 AWG | Brown | NEMA 5-20R | Thermoplastic | $82.04 | |
| C | HBL8200ILGY | 15A | 125V AC | Gray | Hospital Grade Fed. Spec. | 14 AWG to 10 AWG | Gray | NEMA 5-15R | Polycarbonate | $106.41 | |
| D | HBL8200ILW | 15A | 125V AC | White | Hospital Grade Fed. Spec. | 14 AWG to 10 AWG | White | NEMA 5-15R | Polycarbonate | $113.24 | |
| E | HBL8300ILGY | 20A | 125V AC | Gray | Hospital Grade Fed. Spec. | 12 AWG to 10 AWG | Gray | NEMA 5-20R | Polycarbonate | $104.44 | |

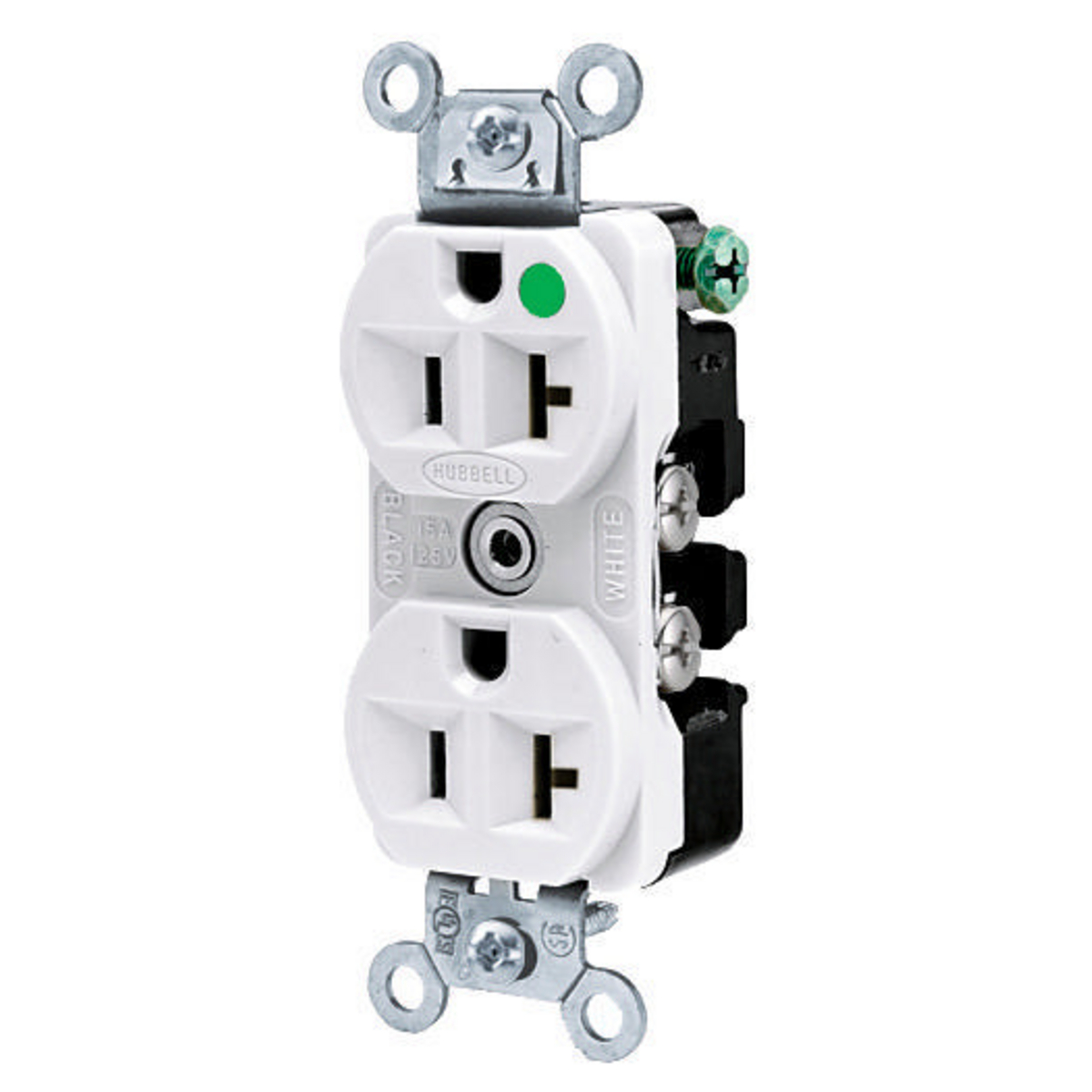

| F | HBL8300ILW | 20A | 125V AC | White | Hospital Grade Fed. Spec. | 12 AWG to 10 AWG | White | NEMA 5-20R | Polycarbonate | $119.86 | |
| G | IG8200R | 15A | 125V AC | Red | Hospital Grade Fed. Spec. | 14 AWG to 10 AWG | Red | NEMA 5-15R | Nylon | $78.26 |
