| Item | Single Pole Connector |
|---|---|
| Amps | 400A |
| Color | Brown , Yellow |
| Compatible With Series | Series 16 |
| Conductor Material | Brass |
| Contact Material | Brass |
| Current Rating | 400A |
| Housing Color | Yellow |
| Housing Material | Thermoplastic Elastomer |
| Material | Brass, Elastomer , TPE |
| Maximum Operating Temperature | 75°C |
| Minimum Operating Temperature | -40°C |
| Nema Enclosure Rating | Nema 3R, Nema 4X, Nema 12 |
| Nema Rating | NEMA 3R, NEMA 4X, NEMA 12 |
|---|---|
| Number Of Female Connections | 6 |
| Number Of Male Connections | 1 |
| Operating Temp. | - 75°C to -40°C |
| Overall Height | 3 6/25" |
| Overall Length | 13.26" |
| Overall Width | 7.54" |
| Series | 16 Series |
| Single Pole Device Style | Taper Nose |
| Terminal Connection Type | Single Pin |
| Type | Dist Block |
| Voltage Rating | 250V DC/600V AC |
| Wattage | 360000 W |
| Height (cm) | 8.23 |
|---|---|
| Length (cm) | 33.68 |
| Width (cm) | 19.15 |
| HS Code | 8536698000 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 3.6675 |
| Style | Model | Housing Color | Color | Operating Temp. | Current Rating | Voltage Rating | Nema Enclosure Rating | Type | Conductor Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

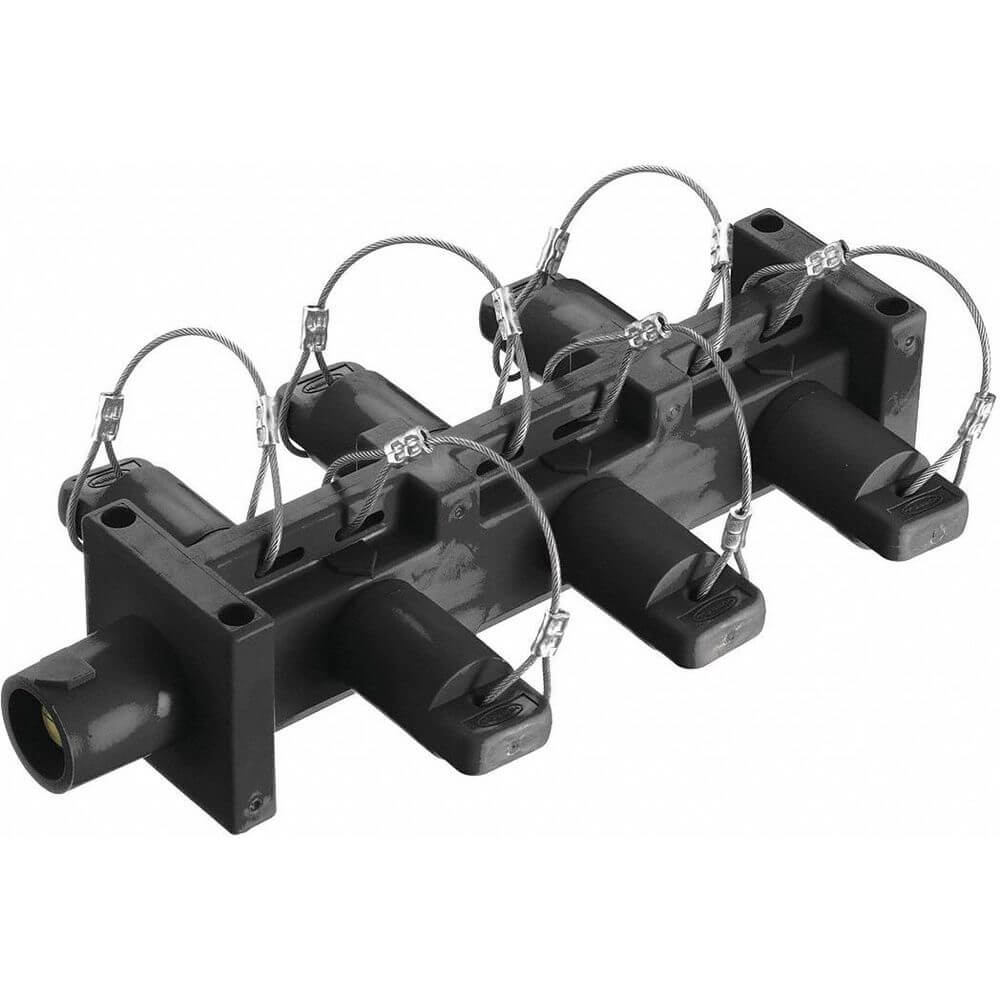

| A | HBL7DBBK | Black | Black | -75°C to -40°C | 400A | 250V DC/600V AC | Nema 3R, Nema 4X, Nema 12 | Dist Block | Brass | $2,330.50 | |

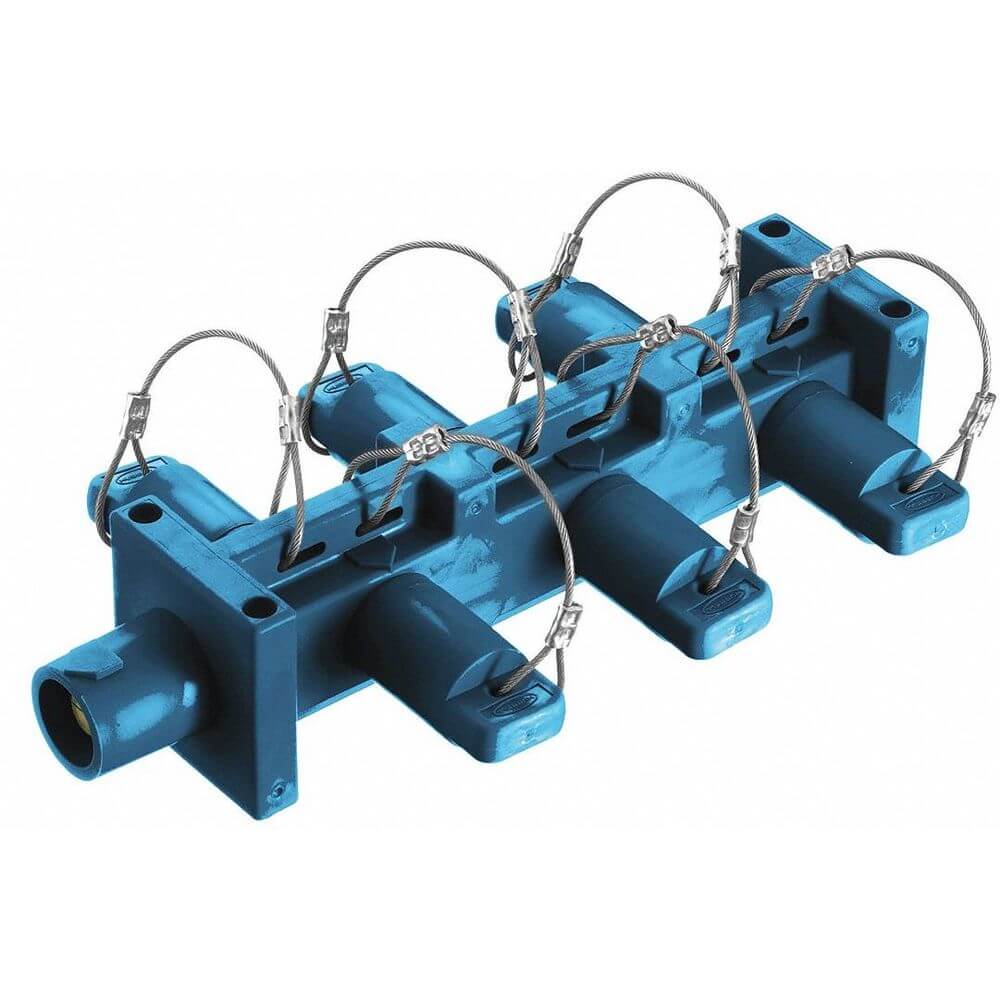

| B | HBL7DBBL | Blue | Blue | -75°C to -40°C | 400A | 250V DC/600V AC | Nema 3R, Nema 4X, Nema 12 | Dist Block | Brass | $2,473.64 | |
| C | HBL7DBBN | Brown | Brown | - 75°C to -40°C | 400A | 250V DC/600V AC | Nema 3R, Nema 4X, Nema 12 | - | Brass | $2,333.80 | |

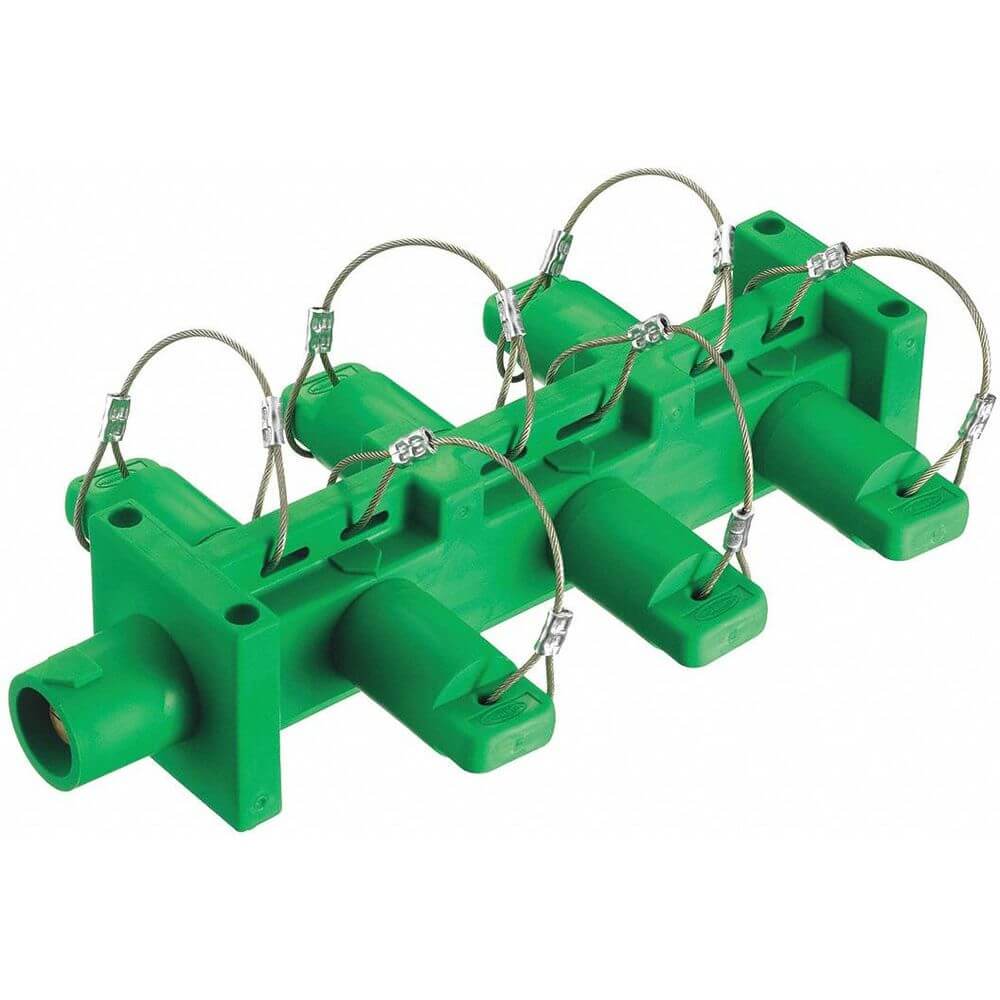

| D | HBL7DBGN | Green | Green | -75°C to -40°C | 400A | 250V DC/600V AC | Nema 3R, Nema 4X, Nema 12 | Dist Block | Brass | $2,267.73 | |
| E | HBL7DBO | Orange | Orange | - 75°C to -40°C | 400A | 250V DC/600V AC | Nema 3R, Nema 4X, Nema 12 | Dist Block | Brass | $2,333.80 | |

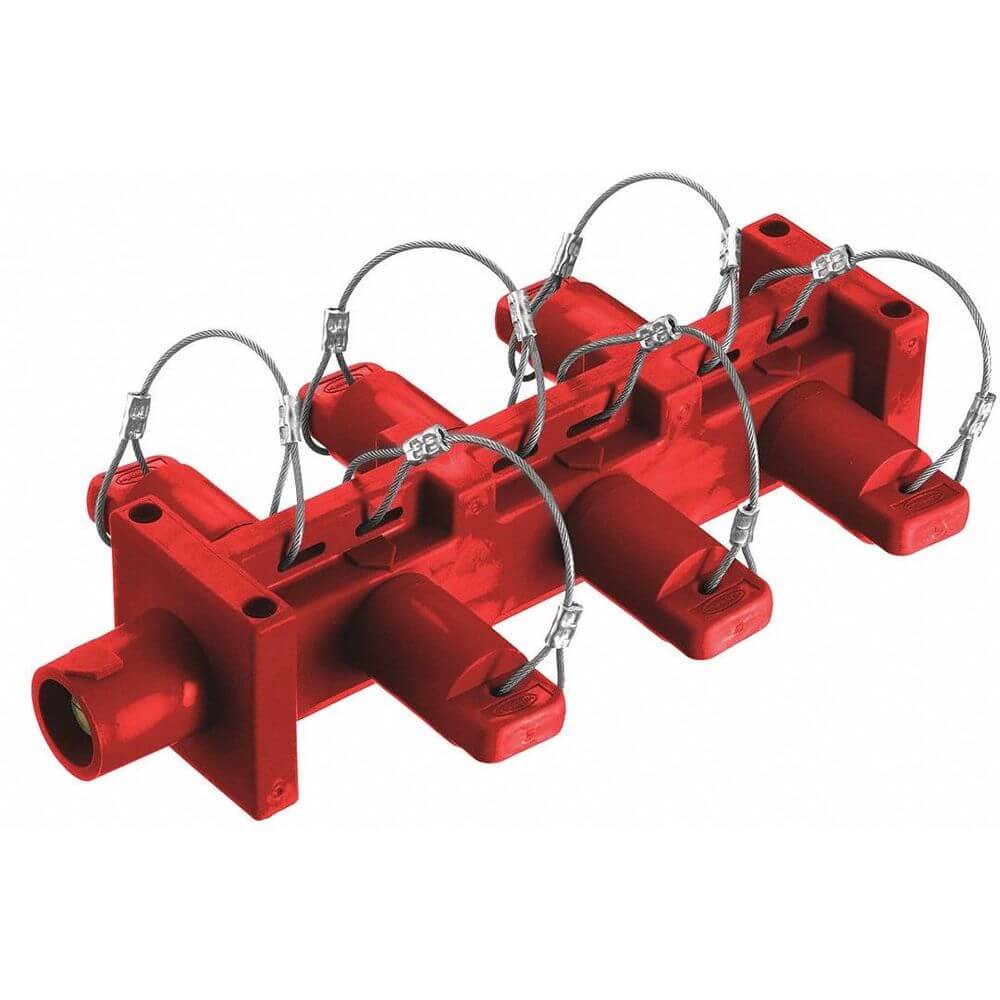

| F | HBL7DBR | Red | Red | - 75°C to -40°C | 400A | 250V DC/600V AC | Nema 3R, Nema 4X, Nema 12 | Dist Block | Brass | $2,473.64 | |

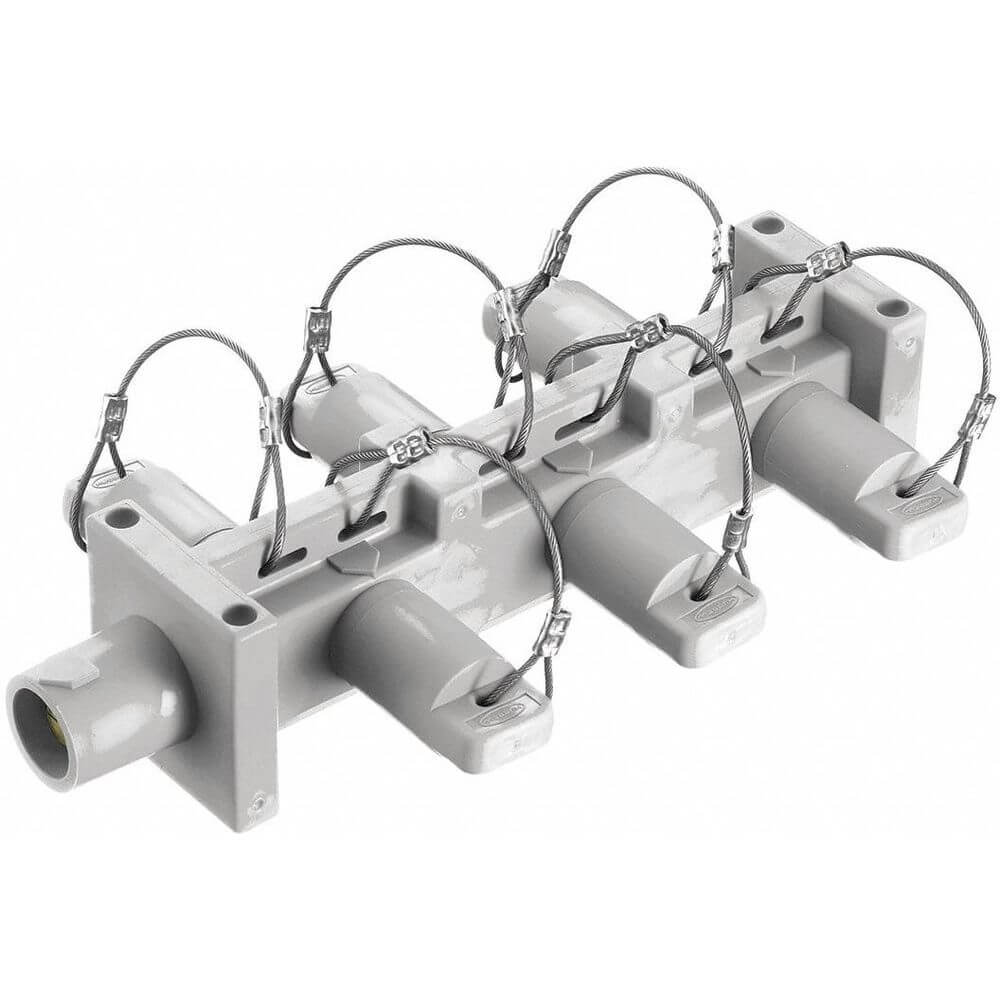

| G | HBL7DBW | White | White | - 75°C to -40°C | 400A | 250V DC/600V AC | Nema 3R, Nema 4X, Nema 12 | - | Brass | $2,333.80 |
