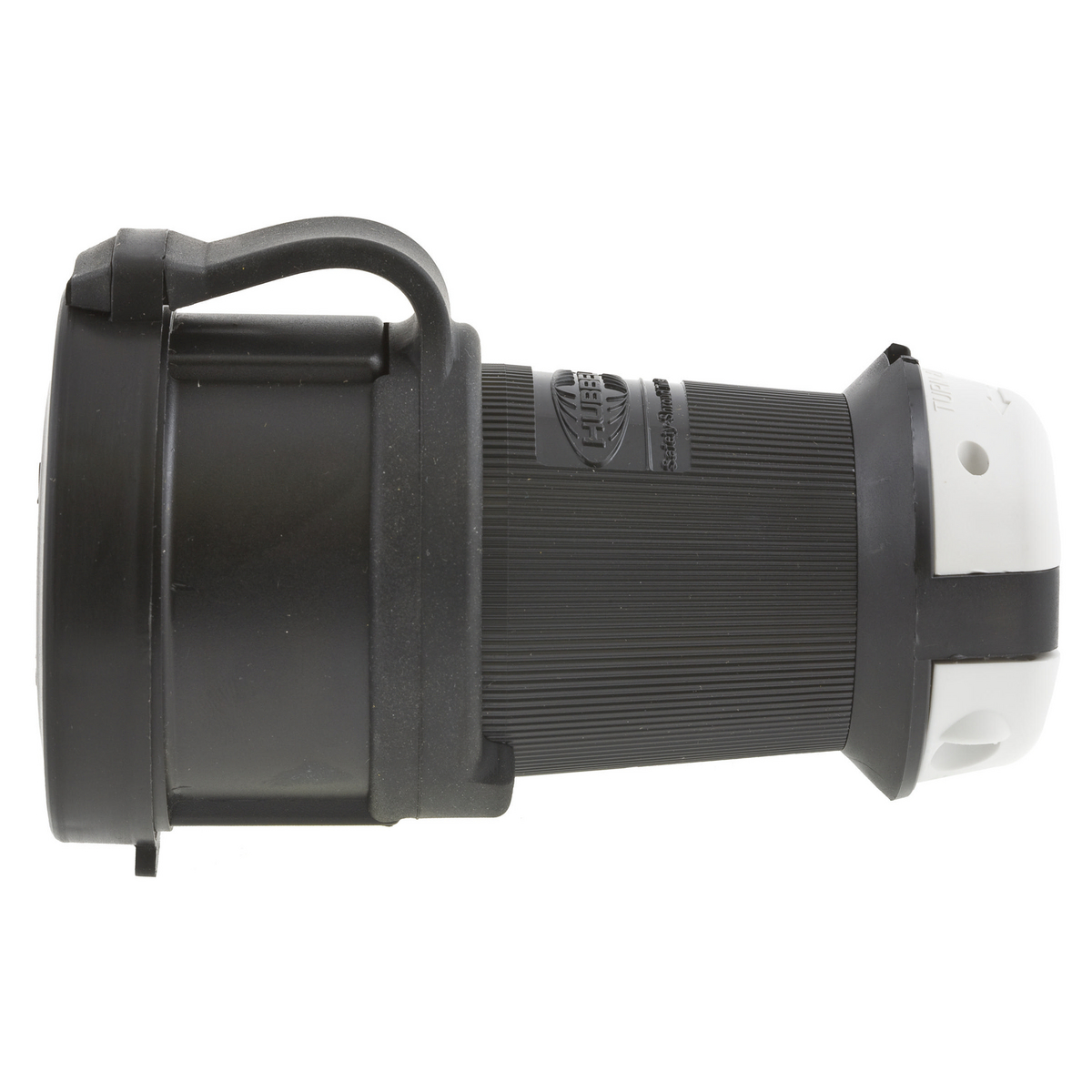

| Item | Watertight Shrouded Connector |
|---|---|
| Amps | 20A |
| Antimicrobial | No |
| Cap Type | Press On Cap |
| Color | Black, White |
| Connection Orientation | Straight |
| Connectivity | Pressure Terminal Screws |
| Contact Material | Brass |
| Cord Size | 0.36" to 0.93" |
| Current Rating | 20A |
| For Maximum Cable Diameter | 0.93" |
| For Minimum Cable Diameter | 0.36" |
| Grade | Industrial, Commercial |
| Grounding | Grounded |
| Horsepower Rating | 2 hp |
| Housing Color | Black, White |
| Housing Material | Valox |
| Insulation | Insulated Body |
| Insulation Material | Thermoplastic |
| Ip Rating | IP66 |
| Length | 2.57" |
| Market | Industrial |
| Material | Composite |
| Max. Hp | 2 hp |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 8 AWG |
|---|---|
| Midget Locking | No |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 16 AWG |
| Mounting | Cord Mounted |
| Nema Enclosure Rating | NEMA 4, NEMA 4X, NEMA 12 |
| Nema Rating | NEMA L6-20R |
| Nema Receptacle Configuration | L6-20R |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Outside Diameter | 2.75" |
| Overall Length | 2.57" |
| Phase | 1 |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Shrouded | Yes |
| Type | Shrouded |
| Ul 94 Flammability Rating | V-0 |
| Voltage | 250V |
| Voltage Rating | 250V AC |
| Width | 2.57" |
| Wire Connection Type | Screw Terminals |
| Wire Size | 16 AWG to 8 AWG |
| Wiring Style | Standard |
| Wiring Type | Standard |
| Standards | CSA CERTIFIED TYPE 4, 4X AND TYPE 12, UL LISTED |
| Height (cm) | 11.18 |
|---|---|
| Length (cm) | 6.53 |
| Width (cm) | 6.53 |
| HS Code | 8536904000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.2475 |
| Style | Model | Phase | Number Of Poles | Current Rating | Voltage Rating | Number Of Wires | Nema Rating | Amps | Cord Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | HBL2313SW | 1 | 2 | - | - | - | NEMA L5-20R | 20A | 0.36" to 0.93" | $222.31 | |
| B | HBL2333SW | 1 | 2 | 20A | 277V AC | 3 | NEMA L7-20R | 20A | 0.36" to 0.93" | $195.73 | |
| C | HBL2413SW | 3 | 3 | 20A | 125/250V AC | 4 | NEMA L14-20R | 20A | 0.35" to 1.15" | $248.99 | |
| D | HBL2423SW | 3 | 3 | 20A | 250V AC | 4 | NEMA L15-20R | 20A | 0.35" to 1.15" | $268.04 | |
| E | HBL2433SW | 3 | 3 | 20A | 480V AC | 4 | NEMA L16-20R | 20A | 0.35" to 1.15" | $258.16 | |
| F | HBL2513SW | 3 | 4 | 20A | 120/208V AC | 5 | NEMA L21-20R | 20A | 0.35" to 1.15" | $254.93 | |
| G | HBL2613SW | 1 | 2 | 30A | 125V AC | 3 | NEMA L5-30R | 30A | 0.36" to 0.93" | $264.89 |
