| Item | Heavy Duty Limit Switch |
|---|---|
| Actuator Style | No Lever, Rotary Head |
| Actuator Style - Limit Switch | No Lever, Rotary |
| Basic Actuator Style | Rotary |
| Basic Actuator Style (limit Switch) | Rotary |
| Body Height - Limit Switch | 3 1/5" |
| Body Material | Die Cast Zinc |
| Body Style | Standard |
| Body Style - Limit Switch | Standard |
| Body Width | 1.62" |
| Boot Sealed Actuator | No |
| Boot Sealed Actuator - Limit Switch | No |
| Depth | 1 3/4" |
| Differential Travel Length | 3° |
| Electrical Connection | Screw Terminals |
|---|---|
| Height | 4 1/5" |
| Limit Switch Style | Heavy Duty Limit Switch |
| Mounting - Limit Switch | Surface |
| Mounting Hole Spacing - Limit Switch | 2.34" x 1.16" |
| Movement | CCW/CW |
| Nema Rating | NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13 |
| Operating Force | 4 lbs.-in. |
| Operating Temp. Range | -40°F to +250°F |
| Over Travel Length | 66° |
| Pre-travel Length | 9° |
| Stem Thread - Limit Switch | No Stem |
| Width | 1.62" |
| Height (cm) | 14.99 |
|---|---|
| Length (cm) | 7.62 |
| Width (cm) | 6.35 |
| HS Code | 8536509055 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.72 |
| Style | Model | Actuator Style | Contact Form | Operating Temp. Range | Body Material | Body Width | Boot Sealed Actuator | Body Height | Body Style | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

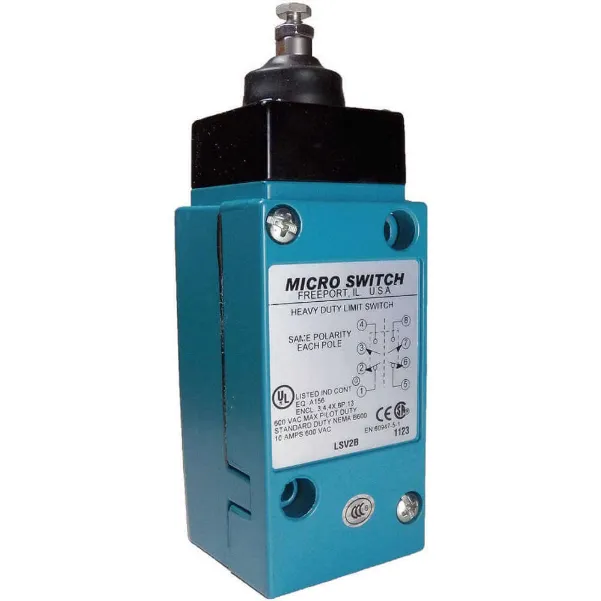

| A | LSV7L | Plunger | 2NO/2NC | +10°F to +200°F | Metal | 1 22/25" | No | 2.95" | Miniature | $522.77 | |

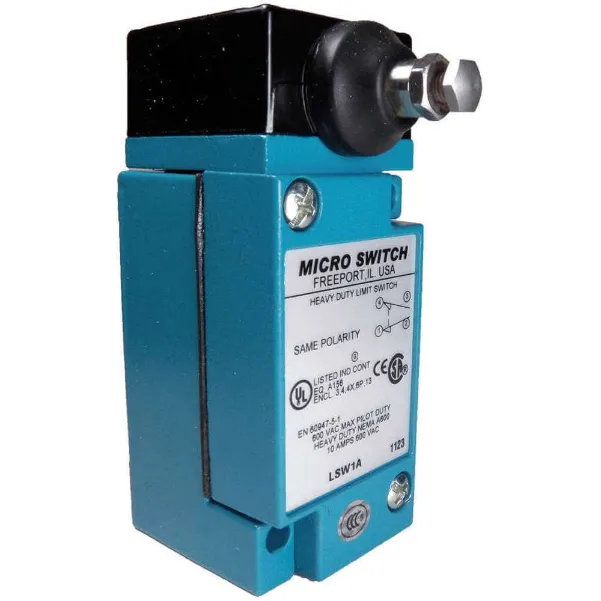

| B | LSW1A | Plunger | 1NO/1NC | +10°F to +200°F | Metal | 1.62" | No | 3.2" | Standard | $525.66 | |
| C | LSYUB1A | No Lever, Rotary Head | 1NO/1NC | -40°F to +250°F | Metal | 1.62" | No | 3.2" | X | $465.43 | |
| C | LSA1A | No Lever, Rotary Head | 1NO/1NC | +10°F to +250°F | Zinc | 1.62" | No Boot Included | 2.95" | X | $373.63 | |
| D | LSA2B | No Lever, Rotary Head | 2NO/2NC | +10°F to +250°F | Zinc | 1.88" | No | 3.53" | X | $373.51 | |
| C | LSA3K | No Lever, Rotary Head | 1NO/1NC | +10°F to +250°F | Zinc | 1.62" | No Boot Included | 2.95" | X | $295.74 | |
| D | LSA4L | No Lever, Rotary Head | 2NO/2NC | +10°F to +250°F | Zinc | 1.88" | No | 3.53" | X | $700.60 |
