| Item | Flowmeter |
|---|---|
| Accuracy | +/-5% |
| Body Material | PSU |
| Chamber Material | Polysulfone |
| Compatible Flow Material | Water |
| Compatible Media Types | Water |
| Connection Size | 1" |
| Connection Type | NPTF |
| Display Type | Scale |
| Fits Pipe Size | 1" |
| Flow Material | Other Liquids, Water |
| Flow Range | 0.5-4 GPM |
| Flow Rate - Maximum | 4 GPM |
| Flow Rate - Minimum | 0.5 GPM |
| Flow Rate Range | 0.5-4 GPM |
| Flowmeter Type | Variable Area |
| Fluid Temp. | +32°F to +250°F |
| For Pipe Size | 1" |
| Frequency - Maximum | Not Applicable |
| Frequency - Minimum | Not Applicable |
| Housing Material | Polysulfone |
| Includes Flow Rate Adjustment Knob | No |
| Includes Pressure Gauge | No |
| Includes Totalizer | No |
| Length | 5 1/4" |
| Max. Flow Rate | 4 GPM |
| Max. Operating Pressure | 325 psi |
| Max. Pressure | 325 psi |
| Max. Temp. | 250°F |
|---|---|
| Max. Viscosity | 500 SUS |
| Media Temp. Range | 32°F to 250°F |
| Media Temperature (maximum) | 250°F |
| Media Type | Water |
| Min. Flow Rate | 0.5 GPM |
| Min. Media Temp. | 32°F |
| Mounting Location | Inline |
| Mounting Orientation | Universal |
| O-ring Material | Buna N |
| Output Type | Not Applicable |
| Overall Height | 1 2/5" |
| Overall Length | 5.3" |
| Overall Width | 1.7" |
| Process Connection | 1" NPTF |
| Product Type | Flow Meter |
| Pulse Rate | Not Applicable |
| Rotor Material | Not Applicable |
| Seal Material | Buna N |
| Shaft Material | Not Applicable |
| Specific Gravity | 1 |
| Type | Variable Area |
| Unit Of Measure | Gal., L |
| Viscosity - Maximum | 500 SUS |
| Wetted Material | PSU |
| Width | 1 5/8" |
| Standards | ANSI/ASME B1.20.1 |
| Height (cm) | 7.11 |
|---|---|
| Length (cm) | 20.57 |
| Width (cm) | 7.87 |
| HS Code | 9026104000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.18 |

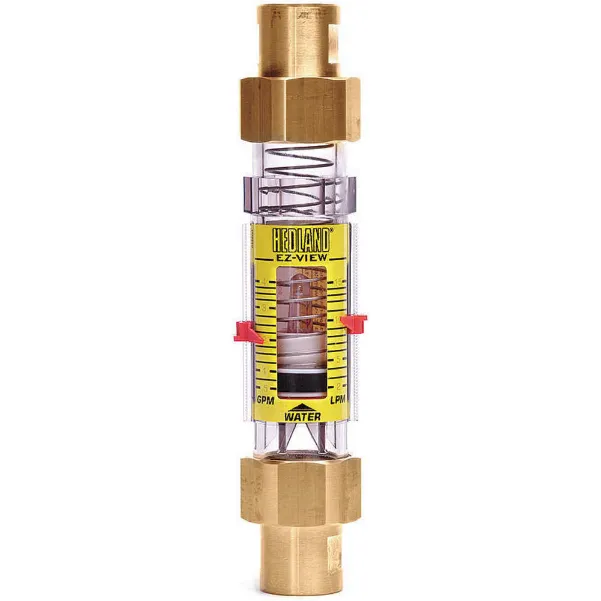

| Style | Model | Connection Size | Connection Type | Min. Flow Rate | Max. Flow Rate | Max. Viscosity | Body Material | Overall Height | Fits Pipe Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | H624-604 | 1/2" | NPTF | 0.5 GPM | 4 GPM | 500 SUS | PSU | 1 2/5" | 1/2" | $345.63 | |
| B | H624-604-R | 1/2" | NPTF | 0.5 GPM | 4 GPM | 500 SUS | PPSU | 1 2/5" | 1/2" | $395.77 | |
| B | H624-607-R | 1/2" | NPTF | 1 GPM | 7 GPM | 500 SUS | PPSU | 1 2/5" | 1/2" | $395.94 | |
| B | H624-610-R | 1/2" | FNPT | 1 GPM | 10 GPM | 500 SUS | - | 1 2/5" | 1/2" | $369.63 | |
| B | H624-616-R | 1/2" | NPTF | 1 GPM | 16 GPM | 500 SUS | PPSU | 1 2/5" | 1/2" | $380.41 | |
| B | H620-604-R | 1" | Sweat | 0.5 GPM | 4 GPM | 500 SUS | PPSU | 1 2/5" | 1", 3/4" | $396.14 | |
| B | H620-607-R | 1" | Sweat | 1 GPM | 7 GPM | 500 SUS | PPSU | 1 2/5" | 1", 3/4" | $381.43 |
