| Item | Swivel Plate Caster |
|---|---|
| Application | Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Casters, Chassis Rack Carts, Engine Dollies, Material Carts |
| Bearing Type | Precision Ball |
| Brake Type | Side Strap |
| Caster Brake Included | Yes |
| Caster Brake Type | Swivel Lock With Side Pedal Brake |
| Caster Frame Material | Steel |
| Caster Load Rating Range | 1000 lbs. to 2999 lbs. |
| Caster Material | Phenolic |
| Caster Sub-type | Swivel |
| Caster Temp. Range Available | Yes |
| Caster Type | Swivel |
| Caster Wheel Material | Phenolic |
| Caster Wheel Shape | Standard |
| Core Color | Black |
| Core Material | Phenolic |
| Durometer | 90 Shore D |
| Extended Lead | No |
| Frame Finish | Enamel |
| Frame Material | Steel |
| Hole Pattern | A |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 4 1/8" x 6 1/8" |
| Load Rating | 2900 lbs. |
| Mounting Bolt Dia. | 1/2" |
| Mounting Height | 12 1/2" |
| Mounting Plate Bolt Hole Pattern | A |
| Mounting Plate Size | 5 1/4" x 7 1/4" |
| Mounting Plate Size & Bolt Hole Pattern | 5 1/4" X 7 1/4" ( A ) |
|---|---|
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Operating Temp. Range | -50°F to +300°F |
| Outside Bolt Hole Spacing | 3 3/8" x 5 1/4" |
| Overall Height | 12 1/2" |
| Plate Size | 5 1/4" x 7 1/4" |
| Plate Thickness | 1/2" |
| Plate Type | A |
| Raceway Type | Precision Ball |
| Replacement Wheel | 5VJ37 |
| Standards | Icwm |
| Swivel Construction | Kingpin |
| Swivel Lock Type | 4-Position Directional Lock |
| Swivel Raceway Type | Single Ball |
| Tread Shape | Standard |
| Wheel Bearing Type | Roller |
| Wheel Bearings | Roller |
| Wheel Color | Black |
| Wheel Core Material | Phenolic |
| Wheel Diameter | 10" |
| Wheel Material | Phenolic |
| Wheel/tread Color | Black |
| Wheel/tread Hardness | 90 Shore D |
| Wheel/tread Hardness Rating | Hard |
| Wheel/tread Material | Phenolic |
| Height (cm) | 15.24 |
|---|---|
| Length (cm) | 33.02 |
| Width (cm) | 30.48 |
| HS Code | 8302200000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 13.95 |
| Style | Model | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Wheel Bearing Type | Caster Load Rating Range | Load Rating | Wheel Width | Mounting Plate Bolt Hole Pattern | Wheel/tread Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

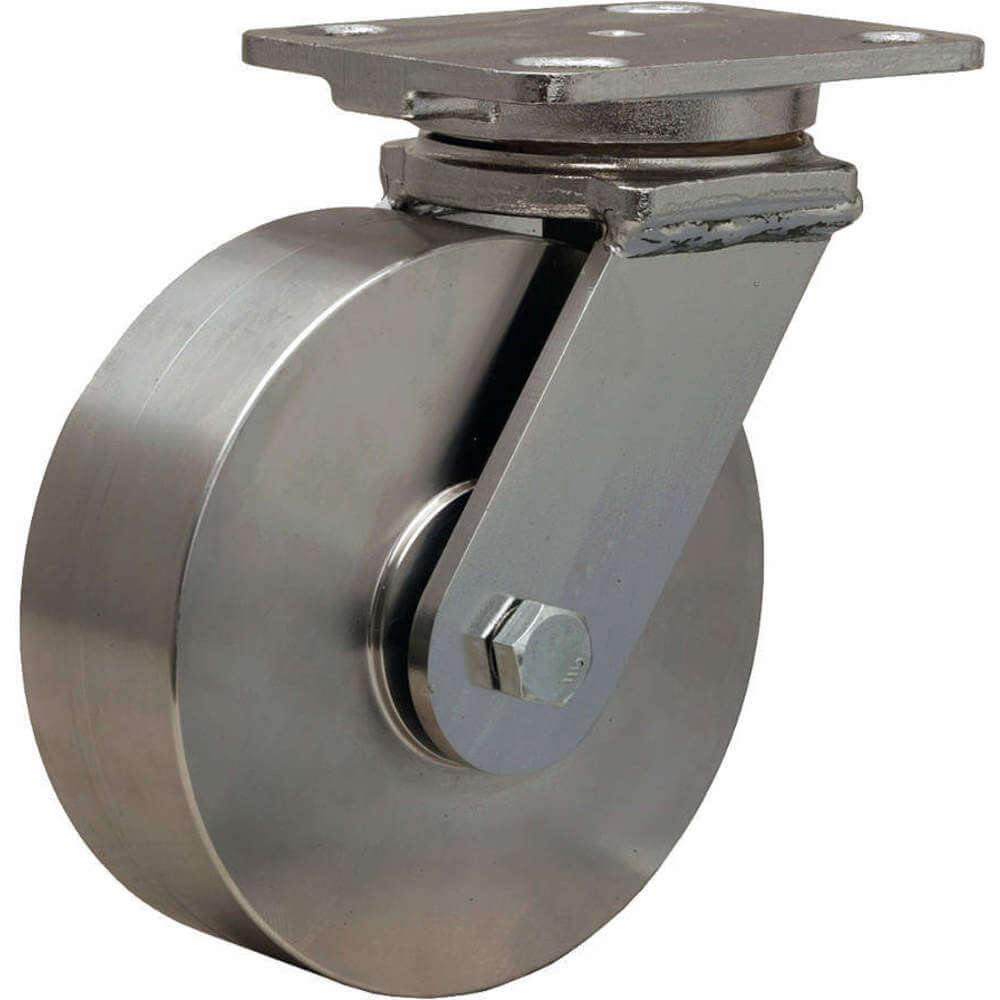

| A | S-WHS-6SB-4SL-SZB | 2 5/8" x 3 5/8" | 3" x 3" | Precision Ball | 1000 lbs. to 2999 lbs. | 1200 lbs. | 2" | B | Stainless Steel | $1,511.04 | |

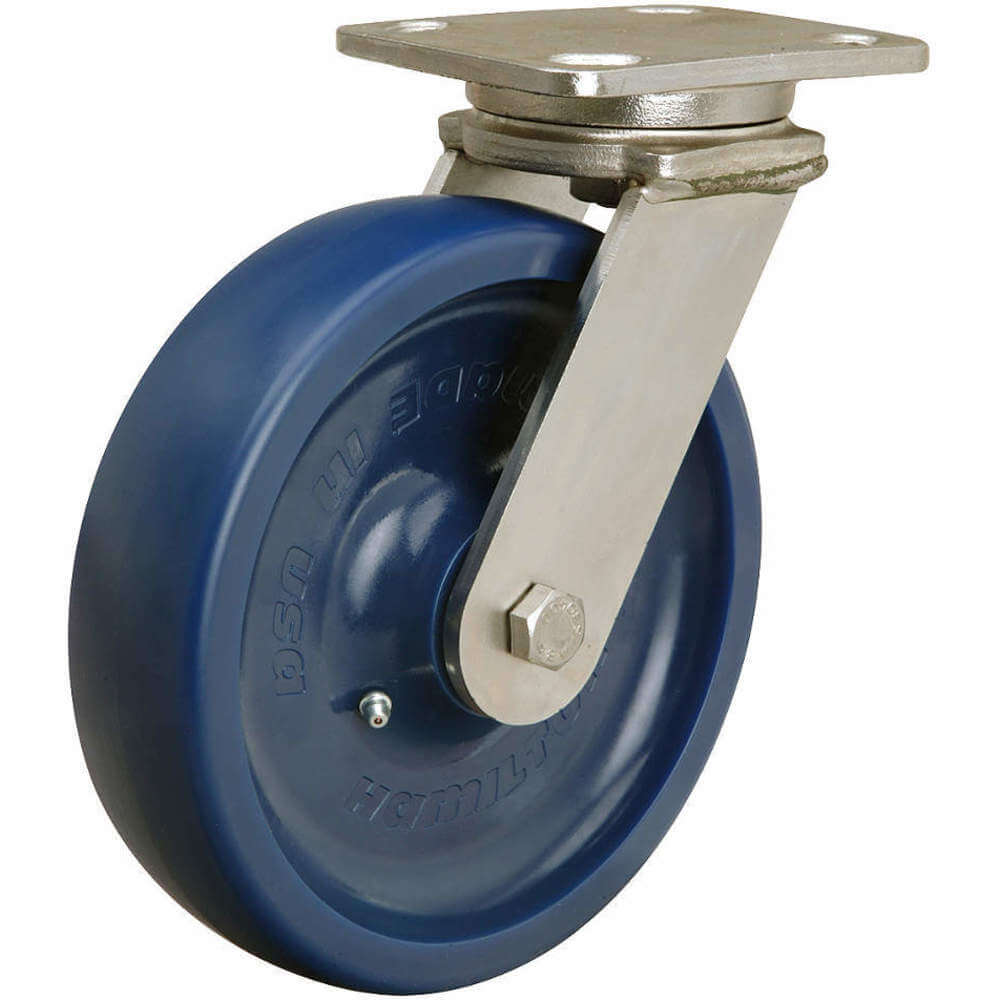

| B | S-WHS-8UYSB-4SL-SZB | 2 5/8" x 3 5/8" | 3" x 3" | Precision Ball | 1000 lbs. to 2999 lbs. | - | 2" | B | Polyurethane | $1,090.84 | |

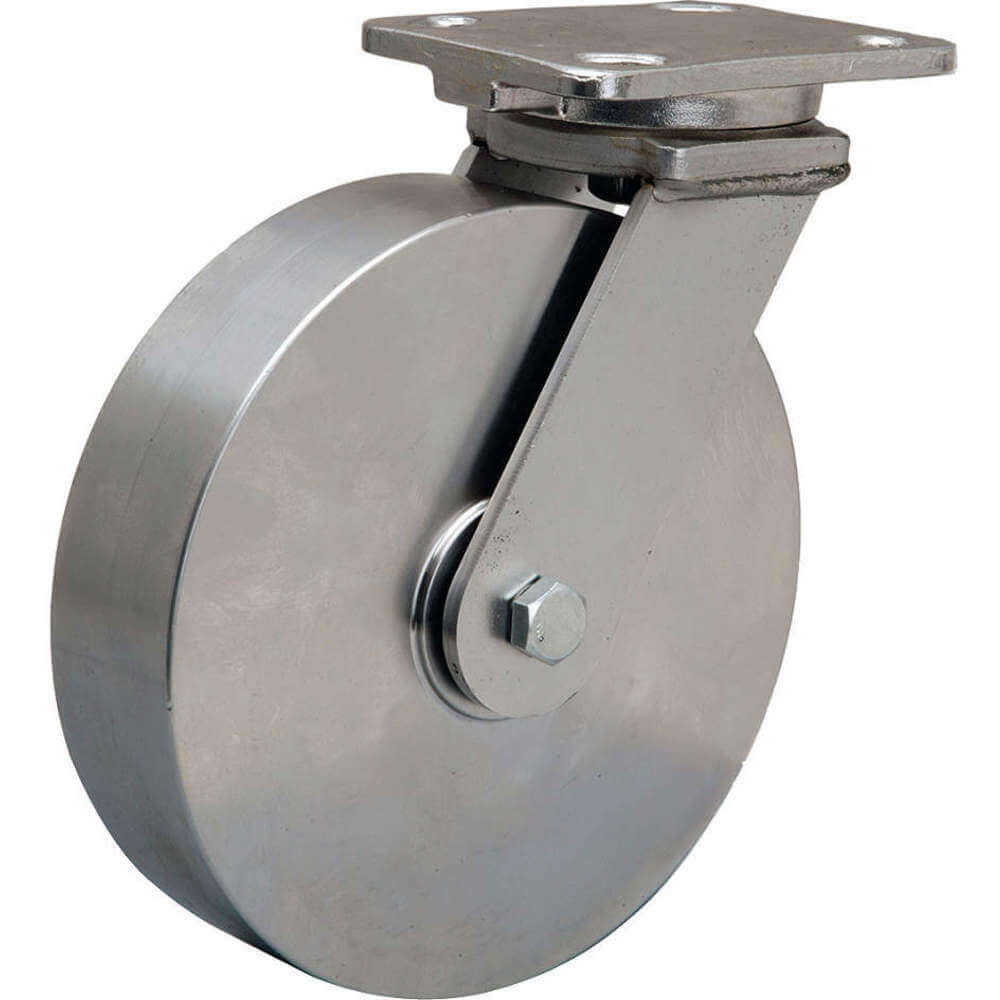

| C | S-WHS-8SB-4SL-SZB | 2 5/8" x 3 5/8" | 3" x 3" | Precision Ball | 1000 lbs. to 2999 lbs. | 1500 lbs. | 2" | B | Stainless Steel | $1,919.56 | |
| D | S-FM-6DB-4SL-FB | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | Precision Ball | 1000 lbs. to 2999 lbs. | 1600 lbs. | 2 1/2" | - | - | $494.95 | |

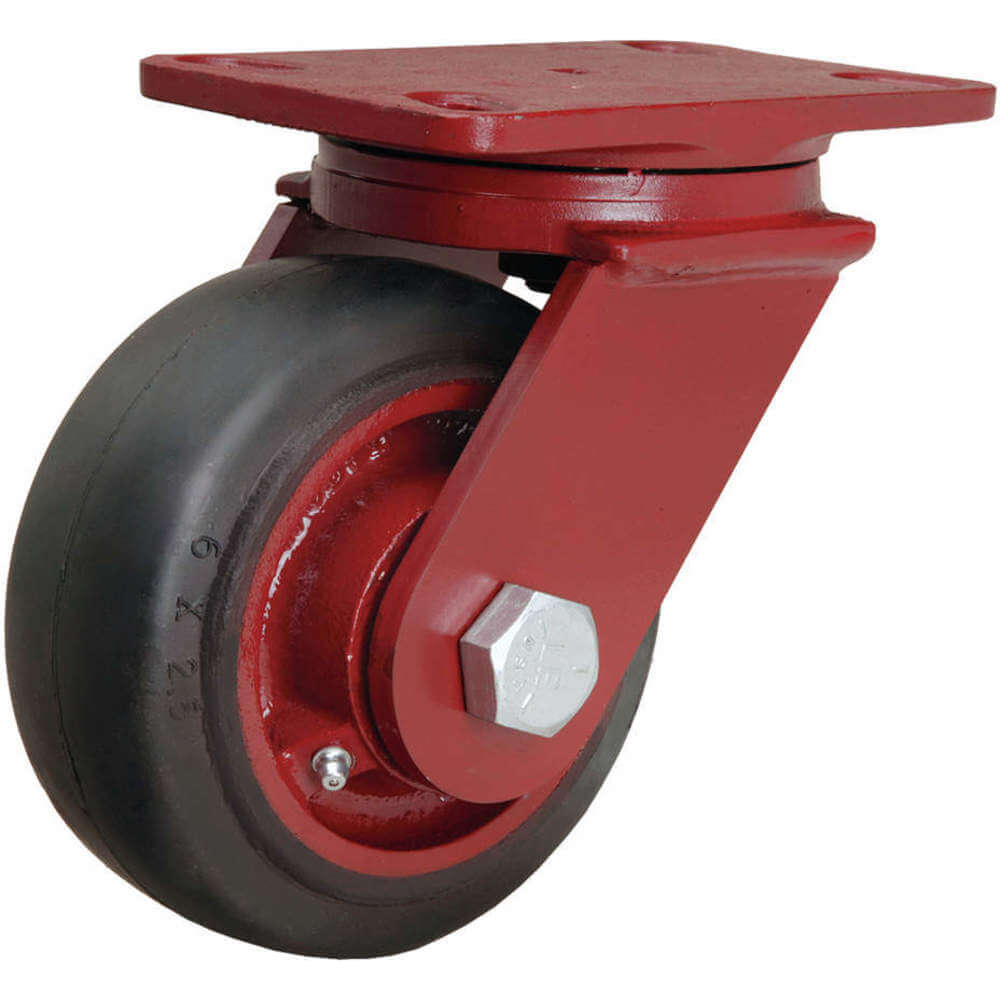

| E | S-FM-6RB-4SL-FB | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | Precision Ball | 300 lbs. to 999 lbs. | 540 lbs. | 2 1/2" | - | - | $403.65 | |
| F | S-FM-8DB-4SL-IB | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | Precision Ball | 1000 lbs. to 2999 lbs. | 2000 lbs. | 2 1/2" | A | Polyurethane | $558.98 | |
| G | S-FM-8RB-4SL-FB | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | Precision Ball | 300 lbs. to 999 lbs. | 670 lbs. | 2 1/2" | A | Rubber | $465.49 |
