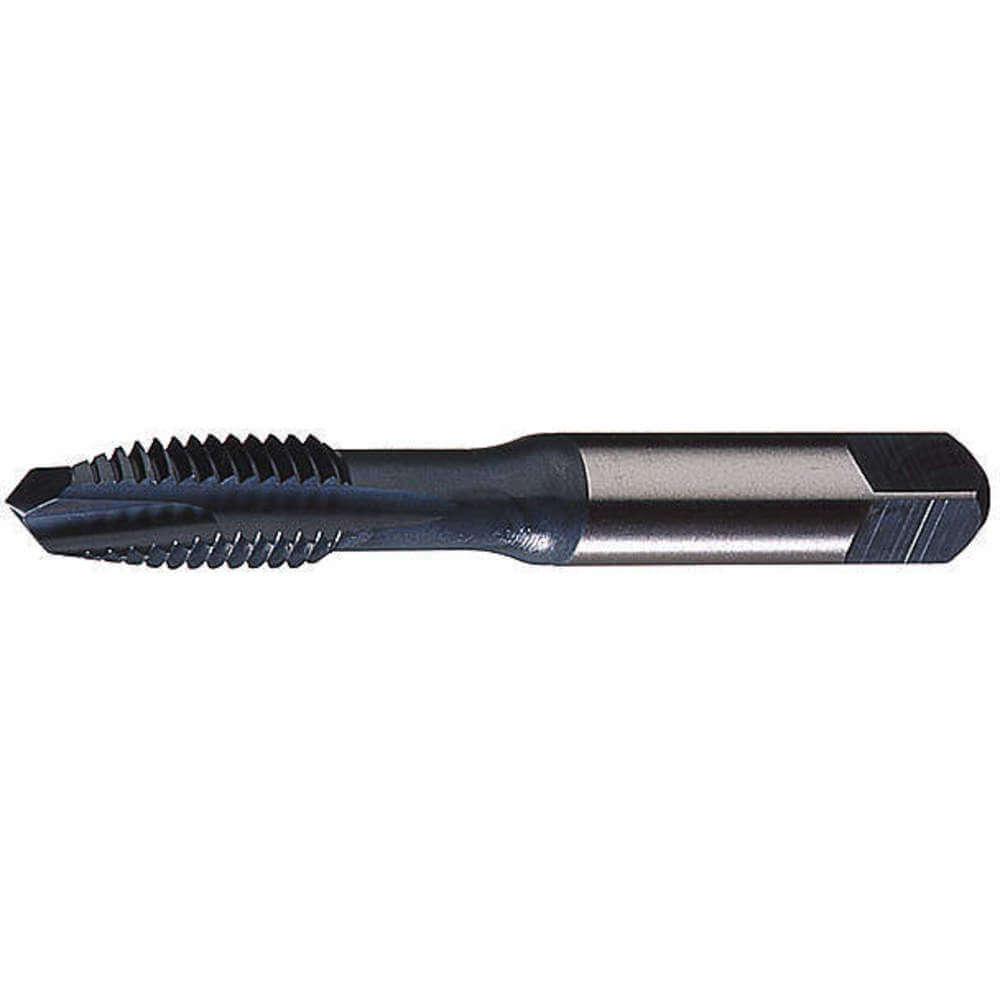

| Item | Spiral Flute Tap |
|---|---|
| 55% Thread Drill Size | I |
| 65% Thread Drill Size | 17/64" |
| 75% Thread Drill Size | F |
| Class Of Fit | Class 2B |
| Drill Bit Size | F |
| Extended Neck | Yes |
| Finish | Black Oxide |
| Helix Angle | 40° |
| List Number | B101 |
| Material | Metal |
| Measurement System | Fractional Inch |
| Number Of Flutes | 3 |
| Overall Length | 2 23/32" |
| Pitch Diameter Limits | H3 |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Shank Dia. | 5/16" |
| Shank Length | 1 19/32" |
| Shank Type - Machining | Straight |
|---|---|
| Spiral Direction | Right Hand |
| Square Size | 0.238" |
| Standards | Uscti Table 302A |
| Tap Chamfer | Semi Bottoming |
| Tap Finish | Black Oxide |
| Tap Material | Powdered Metal |
| Tap Shank Standard | Uscti Table 302A |
| Tap Style | Spiral Flute |
| Tap Thread Size | 5/16"-18 |
| Tap Type | Bottoming |
| Thread Direction | Right Hand |
| Thread Length | 11/16" |
| Thread Limit | H3 |
| Thread Limit / Class Of Fit | H3, 2B |
| Thread Size | 5/16"-18 |
| Thread Standard | UNC |
| Thread Type | Coarse |
| Threads Per Inch | 18 |
| Height (cm) | 1 |
|---|---|
| Length (cm) | 9 |
| Width (cm) | 1.2 |
| HS Code | 8207406000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.0023 |
| Style | Model | Thread Size | 75% Thread Drill Size | Thread Length | Overall Length | Tap Chamfer | Shank Dia. | Thread Standard | Tap Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 330310 | #8-32 | 3.4 mm | 3/8" | 2 1/8" | Plug | 5/64" | UNC | HSS E | $32.40 | |
| A | 330311 | #10-24 | #25 | 1/2" | 2 3/8" | Plug | 3/32" | UNC | HSS E | $32.40 | |
| A | 330312 | #10-32 | #21 | - | 2 3/8" | Plug | 3/32" | Unf | HSS E | $32.33 | |
| A | 330313 | 1/4"-20 | #7 | 5/8" | - | Plug | 1/8" | UNC | HSS E | $35.71 | |
| A | 330315 | 5/16"-18 | F | 11/16" | 2 23/32" | Plug | 5/32" | UNC | HSS E | $40.00 | |
| A | 330317 | 3/8"-16 | 0.3125" | 3/4" | 2 15/16" | Plug | 5/32" | UNC | HSS E | $45.21 |
