| Item | Socket Head Cap Screw |
|---|---|
| Class | Class 10.9 |
| Combined Material & Grade | Class 10.9 Steel |
| Dimensional Standards | Iso 7380-1 |
| Display Qty | 100 |
| Drive Size | 6 mm |
| Drive Type | Socket |
| Finish | Zinc Plated |
| Hardness | Rockwell C32-C39 |
| Head Dia. | 14 mm |
| Head Height | 4.4 mm |
| Head Type | Button |
| Length | 55 mm |
| Material | Steel |
| Material Grade/class | Class 10.9 |
| Material Type | Steel |
|---|---|
| Maximum Temperature | 302°F |
| Min. Tensile Strength | 1200 N/sq. mm |
| Minimum Temperature | -58°F |
| Minimum Thread Length | 40 mm |
| Screw Length | 55 mm |
| System Of Measurement | Metric |
| Temp. Range | -58°F to +302°F |
| Tensile Strength | 145000 psi |
| Thread Direction | Right Hand |
| Thread Length | 40 mm |
| Thread Size | M8 x 1.25 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
| Height (cm) | 2.54 |
|---|---|
| Length (cm) | 38.1 |
| Width (cm) | 17.78 |
|---|---|
| Weight (kg) | 2.133 |
| Style | Model | Thread Size | Thread Style | Drive Size | Head Dia. | Head Height | Thread Length | Min. Tensile Strength | Hardness | Pkg. Qty. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

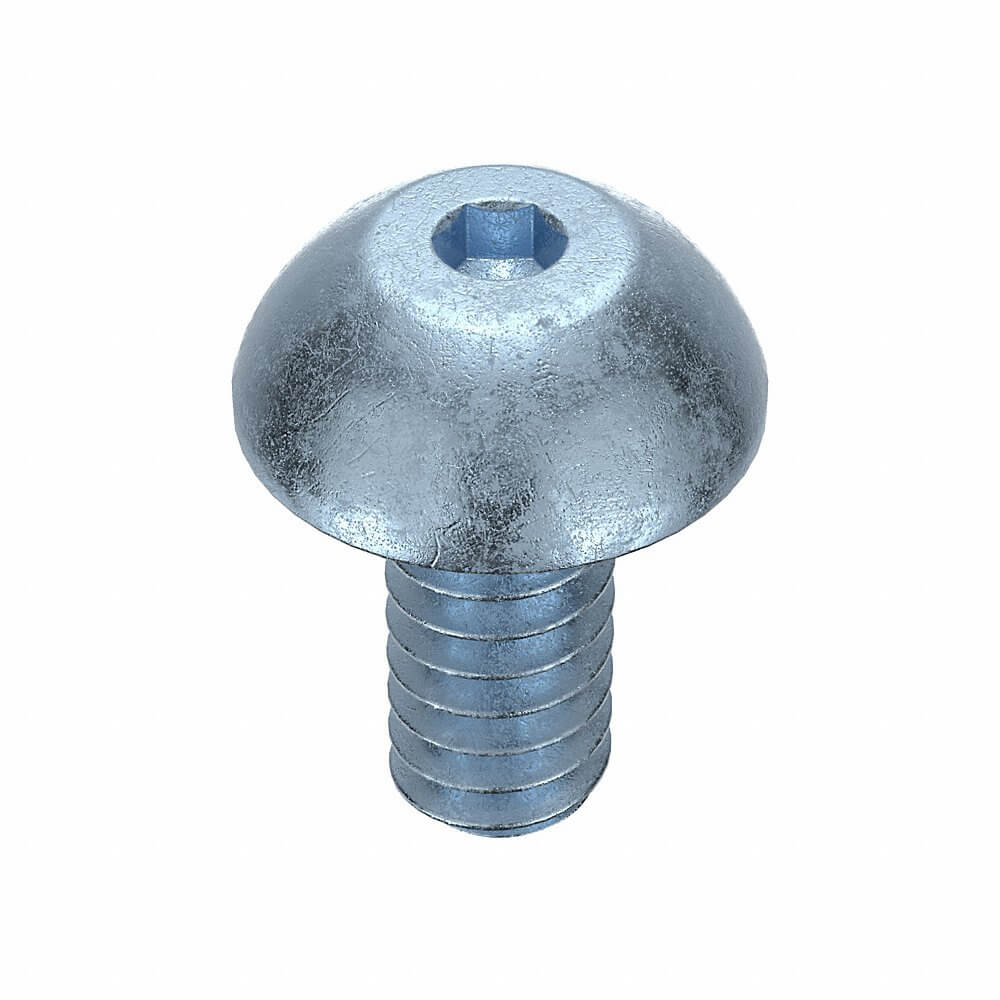

| A | U07151.011.0025 | #4-40 | Fully Threaded | 1/16" | 0.213" | 0.059" | 1/4" | 145000 psi | Rockwell C37-C44 | 100 | $43.70 | |

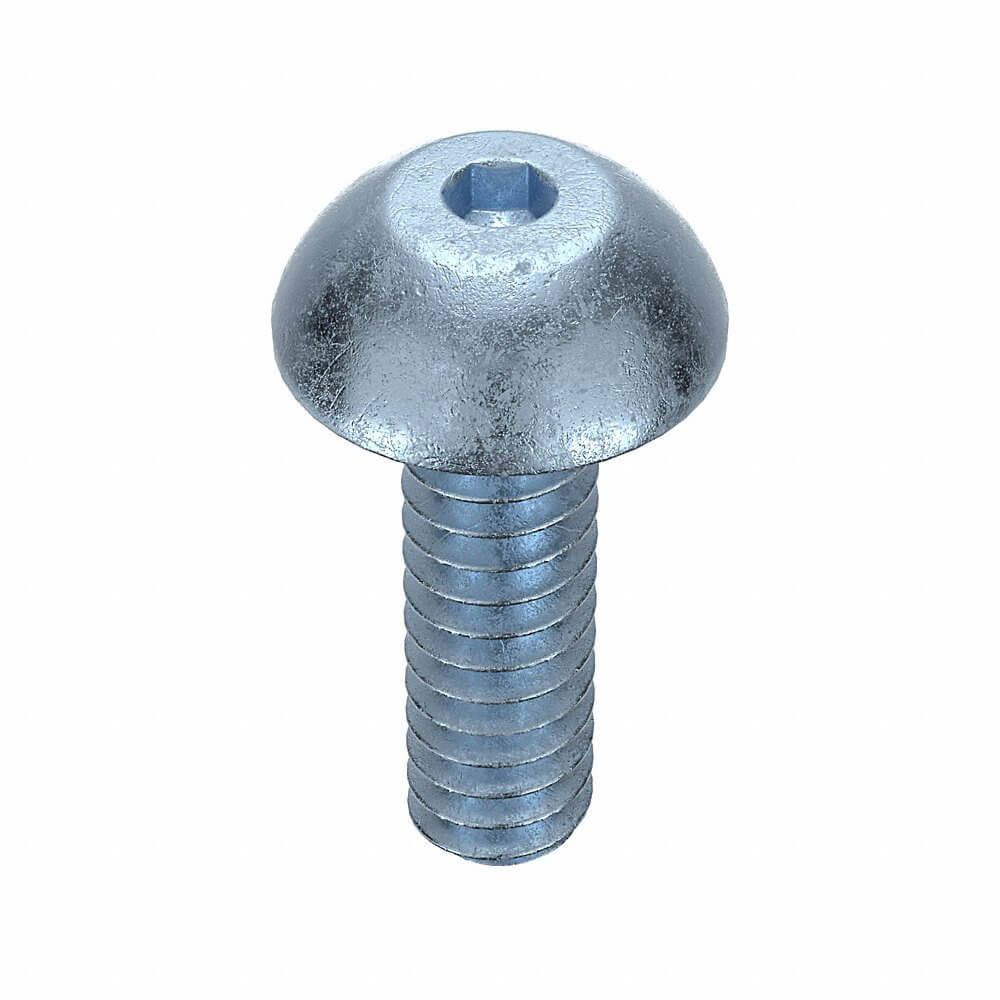

| B | U07151.011.0037 | #4-40 | Fully Threaded | 1/16" | 0.213" | 0.059" | 3/8" | 145000 psi | Rockwell C37-C44 | 100 | $38.00 | |

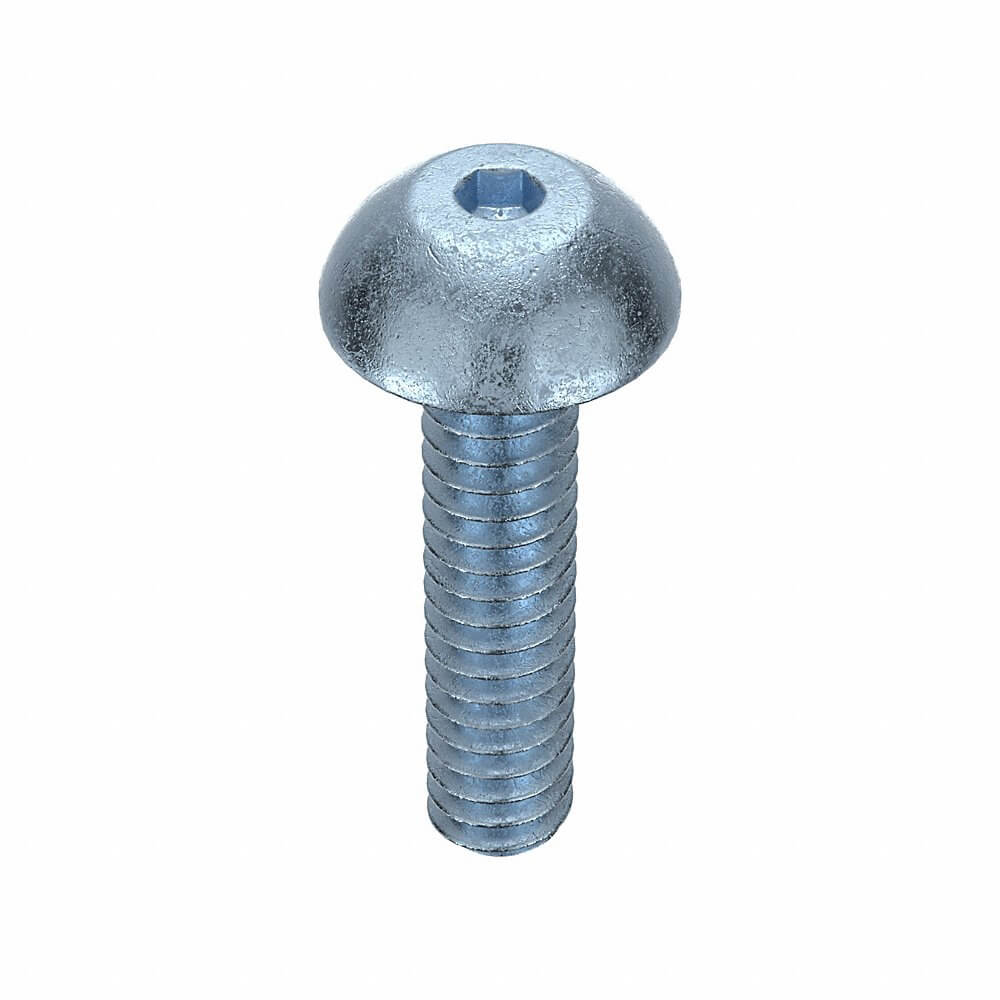

| C | U07151.011.0050 | #4-40 | Fully Threaded | 1/16" | 0.213" | 0.059" | 1/2" | 145000 psi | Rockwell C37-C44 | 100 | $38.87 | |

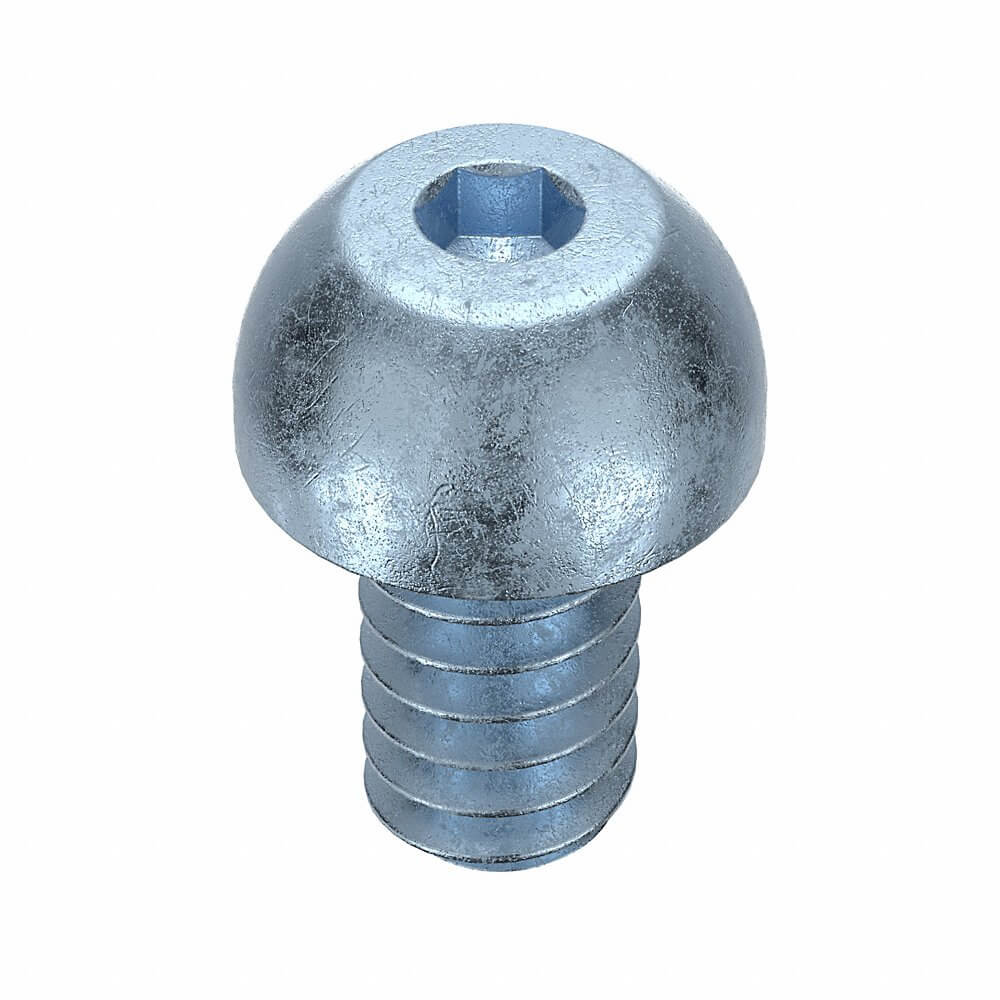

| D | U07151.013.0025 | #6-32 | Fully Threaded | 5/64" | 1/4" | 0.073" | 1/4" | 145000 psi | Rockwell C37-C44 | 100 | $52.51 | |

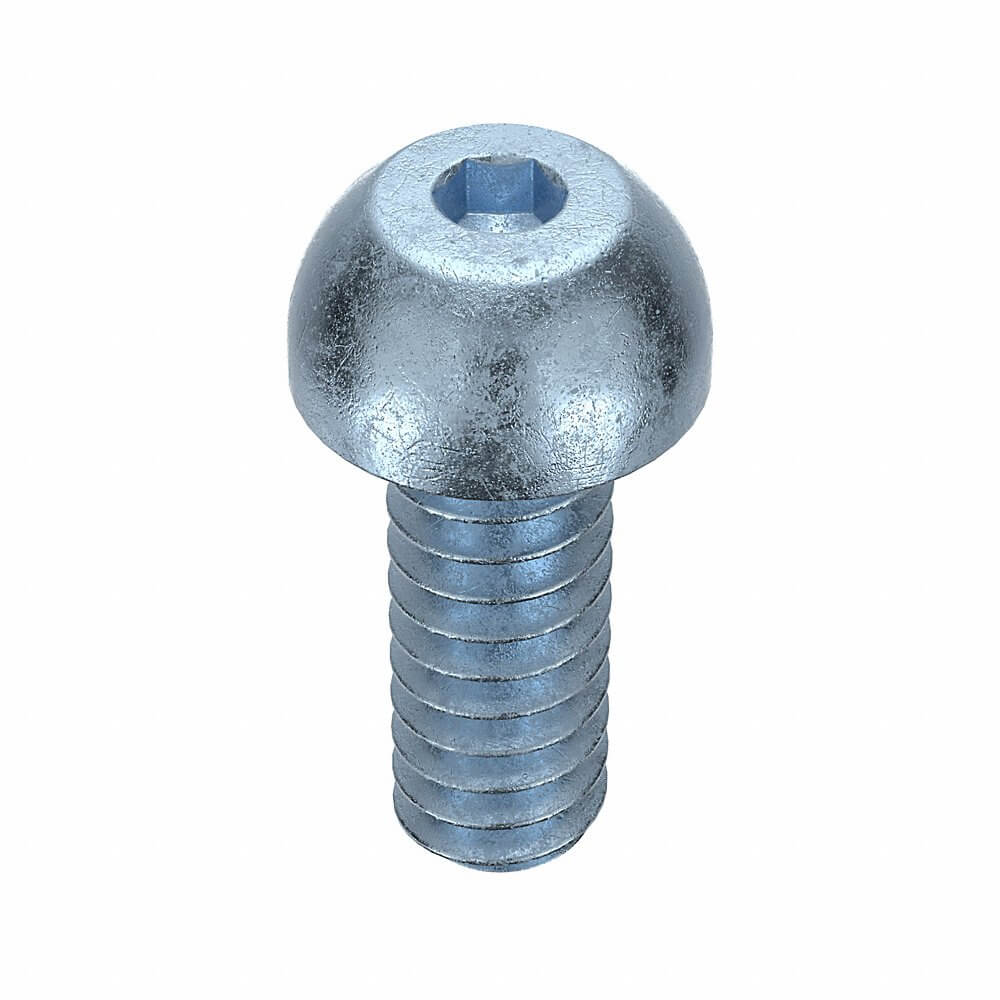

| E | U07151.013.0037 | #6-32 | Fully Threaded | 5/64" | 1/4" | 0.073" | 3/8" | 145000 psi | Rockwell C37-C44 | 100 | $46.30 | |

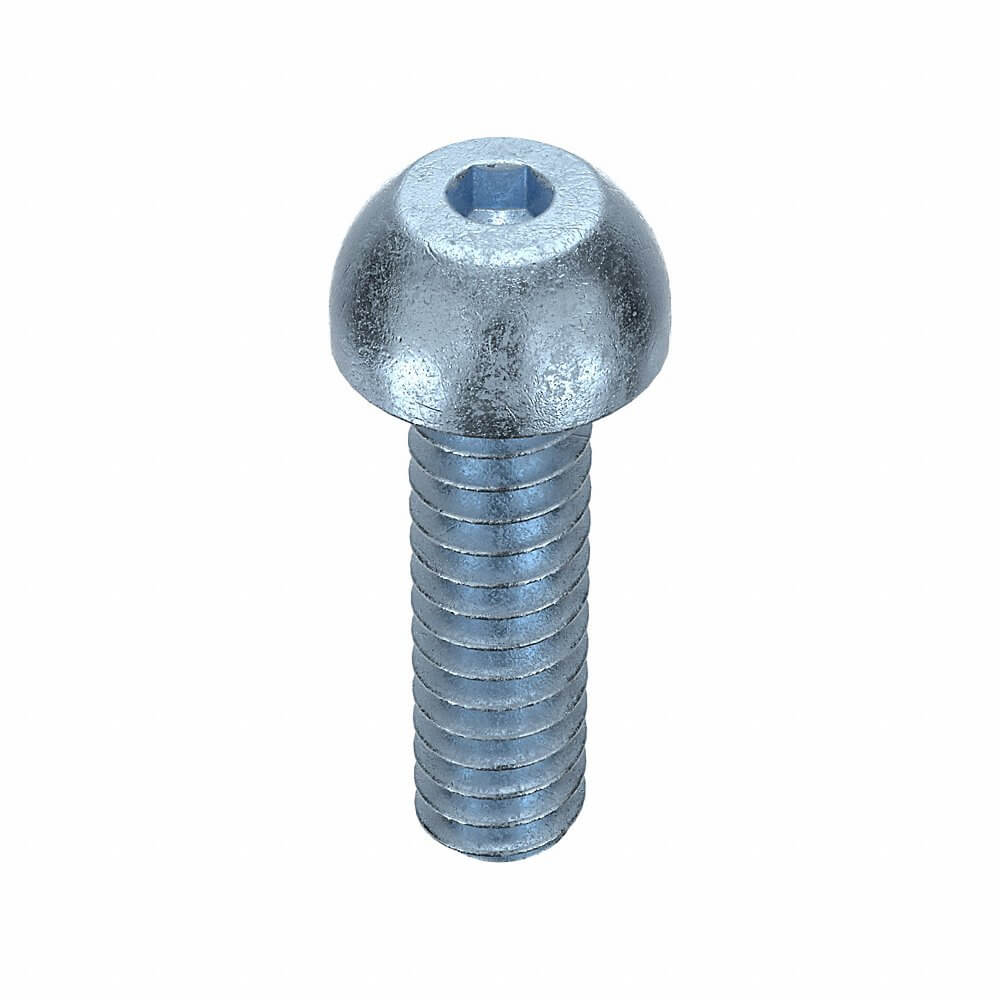

| F | U07151.013.0050 | #6-32 | Fully Threaded | 5/64" | 1/4" | 0.073" | 1/2" | 145000 psi | Rockwell C37-C44 | 100 | $43.03 | |

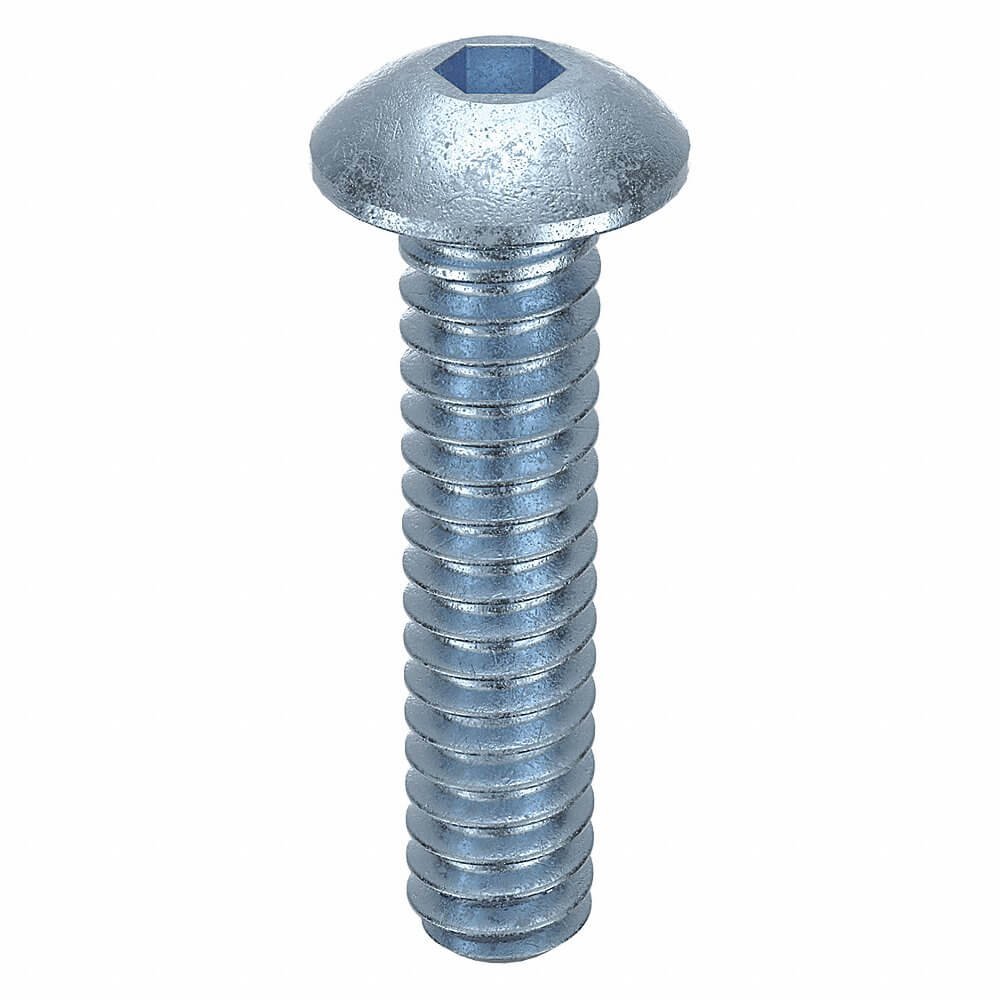

| G | U07151.013.0062 | #6-32 | Fully Threaded | 5/64" | 1/4" | 1/8" | 5/8" | 145000 psi | Rockwell C37-C44 | 100 | $52.04 |
