| Item | Push Button Control Station |
|---|---|
| Ac Contact Rating | 10A @ 600V |
| Contact Form | 2NO/2NC |
| Contact Rating | 10A @ 600V AC |
| Dc Contact Rating | 5A @ 24V |
| Enclosure Color | Cream |
| Enclosure Material | Thermoplastic |
| Ip Rating | IP66 |
| Mounting Orientation | Vertical |
| Nema Enclosure Rating | NEMA 4X |
| No. Of Operator | 2 , Black |
| Number Of Operators | 2 |
| Number Of Pilot Lights | 0 |
| Operator Action | (2) Momentary |
|---|---|
| Operator Configuration | 2 Flush Push Buttons |
| Operator Configuration Type | (2) Push Buttons |
| Operator Legend | No Legend |
| Operator Type | Push Button |
| Overall Depth | 3.02" |
| Overall Height | 5.03" |
| Overall Width | 3.06" |
| Panel Cutout Diameter | 22 mm |
| Product Type | Control Station |
| Push Button Type | Flush |
| Standards | Csa, Ul Listed |
| Height (cm) | 19.37 |
|---|---|
| Length (cm) | 18.73 |
| Width (cm) | 12.7 |
| HS Code | 8536490080 |
|---|---|
| Weight (kg) | 0.9 |
| Style | Model | Number Of Operators | Contact Form | Enclosure Material | Operator Color | Contact Rating | Action Type | Ip Rating | Number Of Pilot Lights | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

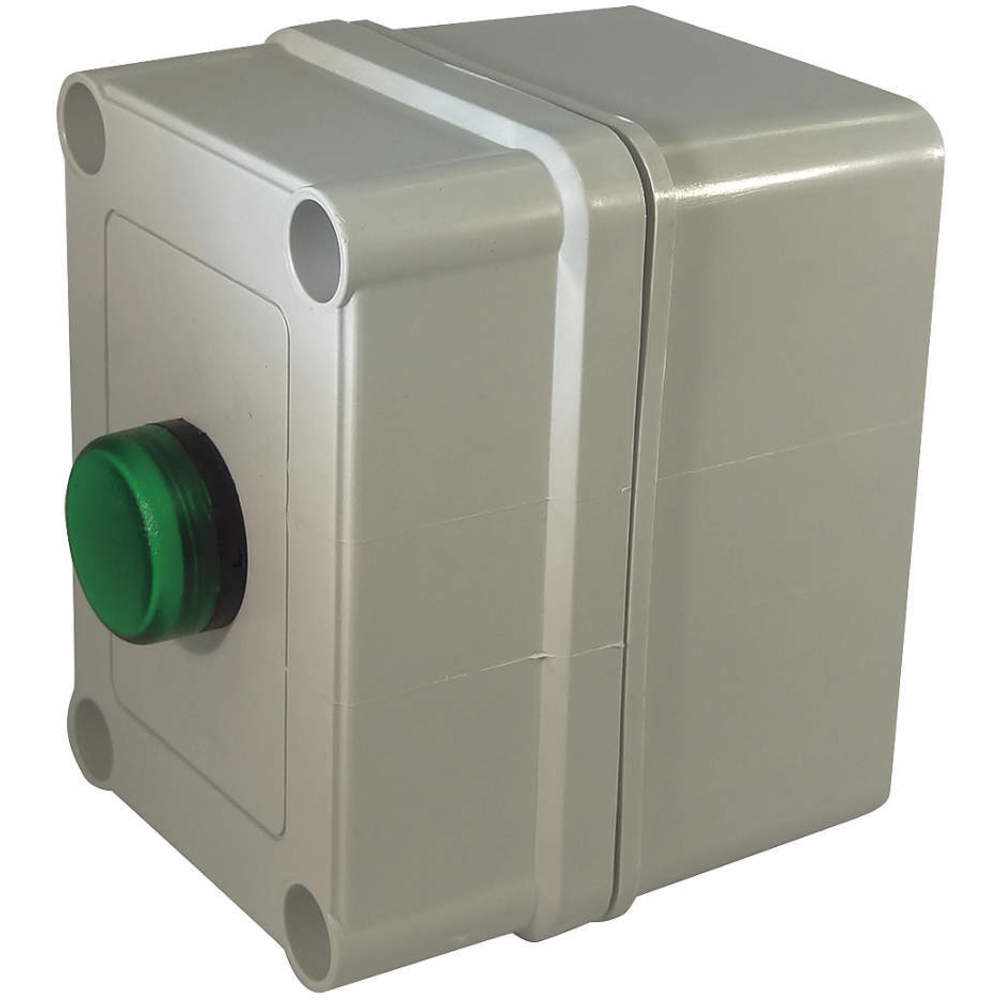

| A | GE-PBS01 | 1 | 1NC | Thermoplastic | Green | 10A @ 600V AC | NC | IP66 | - | $203.50 | |

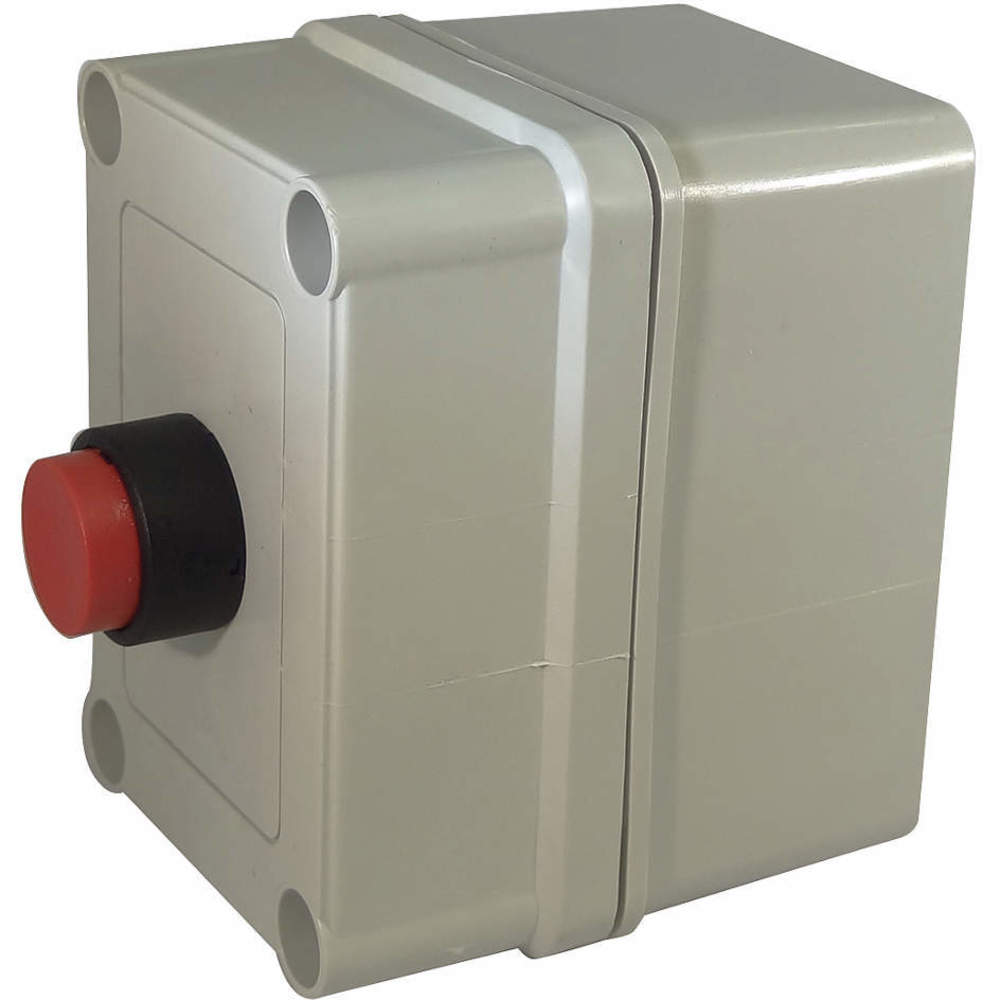

| B | GE-PBS02 | 1 | 1NC | Thermoplastic | Red | 10A @ 600V AC | NC | IP66 | - | $203.50 | |

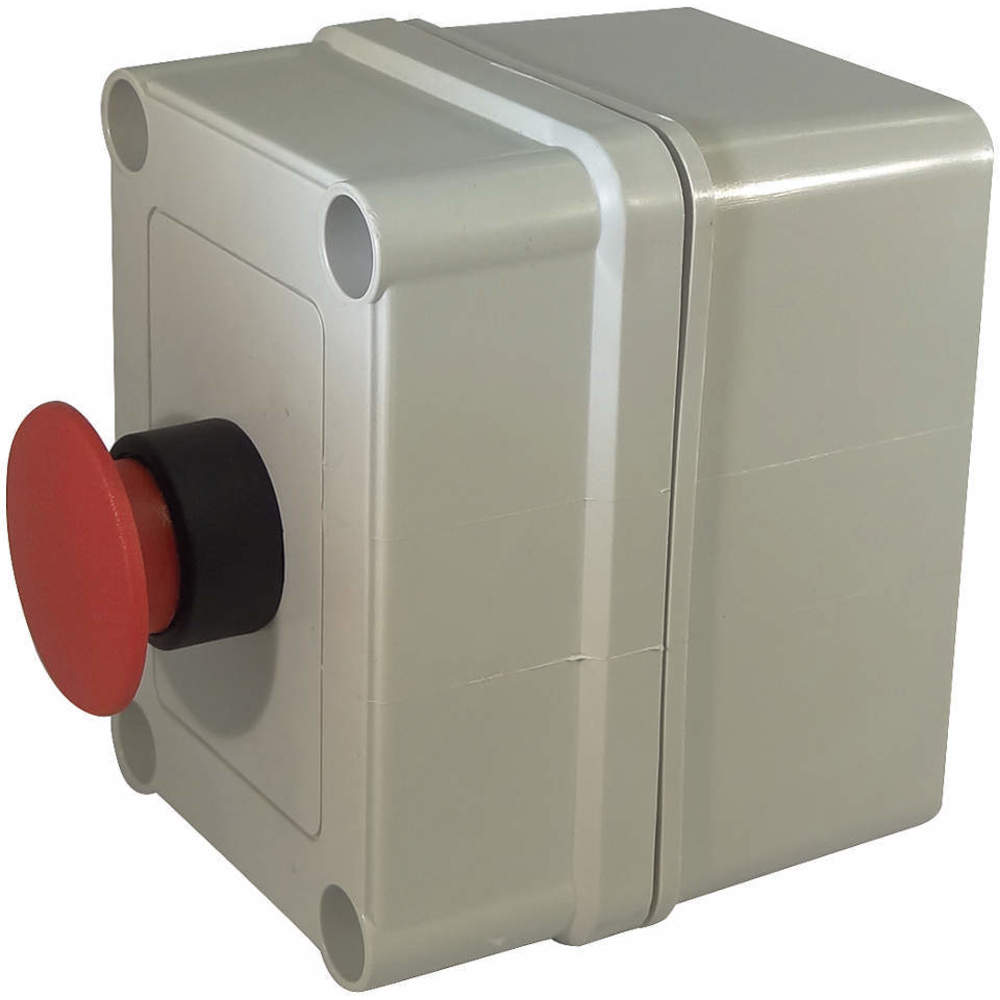

| C | GE-PBS03 | 1 | 1NC | Thermoplastic | Red | 10A @ 600V AC | NC | IP66 | - | $220.77 | |

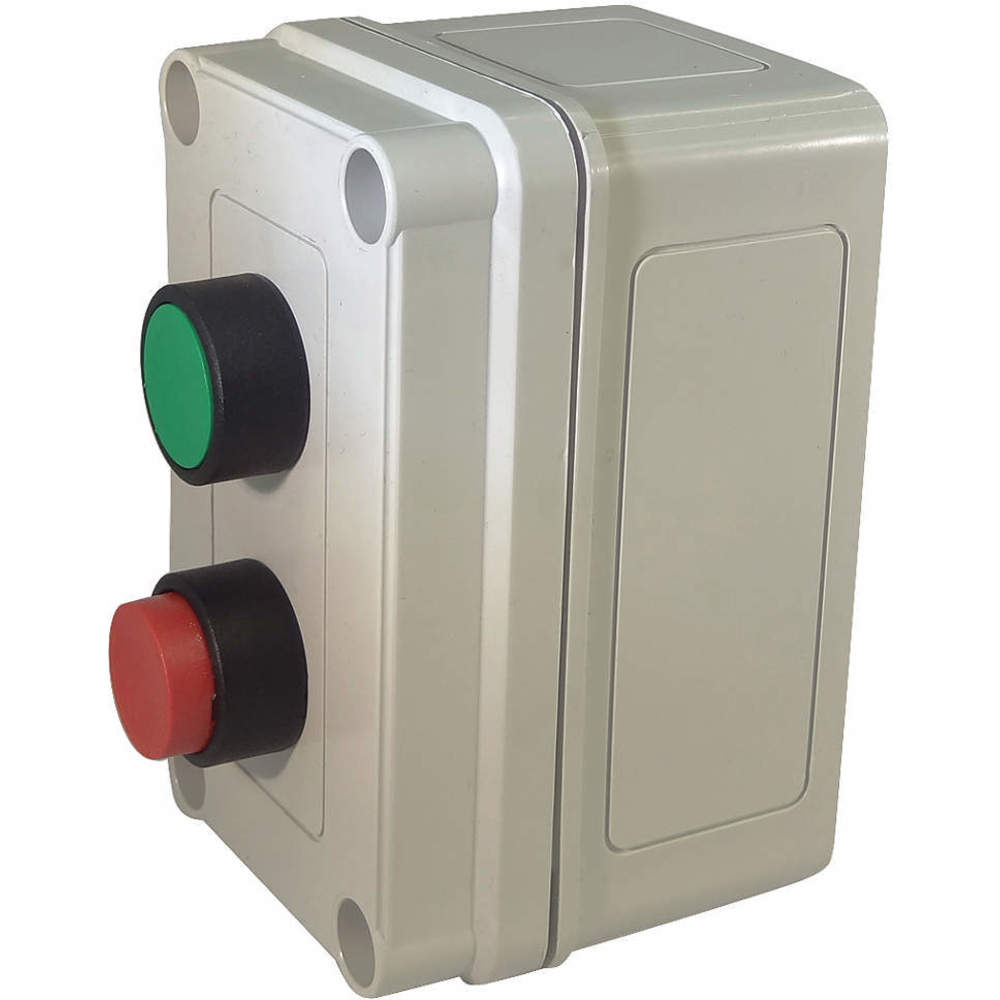

| D | GE-PBS18 | 2 | 1NO/1NC | Thermoplastic | Green, Red | 10A @ 600V AC | - | IP66 | - | $295.10 | |
| E | GE-PBS19 | 2 | 1NO/1NC | Thermoplastic | - | 10A @ 600V AC | - | IP66 | - | $286.13 | |
| E | GE-PBS21 | 2 | 2NO/2NC | Thermoplastic | - | 10A @ 600V AC | - | IP66 | - | $407.30 | |
| E | GE-PBS22 | 2 | 2NO/2NC | Thermoplastic | - | 10A @ 600V AC | - | IP66 | - | $422.69 |
