| Item | Contactor |
|---|---|
| Auxiliary Contacts Included | 1NO |
| Coil Voltage | 120V AC |
| Contactor Style | NEMA |
| Contactor Type | NEMA |
| Embedded Surge Suppressor | No |
| Enclosure Nema Rating | No Enclosure |
| Enclosure Type | Open |
| Full Load Amps | 90A |
| Full Load Inductive Amps | 90A |
| Height | 8.81" |
| Horsepower @ Single Phase | 15 hp |
| Horsepower @ Single Phase - 120v Ac | 7 1/2 hp |
| Horsepower @ Single Phase - 240v Ac | 15 hp |
| Horsepower @ Three Phase - 208v Ac | 25 hp |
| Horsepower @ Three Phase - 600v Ac | 50 hp |
| Hp @ 1 Phase - 120v | 7 1/2 hp |
| Hp @ 1 Phase - 240v | 15 hp |
| Hp @ 3 Phase - 208v | 25 hp |
| Hp @ 3 Phase - 240v | 30 hp |
| Hp @ 3 Phase - 480v | 50 hp |
| Hp @ 3 Phase - 575v | 50 hp |
| Hz | 50/60 Hz |
| Includes Auxiliary Contacts | Yes |
|---|---|
| Inductive Full Load Amps | 90A |
| Main Power Pole Contact Form | 3NO |
| Maximum Voltage Rating | 600V AC |
| Mounting Hole Dia. | 1/4" |
| Mounting Hole Distance | 7 3/4" |
| Mounting Hole Width | 4 1/2" |
| Nema Enclosure Material | Not Applicable |
| Nema Size | 3 |
| Nominal Coil Voltage @ 60hz | 120V AC |
| Number Of Auxillary Contacts | 1 |
| Number Of Poles | 3 |
| Overall Depth | 8 1/2" |
| Overall Height | 6 1/2" |
| Overall Width | 6.62" |
| Phase | Three |
| Resistance Properties | Temperature Resistant |
| Resistive Full Load Amps | 100A |
| Reversible | No |
| Reversing Capability | Non-reversing |
| Series | CR305 Series |
| Width | 6 1/2" |
| standard | CULUS, UL LISTED, WEEE B2C/B2B |
| Height (cm) | 19.94 |
|---|---|
| Length (cm) | 34.94 |
| Width (cm) | 24.89 |
| HS Code | 8536490080 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 7.3125 |
| Style | Model | Nema Size | Full Load Amps | Hz | Inductive Full Load Amps | Resistive Full Load Amps | Coil Voltage | Hp @ 3 Phase - 240v | Hp @ 3 Phase - 480v | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | CR305B002 | - | 18A | 50/60 Hz | 18A | 20A | 120V AC | 3 hp | 5 hp | $604.89 | |
| A | CR305C002 | 1 | 27A | 50/60 Hz | 27A | 30A | 120V AC | 7 1/2 hp | 10 hp | $687.35 | |

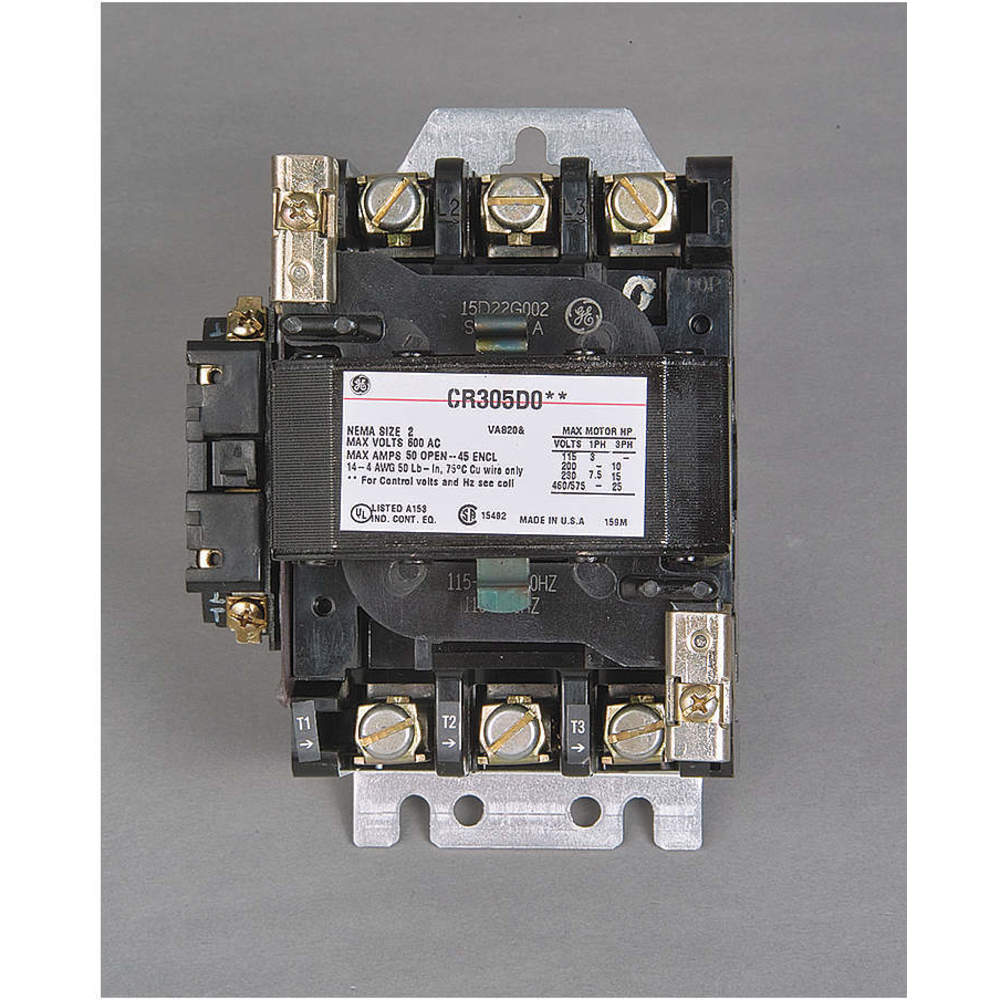

| B | CR305D002 | 2 | 45A | 50/60 Hz | 45A | 50A | 120V AC | 15 hp | 25 hp | $1,233.98 | |
| C | CR305F002 | 4 | 135A | 50/60 Hz | 135A | 150A | 120V AC | 50 hp | 100 hp | $4,162.06 | |

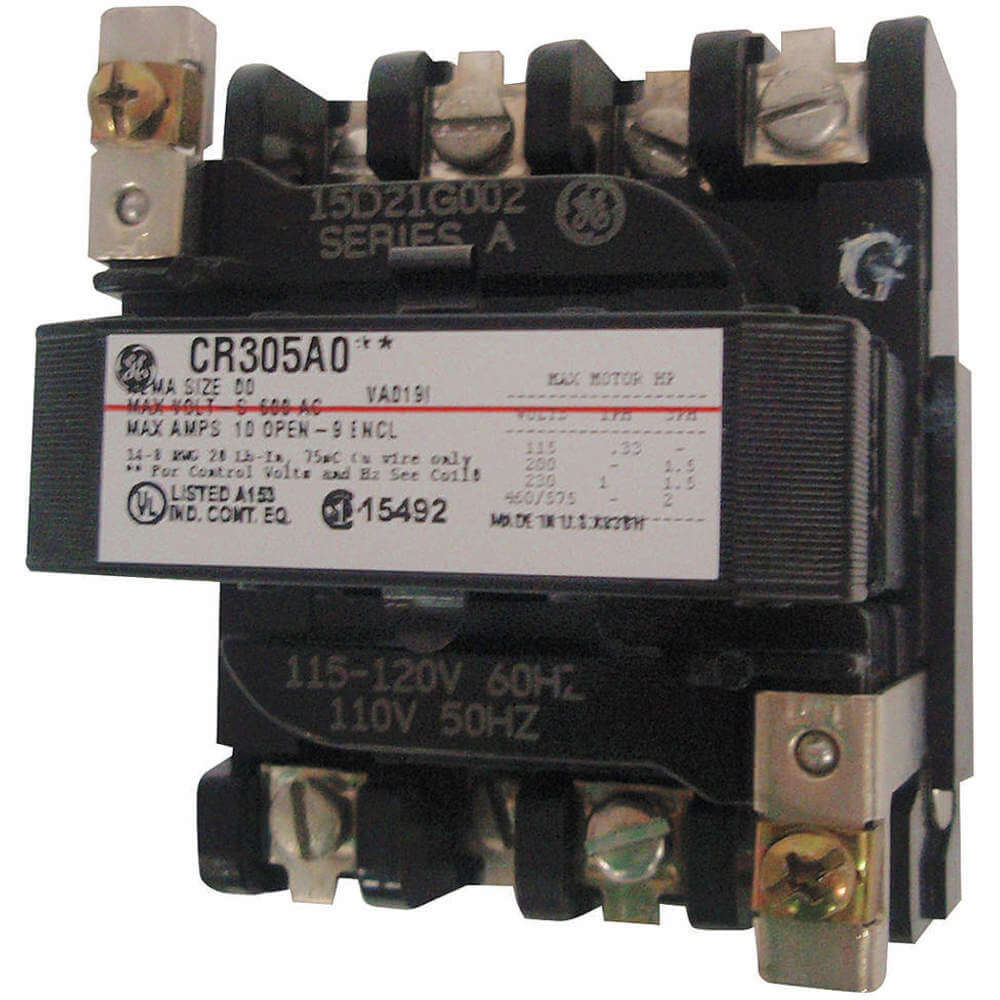

| D | CR305A002 | - | 9A | 60 Hz | 9A | 10A | 120V AC | 1 1/2 hp | 2 hp | $331.80 | |
| E | CR305B003 | - | 18A | 50/60 Hz | 18A | 18A | 240V AC | 3 hp | - | $582.27 | |

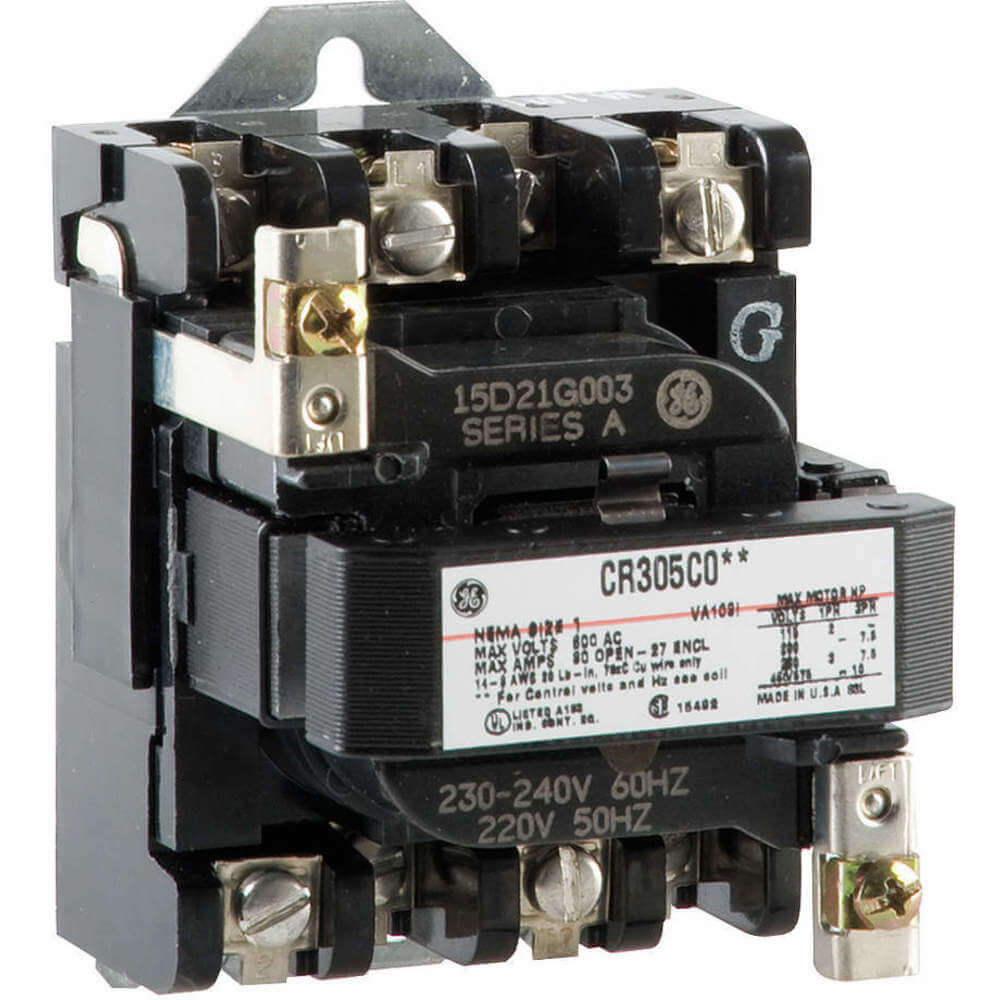

| F | CR305C003 | 1 | 27A | 50/60 Hz | 27A | 27A | 240V AC | 7 1/2 hp | 10 hp | $688.34 |
