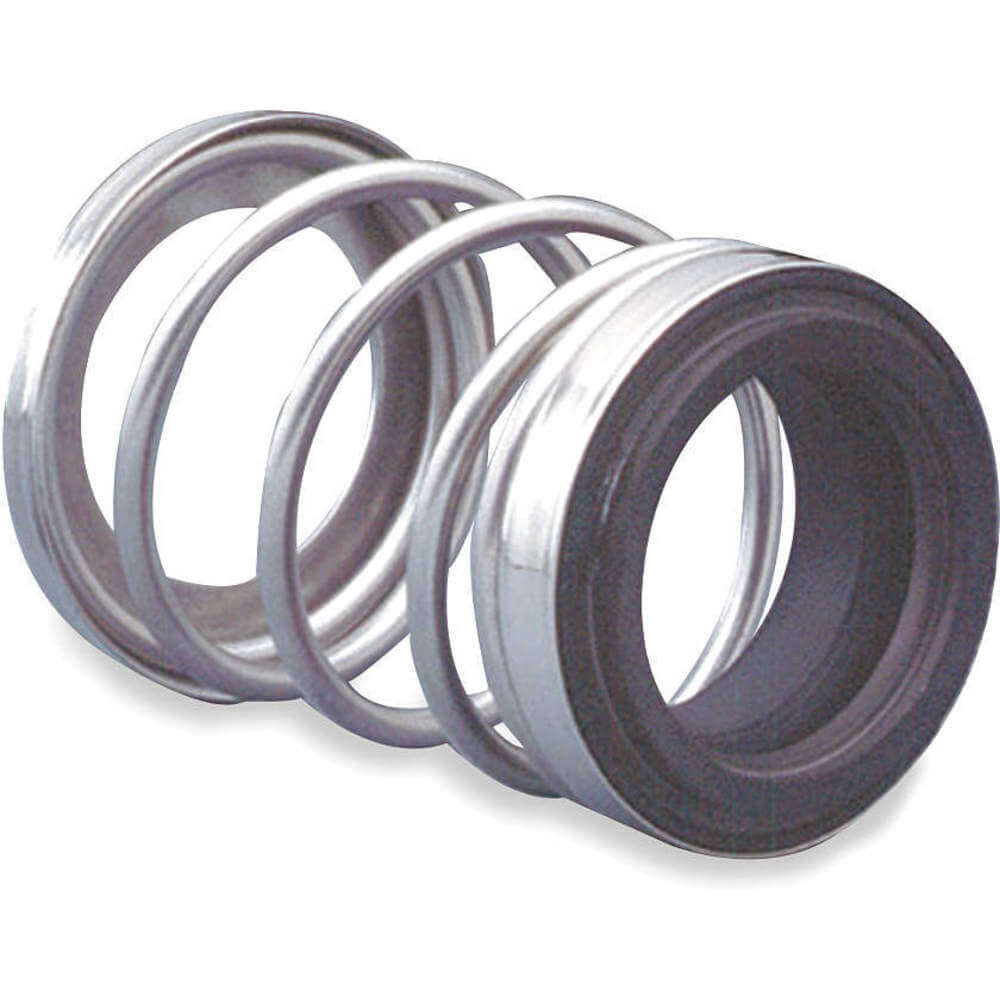

| Item | Replacement Pump Shaft Seal |
|---|---|
| Compatible With Media Type | Cooking Oil |
| For Shaft Diameter | 3/4" |
| Gasket Material | Rubber |
| Material Content Code | BCFJF |
| Max. Shut Off Pressure | 250 psi |
| Max. Temp. | 400°F |
| Media Type | Cooking Oil |
| Min. Temp. | -40°F |
| Nominal Working Length | 0.718" |
| Nominal Working Length (in.) | 0.718" |
| Replacement For | 5P389 |
| Replaces Grainger Seal | 5P389 |
| Seal Type Designation | 21 |
| Seat Bore | 1 3/8" |
|---|---|
| Seat Thickness | 0.406" |
| Shaft Seal Type | Mechanical Shaft Seal |
| Shaft Size | 3/4" |
| Shaft Size (in.) | 3/4" |
| Shut Off Pressure (maximum) | 250 psi |
| Spring Material | Stainless Steel |
| Spring Type | Single Spring |
| Standard Industry Seal Number | ISO 9001, TS16949 |
| Standards | ISO 9001, TS16949 |
| Temp. Range | -40°F to +400°F |
| Type | Mechanical |
| Working Length | 18/25" |
| Height (cm) | 6.35 |
|---|---|
| Length (cm) | 3.81 |
| Width (cm) | 4.06 |
| HS Code | 8484200000 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 0.045 |
| Style | Model | Max. Temp. | Material Content Code | Media Type | Nominal Working Length | Seat Bore | Max. Shut Off Pressure | Gasket Material | Min. Temp. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

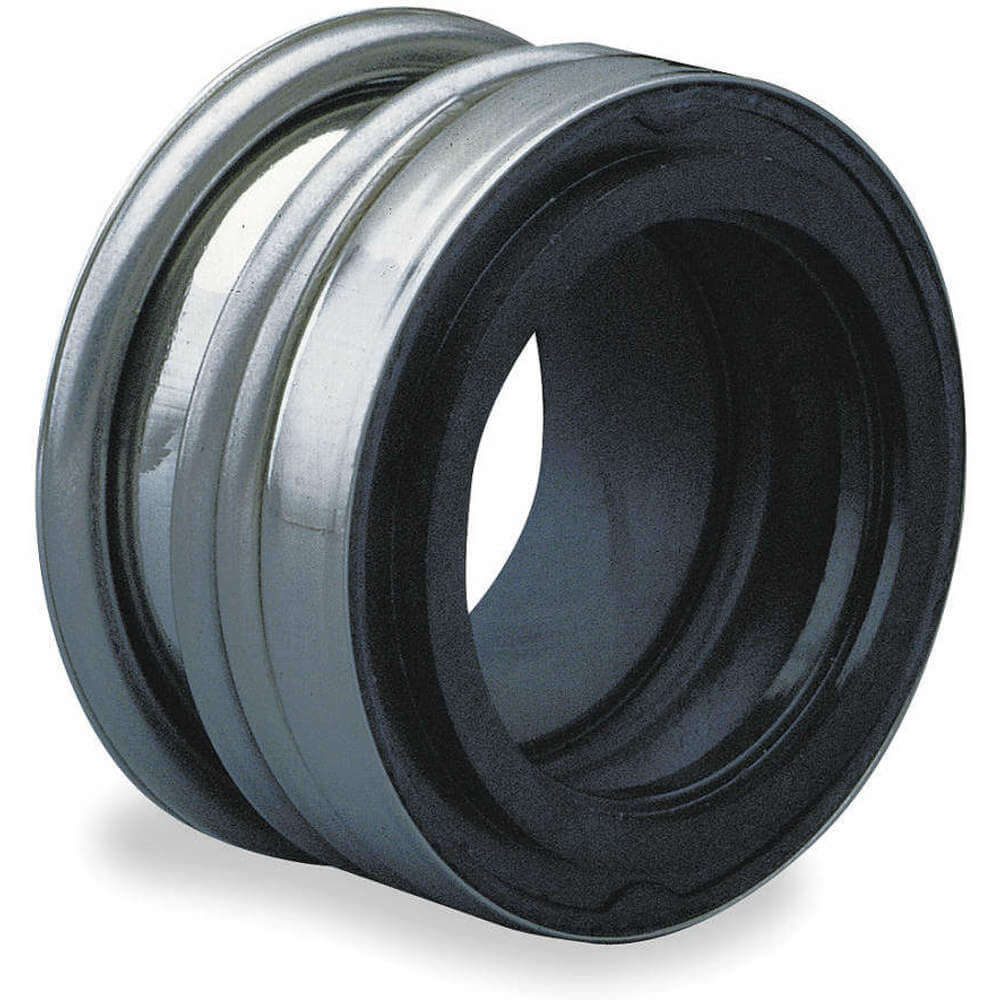

| A | 16-075-10 | 205°F | VCFJF | Water | 0.718" | 1 3/8" | 150 psi | Rubber | -40°F | $46.26 | |
| A | 16-075-04 | 205°F | BMFJF | Water | 0.718" | 1 3/8" | 150 psi | Rubber | -40°F | $21.49 | |
| B | 21-075-99 | 400°F | VCFJF | Cooking Oil | 7/8" | 1 3/8" | 250 psi | Rubber | -40°F | $60.47 | |
| A | 16-075-03 | 205°F | BMFJF | Water | 0.718" | 1 3/8" | 150 psi | Rubber | -40°F | $13.26 | |
| A | 16-075-07 | 205°F | BMFJF | Water | 0.812" | 1 3/7" | 150 psi | Rubber | -40°F | $14.27 |
