| Item | Magnetic Drive Pump |
|---|---|
| Amps | 2.4-2.3/1.15A |
| Application | Acids, Caustics, Di-Water, Plating Solutions |
| Bearing Type | Thrust, Radial |
| Bushing Material | Carbon |
| Chemical Compatibility | Deionized Water |
| Compatible Chemicals | Deionized Water |
| Design | Centrifugal |
| Discharge Pipe Size | 1" |
| Discharge Pipe Type | MNPT |
| Discharge Port Size | 1" |
| Discharge Port Type | MNPT |
| Feet Of Head (maximum) | 45 ft. |
| Flow Rate @ 1 Ft. | 61 GPM |
| Flow Rate @ 15 Ft Of Head (maximum) | 58 GPM |
| Flow Rate @ 18 Ft Of Head (maximum) | 55 GPM |
| Flow Rate @ 18 Ft. | 55 GPM |
| Flow Rate @ 24 Ft Of Head (maximum) | 50 GPM |
| Flow Rate @ 24 Ft. | 50 GPM |
| Flow Rate @ 3 Ft Of Head (maximum) | 61 GPM |
| Flow Rate @ 3 Ft. | 61 GPM |
| Flow Rate @ 40 Ft Of Head (maximum) | 30 GPM |
| Flow Rate @ 40 Ft. | 30 GPM |
| Flow Rate @ 50 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 50 Ft. | 0 GPM |
| Flow Rate @ 6 Ft Of Head (maximum) | 61 GPM |
| Flow Rate @ 6 Ft. | 61 GPM |
| Flow Rate @ 9 Ft Of Head (maximum) | 61 GPM |
| Flow Rate @ 9 Ft. | 61 GPM |
| Full Load Amps | 2.4-2.3/1.15A |
| Gasket Material | Viton |
| Height | 8.3" |
| Horsepower (maximum) | 3/4 hp |
| Hp | 3/4 hp |
| Impeller Material | Polypropylene |
| Inlet Size | 1 1/2" |
| Inlet Type | FNPT |
| Intake Pipe Size | 1 1/2" |
| Intake Pipe Type | FNPT |
| Length | 17.3" |
|---|---|
| Manufacturers Warranty Length | 5 yrs. |
| Max. Discharge Pressure | 19.5 psi |
| Max. Flow Rate @ 15 Ft. | 58 GPM |
| Max. Fluid Temp. | 180°F |
| Max. Operating Pressure | 80 psi |
| Max. Outlet Pressure | 19.5 psi |
| Max. Specific Gravity | 1.8 |
| Max. Viscosity | 100 cPS |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Type | Horizontal |
| Motor Speed (maximum) | 3450 RPM |
| Motor Type | Induction |
| Mounting | Horizontal |
| Mounting Location | Open Air |
| Mounting Orientation | Horizontal |
| Operating Pressure | 19.5 psi |
| Operating Pressure (maximum) | 19.5 psi |
| Outlet Size | 1" |
| Outlet Type | MNPT |
| Overall Height | 8.3" |
| Overall Length | 17.3" |
| Overall Width | 7 1/2" |
| Phase | 3 |
| Priming | Manual |
| Rpm | 3450 RPM |
| Self Priming | Manual |
| Series | DB8 Series |
| Specific Gravity | 1.8 |
| Suction Port | 1 1/2" FNPT |
| Temp (f) @ 0 Psig | 180°F |
| Temp (f) @ 10 Psig | 180°F |
| Temp (f) @ 20 Psig | 180°F |
| Temp (f) @ 30 Psig | 180°F |
| Type | Straight |
| Viscosity (maximum) | 100 cPS |
| Voltage | 208-230/460V AC |
| Warranty | 5 yrs. |
| Width | 7 1/2" |
| Height (cm) | 33.02 |
|---|---|
| Length (cm) | 57.15 |
| Width (cm) | 32.51 |
| HS Code | 8413810040 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 18.3105 |
| Style | Model | Hp | Voltage | Max. Outlet Pressure | Flow Rate @ 3 Ft. | Flow Rate @ 6 Ft. | Flow Rate @ 9 Ft. | Flow Rate @ 24 Ft. | Flow Rate @ 40 Ft. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | DB5.5P-M622 | 1/2 hp | 115V AC | 12.6 psi | 30 GPM | 30 GPM | 28 GPM | 17 GPM | 0 GPM | $901.74 | |
| A | DB5.5P-E-M622 | 1/2 hp | 115V AC | 12.6 psi | 30 GPM | 30 GPM | 28 GPM | 17 GPM | 0 GPM | $925.11 | |
| A | DB5.5P-M617 | 1/2 hp | 230V AC | 12.6 psi | 30 GPM | 30 GPM | 28 GPM | 17 GPM | 0 GPM | $881.85 | |
| A | DB5.5P-E-M617 | 1/2 hp | 230V AC | 12.6 psi | 30 GPM | 30 GPM | 28 GPM | 17 GPM | 0 GPM | $881.85 | |

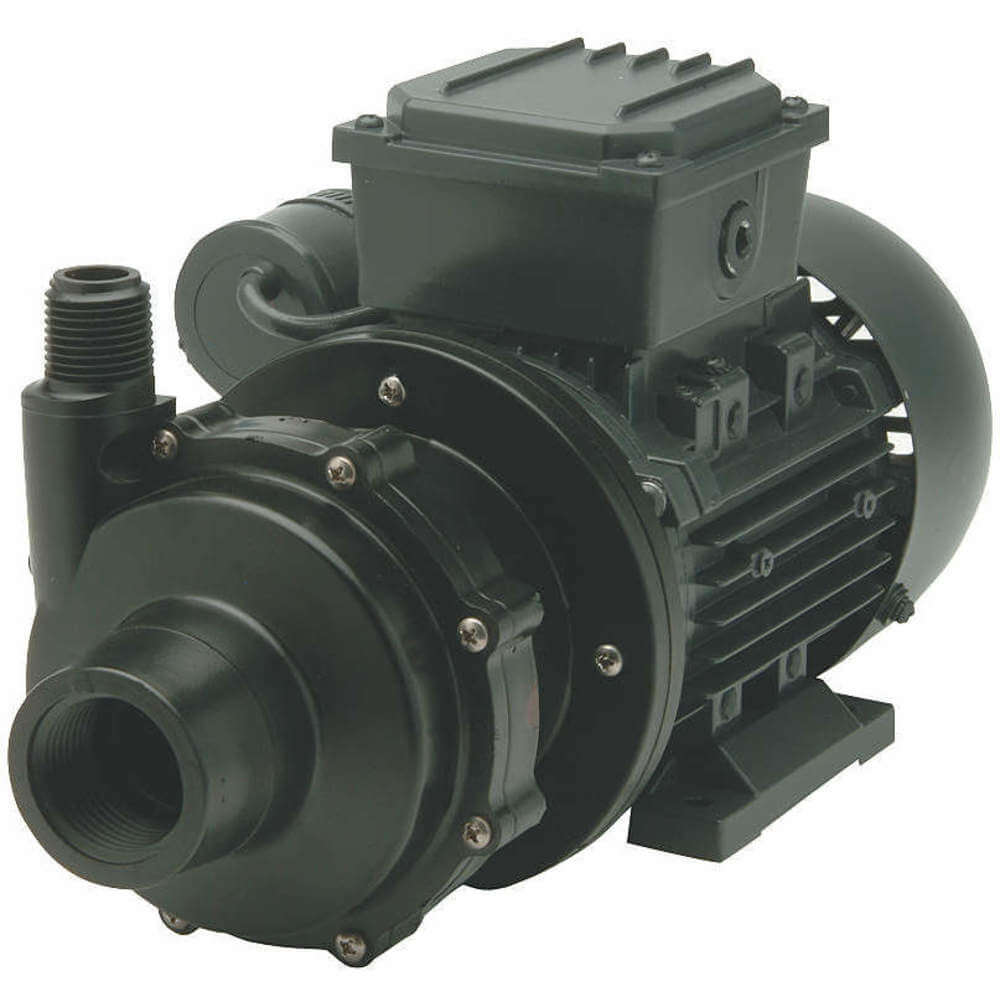

| B | DB5.5V-T-M622 | 1/2 hp | 115V AC | 12.6 psi | 30 GPM | 30 GPM | 28 GPM | 17 GPM | 0 GPM | $1,161.61 | |
| B | DB5.5V-T-M617 | 1/2 hp | 230V AC | 12.6 psi | 30 GPM | 30 GPM | 28 GPM | 17 GPM | 0 GPM | $1,077.79 | |

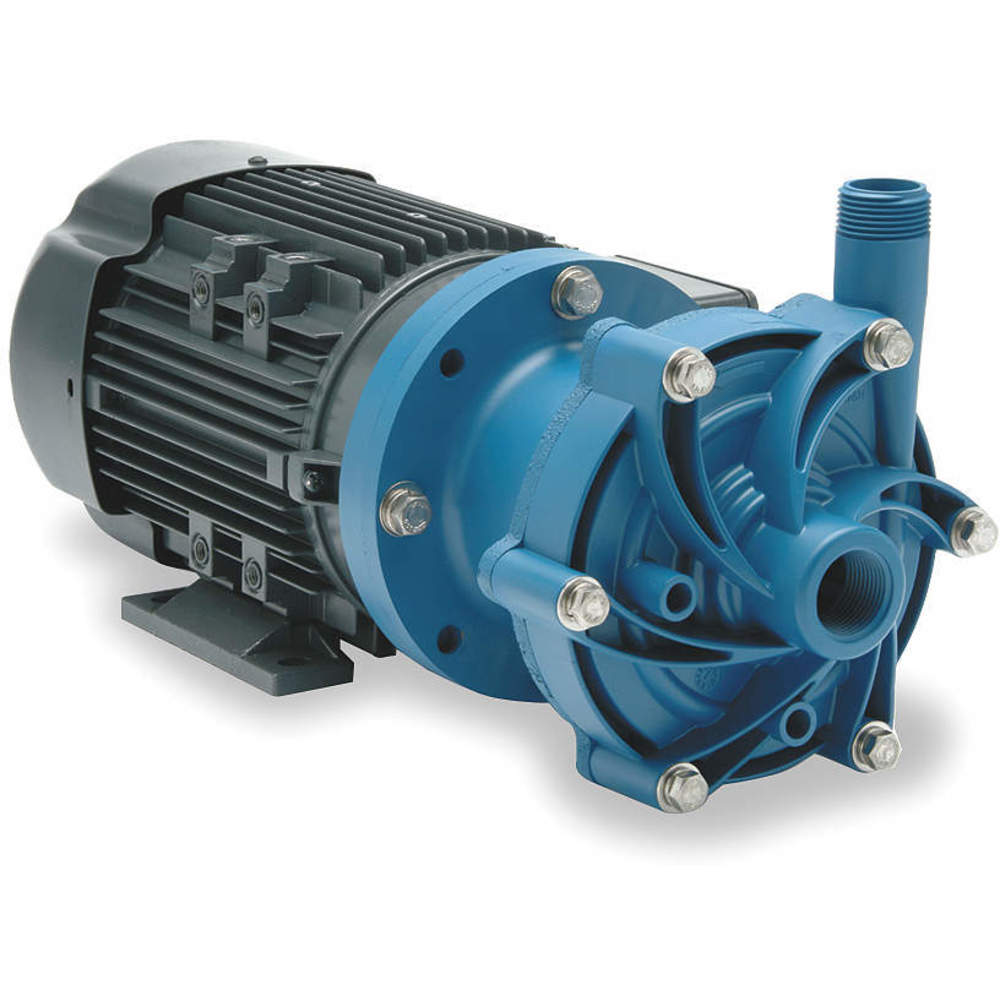

| C | DB6P-M224 | 1/3 hp | 115/208-230V AC | 14.2 psi | 39 GPM | 39 GPM | 37 GPM | 23 GPM | 0 GPM | $1,385.29 |
