| Item | HVAC Motor |
|---|---|
| Ambient Temp. | 40°C |
| Amps | 2.1A |
| Application | HVAC/R |
| Bearing Type | Sleeve |
| Body Dia. | 3 5/16" |
| Bolt Circle Dia. | 2 7/8" |
| Capacitor Required | No |
| Cord Length | 13" |
| Drive End Bearing | Sleeve |
| Duty | Air Over |
| Electrical Type | Shaded Pole |
| Frame | 3.3 |
| Frame Length | 2.82" |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 2.1A |
| Hp | 1/20 hp |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Insulation Class | Class B |
| Lead Length | 13" |
| Length | 6.37" |
| Length Less Shaft | 3 9/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Sleeve |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | OAO |
| Motor Frame Material | Steel |
| Motor Mounting Type | Ring, Stud |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CWSE |
|---|---|
| Motor Sub Application | Oem Replacement |
| Motor Thermal Protection | Auto |
| Motor Type | Shaded Pole |
| Mounting Holes | (8) #8-32 |
| Mounting Stud Location | 4/Both Ends |
| Mounting Type | Extended Studs |
| Nameplate Rpm | 1550 RPM |
| No. Of Poles | 4 |
| No. Of Shafts | 1 |
| No. Of Speeds | 1 |
| No. Of Studs | 4 |
| Opp Drive End Bearing | Sleeve |
| Output Hp | 1/20 hp |
| Output Kw | 0.04 kW |
| Overall Length | 6 3/8" |
| Phase | 1 |
| Plug Type | Round 2 Pin |
| Rpm | 1550 RPM |
| Service Factor | 1 |
| Shaft Dia. | 0.313" |
| Shaft Extension Size | 3" |
| Shaft Length | 3" |
| Shaft Type | Flat |
| Starting Method | Across The Line |
| Stud Location | Both Ends |
| Stud Size | #8-32 |
| Thermal Protection | Automatic , Yes |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V |
| Standards | CSA CERTIFIED, UL RECOGNIZED |

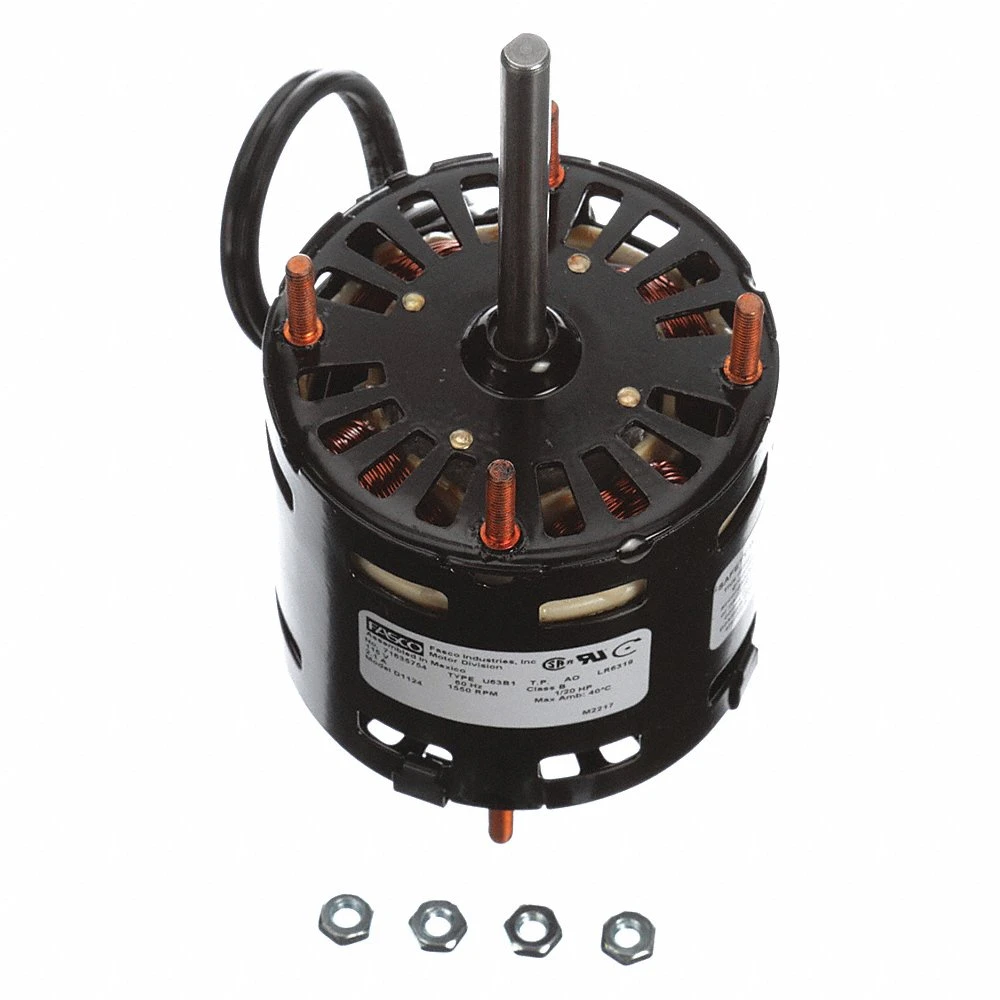

Fasco D1124 HVAC motor is ideal for maintaining optimal indoor air quality and temperature regulation by powering the rotation of fans and blowers in commercial and industrial settings.
| Height (cm) | 8.59 |
|---|---|
| Length (cm) | 20.32 |
| Width (cm) | 8.59 |
| Country Of Origin | MX |
|---|---|
| Weight (kg) | 1.71 |
It features built-in motor thermal protection with an automatic function, ensuring safety by preventing overheating during extended operation.
This HVAC motor can withstand a maximum ambient temperature of 40 degrees C.
| Style | Model | Voltage | Hp | Nameplate Rpm | Motor Shaft Rotation | Thermal Protection | Application | Shaft Length | Usable @ 208v | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | D0396 | 208-230V | 1/20 hp | 1450 RPM | CWSE | Automatic | General Application | 2 5/8" | Yes | $152.94 | |

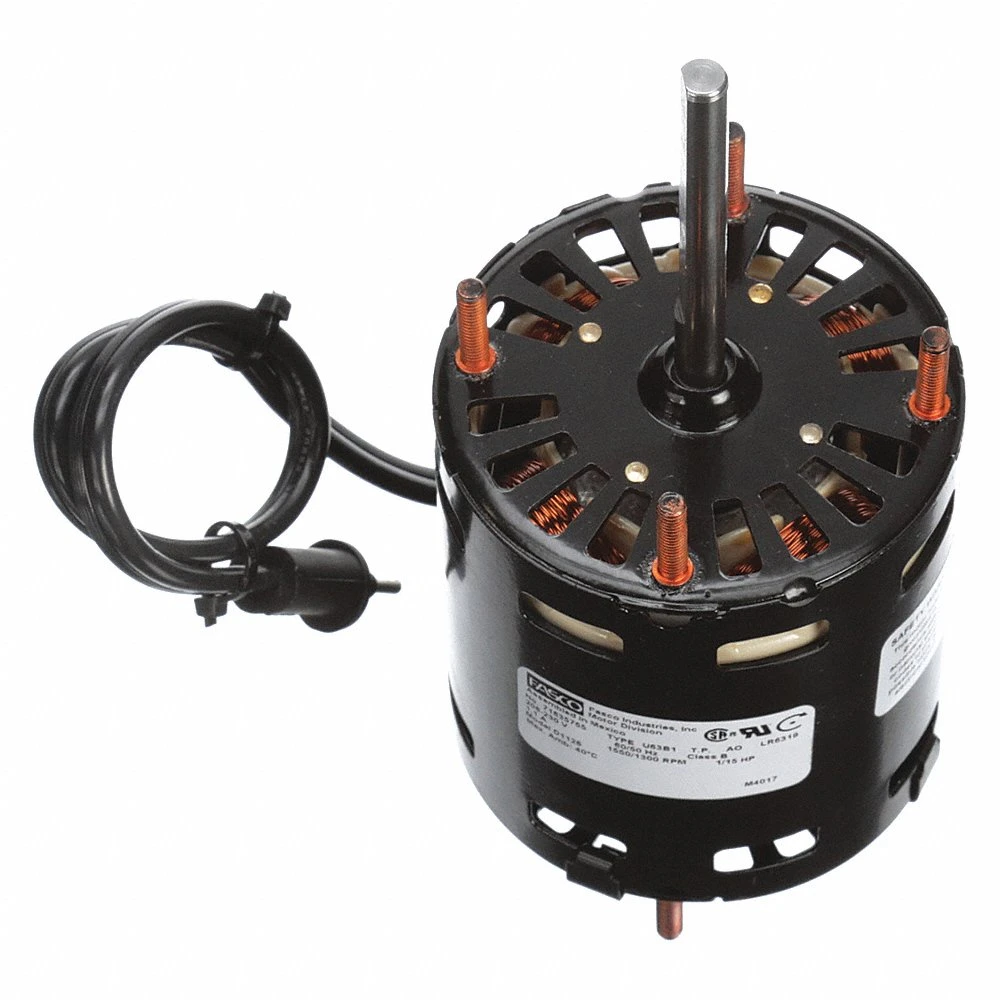

| B | D1126 | 208-230V | 1/15 hp | 1550 RPM | CWSE | Automatic | HVAC/R | 3" | Yes | $170.69 | |
| C | D1101 | 115V | 1/20 hp | 1500 RPM | CCWSE | Automatic | HVAC/R | 2 1/4" | No | $177.34 | |

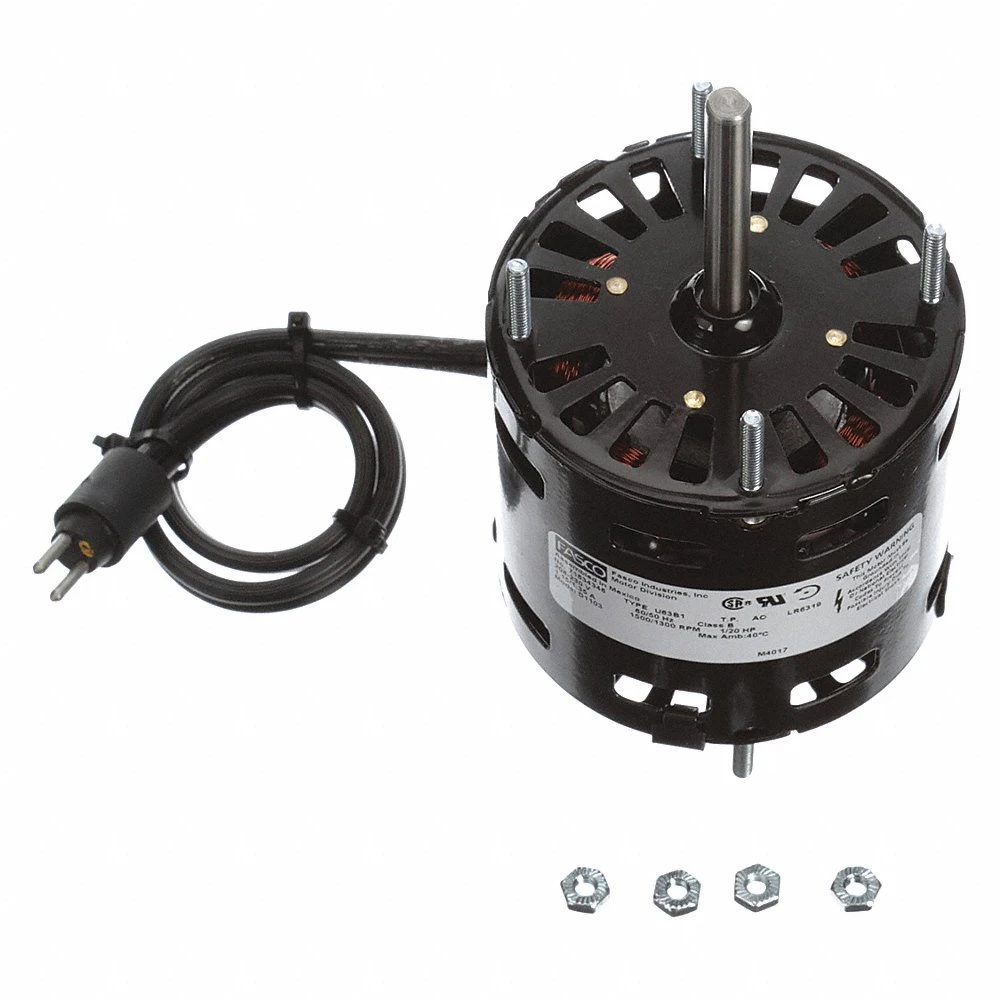

| D | D1103 | 208-230V | 1/20 hp | 1500 RPM | CCWSE | Automatic | HVAC/R | 2 1/4" | Yes | $191.69 |
