| Item | Draft Inducer Blower |
|---|---|
| Airflow @ 0.000 In Sp | 90 CFM |
| Ambient Temp. | 40°C |
| Amps | 1.1A |
| Application | Furnaces |
| Bearing Type | Sleeve |
| Blower Outlet Flange | No |
| Blower Outlet Shape | Rectangle |
| Construction Material | Steel |
| Depth | 5 7/8" |
| Electrical Connection | Wire Leads |
| Fits Brand | Goodman, Trane |
| For Appliance Type | Gas Furnaces |
| For Fuel Type | Natural Gas |
| For Use With | Furnace |
| Frequency | 50/60 Hz |
| Height | 7 1/2" |
| Housing Material | Steel |
| Hp | 1/50 hp |
| Includes Motor | Yes |
| Inlet Dia. | 4 5/8" |
| Insulation Class | Class B |
| Material | Steel |
|---|---|
| Max. Motor Hp | 1/50 hp |
| Motor Enclosure Design | Open |
| Motor Type | Shaded Pole |
| No. Of Speeds | 1 |
| Oem Replacement | Yes |
| Outlet Dia. | Not Applicable |
| Outlet Height | 2 5/8" |
| Outlet Shape | Rectangular |
| Outlet Width | 1 5/8" |
| Phase | 1 |
| Power Consumption | 90 W |
| Remarks | Product Used As Direct Oem Replacement Only. Any Other Use Constitutes A Misapplication Which Voids The Warranty And May Create Unsafe Conditions |
| Rpm | 3000 RPM |
| Thermal Protection | Yes |
| Type | Replacement |
| Voltage | 115V |
| Wattage | 90 W |
| Wheel Dia. | 4 1/2" |
| Wheel Material | Steel |
| Width | 8 5/8" |
Fasco A079 induced draft furnace blower improves combustion efficiency by creating negative pressure within the furnace or boiler. It is widely used in manufacturing, power generation and heating applications. This blower maintains a clean and safe environment and also maximises heat transfer.
| Height (cm) | 20.32 |
|---|---|
| Length (cm) | 30.48 |
| Width (cm) | 26.37 |
| HS Code | 8414596060 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 2.25 |
Electric motors are necessary for this Fasco draft blower to operate.
An induced draft blower generates negative pressure in order to draw air or gases out of a system, whereas a forced draft blower generates positive pressure to push air or gases into a system.
These blowers promote better indoor air quality by expelling combustion gases safely. They also enhance the overall energy efficiency of heating systems, making them more cost-effective to operate.
Fasco A079 blower can produce up to 79 CFM airflow.
| Style | Model | Outlet Shape | Voltage | Overall Height | Overall Width | Overall Depth | Housing Material | Outlet Height | Outlet Width | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | A086 | Round | 115V | 7 7/8" | 9" | 6 3/8" | Plastic | Not Applicable | Not Applicable | $457.80 | |

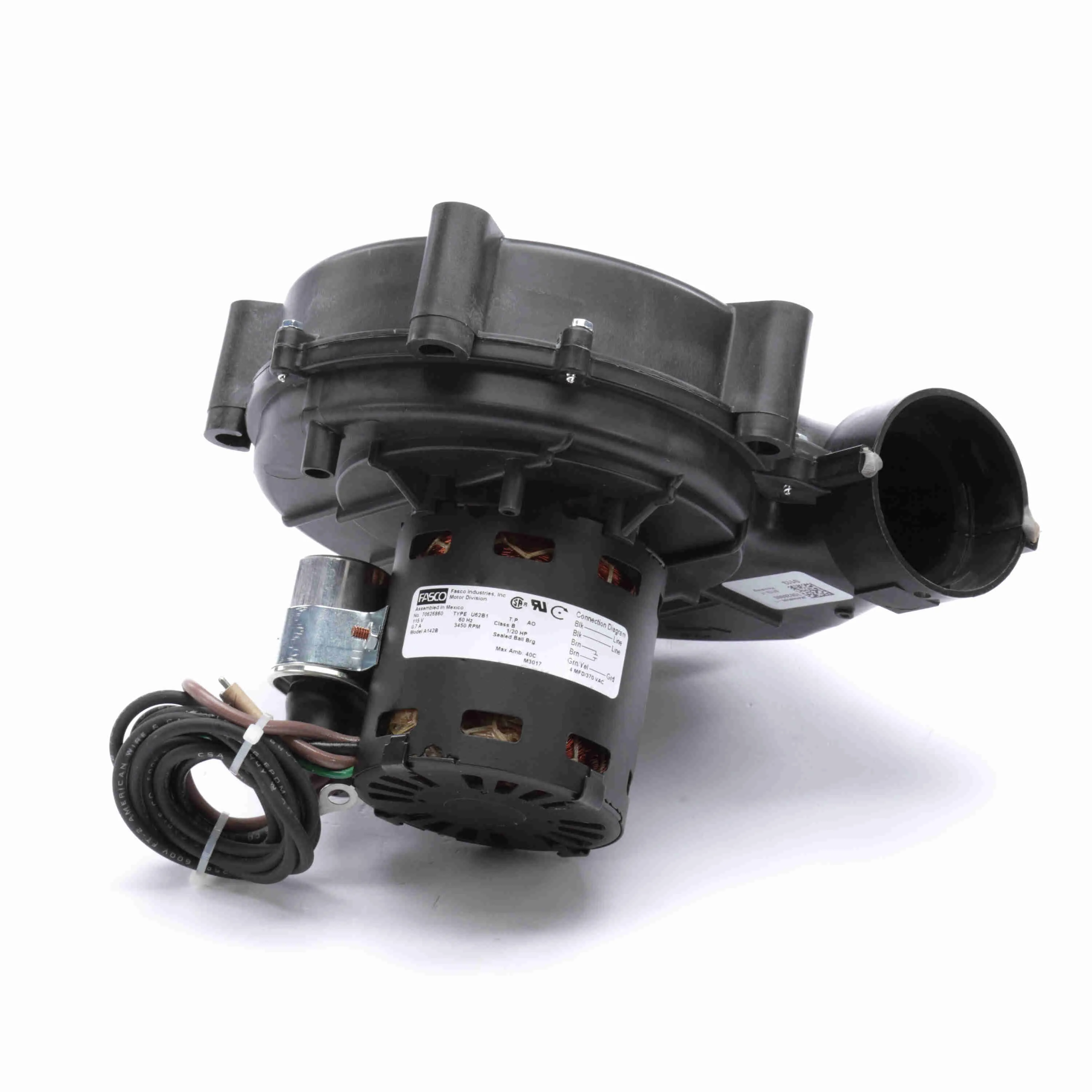

| B | A142B | Round | 115V | 7 3/4" | 9 1/8" | 6 3/8" | - | - | - | $695.88 | |

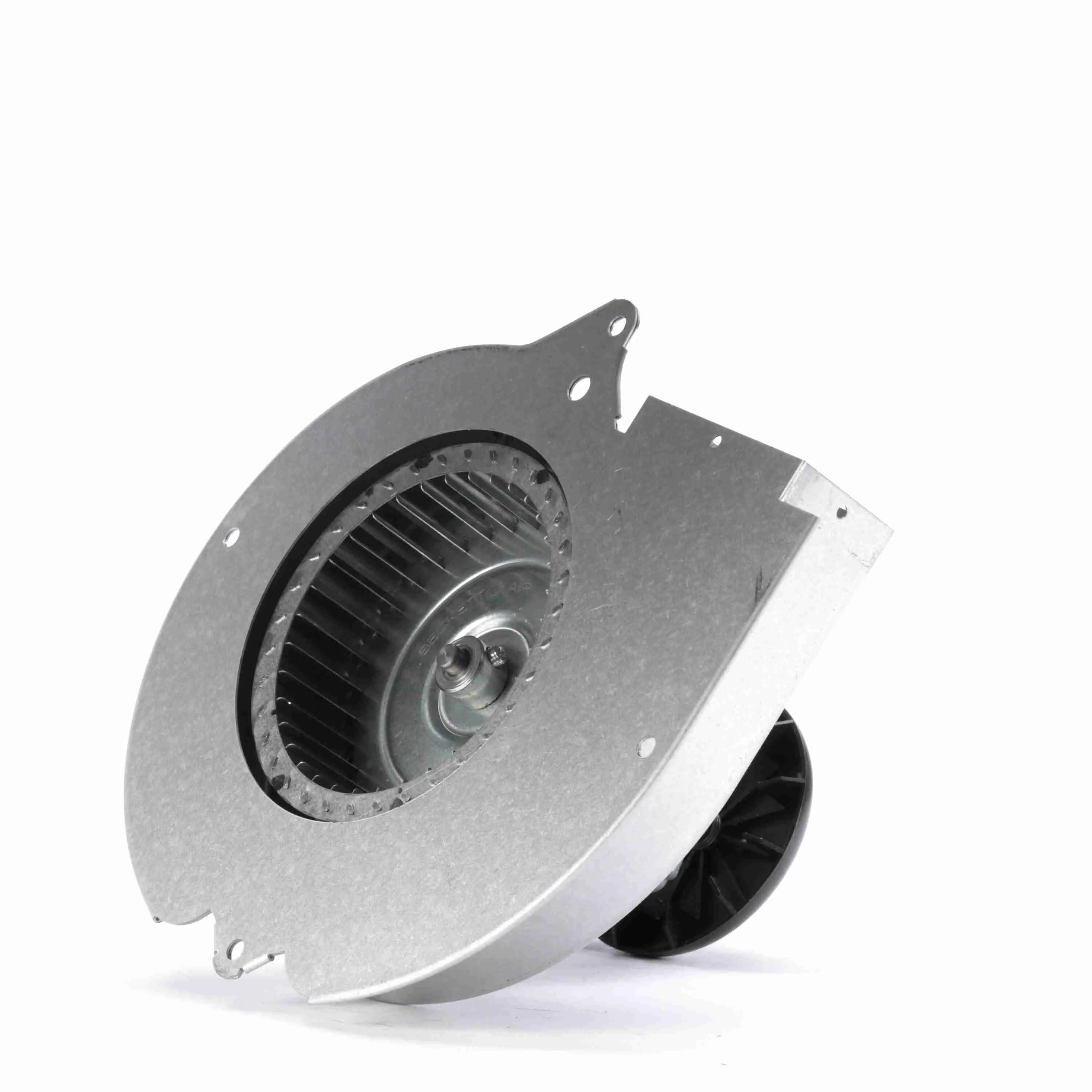

| C | A157 | Rectangular | 115V | 8 7/8" | 9" | 5 3/4" | Aluminum Steel | 2 5/8" | 1 3/4" | $340.30 | |
| D | A064 | Rectangular | 115V | 7 1/2" | 8 5/8" | 5 7/8" | Steel | 2 5/8" | 1 5/8" | $319.13 | |

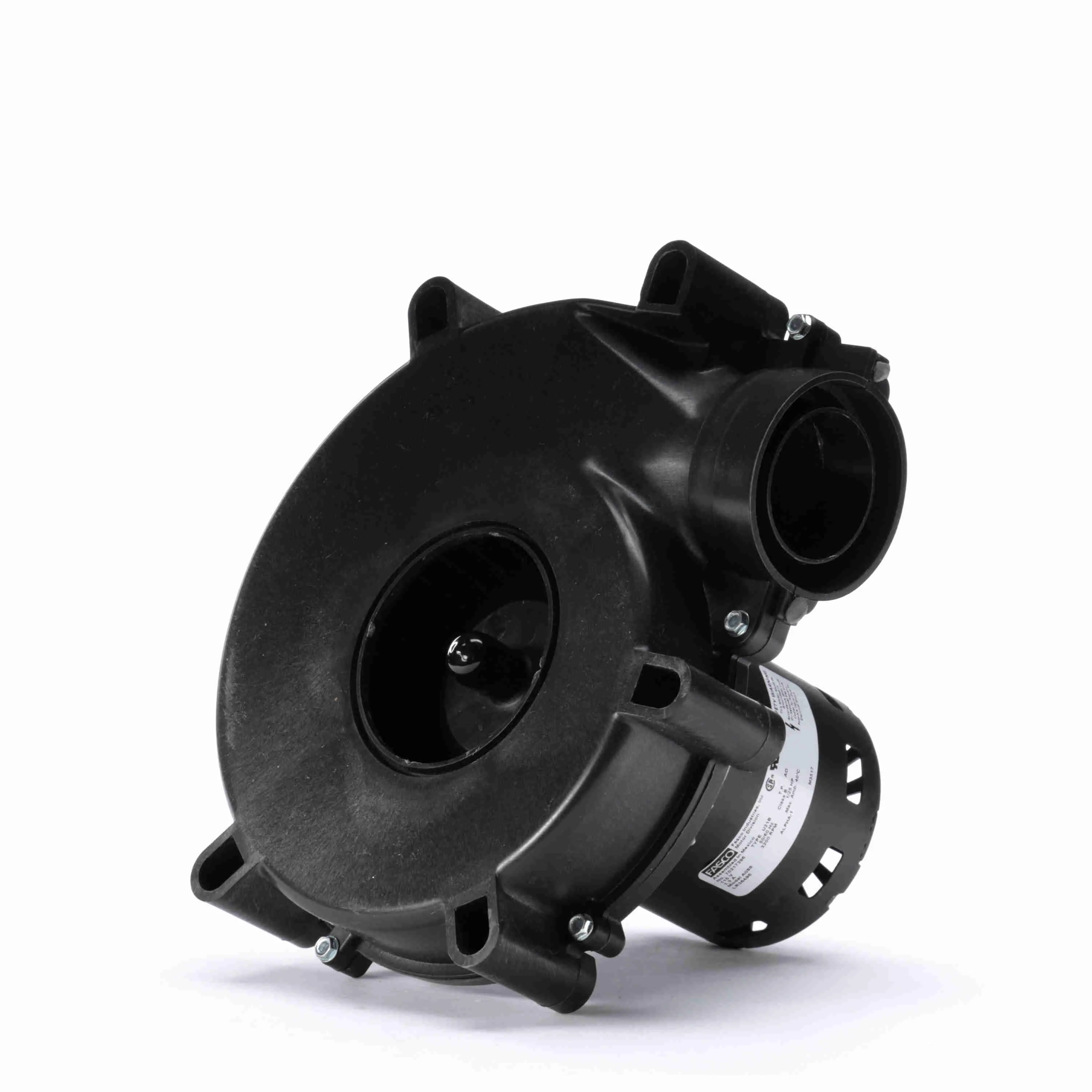

| E | A088 | Round | 115V | 7 7/8" | 9" | 6 1/2" | Plastic | Not Applicable | Not Applicable | $512.17 | |

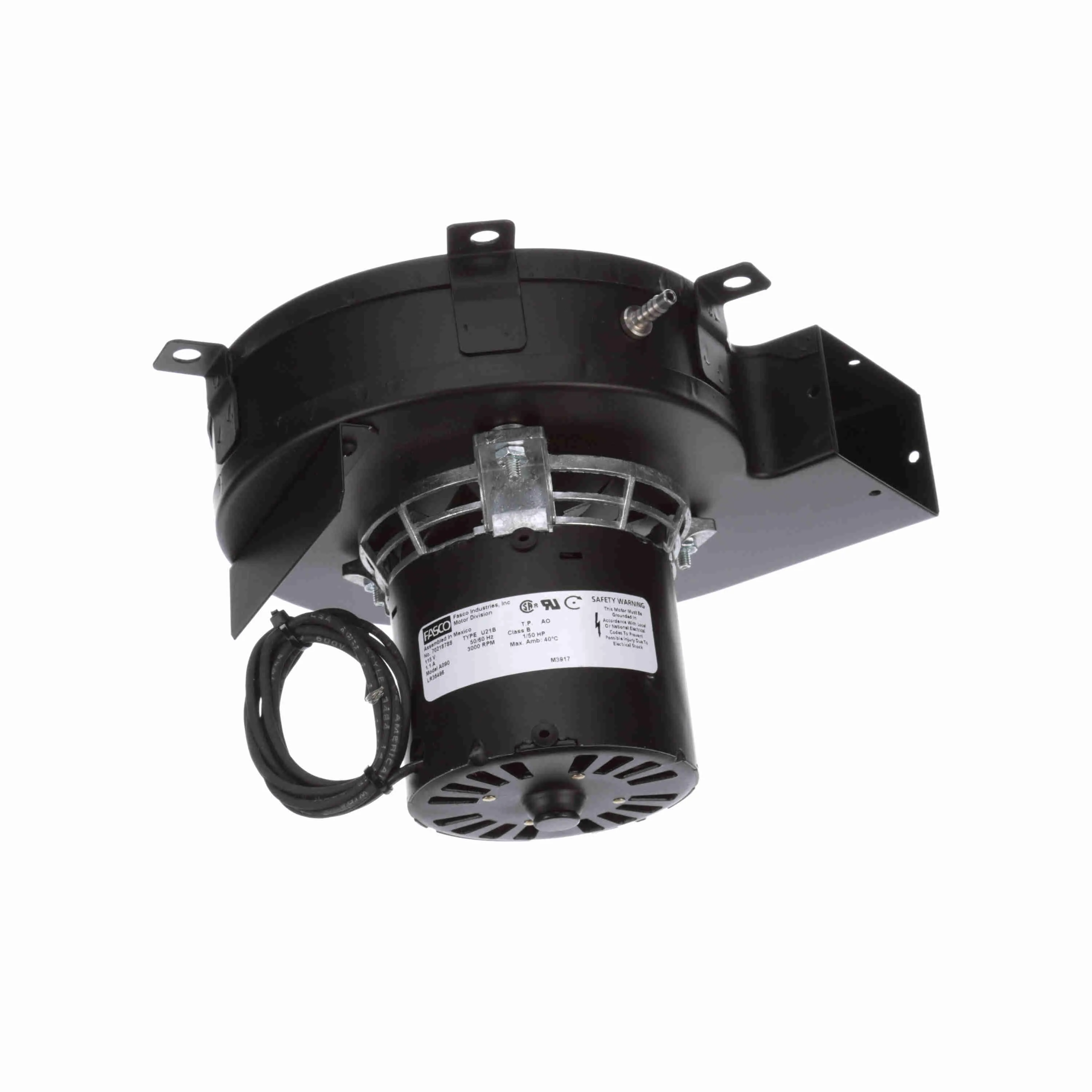

| F | A090 | Rectangular | 115V | 7 1/2" | 8 5/8" | 5 7/8" | Steel | 2 5/8" | 1 5/8" | $407.03 | |

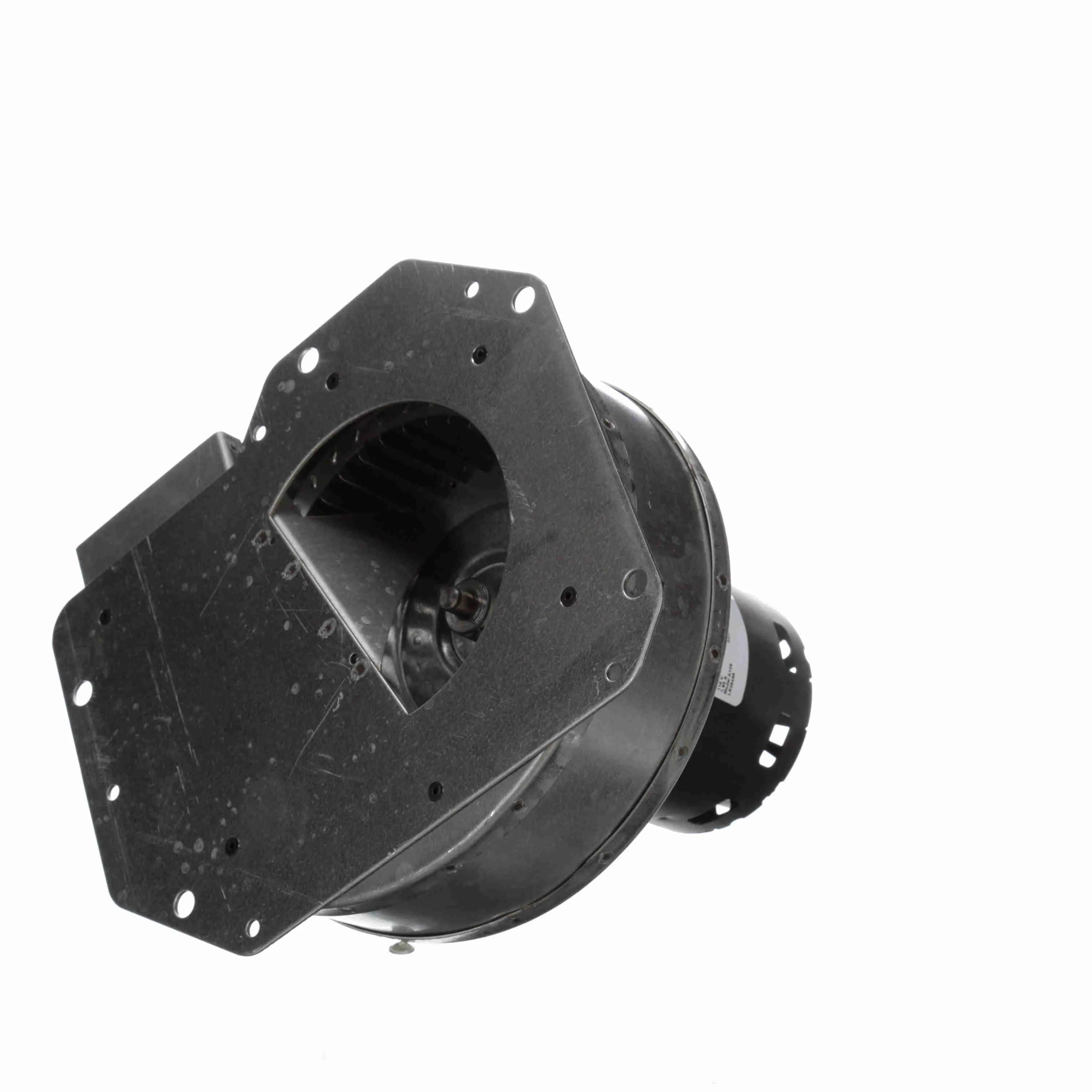

| G | A129 | Rectangular | 115V | 7 1/2" | 8 3/8" | 7" | Aluminum Steel | 2 5/8" | 2 1/8" | $561.16 |
