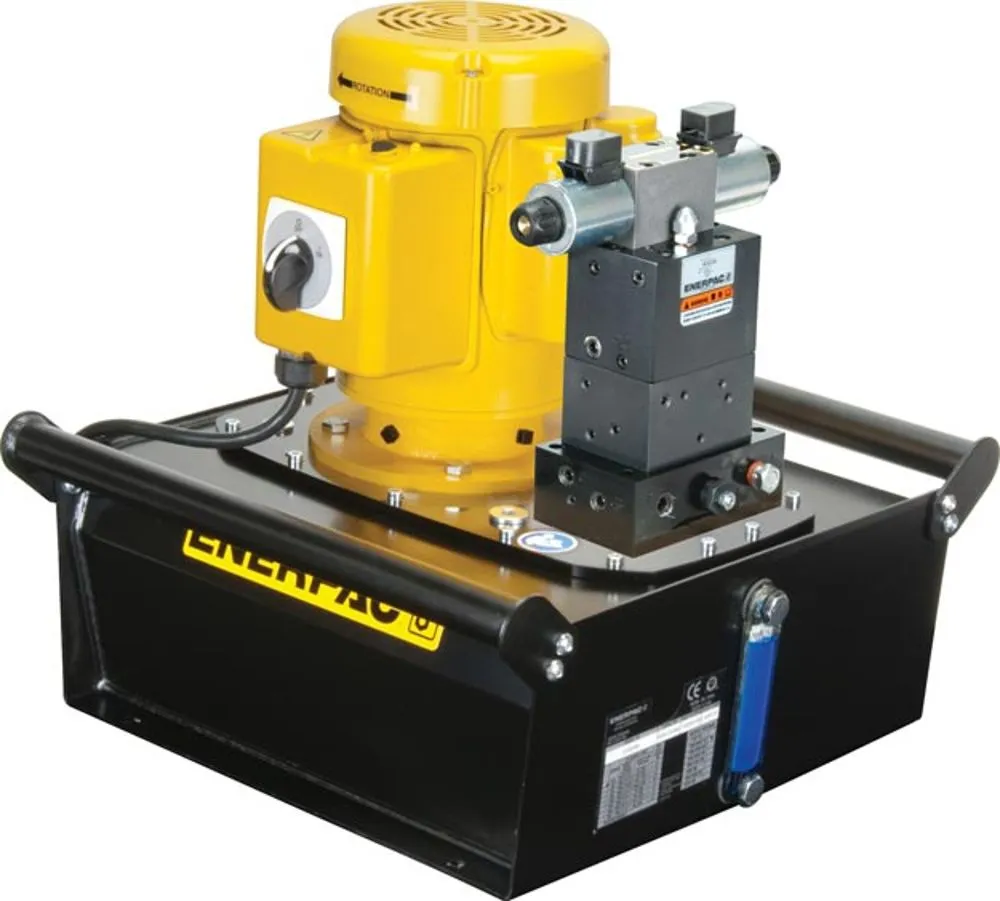

| Item | Hydraulic Electric Pump |
|---|---|
| Amps Ac | 8.8A |
| Application | Dump |
| Charger Input Voltage | 115V AC |
| Control Pendant Size | 10 ft. |
| Control Pendant Voltage | 24V DC |
| Control Valve Function | Advance, Retract |
| Control Valve Pressure Relief (minimum) | 1000 psi |
| Control Valve Type | 2 Position, 3 Way |
| Current | 10.5A |
| Cylinder Compatibility | Single Acting |
| Dimension A | 5 3/5" |
| Dimension B | 11" |
| Dimension C | 6" |
| Dimension H | 20 1/5" |
| Displacement @ 10,000 Psi | 40 cu. in./min. |
| Displacement @ 100 Psi | 450 cu. in./min. |
| Displacement @ 1000 Psi | 400 cu. in./min. |
| Displacement @ 200 Psi | 445 cu. in./min. |
| Displacement @ 5000 Psi | 42 cu. in./min. |
| Displacement @ 700 Psi | 385 cu. in./min. |
| Duty Cycle | Continuous |
| Fluid Port Npt | 3/8" |
| Frequency | 50/60 Hz |
| Horsepower - Maximum | 1 hp |
| Hp | 1 hp |
| Includes | Lcd Display |
|---|---|
| Max. Control Valve Pressure Relief | 10000 psi |
| Max. Flow Rate | 40 cu. in./min. |
| Max. Operating Pressure | 10000 psi |
| Max. Sound Level | 75 dBA |
| Media Intake Connection Size | 3/8" |
| Media Intake Connection Type | NPTF |
| Motor Rpm | 1750 RPM |
| Motor Type | Induction |
| Nameplate Voltage | 115V AC |
| Oil Displacement @ 0-200 Psi | 445 cu. in./min. |
| Oil Displacement @ 100 Psi | 450 cu. in./min. |
| Oil Displacement @ 1000 Psi | 400 cu. in./min. |
| Overall Height | 20.2" |
| Overall Length | 25.8" |
| Overall Width | 12 1/2" |
| Phase | Single |
| Power Source | Electric |
| Pump Control | Pendant |
| Relief Valve Range | 1000 psi to 10000 psi |
| Reservoir Capacity | 1 gal. |
| Reservoir Material | Steel |
| Solenoid Valve Voltage | 24V |
| Sound Level | 75 dBA |
| Type | Electric |
| Valve Operation | Solenoid |
| Height (cm) | 71.12 |
|---|---|
| Length (cm) | 76.2 |
| Width (cm) | 76.2 |
| HS Code | 8413500050 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 55.215 |
| Style | Model | Cylinder Compatibility | Duty Cycle | Reservoir Capacity | Sound Level | Type | Relief Valve Range | Amps Ac | Valve Operation | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | ZE3308SB | Single Acting | Continuous | 2 gal. | 75 dBA to 78 dBA | High Force | 70 Bar to 700 Bar | 16A | Solenoid | $15,888.04 | |
| B | ZE3108DB | Single Acting | Continuous | 2 gal. | 75 dBA | Electric | 1000 psi to 10000 psi | 8.8A | Solenoid | $14,151.36 | |
| B | ZE3110DB | Single Acting | Continuous | - | 75 dBA | Electric | 1000 psi to 10000 psi | 8.8A | Solenoid | $16,268.79 | |
| B | ZE3120DB | Single Acting | Continuous | 5 gal. | 75 dBA | Electric | 1000 psi to 10000 psi | 8.8A | Solenoid | $16,821.90 | |
| C | ZE3204MB | Single Acting | - | 231 cu. in. | 75 dBA | Electric | 1000 psi to 10000 psi | 8.8A | - | $10,406.14 | |
| D | ZE3208LB | Single Acting | Extended | - | 75 dBA | Electric | 1000 psi to 10000 psi | 8.8A | Manual | $7,921.05 | |
| D | ZE3208MB | Single Acting | Continuous | 2 gal. | 75 dBA | Electric | 1000 psi to 10000 psi | 8.8A | Manual | $9,889.38 |
