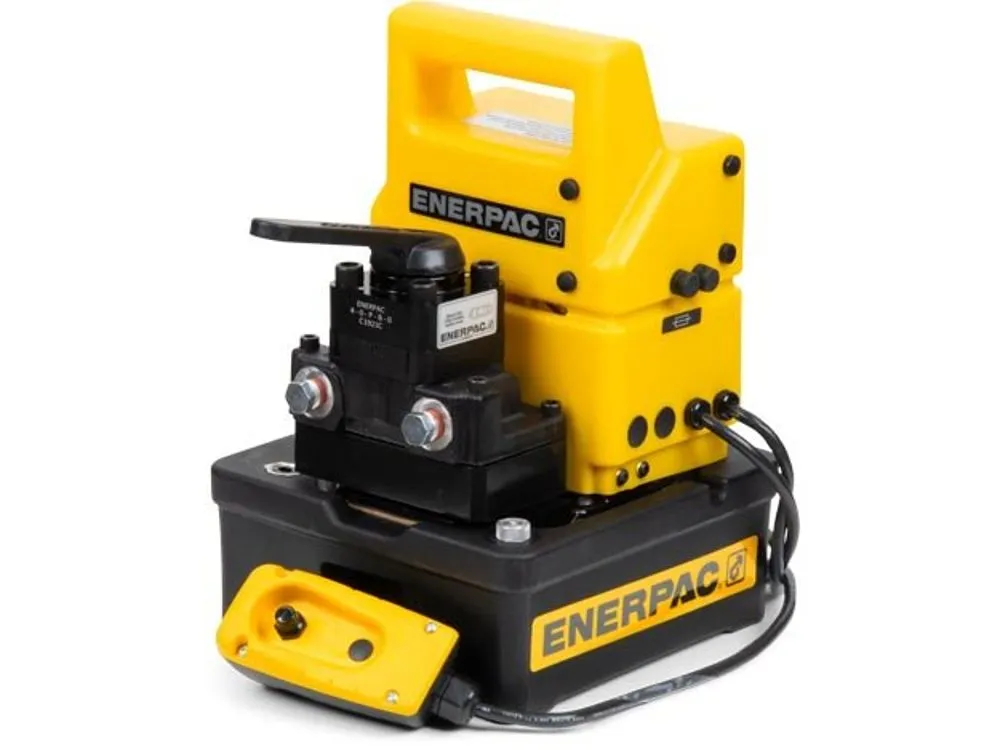

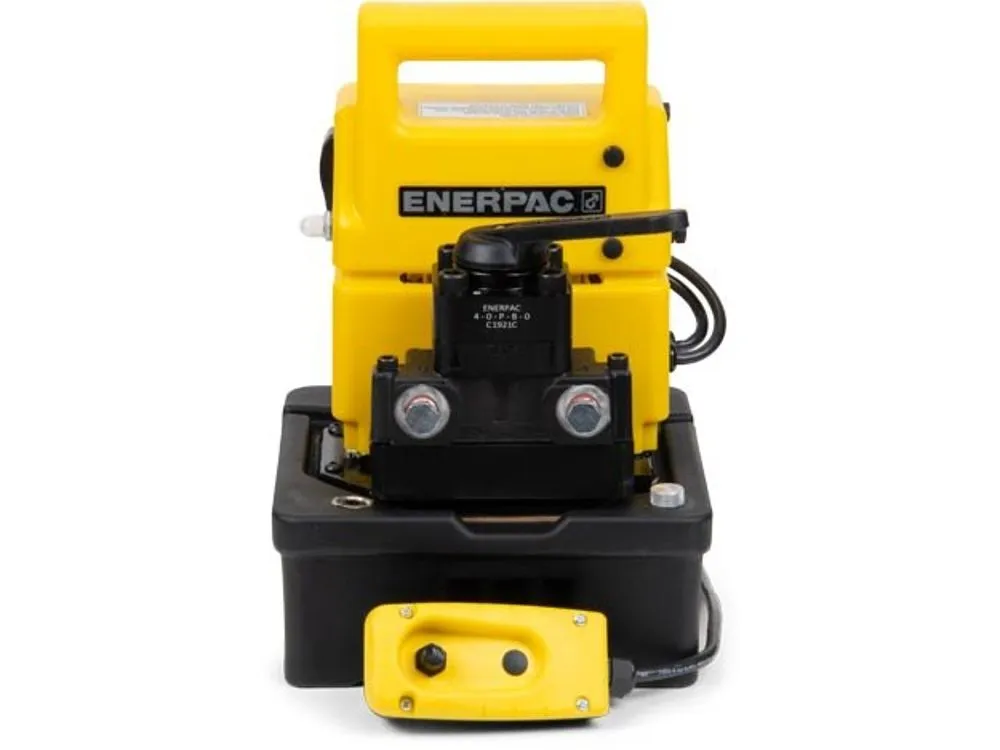

| Item | Hydraulic Electric Pump |
|---|---|
| Amps Ac | 9.5A |
| Charger Input Voltage | 115V AC |
| Control Pendant Size | 10 ft. |
| Control Pendant Voltage | Manual |
| Control Valve Function | Advance, Hold, Retract |
| Control Valve Pressure Relief (minimum) | 1000 psi |
| Control Valve Type | 3 Position, 4 Way |
| Current Drawn | 9.5A |
| Cylinder Compatibility | Double Acting |
| Dimension C | 14 1/4" |
| Dimension D | 4" |
| Dimension E | 4 18/25" |
| Dimension F | 8" |
| Dimension H | 2/5" |
| Dimension J | 5 1/4" |
| Displacement @ 10,000 Psi | 20 cu. in./min. |
| Displacement @ 100 Psi | 200 cu. in./min. |
| Displacement @ 1000 Psi | 30 cu. in./min. |
| Displacement @ 200 Psi | 200 cu. in./min. |
| Displacement @ 5000 Psi | 25 cu. in./min. |
| Displacement @ 700 Psi | 70 cu. in./min. |
| Duty Cycle | Intermittent |
| Fluid Port Npt | 3/8" |
| Frequency | 50/60 Hz |
|---|---|
| Hp | 1/2 hp |
| Max. Control Valve Pressure Relief | 2000 psi |
| Max. Flow Rate | 20 cu. in./min. |
| Max. Horsepower | 1/2 hp |
| Max. Operating Pressure | 10000 psi |
| Max. Sound Level | 85 dBA |
| Media Intake Connection Size | 1/4" |
| Media Intake Connection Type | NPTF |
| Motor Type | Universal |
| Nameplate Voltage | 115V AC |
| Overall Height | 14.3" |
| Overall Length | 9.6" |
| Overall Width | 9 3/5" |
| Power Source | Electric |
| Pump Control | Pendant |
| Relief Valve Range | 1000 psi to 2000 psi |
| Remote Control Cord Length | 10 ft. |
| Reservoir Capacity | 0.5 gal. |
| Reservoir Material | Polyethylene |
| Sound Level | 85 dBA |
| Type | Electric |
| Valve Operation | Manual |
| Height (cm) | 38.1 |
|---|---|
| Length (cm) | 38.1 |
| Width (cm) | 33.02 |
| HS Code | 8413500050 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 15.975 |
| Style | Model | Cylinder Compatibility | Reservoir Capacity | Type | Max. Operating Pressure | Duty Cycle | Hp | Sound Level | Motor Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | PUJ1200B | Single Acting | 0.5 gal. | High Force | 10000 psi | Intermittent | 1/2 hp | 85 dBA | Universal | $5,858.52 | |
| B | PUJ1201B | Single Acting | 1 gal. | High Force | 10000 psi | Intermittent | 1/2 hp | 85 dBA | Universal | $6,301.29 | |
| C | PUJ1401B | Double Acting | 1 gal. | Electric | 10000 psi | Intermittent | 1/2 hp | 85 dBA | Universal | $8,261.29 |
