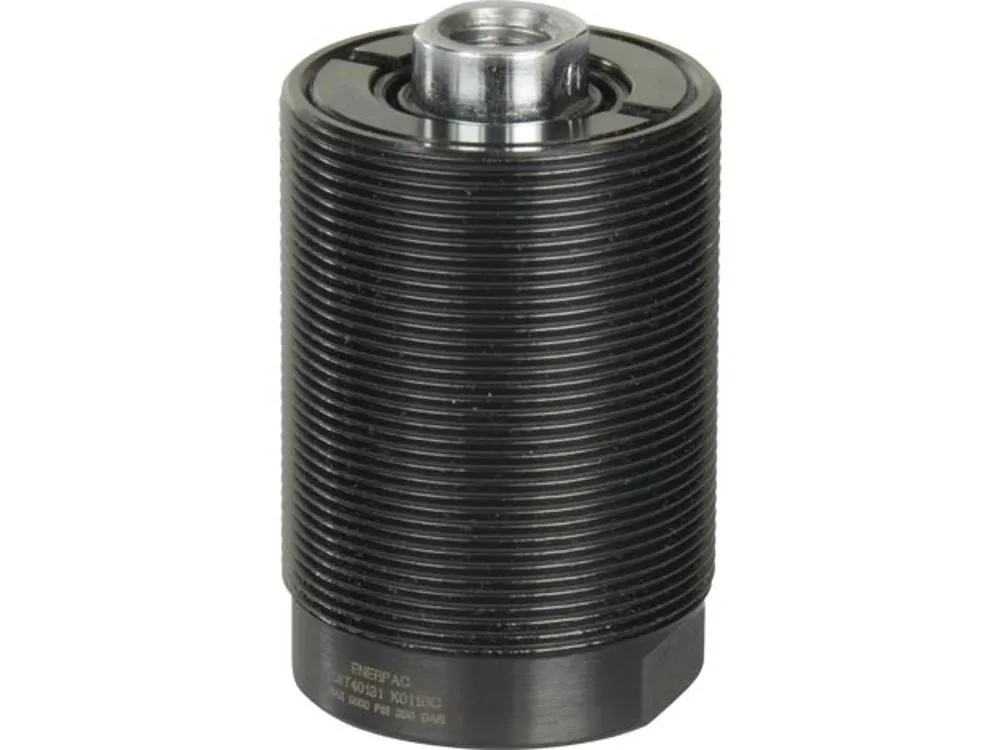

| Item | Hydraulic Cylinder |
|---|---|
| Body Material | Steel |
| Body Thread | 1 7/8"-16 |
| Cylinder Type | Threaded Body |
| Dimension A | 3 13/25" |
| Dimension B | 2.94" |
| Dimension C1 | 0.43" |
| Dimension D1 | 1.79" |
| Dimension E | 0.78" |
| Dimension E1 | 3/4" |
| Dimension F | 1.63" |
| Dimension P | 0.31" |
| Dimension S | 0.67" |
| Dimension T | 0.47" |
| Effective Push Area | 1.76 sq. in. |
| Extended Height | 3.52" |
| Function | Single Acting |
| Material | Steel |
| Material Of Construction | Steel |
|---|---|
| Max. Cylinder Capacity Advance | 8800 lbs. |
| Max. Operating Pressure | 5000 psi |
| Mounting Style | Threaded Body |
| Oil Capacity Push | 0.9 cu. in. |
| Outside Dia. | 1.625" |
| Plunger Thread Size | 1/2"-13 |
| Plunger Type | Solid |
| Pressure Range | 580 psi to 5000 psi |
| Promotion Restriction | Not Eligible For Promotion |
| Push Capacity @ 5000 Psi | 8800 lbf. |
| Retracted Height | 2.94" |
| Seal Material | Polyurethane, Buna N |
| Single Acting/double Acting | Single Acting |
| Stroke | 0.51" |
| Stroke Length | 1/2" |
| Type | Threaded Body |
| Height (cm) | 9.4 |
|---|---|
| Length (cm) | 11.43 |
| Width (cm) | 11.68 |
| HS Code | 8412210030 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.8843 |
| Style | Model | Retracted Height | Stroke | Outside Dia. | Dimension A | Dimension D1 | Dimension E | Dimension F | Dimension T | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

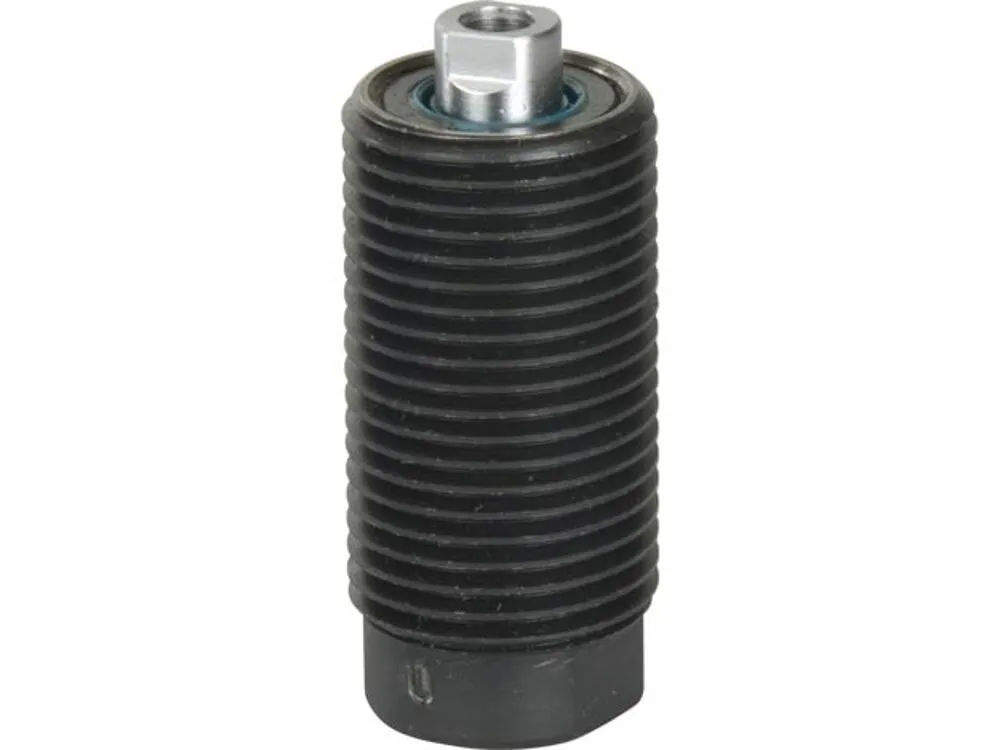

| A | CST271 | 1.65" | 7/25" | 1/2" | - | - | - | - | - | $283.29 | |
| B | CST2131 | 2.03" | 0.51" | 1/2" | - | - | - | - | - | $300.04 | |

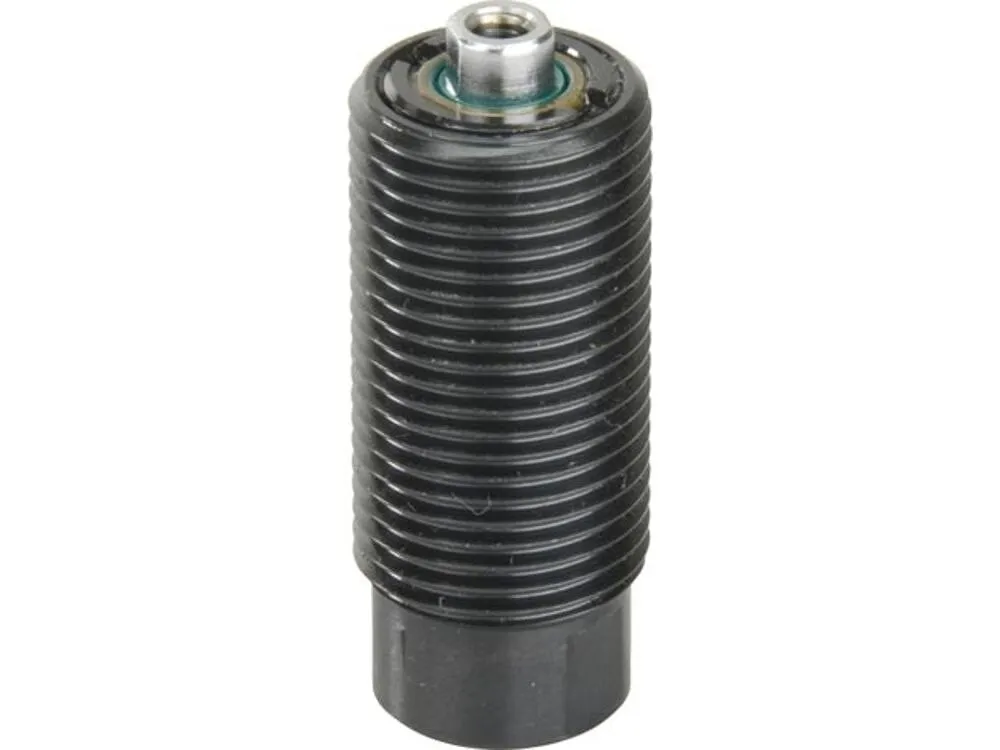

| C | CST471 | 1.87" | 7/25" | 3/4" | - | - | - | - | - | $254.79 | |
| D | CST4131 | 2.21" | 0.51" | - | 2.71" | 0.69" | 0.27" | 0.62" | 7/25" | $313.43 | |

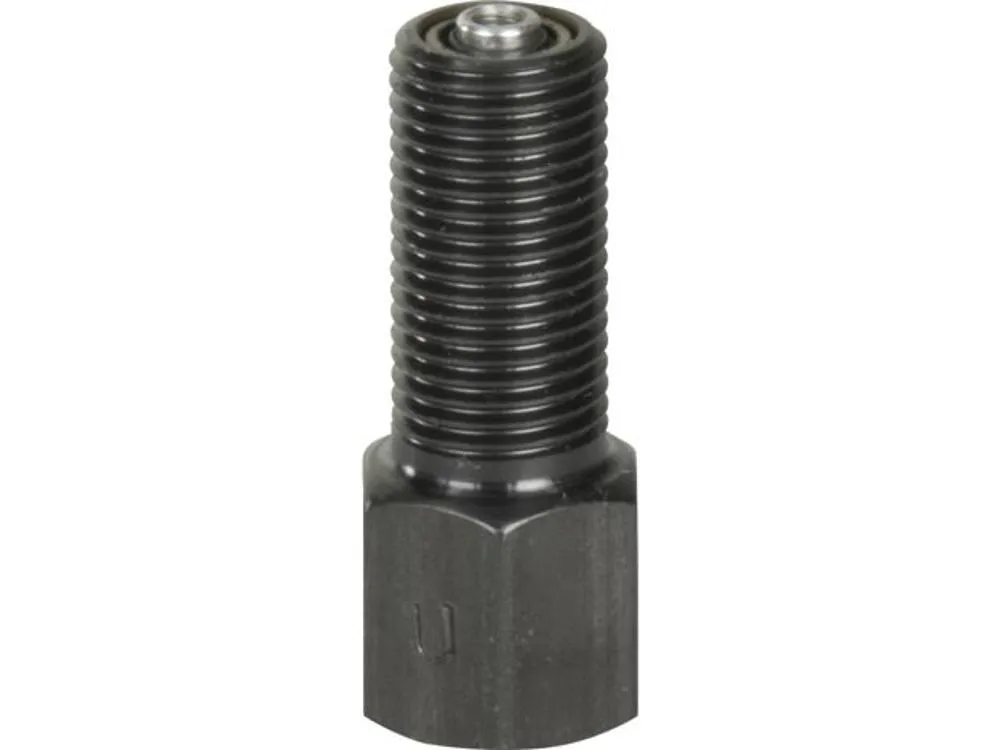

| E | CST971 | 2.26" | 7/25" | 1" | 2.54" | 22/25" | 0.39" | 0.79" | 0.39" | $362.57 | |
| F | CST9131 | 2 1/2" | 0.51" | 1" | 3.02" | 22/25" | 0.39" | 0.79" | 0.39" | $352.54 | |

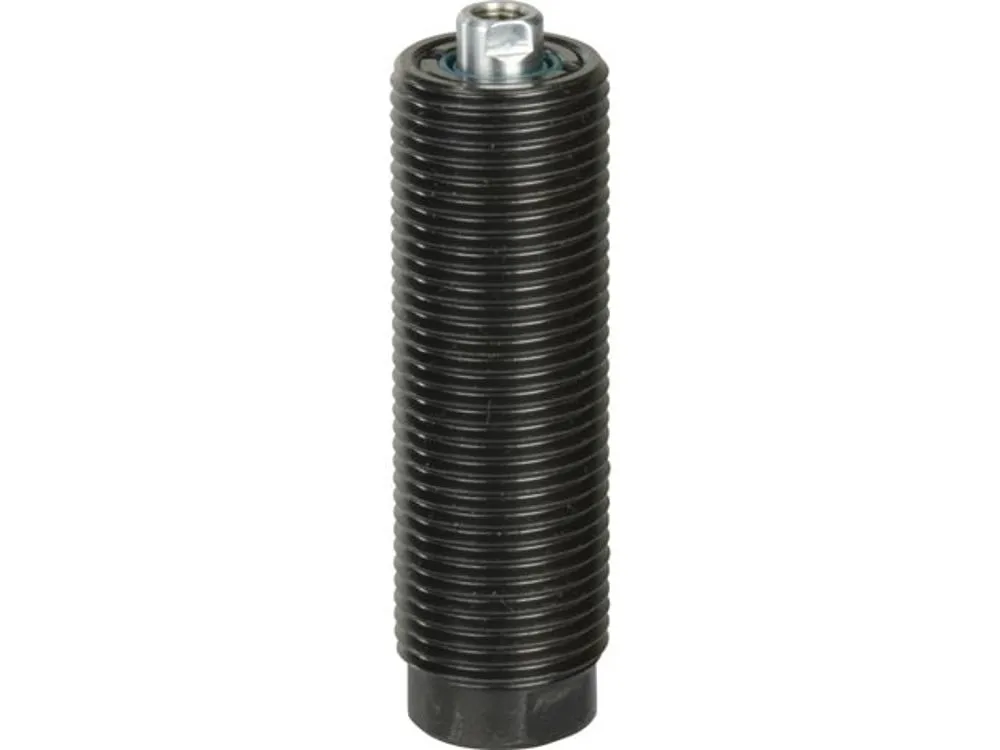

| G | CST9251 | 3.42" | 0.98" | 1" | 4.46" | 22/25" | 0.39" | 0.79" | 0.39" | $368.29 |
